Bosch GWS 14-125 CE angle grinder: exploded parts diagram, 2 sheets, 84 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GWS 14-125 CE: 84 positions on 2 sheets

Bosch GWS 14-125 CE parts list (2 sheets)

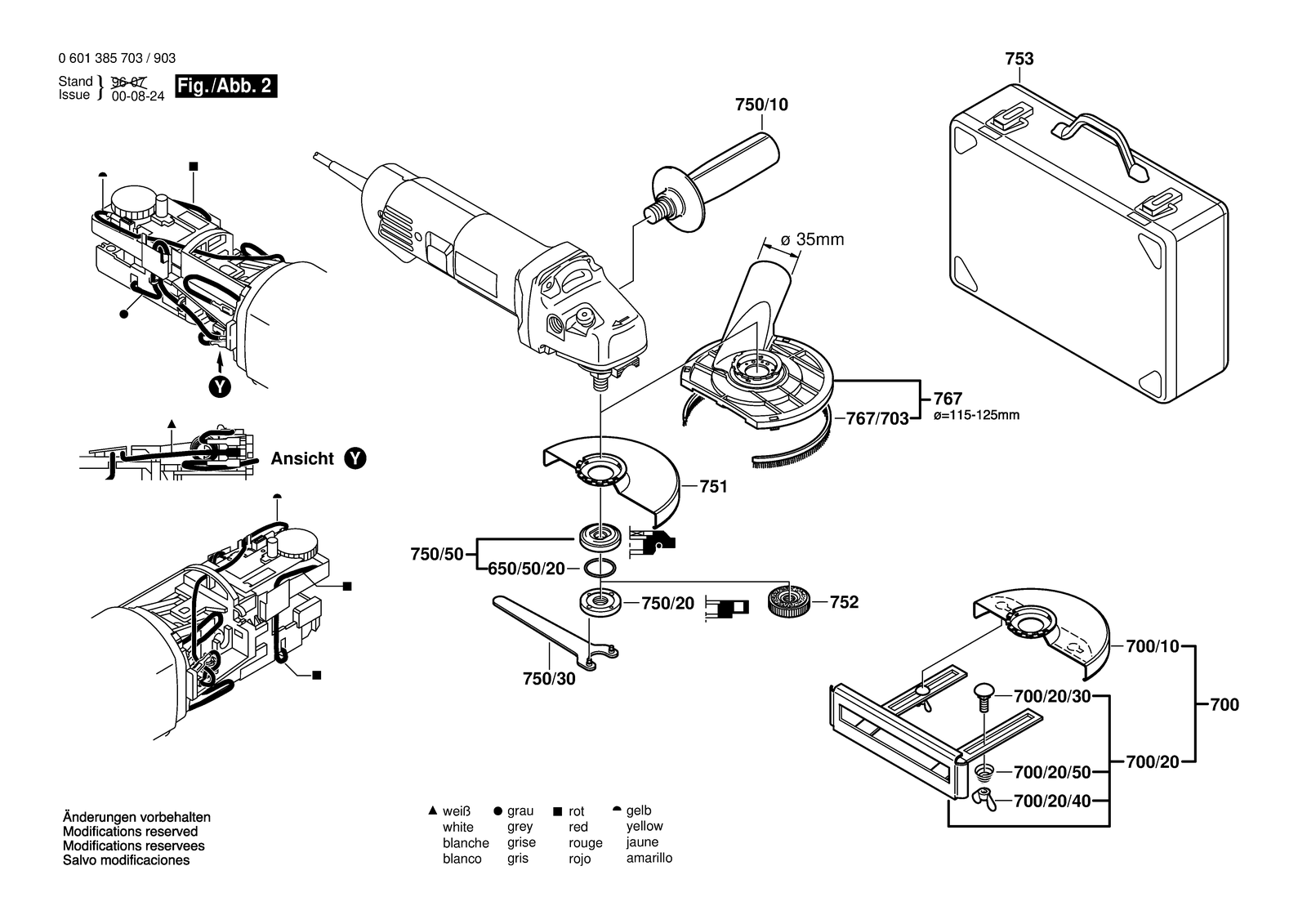

Bosch GWS 14-125 CE parts diagram, sheet 1Bosch GWS 14-125 CE parts diagram, sheet 2
No.Part numberPart name
11605108162Motor Housing Blue
1041600210044O-Ring Blue 4,5X1,0 MM
132600905032Ball Bearing 7X19X6
141600905011Groove ball bearing 8X22X7
171604652013Spiral Spring
181602319013Switch-Pawl Black
1803601119137Warning Plate Caution
191604611024Compression Spring
21604220288Field 240V
21604220316Field 100-120V
21607000F0SField
201602319007Shift-Lever Knob Black
241600499013Guiding Plate
251605500174Housing Cover Blue
25/11605500174Housing Cover Blue
261600206036Rubber Ring
271600206025Rubber Ring
291600591013Air-Deflector Ring
3/501606610132Fan
301600591014Air-Deflector Ring
311601290007Clamping Spring
321607000D64Bearing Flange
331600210035O-Ring 46,0X1,1 MM
351600136013Shim Thick 0,1 MM
351600136014Shim Thick 0,2 MM
351600136015Shim Thick 0,3 MM
371600290016Rotary shaft lip seal
401600119011Retaining clip
411600910018Needle bearing Ø8XØ12X8 MM
451603300016Hex Nut M7, SW10
472912401018Tapping Screw DIN7981-ST3,9X13-C-Z
491603435026Thread-forming tap. Screw
51604460032Power supply cord AUS 2,65M 2 X 1,0MM Pvc
51604460133Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2
51604460134Power supply cord J 4,2M 2 X 1,25MM Gummi
51604460171Power supply cord It/br 230V 4,15M 2 X 1,0MM H05 Rn-F
51604460201Power supply cord GB 110V 4,15M 2 X 1,5MM H07 Rn-F
51604460400Power supply cord CH 4,15M 2 X 1,0MM H05 Rn-F
501603435037Plastic-Cutting Screw
521609270562Light Conductor 15,7 MM
552912401022Tapping Screw DIN 7981-ST3,9X25-C-Z
561603435044Plastic-Cutting Screw
571603429002Socket head cap screw M3,5X7 MM
61600703030Grommet Ø6,4-Ø7,2X67 MM
61600703031Grommet Ø7,3-Ø8,6X67 MM
61600703032Grommet Ø8,7-Ø9,5X67 MM
650/50/201600210039O-Ring 20,35X1,78 MM
71601302017Fastening Clamp
7002607001188Parts Set Ø 125 MM
700/102605510101Protective Cover Ø 125MM
700/201608135004Guide Block
700/20/302910281158Round-Head Bolt DIN 603-M 5X16
700/20/402915191105Wing Nut M 5 DIN 315-G-5
700/20/501604643004Compression Spring
750/10160202509TAuxiliary Handle
750/201603340040Clamping Nut M14
750/301607950043Pin-Type Face-Wrench
750/501605703099Clamping-Flange Ø22,2X42 MM
7512605510104Protective Cover Silver Ø 125MM
7521603340031Fast Locking Flange M14
7531605438089Carrying Case
7672605510107Suction Hood Ø115-125MM
767/7032605730036Brush
801619P09390Cover Disc
8031604010445Armature With Fan 220-230V
8031604010458Armature 240V
8031604010606Armature 100-120V
8041607200115Switch
8051607000228Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F
808160111A3H3Nameplate
8101607000499Carbon-Brush Set 10 X 1 607 014 148
8101607014148Carbon Brush
8161604336031Brush Holder
8211605806451Gear Housing
821/0101607000253Push-Button Black
8281605805079Bearing Flange Black
8381607000D4YGear Unit
8511607000283Speed governor 100V
8511607000285Speed governor 230V
8511607000286Speed governor 240V
8511607000288Speed governor 100-120V
8521607000278Light Conductor
91601118542Manufacturer's nameplate
91601118543Manufacturer's nameplate
