Bosch GWS 14-125
Bosch GWS 14-125 angle grinder: exploded parts diagram, 2 sheets, 140 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

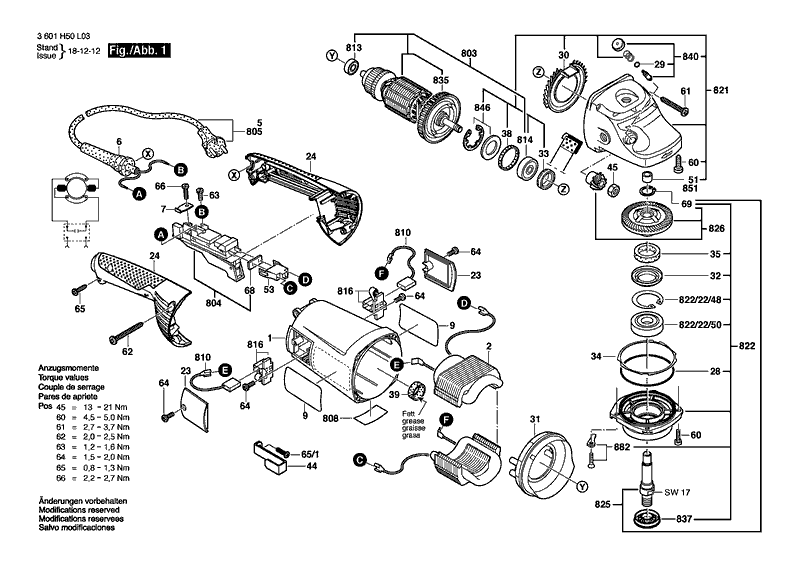

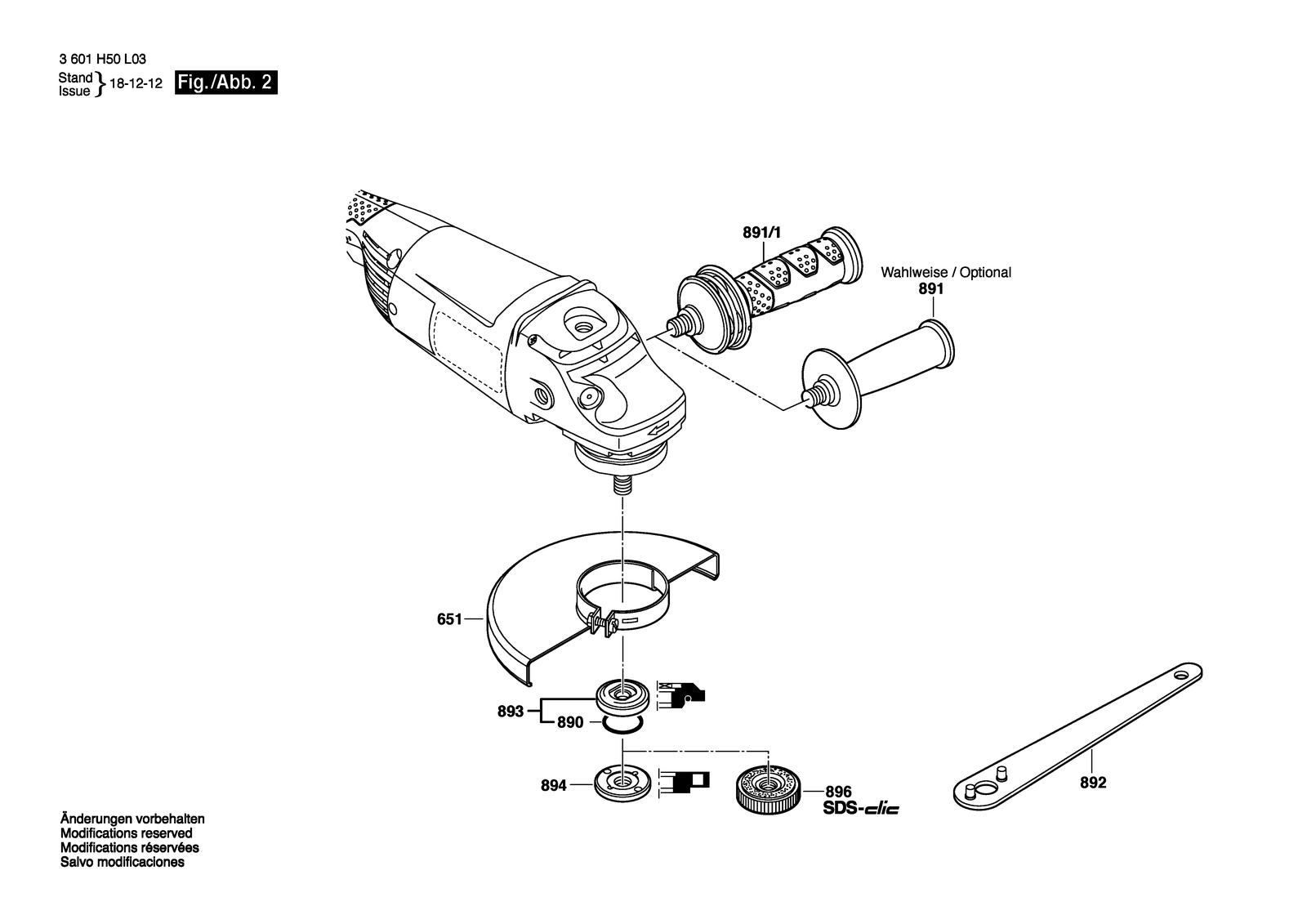

All parts of Bosch GWS 14-125: 140 positions on 2 sheets
Bosch GWS 14-125 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108233 | Motor Housing Blue |
| 1 | 1605108233 | Motor Housing Blue |
| 2 | 1604220455 | Field |
| 2 | 1604220455 | Field |
| 2 | 160422057P | Field |
| 23 | 1605500233 | Sealing cap Blue |
| 23 | 1605500233 | Sealing cap Blue |
| 24 | 1605132157 | Handle |
| 24 | 1605132157 | Handle |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 29 | 1600210045 | O-Ring 8,0X1,0 MM |
| 29 | 1600210045 | O-Ring 8,0X1,0 MM |
| 30 | 1600591035 | Air Distributor |
| 30 | 1600591035 | Air Distributor |
| 31 | 1619P17209 | Air-Deflector Ring |
| 31 | 1619P17209 | Air-Deflector Ring |
| 32 | 1600290019 | Retaining snap ring |
| 32 | 1600290019 | Retaining snap ring |
| 33 | 1600290064 | Rotary shaft lip seal Blue 16 MM |
| 33 | 1600290064 | Rotary shaft lip seal Blue 16 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 34 | 1600190037 | Shim Thick 0,2 MM |
| 34 | 1600190038 | Shim Thick 0,25 MM |
| 34 | 1600190039 | Shim Thick 0,35 MM |
| 34 | 1600190040 | Shim Thick 0,4 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 34 | 1600190037 | Shim Thick 0,2 MM |
| 34 | 1600190038 | Shim Thick 0,25 MM |
| 34 | 1600190039 | Shim Thick 0,35 MM |
| 34 | 1600190040 | Shim Thick 0,4 MM |
| 35 | 1600205034 | Felt Washer |
| 35 | 1600205034 | Felt Washer |
| 38 | 1600206020 | Rubber Ring Wide 7 MM |
| 38 | 1600206020 | Rubber Ring Wide 7 MM |
| 39 | 1600206030 | Rubber Ring |
| 39 | 1600206030 | Rubber Ring |
| 44 | 1601334009 | Pickup Clip |
| 44 | 1601334009 | Pickup Clip |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 5 | 1604460455 | Power supply cord CH 2,65M 2 X 1,0MM H07 Rn-F |
| 5 | 1604460219 | Power supply cord GB 110V 2,65M 2 X 2,5MM H07RN-F |
| 5 | 3604460071 | Power supply cord GB 2,65M 2 X 1,0MM H07 Rn-F |
| 51 | 1600200031 | Plain bearing Ø14 MM |
| 51 | 1600200031 | Plain bearing Ø14 MM |
| 53 | 1605190068 | Socket Housing |
| 53 | 1605190068 | Socket Housing |
| 6 | 1600703036 | Grommet Ø10,5-Ø11,0X100 MM |
| 6 | 1600703036 | Grommet Ø10,5-Ø11,0X100 MM |
| 6 | 1600703037 | Grommet |
| 60 | 1603435023 | Thread-forming tap. Screw Tt M5X18 MM |
| 60 | 1603435023 | Thread-forming tap. Screw Tt M5X18 MM |
| 61 | 2912401038 | Tapping Screw DIN 7981-4,8X38-C-Z-ST |
| 61 | 2912401038 | Tapping Screw DIN 7981-4,8X38-C-Z-ST |
| 62 | 1603435024 | Tapping Screw C4,8X63 MM |
| 62 | 1603435024 | Tapping Screw C4,8X63 MM |
| 63 | 1603410014 | Pan head screw M4X10 MM |
| 63 | 1603410014 | Pan head screw M4X10 MM |
| 64 | 1603435042 | Plastic-Cutting Screw ST3,9X12 |
| 64 | 1603435042 | Plastic-Cutting Screw ST3,9X12 |
| 65 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 65 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 65/1 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 65/1 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 651 | 1600A00XM0 | Protective Cover |
| 651 | 1600A00XM0 | Protective Cover |
| 66 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 66 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 68 | 1601006011 | Sealing Plate |
| 68 | 1601006011 | Sealing Plate |
| 69 | 2916650905 | Spring retaining ring |
| 69 | 2916650905 | Spring retaining ring |
| 7 | 1601302018 | Fastening Clamp |
| 7 | 1601302018 | Fastening Clamp |
| 7 | 1601302019 | Fastening Clamp |
| 803 | 1604011306 | Armature |
| 803 | 1604010BE4 | Armature |
| 803 | 1604011306 | Armature |
| 804 | 1607000967 | Switch Black |
| 804 | 1607000971 | Switch Black |
| 805 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 805 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 808 | 160111A3H3 | Nameplate |
| 808 | 160111A3H3 | Nameplate |
| 810 | 1607000480 | Carbon-Brush Set 10 X 1 607 014 171 |
| 810 | 1607014171 | Carbon-Brush Set |
| 810 | 1607000480 | Carbon-Brush Set 10 X 1 607 014 171 |
| 810 | 1607014171 | Carbon-Brush Set |
| 810 | 1607014194 | Carbon-Brush Set |
| 813 | 1600905011 | Groove ball bearing 8X22X7 |
| 813 | 1600905011 | Groove ball bearing 8X22X7 |
| 814 | 1600905028 | Groove ball bearing |
| 814 | 1600905028 | Groove ball bearing |
| 816 | 1604336048 | Brush Holder |
| 816 | 1604336048 | Brush Holder |
| 821 | 160580655D | Gear Housing |
| 821 | 160580655D | Gear Housing |
| 822 | 1607000D58 | Bearing Flange |
| 822 | 1607000D58 | Bearing Flange |
| 822/22/48 | 1600119010 | Spring retaining ring |
| 822/22/48 | 1600119010 | Spring retaining ring |
| 822/22/50 | 1600905026 | Groove ball bearing 17X40X12 |
| 822/22/50 | 1600905026 | Groove ball bearing 17X40X12 |
| 825 | 1607000CU5 | Grinding Spindle |
| 825 | 1607000CU5 | Grinding Spindle |
| 826 | 1607000CV1 | Bevel Gear Set |
| 826 | 1607000CV1 | Bevel Gear Set |
| 835 | 1606610127 | Fan |
| 835 | 1606610127 | Fan |
| 837 | 1618B00903 | Seal Ring |
| 837 | 1618B00903 | Seal Ring |
| 840 | 1607000354 | Push-Button |
| 840 | 1607000354 | Push-Button |
| 846 | 1607000342 | Retaining Washer |
| 846 | 1607000342 | Retaining Washer |
| 851 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 851 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 882 | 1619P06597 | Stopper |
| 882 | 1619P06597 | Stopper |
| 890 | 1600210039 | O-Ring 20,35X1,78 MM |
| 890 | 1600210039 | O-Ring 20,35X1,78 MM |
| 891 | 16020250A1 | Auxiliary Handle |
| 891 | 16020250A1 | Auxiliary Handle |
| 891/1 | 160202509Z | Auxiliary Handle |
| 891/1 | 160202509Z | Auxiliary Handle |
| 892 | 1607950061 | Pin-Type Face-Wrench |
| 892 | 1607950061 | Pin-Type Face-Wrench |
| 893 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 893 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 894 | 1603345043 | Round Nut M14 |
| 894 | 1603345043 | Round Nut M14 |
| 896 | 1600A016PP | Fast Locking Flange |
| 896 | 1600A016PP | Fast Locking Flange |
| 9 | 1618B0002T | Manufacturer's nameplate |
| 9 | 1618B0002T | Manufacturer's nameplate |
