Bosch GWS 14-125
Bosch GWS 14-125 angle grinder: exploded parts diagram, 2 sheets, 61 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

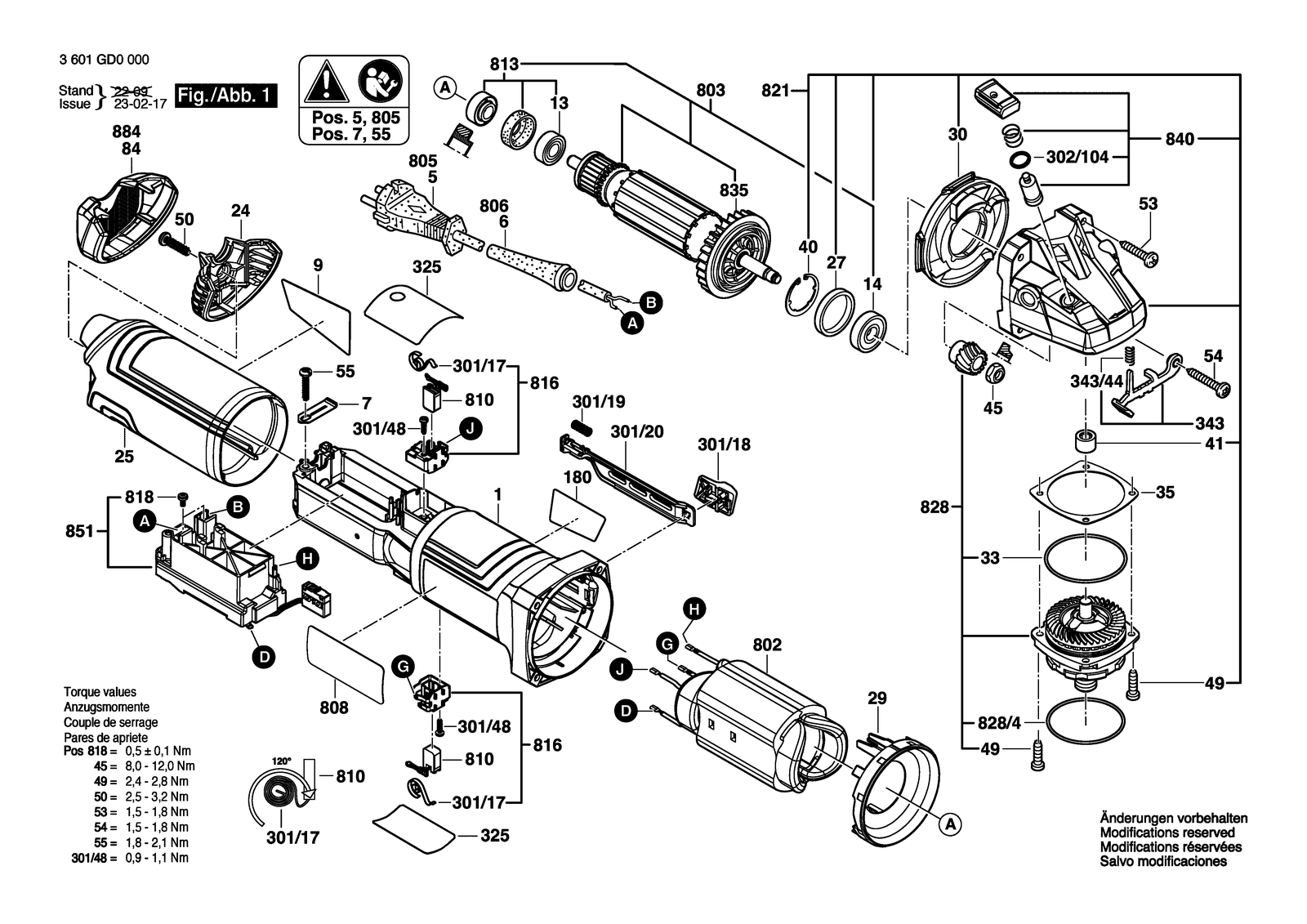

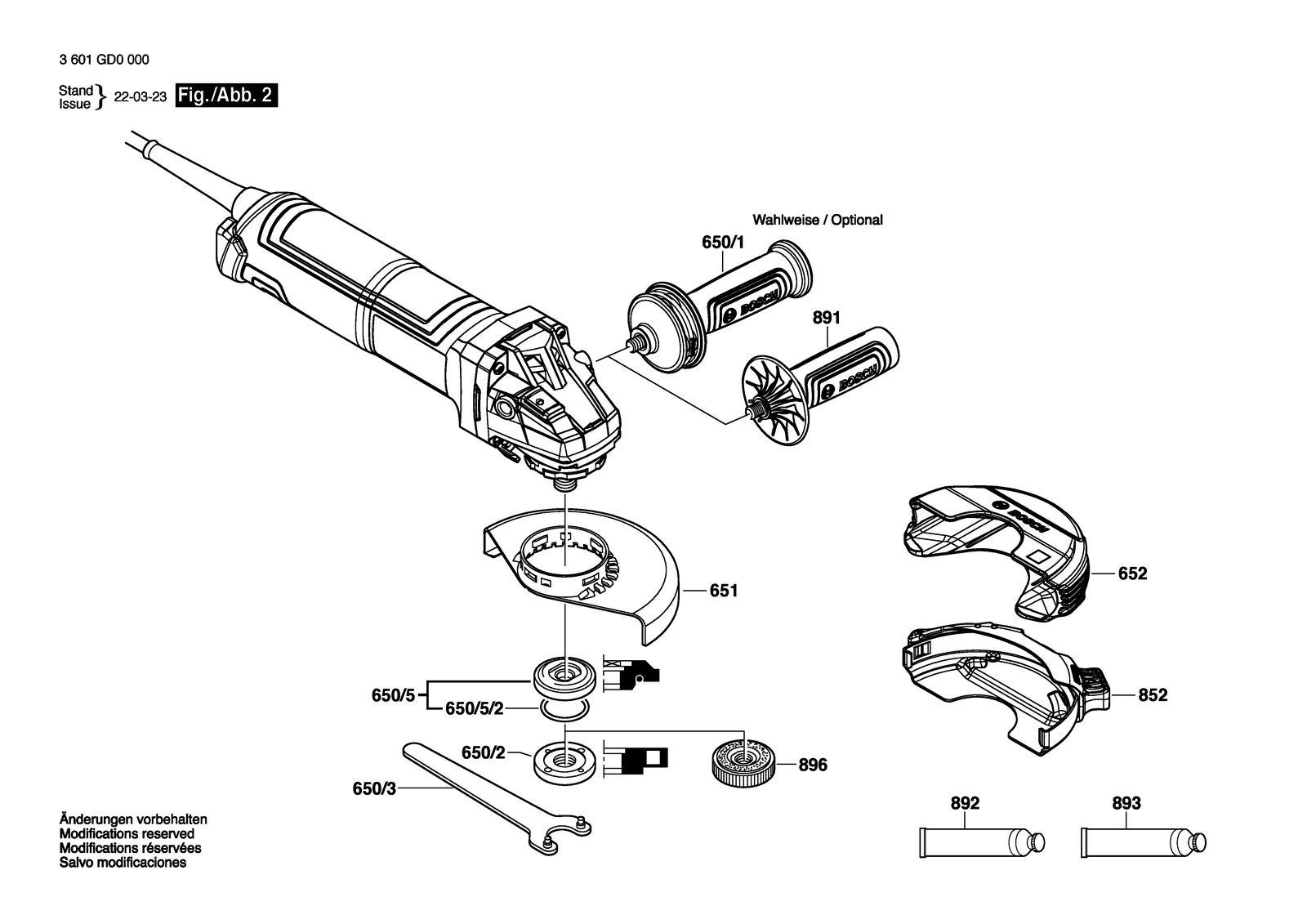

All parts of Bosch GWS 14-125: 61 positions on 2 sheets
Bosch GWS 14-125 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 16051082K7 | Motor Housing |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 1600905032 | Groove ball bearing 8X22X7 |
| 180 | 160111C45X | Sticker |
| 24 | 16055002G4 | Cover |
| 25 | 16055002HH | Housing Cover |
| 27 | 1600206025 | Rubber Ring |
| 29 | 1600591070 | Air-Deflector Ring |
| 30 | 160059105N | Air Distributor |
| 301/17 | 1604652021 | Spiral Spring |
| 301/18 | 1600A016PW | Switch Handle |
| 301/19 | 1600A021GL | Compression Spring |
| 301/20 | 1600A01P8K | Adjusting Slide |
| 301/48 | 1613435034 | Lens Head Screw 3X10 St |
| 302/104 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 325 | 1607000EK6 | Insulating Plate |
| 33 | 1600210035 | O-Ring 46,0X1,1 MM |
| 343 | 1607000742 | Catch Lever |
| 343/44 | 1604611042 | Compression Spring |
| 35 | 1600136013 | Shim Thick 0,1 MM |
| 35 | 1600136014 | Shim Thick 0,2 MM |
| 35 | 1600136015 | Shim Thick 0,3 MM |
| 35 | 1600136020 | Shim Thick 0,15 MM |
| 40 | 1600119011 | Retaining clip |
| 41 | 1600200029 | Plain bearing |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 49 | 160343508X | Thread-forming tap. Screw M4X16-ST W/ Precote 85-3 |
| 50 | 2914201527 | Torx Oval-Head Screw |
| 53 | 1603435078 | Torx Oval-Head Screw |
| 54 | 1603414026 | Torx Oval-Head Screw 4X30 |
| 55 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 6 | 1600703043 | Grommet |
| 650/1 | 16020250A0 | Auxiliary Handle |
| 650/2 | 1603345043 | Round Nut M14 |
| 650/3 | 1607950052 | Pin-Type Face-Wrench |
| 650/5 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 650/5/2 | 1600210039 | O-Ring 20,35X1,78 MM |
| 651 | 1600A02E9M | Protective Cover |
| 652 | 1600A021MH | Protective Cover |
| 7 | 1601302017 | Fastening Clamp |
| 802 | 1607000F0M | Field |
| 803 | 1607000EJ4 | Armature assembly |
| 805 | 1607000392 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 808 | 160111A9G7 | Nameplate |
| 810 | 1607000EJ7 | Carbon-Brush Set |
| 813 | 1607000V38 | Groove ball bearing |
| 816 | 1607000EJ9 | Brush Holder |
| 818 | 1607000EK5 | Pan head screw |
| 821 | 1607000EK1 | Gear Housing |
| 828 | 1607000E1D | Bearing Flange |
| 828/4 | 3600210109 | O-Ring 47,0X1,5 MM |
| 835 | 160661017B | Fan |
| 840 | 1607000V41 | Push-Button |
| 851 | 1607000F57 | Speed governor |
| 852 | 1600A02059 | Protective Cover |
| 884 | 1600A021FX | Filter |
| 891 | 160202509T | Auxiliary Handle |
| 892 | 1615430017 | Grease Tube 225 Ml |
| 893 | 1615430020 | Grease Tube 225 Ml |
| 896 | 1600A016PP | Fast Locking Flange |
| 9 | 160111C461 | Manufacturer's nameplate |
