Bosch GWS 11-450 P angle grinder: exploded parts diagram, 2 sheets, 51 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GWS 11-450 P: 51 positions on 2 sheets

Bosch GWS 11-450 P parts list (2 sheets)

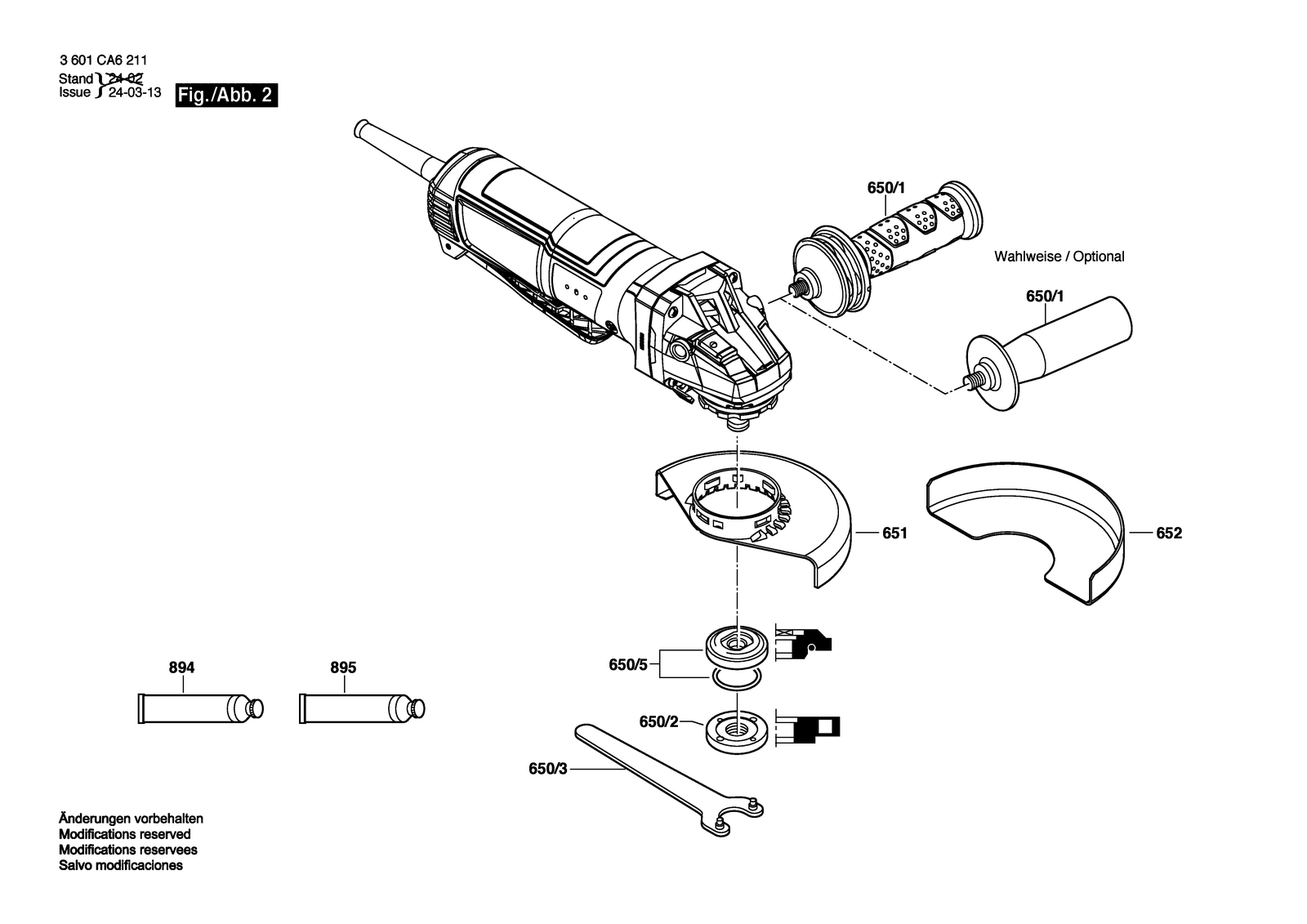

Bosch GWS 11-450 P parts diagram, sheet 1Bosch GWS 11-450 P parts diagram, sheet 2
No.Part numberPart name
11619P21279Motor Housing
141619P09955Groove ball bearing
161600A00RG1Brush Holder
171604652013Spiral Spring
201619P21280Warning Plate
211619P21281Cap
271600206025Rubber Ring
291619P20938Air-Deflector Ring
301619P20939Air Distributor
321619P16526Grinding Spindle 5/8"
331619P14427O-Ring
351600136013Shim Thick 0,1 MM
351600136014Shim Thick 0,2 MM
361619P00987Washer
371600290016Rotary shaft lip seal
4160720031SSwitch
401600119011Retaining clip
411600910018Needle bearing Ø8XØ12X8 MM
451619P16897Hex Nut
472609110052Special Screw
481619P00220Torx Oval-Head Screw 3X10
49160343508XThread-forming tap. Screw M4X16-ST W/ Precote 85-3
51604460336Power supply cord Usa/can/sma 2,68M 2 X 1,31MM SJ 16/2
501619P00105Torx Oval-Head Screw 4X20
5116072335S7Speed governor
541603414026Torx Oval-Head Screw 4X30
551619P01066Torx Oval-Head Screw 4X25
61600703040Grommet
623600210109O-Ring 47,0X1,5 MM
650/116020250A0Auxiliary Handle
650/23603340503Round Nut 5/8"
650/31607950052Pin-Type Face-Wrench
650/51605703140Clamping-Flange
6511600A031P0Protective Cover
6521600A012JJProtective Cover
692916540007Retaining ring
71601302017Fastening Clamp
81619P21292Nameplate
801619P09390Cover Disc
8021619P21179Field
8031619P21180Armature
8101619P21172Carbon-Brush Set
8251619P21514Housing Cover
8281619P21174Bearing Flange
8311619P21176Gear Housing
8381619P21178Bevel Gear Set
8401619P21177Push-Button
8431607000742Catch Lever
8941615430020Grease Tube 225 Ml
8951605430003Grease Tube 225 Ml
91619P21293Manufacturer's nameplate
