Bosch GWI 12 V-LI

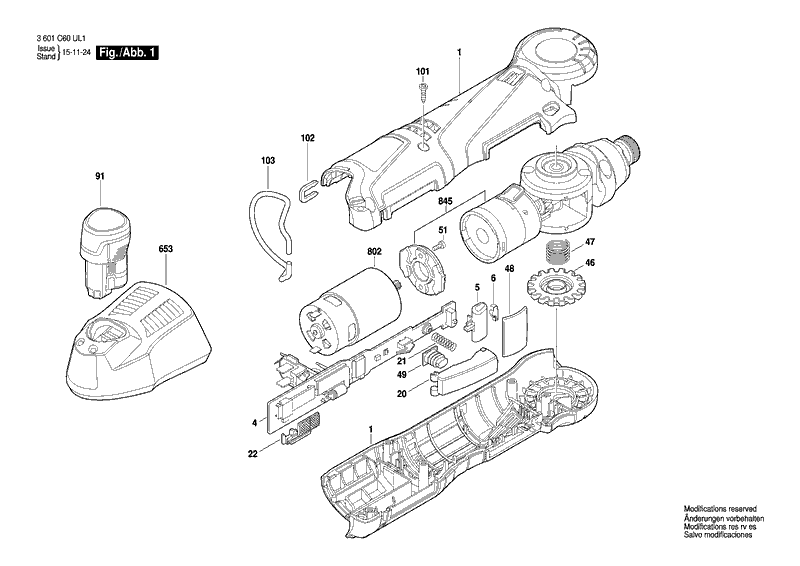

Bosch GWI 12 V-LI angle screwdriver: exploded parts diagram, 1 sheet, 19 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GWI 12 V-LI: 19 positions on 1 sheet
Bosch GWI 12 V-LI parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609199130 | Housing Set |
| 101 | 2609110538 | Screw |
| 102 | 2609110537 | Clip |
| 103 | 2609110539 | Hook |
| 20 | 2609100455 | Switch Handle |
| 21 | 2609110535 | Spring |
| 22 | 2609100458 | Clutch Lever |
| 4 | 2609120228 | Printed Circuit Board |
| 46 | 2609100454 | Coupling Plate |
| 47 | 2609110534 | Spring |
| 48 | 2609100457 | Cover |
| 49 | 2609170058 | Cover |
| 5 | 2609100456 | Changeover Lever |
| 51 | 2609110560 | Screw |
| 6 | 2609110536 | Spring Clip |
| 653 | 2607226095 | Fast Charger Cn GAL 1230 CV 220/12V |
| 802 | 2609199131 | Motor |
| 845 | 2609199142 | Gear Box |
| 91 | 1607A350C5 | Battery Pack GBA 12V 2.0AH LI Scm |
