Bosch GWB 7,2 VE

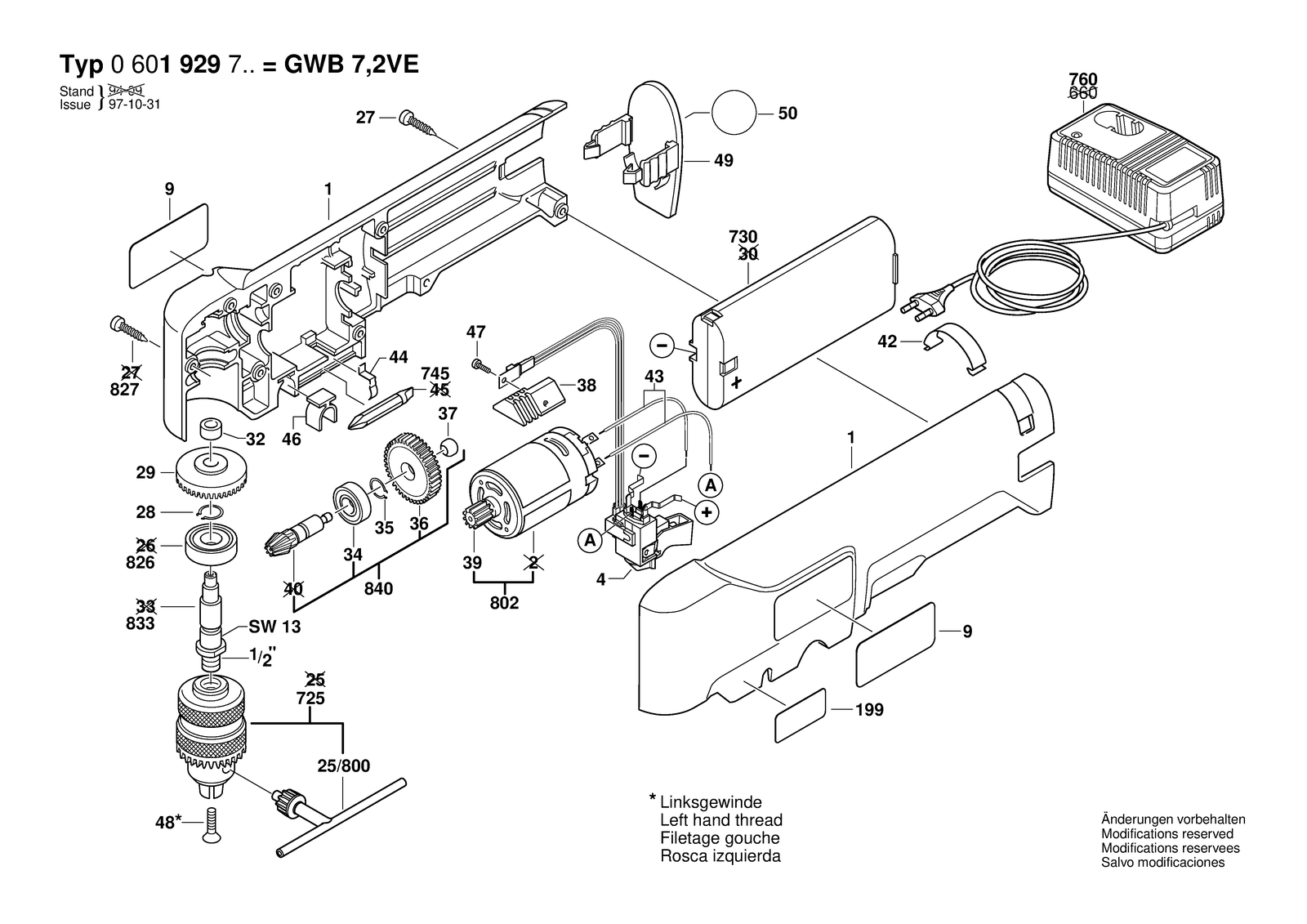

Bosch GWB 7,2 VE cordless angular drill: exploded parts diagram, 1 sheet, 38 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GWB 7,2 VE: 38 positions on 1 sheet

Bosch GWB 7,2 VE parts list (1 sheet)

Bosch GWB 7,2 VE parts diagram, sheet 1
No.Part numberPart name
12605108057Housing Section Blue
1991601110265Reference Plate
1991611110880Warning Plate
25/8001607950055Chuck Wrench SG1, 80 MM
282916640006Spring retaining ring DIN 471 9X1MM
292606333027Bevel Gear Z=47
322600301011Sintered-Metal Bushing
341900905019Groove ball bearing 6X19X6
352916640003Spring retaining ring DIN 471-6X0,7-FST
362606316025Cylindrical Gear Z=58
372600302002Sintered-Metal Bushing
382602380025Heat Sink
392606316112Pinion Z=11
42607200274On-Off Switch
422601322016Clamp Spring
432604412021Connecting Cable White L = 52 MM
442601250002Holding Spring
462608040056Key Holder
472910641050Oval-Head Screw DIN 7985-M3X8-4.8
482603421211Countersunk-Head Screw Lefthand Threads M6X20 MM
492601398008Holding Spring Black
502601110461Sticker Rechargable Batery
7251608571068Key Chuck Ø 1-10 MM,1/2"
7302607335175Slide-In Accu Package 7,2V,1,7AH,NICD
7302607335218Slide-In Accu Package 7,2V,1,7AH,NICD
7451609200147Screwdriver Blade 6 MM
7602607224425Fast Charger EU 230/7,2-24V, 1H
7602607224427Fast Charger GB 230/7,2-24V, 1H
7602607224431Fast Charger USA 120/7,2-24V, 1H
7602607224435Fast Charger J 100/7,2-24V, 1H
7602607224437Fast Charger ROK 220/7,2-24V, 1H
7602607224443Fast Charger AUS 240/7,2-14,4V, 1H
8022607022911DC motor 7,2V
8262600905039Groove ball bearing 9X24X7
8272603490021Torx Oval-Head Screw 4X12
8332606135926Drilling Spindle 1/2", SW 13
8402606333902Pinion Z=10/58
92601118673Nameplate
