Bosch GVC 22 EX

Bosch GVC 22 EX hf-internal vibrator: exploded parts diagram, 1 sheet, 56 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GVC 22 EX: 56 positions on 1 sheet

Bosch GVC 22 EX parts list (1 sheet)

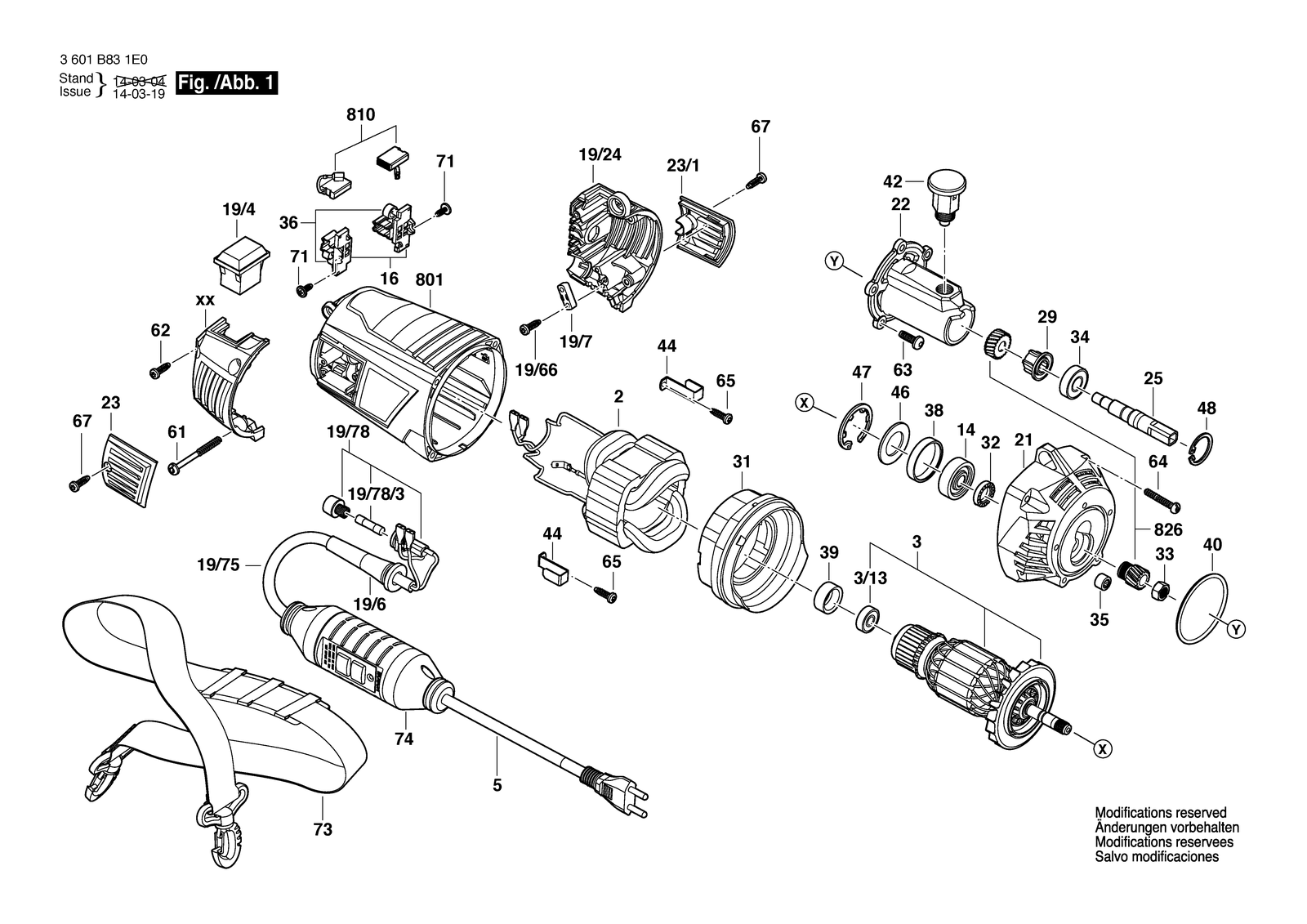

Bosch GVC 22 EX parts diagram, sheet 1
No.Part numberPart name
149618089480Groove ball bearing
161604336047Brush Holder
19/24F000603166Housing Cover
19/4F000600372On-Off Switch
19/61600703036Grommet Ø10,5-Ø11,0X100 MM
19/669618087100Tapping Screw 4X20 MM
19/7F000635217Cable Clip
19/75F000610056Cable
19/75F000610057Cable
19/78F000608119Fuse Holder
19/78F000608122Fuse Holder
19/78/3F000608121Fuse
19/78/3F000608124Fuse
2F000607182Field 220V
2F000607183Field 127V
21F000602179Gear Housing
22F000613099Flange
23F000612061Brush-Cover
23/1F000612062Brush-Cover
25F000619096Grinding Spindle
29F000614014Carrier
3F000605241Armature 220V
3F000605242Armature 127V
3/131600905011Groove ball bearing 8X22X7
31F000604017Air-Deflector Ring
321600290018Rotary shaft lip seal
33F000616486Hex Nut
34F000615175Groove ball bearing
352600917003Needle-Roller Bearing Ø8X8 MM
361604652019Spiral Spring
381600206020Rubber Ring Wide 7 MM
39F000616060Locating ring
401610210106O-Ring 60,0X3,0 MM
42F000616487Lock Bolt
441601334011Pickup Clip
461600102018Retaining Washer Thick 1,8 MM
471600119008Spring retaining ring
482916660011Spring retaining ring DIN 472-28X1,2 MM
5F000609455Power supply cord
5F000609456Power supply cord
5F000609457Power supply cord
5F000609458Power supply cord
61F000600216Tapping Screw
629618087099Screw 4X16 MM
639618086638Screw
64F000600217Tapping Screw
659618087099Screw 4X16 MM
679618087099Screw 4X16 MM
719618089885Thread-forming tap. Screw
73F000600381Carrying Handle
741607200331On-Off Switch
741607200332On-Off Switch
801F000601322Motor Housing
810F000611090Carbon-Brush Set E64
810F000611091Carbon-Brush Set E66
826F000617074Bevel Gear Set
