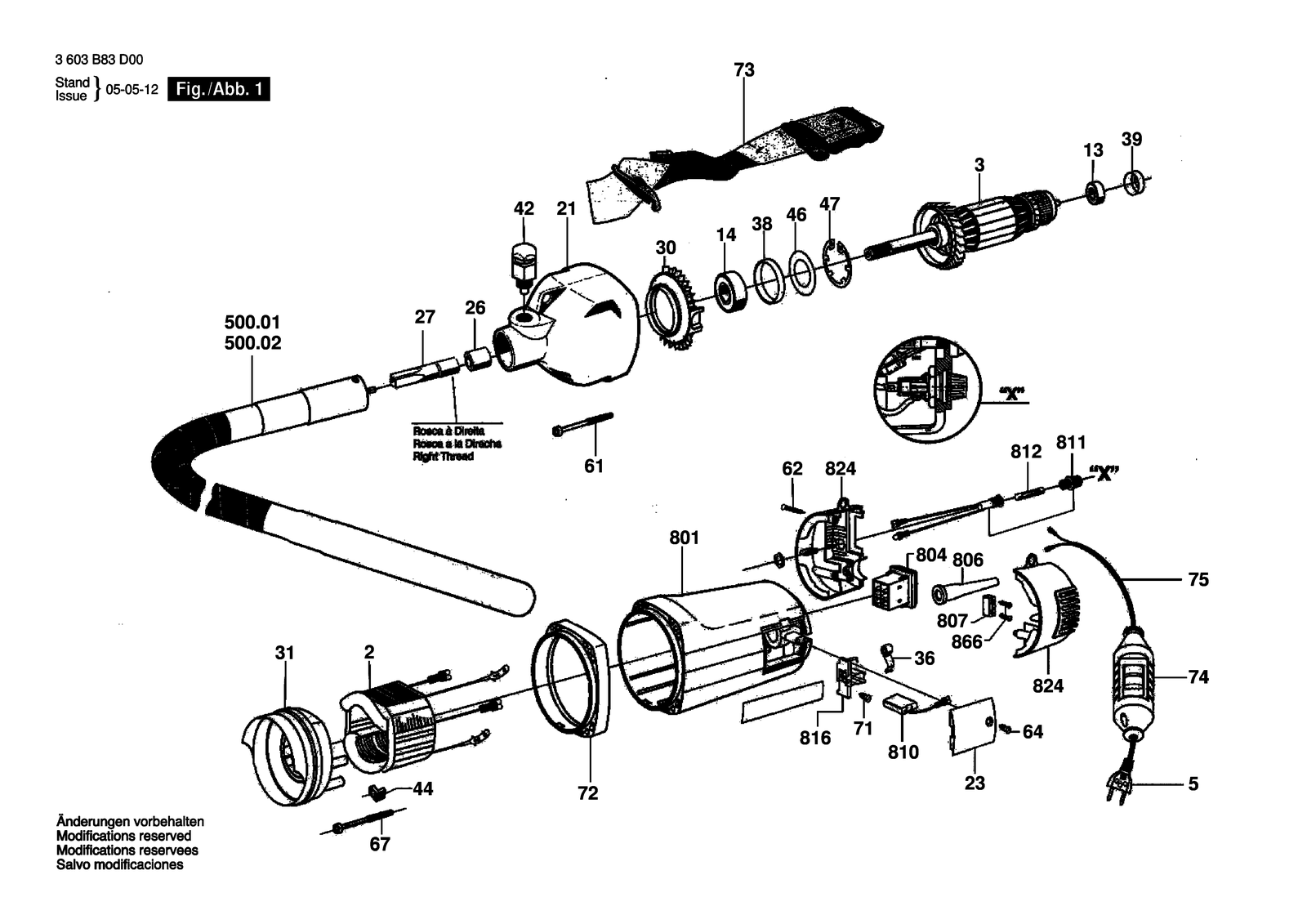

Bosch GVC 20 EX hf-internal vibrator: exploded parts diagram, 1 sheet, 34 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GVC 20 EX: 34 positions on 1 sheet
Bosch GVC 20 EX parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 14 | 9618089480 | Groove ball bearing |
| 2 | F000607156 | Field 127V |
| 21 | F000600375 | Gear Housing |
| 23 | F000600349 | Brush-Cover |
| 26 | F000600378 | Plain bearing |
| 27 | F000619019 | Drive Clutch |
| 3 | F000605212 | Armature 127V |
| 30 | F000600350 | Splash Guard |
| 31 | F000604003 | Air-Deflector Ring |
| 38 | 1600206020 | Rubber Ring Wide 7 MM |
| 39 | F000616060 | Locating ring |
| 42 | F000600380 | Lock Bolt |
| 44 | F000603115 | Holding Bracket |
| 46 | 1600102018 | Retaining Washer Thick 1,8 MM |
| 47 | 1600119008 | Spring retaining ring |
| 5 | F000600358 | Power supply cord SAM 0,60M 2 X 1,5MM H07 Rn-F |
| 61 | F000600216 | Tapping Screw |
| 62 | F000600217 | Tapping Screw |
| 64 | 9618087099 | Screw 4X16 MM |
| 67 | F000600215 | Tapping Screw |
| 71 | 9618089885 | Thread-forming tap. Screw |
| 72 | F000600222 | Bearing Flange |
| 74 | 1607200331 | On-Off Switch |
| 75 | F000609178 | Cable 2X1,5 (300 Mm) |
| 801 | F000601037 | Motor Housing |
| 804 | F000600372 | On-Off Switch |
| 806 | F000609175 | Grommet |
| 807 | F000635217 | Cable Clip |
| 810 | F000611091 | Carbon-Brush Set E66 |
| 811 | F000608038 | Fuse Holder |
| 812 | F000608039 | Fuse |
| 816 | 1604336047 | Brush Holder |
| 824 | F000603012 | Housing Cover |
| 866 | 9618087099 | Screw 4X16 MM |
