Bosch GUF 22 A

Bosch GUF 22 A false joint cutter: exploded parts diagram, 3 sheets, 111 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GUF 22 A: 111 positions on 3 sheets

Bosch GUF 22 A parts list (3 sheets)

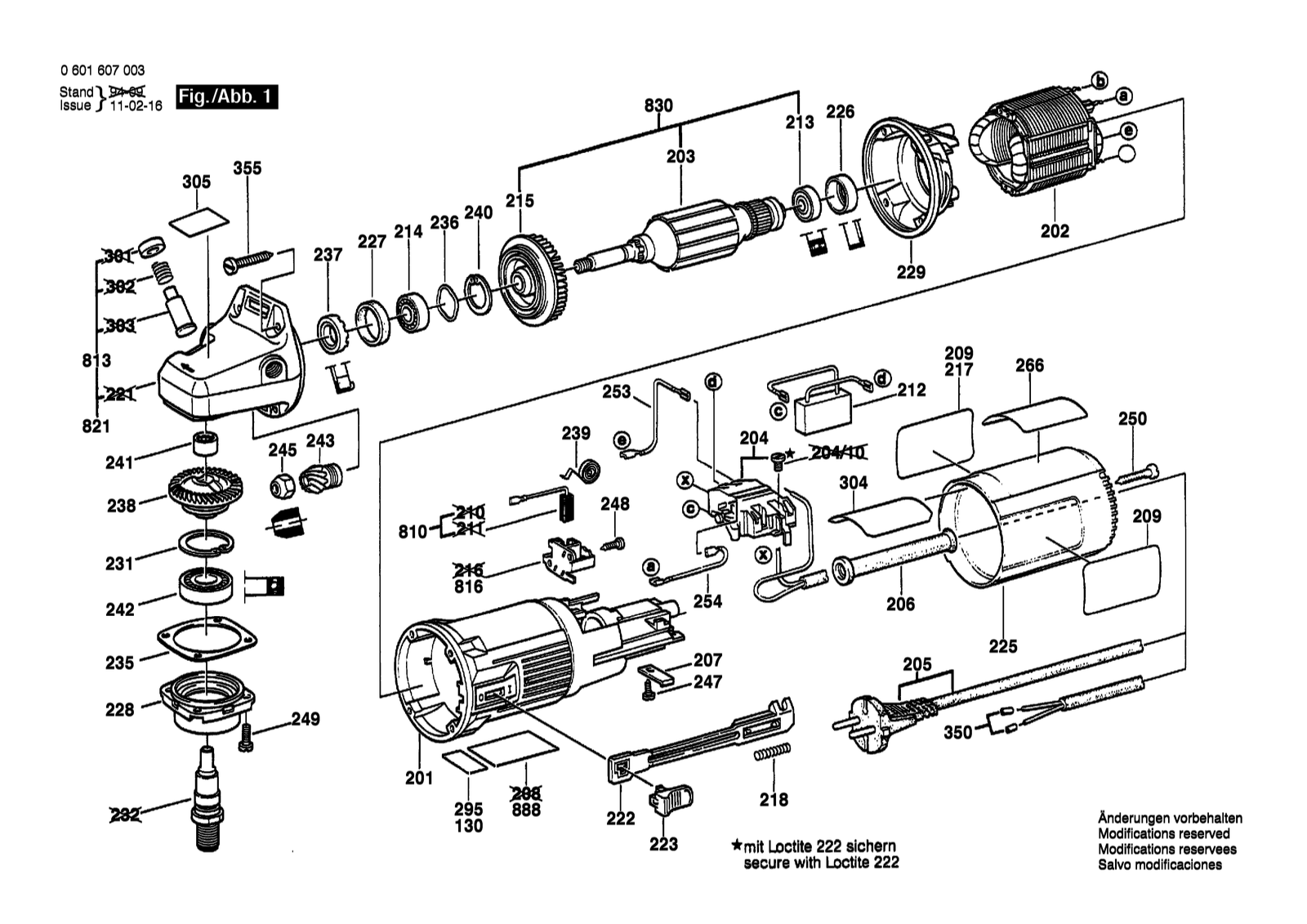

Bosch GUF 22 A parts diagram, sheet 1Bosch GUF 22 A parts diagram, sheet 2Bosch GUF 22 A parts diagram, sheet 3
No.Part numberPart name
103601000002Thrust Member
113601329004Parallel-Guide
123603340009Round Nut M14
133600328032Clamping-Flange
142602305045Detent Pin
153601119024Sticker
161601110481Manufacturer's nameplate Shadow Side
173603490008Knurled Thumbscrew
182914455059Thread-forming tap. Screw DIN 7500-M5X14MM
193600190008Locking washer
23608641010Side-Milling Cutter Z=12
202604611008Compression Spring
20116051082CCMotor Housing
2021604220224Field 230-240V
2021604220225Field 100V
2021604220226Field 110-120V
2021604220227Field 240V
2041607200086On-Off Switch
2051604460107Elec. Cable W/Connection
2051604460110Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F
2051604460176Power supply cord J 2,5M 2 X 1,25MM Pvc
2051607000386Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F
2051614460010Power supply cord Usa/can/sma 2,15M 2 X 0,82MM SJ 16/2
2052604460277Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F
2053607030489Power supply cord
2062600703011Grommet Ø8,3-Ø9,4X95 MM
2062600703012Grommet Ø6,5-Ø6,9X95 MM
2062600703013Grommet Ø7,6-Ø8,2X95 MM
2071601302017Fastening Clamp
2093601119022Manufacturer's nameplate
2093601119054Manufacturer's nameplate
212915011006Hex Nut DIN 934-M 5-M-8
2121607328029Suppression Filter
2132600905032Ball Bearing 7X19X6
2141600905011Groove ball bearing 8X22X7
2151606610121Fan
2171601110231Manufacturer's nameplate Double Insulation
2181604611026Compression Spring
222910095201Pan head screw DIN 85-M6X20-4.8
2221602319002Adjusting Slide
2231602026057Switch Handle Black
2251600508010Housing Cover Blue
2261600502020Rubber Bushing
2271600206025Rubber Ring
2281607000937Assembly Of Service Parts
2291601328005Air-Deflector Ring
231600309010Spacer Bushing
2312916660013Retaining clip DIN 472-32X1,2 MM
2351600136008Shim Thick 0,7 MM
2351600136009Shim Thick 0,8 MM
2351600136010Shim Thick 0,2 MM
2361600150011Spring Washer
2371600290016Rotary shaft lip seal
2381606333601Crown Gear Z=36
2391604652013Spiral Spring
242910141154Hex Socket Head Cap Screw DIN 912-M5X12-8.8
2402916660009Spring retaining ring DIN 472-25X1,2MM
2411600910018Needle bearing Ø8XØ12X8 MM
2421600905006Groove ball bearing 12X32X10
2431606333242Bevel Gear Z=11
2451603300016Hex Nut M7, SW10
2472910211018Tapping Screw DIN 7971-ST3,9X13-F
2481613435034Lens Head Screw 3X10 St
2491603412008Socket head cap screw M4X15 MM
253602012000Support clamp
2502910211021Tapping Screw DIN 7971-ST3,9X22-F
2531604448005Connecting Cable White L=95 MM
2541604448006Connecting Cable White L=40 MM
262910271900Pan head screw DIN 922-M4X3X3-5.8
2661601110449Nameplate Caution
2663601119137Warning Plate Caution
272910141154Hex Socket Head Cap Screw DIN 912-M5X12-8.8
292600100577Shim 0,5 MM
2951601110265Reference Plate
33601329005Base Plate
303601119025Sticker 13,16,19+22 MM
3041601008003Insulating Plate
3051601110240Reference Plate
313601251001Vertebras
322916015886Plain Washer DIN 9021-A10,5-ST
332600100401Shim washer 0,1 MM
3501900452012End Splice DIN 46 228-A1-6
43602013006Swivelling Lever
53605500101Covering hood
63604651003Torsion Spring
650160202509TAuxiliary Handle
6511607950052Pin-Type Face-Wrench
6521605411028Dust Bag
6533601329013Parallel-Guide
653/401603339006Wing Nut M6
653/502910281201Round-Head Bolt DIN 603-M6X20
653/602910545193Countersunk-Head Screw DIN 7991-M6X12-8.8
653/701610210043O-Ring 4,0X1,5 MM
73603490009Swivelling Axis
7003608641001Side-Milling Cutter Ø 105X20X2,2 Mm, Z=12
7003608641009Side-Milling Cutter Z=10, 2,8 MM
7013608641008Side-Milling Cutter Z=8
7021600499005Fitting Ø 25X35 MM
83602200000Eccentric Disc
8101607014116Carbon-Brush Set
8101607014128Carbon Brush
8131607000253Push-Button Black
8161600A003G4Brush Holder
8162601323022Brush Holder
8211605806480Gear Housing
8301604010259Armature With Fan 230-240V
8301604010260Armature With Fan 100V
8301604010261Armature With Fan 115-120V
8301604010262Armature With Fan 240V
888160111A3H3Nameplate
92607950004Offset Screwdriver DIN 911-4
