Bosch GTS 254

Bosch GTS 254 table saw: exploded parts diagram, 7 sheets, 165 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GTS 254: 165 positions on 7 sheets

Bosch GTS 254 parts list (7 sheets)

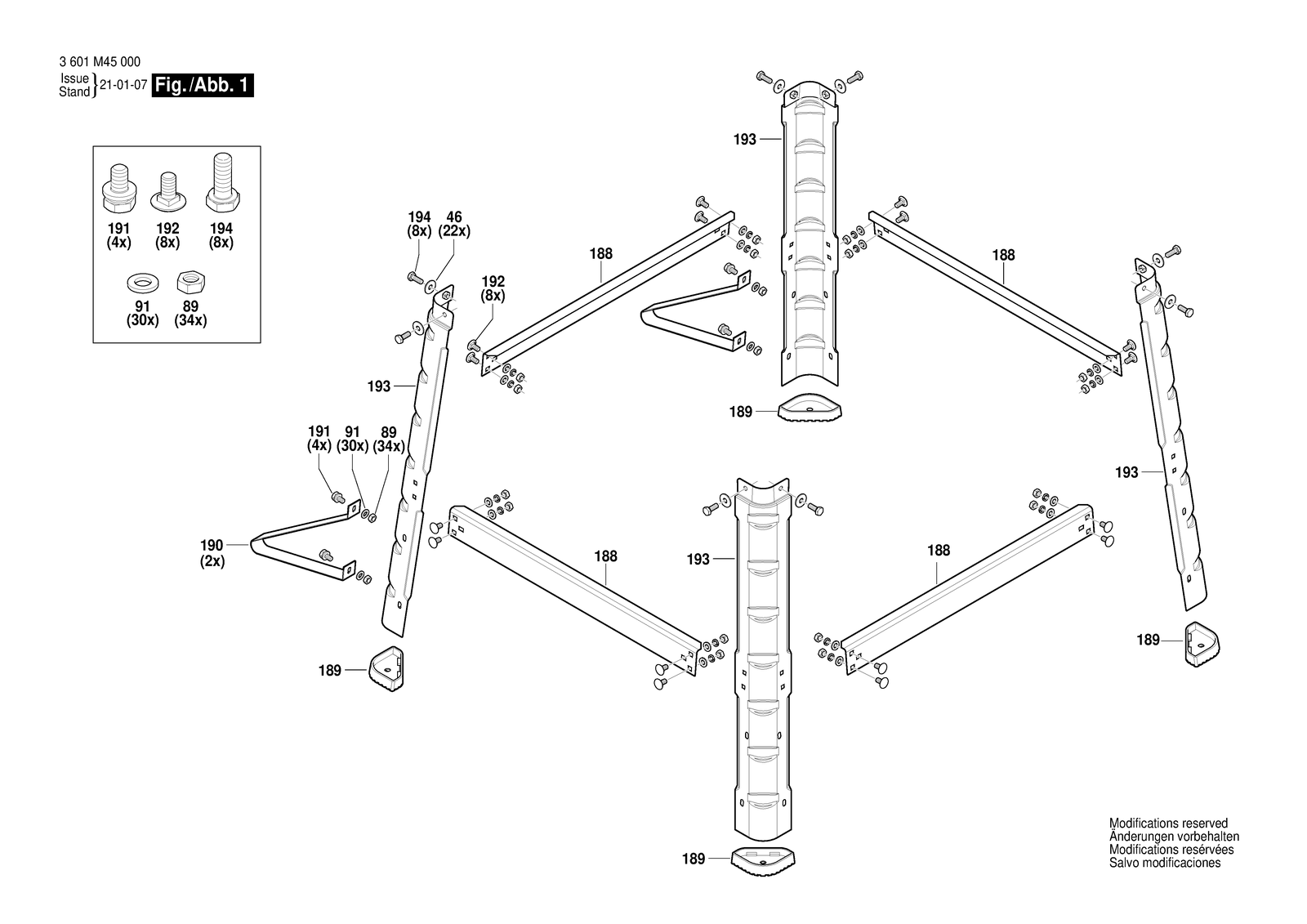

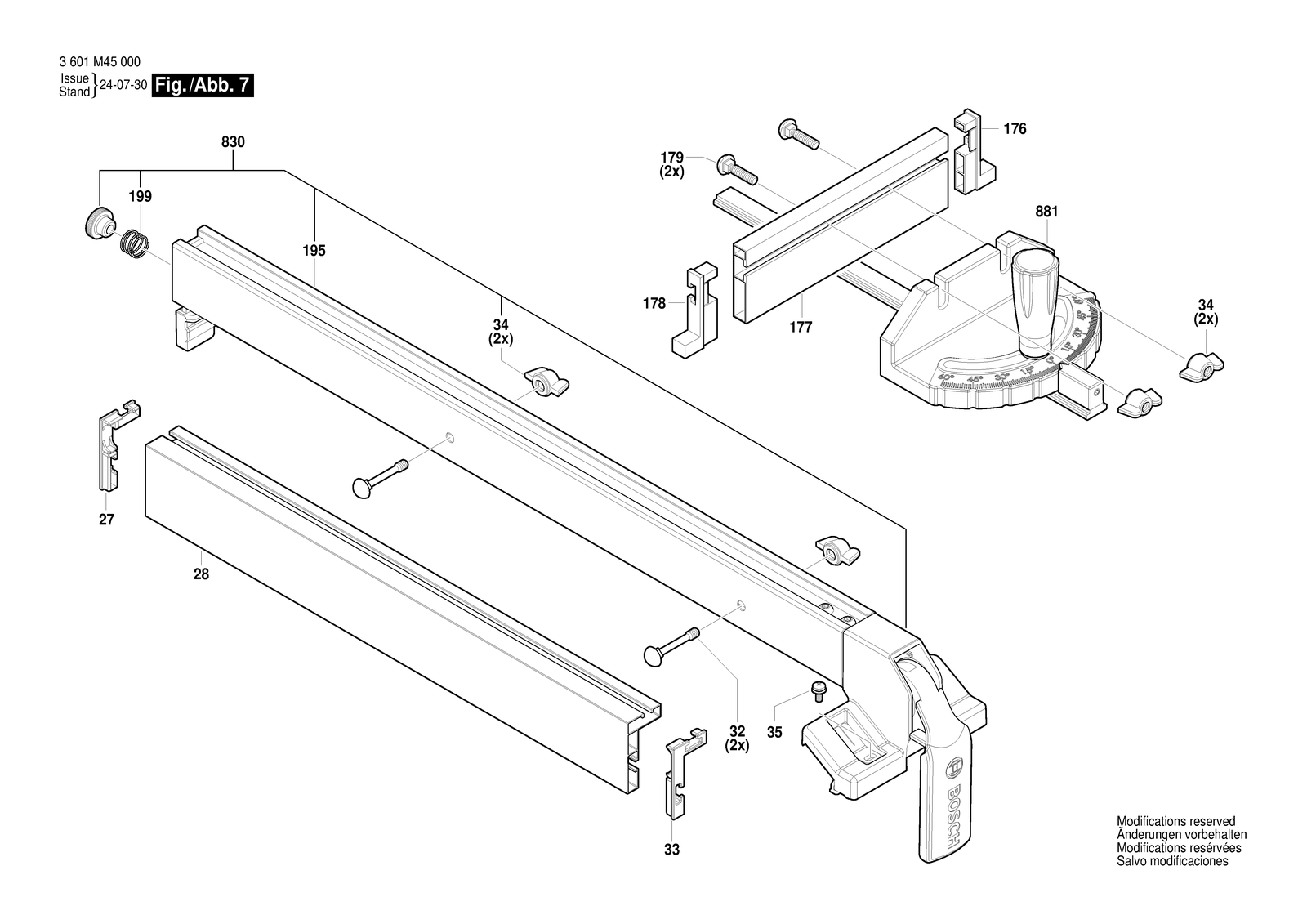

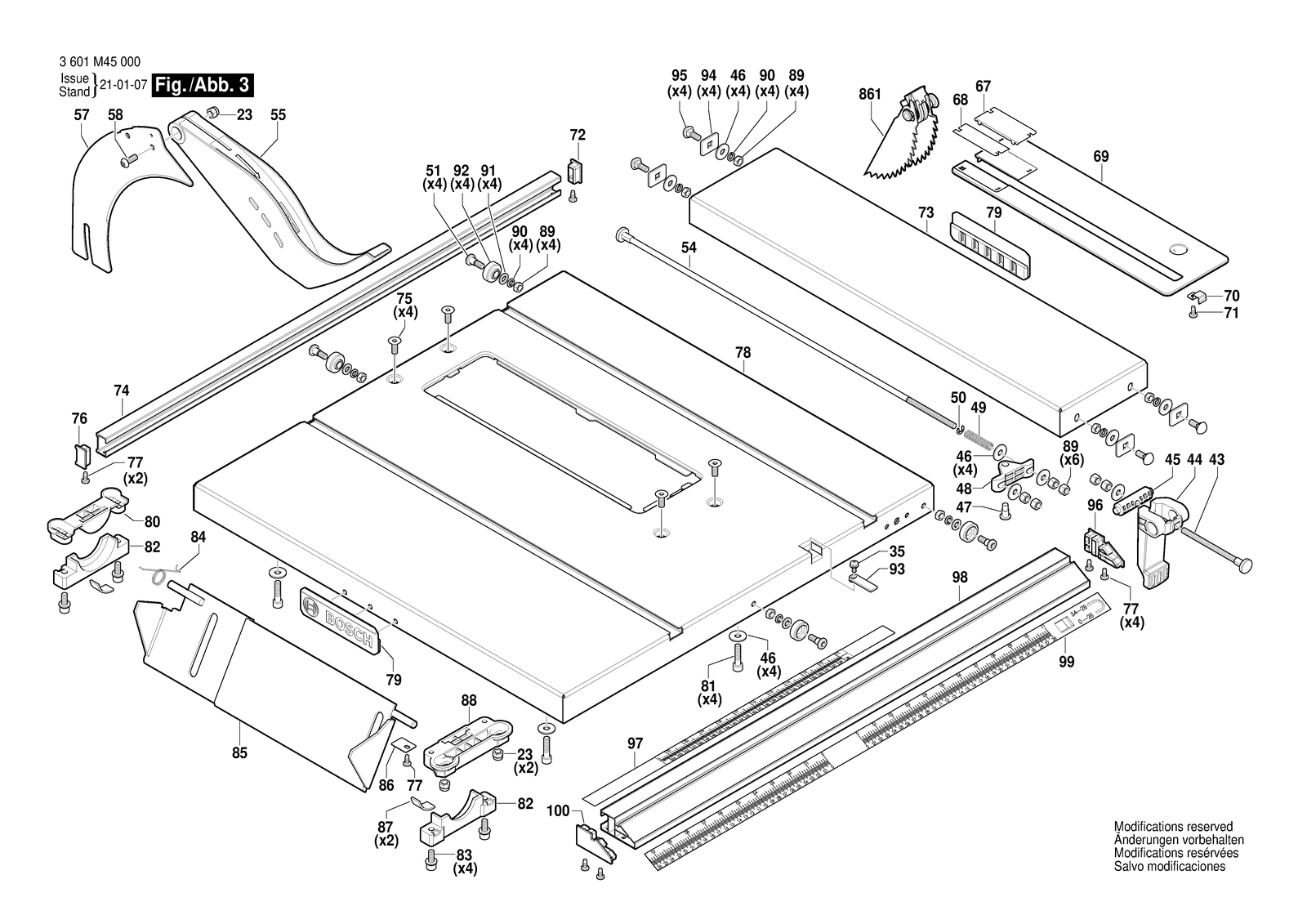

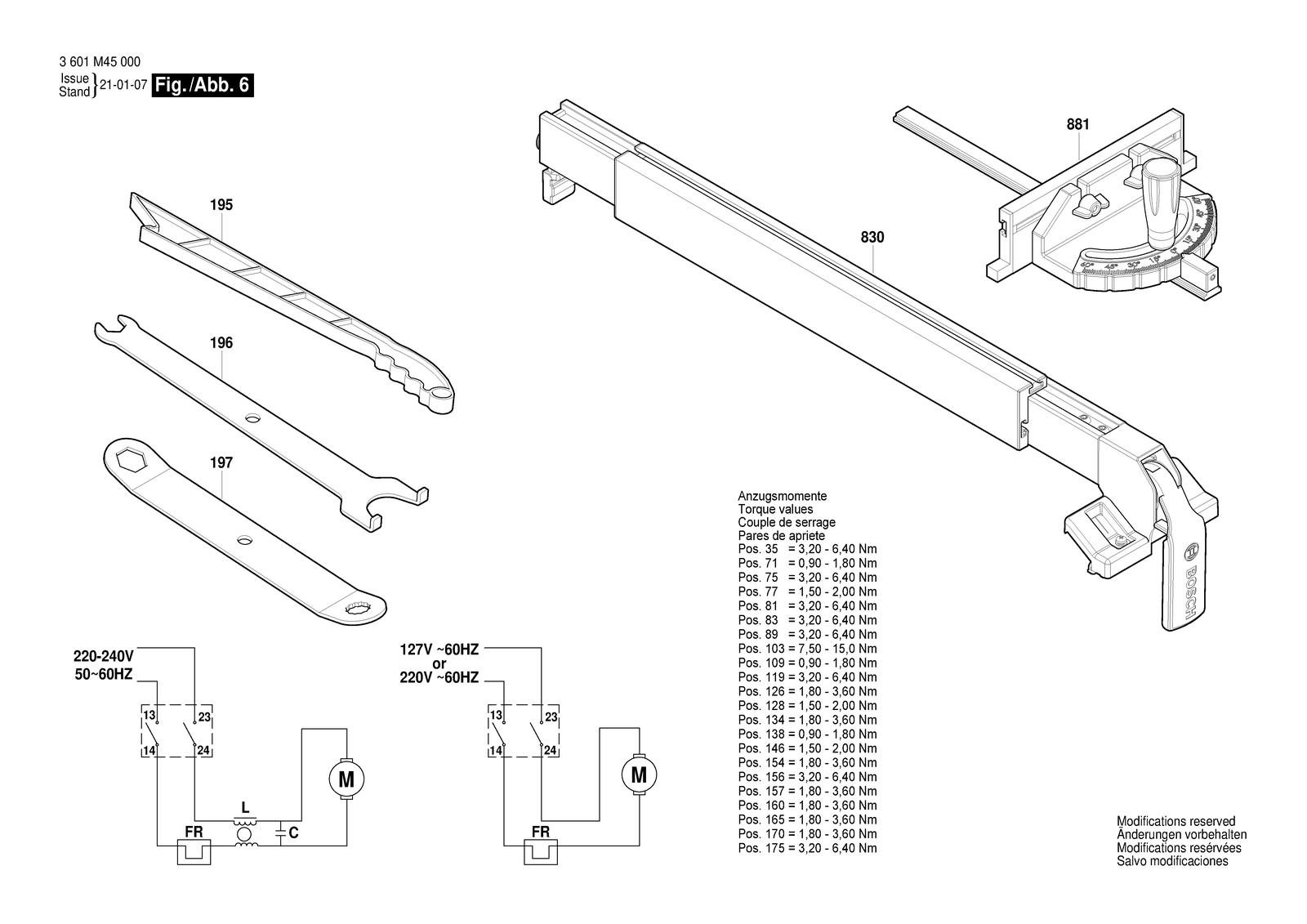

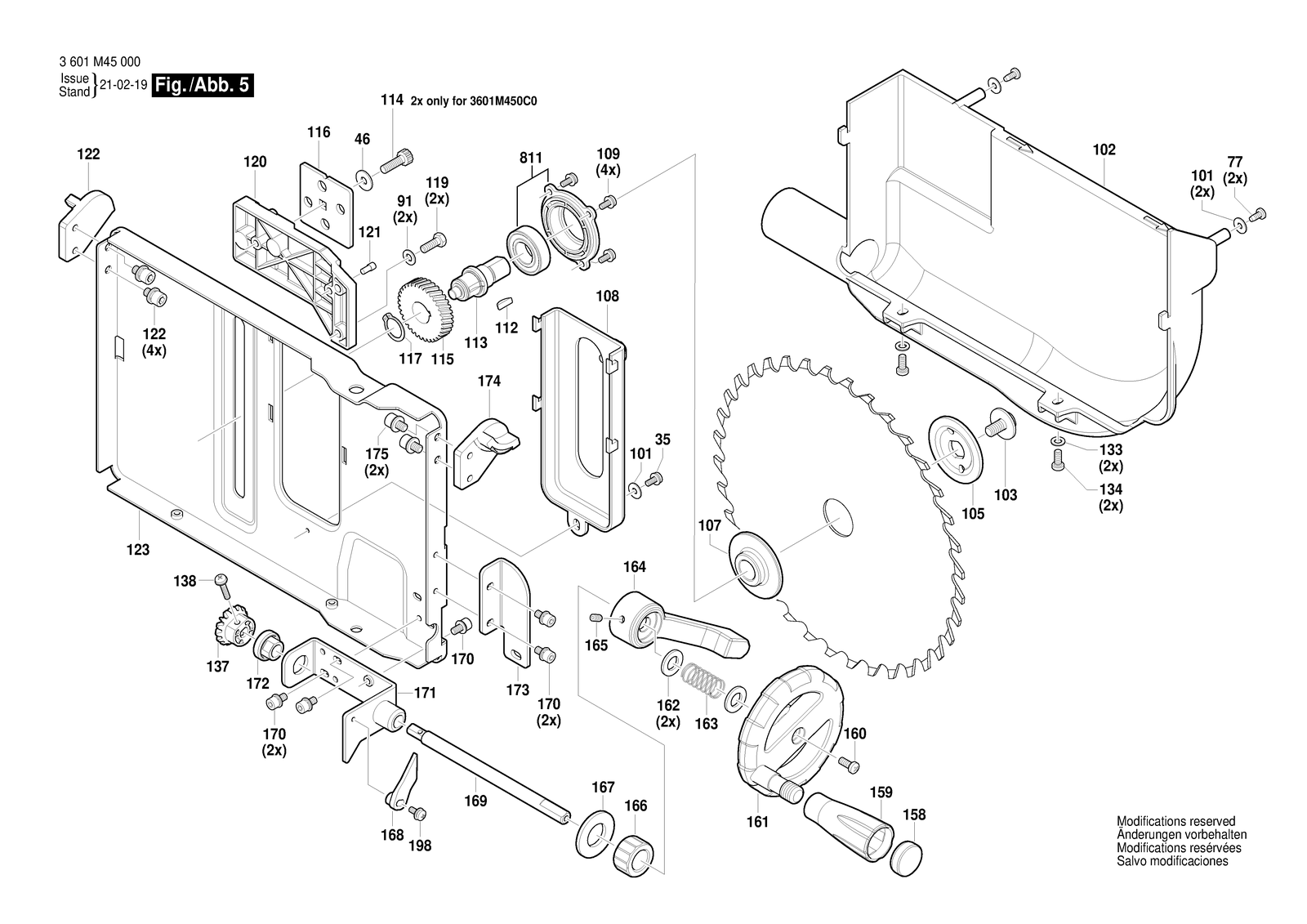

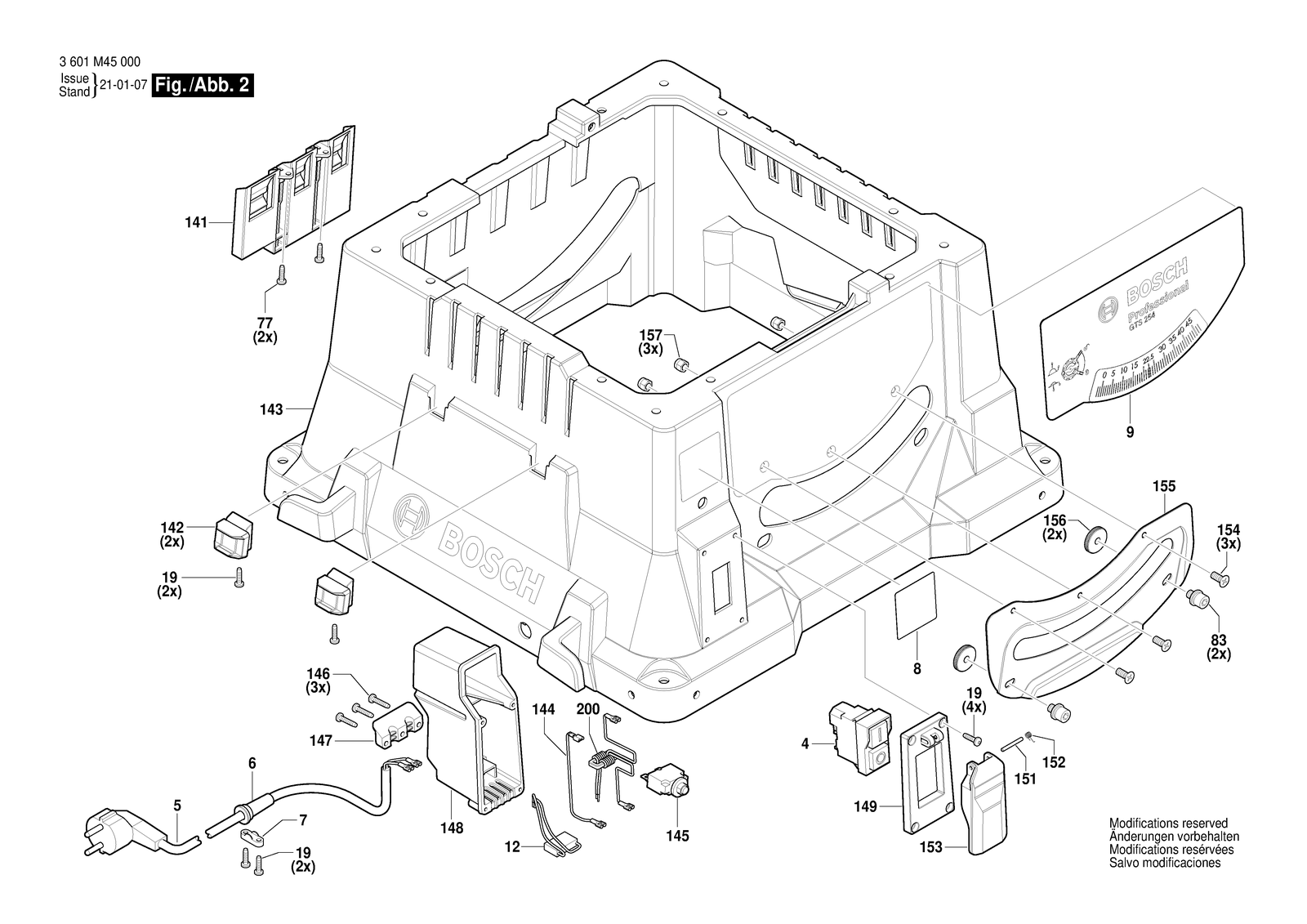

Bosch GTS 254 parts diagram, sheet 1Bosch GTS 254 parts diagram, sheet 2Bosch GTS 254 parts diagram, sheet 3Bosch GTS 254 parts diagram, sheet 4Bosch GTS 254 parts diagram, sheet 5Bosch GTS 254 parts diagram, sheet 6Bosch GTS 254 parts diagram, sheet 7
No.Part numberPart name
1001600A022E3Plug
1011600A022CDGasket
10216055002HMCover
1031603430094Screw
1051600A022FAFlange
1071619PB6279Flange
1081600A022DYPlate
1091603430095Screw
1121600A022FPWoodruff Key
1131600A022FROutput Shaft
114160343009RScrew
1151600A022BLCrown Gear
1161600A022BKRiving Knife
1171600A022F4Circlip
1191603430096Screw
121619PB6256Suppression Capacitor
1201600A022DGSeat
1211600A022FSPad
1221600A022DHSeat
1231600A022DUPlate
1241600A022CLNut
1261603430097Screw
1271619PB7258Shroud
1281603430098Screw
1291600A022FUWasher
13160090009GGroove ball bearing
1301600A022E8Cap
13116055002HNCover
1321600A022ELConnecting Wire
1331600A022BNWasher
1341603430099Screw
1351600A022EASleeve
1361600A022D8Rod
13716063332FFBevel Gear
138160343009AScrew
1391600A022EBSleeve
1401600A022BPWasher
1411600A022FYEquipment Holder
1421600A022DJSeat
1431600A022FZBody
144160440001PCable
1451600A022G5Protection
146160343009BScrew
1471600A022FDBracket
1481600A022DKSeat
1491600A022D6Switch Cover
1511600A022BWPin
1521600A022C4Switch Spring
1531600A022EZTrigger
154160343009CScrew
1551600A022DTPlate
1561600A022CHNut
1571600A022CJNut
1581600A022E9Cap
159160513219GHandle
160160343009DScrew
1611600A022FEWheel
1621600A022BRWasher
1631600A022C7Spring
1641600A022FFLever
165160343009EScrew
1661600A022CKNut
1671600A022BSWasher
1681600A022D1Pointer
1691600A022FGShaft
170160343009FScrew
1711600A022DARod
1721600A022ECSleeve
1731600A022DSPlate
1741600A022DLSeat
175160343009GScrew
1761600A022E4Plug
1771600A025F9Plate
1781600A022E5Plug
179160343009HScrew
1881600A022EXFrame
1891600A022EYSupporting foot
19160343008VScrew
1901600A022FKSupport
191160343009LScrew
192160343009MScrew
1931600A022FVTable Leg
194160343009NScrew
1951600A022D7Push rod
1961600A022FWGripping Wedge
1971600A022FXAssembly Wrench
19816034300A7Screw
1991600A025FASpring
2160422058VField
2001619PB6257Inductor
2011600A025FBTube
231600A022CFNut
271600A022DZPlug
281600A022EGEnd stop
321600A022CMBolt
331600A022E0Plug
341600A022C0Knob
35160343008WScrew
4160720037LSwitch
431600A022BTLocking Pin
441600A022FMClamping Lever
451600A022FNWheel
461600A022CCGasket
47160343009PScrew
481600A022ESBracket
49160343008YScrew
51619PB6258Power supply cord Cn
51619PB6260Power supply cord Cn
51619PB6262Power Cable Ind
51619PB6263Power supply cord Cn
501600A022DVPlate
511600A022C9Screw
541600A022CXLocking Lever
551600A022CYGuard
571600A022F1Riving Knife
581600A022CNBolt
6160070305BGrommet
671600A022DMStop Plate
681600A022DNStop Plate
691619PB7208Insert
6960828506S7Insert
71600A022BYClamp
701600A022F2Clip
71160343008ZScrew
7216055002HLCover
731600A022F5Table top
741600A022ETBase
751603430090Screw
761600A022E1Plug
771603430091Screw
781600A022F6Table top
791600A022EDHandle
8160111A8G4Nameplate
8160111A8G6Nameplate
8160111A8G8Nameplate
8160111A8G9Nameplate
801600A022DDSeat
8011619PB6273Motor Housing
8031619PB7256Armature
811603430092Screw
8101619PB6280Carbon-Brush Set
8111619PB6276Bearing cover
821600A022DESeat
8251619PB7259Gear Housing
831603430093Screw
8301619PB6271Edge Guide
841600A022C3Torsion Spring
851600A022CZGuard
861600A022D0Guard
8611619PB6270Pawl
871600A022F7Shim
881600A022DFSeat
8811619PB6272Mitre Fence
891600A022CGNut
9160111C3WMSticker
90160015003MSpring Washer
911600A022BMWasher
921600A022F8Scale Wheel
931600A022F9Indicator
941600A022DPMounting plate
951600A022CPBolt
961600A022E2Plug
971600A022EPScale
981600A022EUBase
991600A022ERScale
