Bosch GTS 18V-08 N
Bosch GTS 18V-08 N table saw: exploded parts diagram, 7 sheets, 186 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

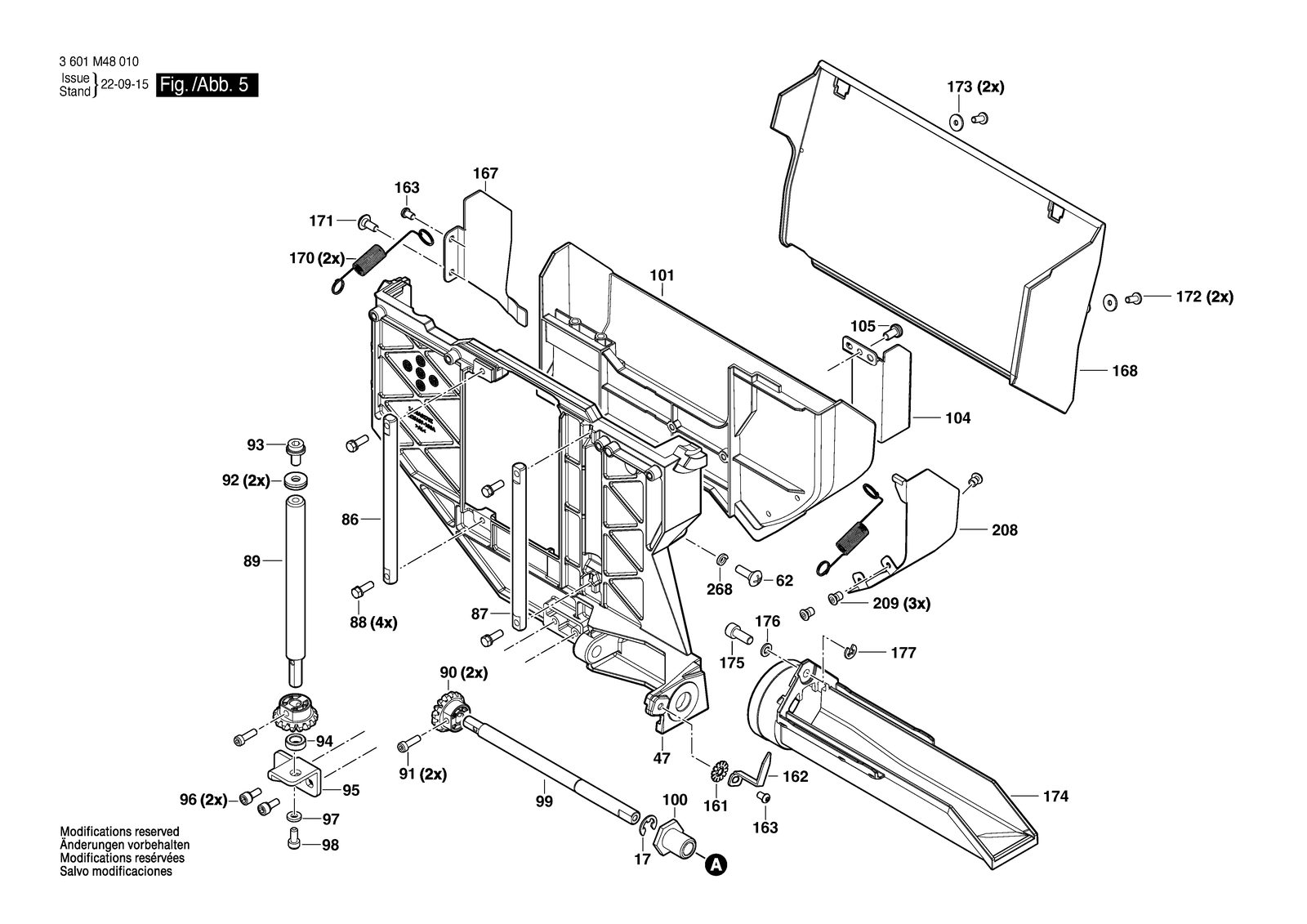

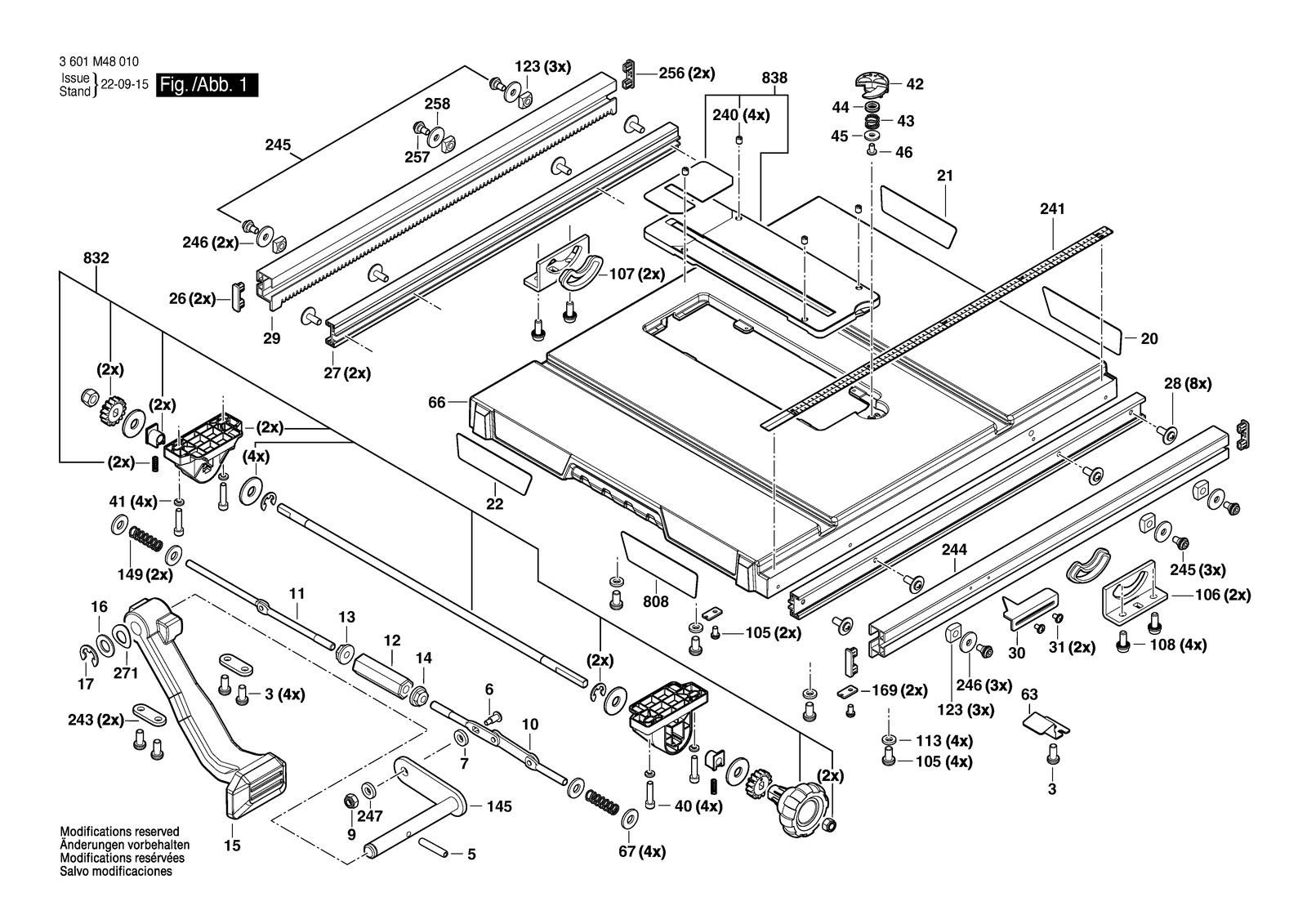

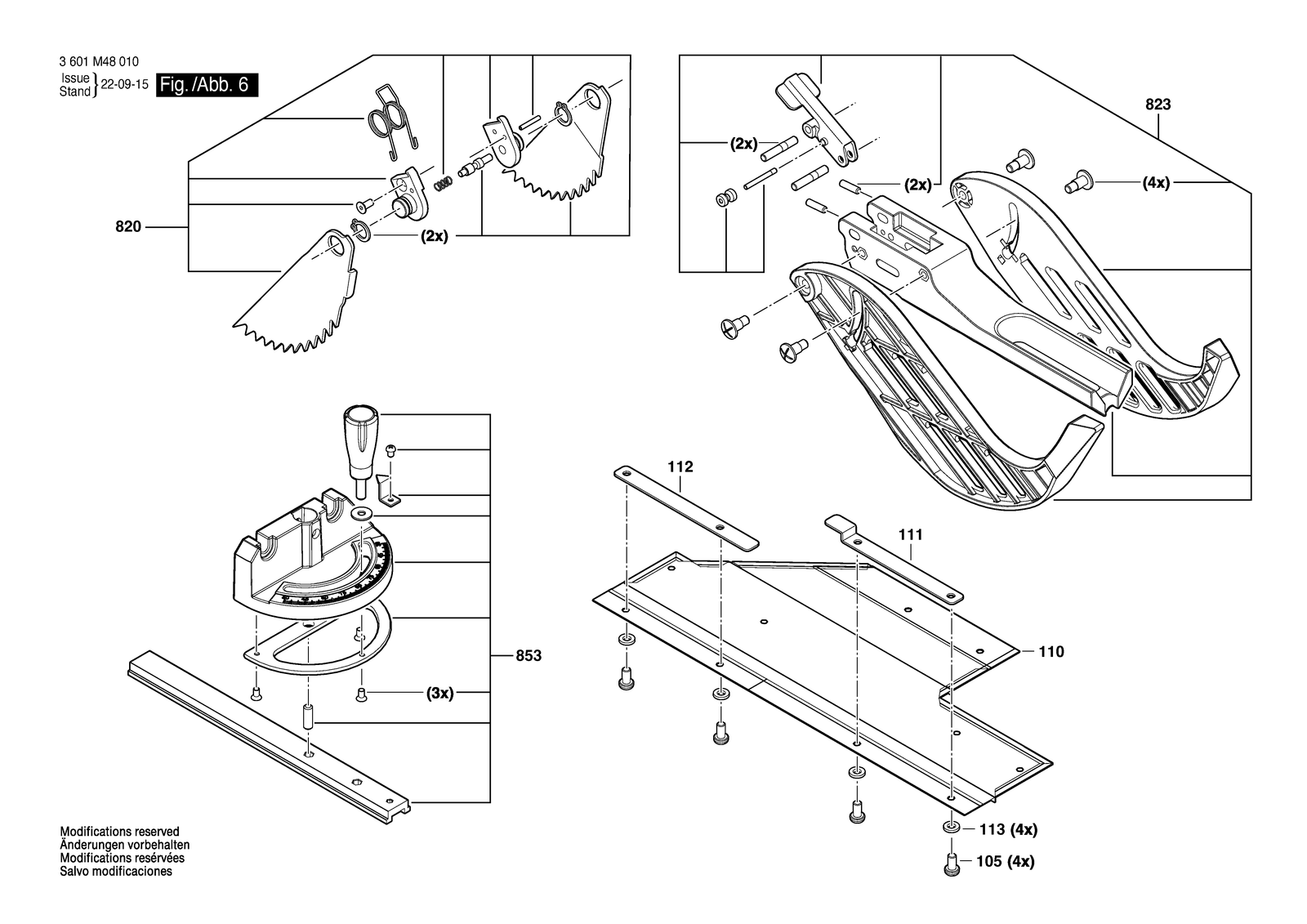

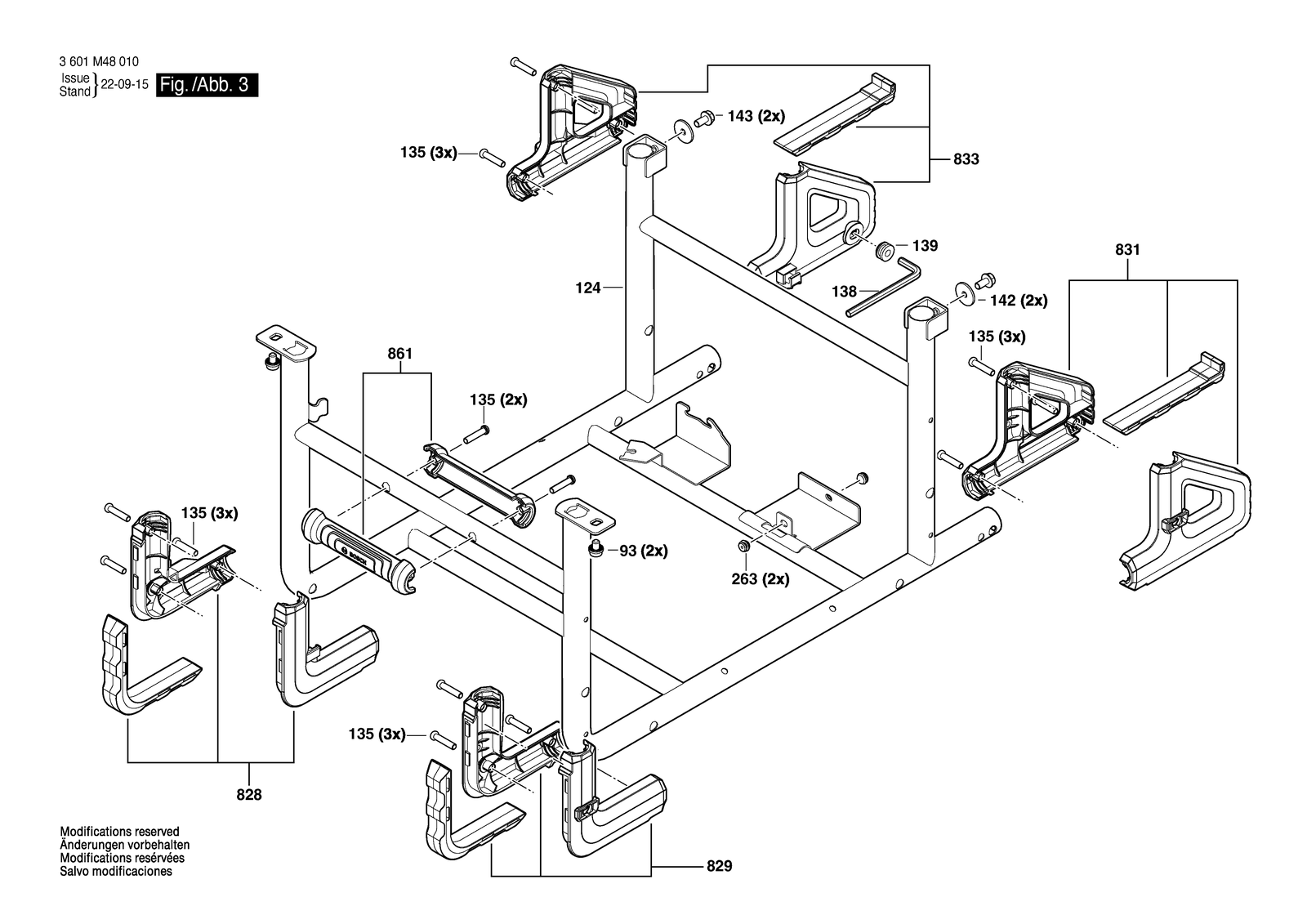

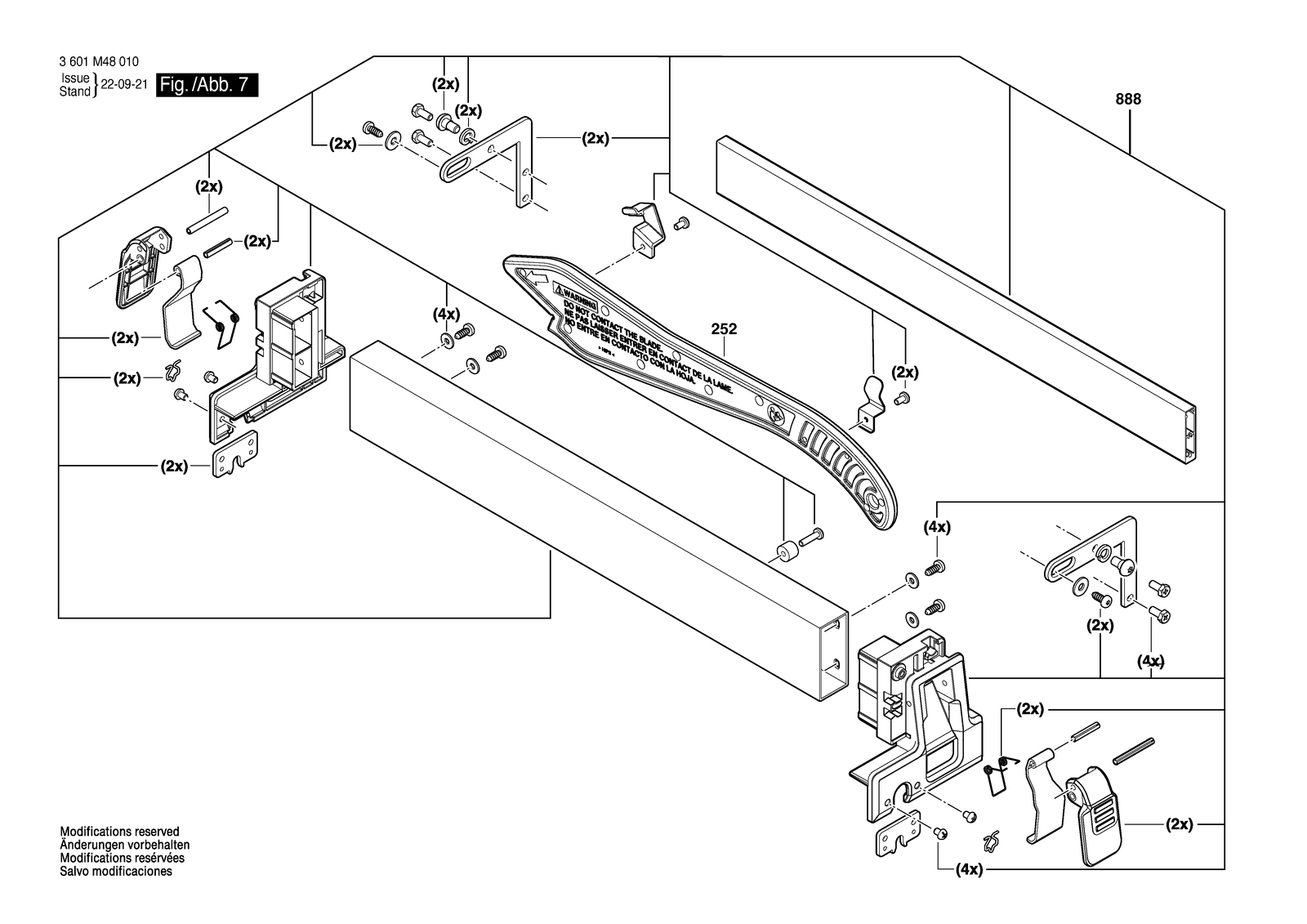

All parts of Bosch GTS 18V-08 N: 186 positions on 7 sheets
Bosch GTS 18V-08 N parts list (7 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1609B06868 | Motor cover |
| 10 | 1609B06902 | Push Rod |
| 100 | 2610015049 | Bushing |
| 101 | 1609B06888 | Cover Plate |
| 102 | 2610015018 | Screw |
| 103 | 1603430030 | Screw |
| 104 | 1609B06916 | Sealing plate |
| 105 | 1609B07050 | Tapping Screw |
| 106 | 1609B06998 | Mounting Bracket |
| 107 | 2610950070 | Bushing |
| 108 | 2610950069 | Screw |
| 109 | 1609B07869 | Screw |
| 11 | 1609B06903 | Push Rod |
| 110 | 1609B07022 | Guard Flap |
| 111 | 1609B06910 | Fixing plate |
| 112 | 1609B06911 | Fixing plate |
| 113 | 1609B07052 | Plain Washer |
| 114 | 1609B06882 | Front Plate |
| 115 | 2610950131 | Screw |
| 116 | 1609B06914 | Holding Plate |
| 117 | 1609B07004 | Cam |
| 118 | 2610016557 | Washer |
| 119 | 1609B07006 | Scale |
| 12 | 2610996920 | Connecting Nut |
| 120 | 1609B07007 | Label |
| 121 | 1609B07020 | Label |
| 122 | 1609B07021 | Label |
| 123 | 1609B07077 | Nut |
| 124 | 1609B06912 | Base Frame |
| 13 | 2610994262 | Clamp |
| 135 | 1609B07054 | Tapping Screw |
| 136 | 1609B06913 | Combination wrench |
| 137 | 1609B06898 | Rotary Knob |
| 138 | 1609B07055 | Clamping wrench |
| 139 | 2610911920 | Rubber Bushing |
| 14 | 2610016558 | Nut |
| 140 | 1609B07056 | Screw |
| 142 | 1609B08039 | Plain Washer |
| 143 | 1609B08040 | Bolt |
| 145 | 1609B06901 | Control Plate |
| 149 | 1609B07035 | Compression Spring |
| 15 | 1609B06861 | Clamp Handle |
| 150 | 2610015044 | Washer |
| 151 | 2610015061 | Bushing |
| 152 | 1609B06887 | Locking Lever |
| 153 | 2610015359 | Screw |
| 154 | 2610950115 | Spring |
| 155 | 2610015001 | Washer |
| 156 | 2610015069 | Handwheel |
| 157 | 2610950059 | Handle |
| 158 | 2610950060 | Screw |
| 159 | 2610950389 | Washer |
| 16 | 1609B07034 | Plain Washer |
| 160 | 1609B06999 | Plain Washer |
| 161 | 2610016566 | Washer |
| 162 | 1609B06915 | Pointer |
| 163 | 2610015065 | Screw M5X8 |
| 165 | 1609B07062 | Clamping Flange |
| 166 | 2610950047 | Arbor |
| 167 | 1609B06917 | Stop Plate |
| 168 | 1609B06889 | Cover Plate |
| 169 | 1609B06918 | Fixing plate |
| 17 | 2610911902 | Clip |
| 170 | 1609B07064 | Extension Spring |
| 171 | 1609B07065 | Screw |
| 172 | 2610950117 | Screw |
| 173 | 2610015058 | Washer |
| 174 | 1609B06890 | Dust-Cover Holder |
| 175 | 1609B07872 | Screw |
| 176 | 1609902053 | Plain Washer |
| 177 | 2610015053 | Spring retaining ring |
| 19 | 1609B07088 | Screw |
| 2 | 160702269E | Brushless DC motor |
| 20 | 1609B07015 | Warning Label |
| 208 | 1609B07092 | Cover Plate |
| 209 | 2610017050 | Rod |
| 21 | 1609B07016 | Warning Label |
| 22 | 1609B07017 | Warning Label |
| 23 | 1609B07013 | Warning Label |
| 24 | 1609B07027 | Warning Label |
| 240 | 2610950091 | Set screw |
| 241 | 1609B07009 | Scale |
| 243 | 1609B06904 | Detent plate |
| 244 | 1609B06856 | Sliding Rail |
| 245 | 1609B07075 | Screw |
| 246 | 1609B07076 | Plain Washer |
| 247 | 1609B07074 | Plain Washer |
| 248 | 1609B07031 | Bracket |
| 249 | 1609B07868 | Tapping Screw |
| 25 | 1609B07028 | Warning Label |
| 252 | 1600A01R5R | Pusher |
| 256 | 1609B06862 | End cap |
| 257 | 1609B07078 | Screw |
| 258 | 1609B07079 | Plain Washer |
| 259 | 1609B07089 | Washer |
| 26 | 1609B06863 | End cap |
| 263 | 1609B07025 | Bumper |
| 264 | 1609B07026 | Handle |
| 265 | 1609B07057 | Screw |
| 266 | 1609B07059 | Washer |
| 267 | 1609B07071 | Fixing Spring |
| 268 | 1609B07932 | Washer |
| 27 | 1609B07038 | Guide Rail |
| 271 | 1609B07319 | Wave spring |
| 28 | 1609B07039 | Screw |
| 29 | 1609B06857 | Sliding Rail |
| 3 | 1609B07032 | Screw |
| 30 | 1609B06905 | Pointer |
| 31 | 2610010404 | Screw |
| 40 | 1609B07041 | Screw |
| 41 | 1609B07042 | Plain Washer |
| 42 | 1609B07030 | Knob |
| 43 | 1604612010 | Compression Spring |
| 44 | 1600A00HG9 | Plain Washer |
| 45 | 1609B07046 | Plain Washer |
| 46 | 160343002E | Screw |
| 47 | 1600A0275Z | Carrier |
| 48 | 160580669T | Gear Box |
| 49 | 2610950042 | Spring Washer |
| 5 | 2610950054 | Bolt |
| 50 | 1609B07083 | Output Shaft |
| 51 | 1600A02761 | Gear cover |
| 52 | 2610997210 | Ball Bearing |
| 53 | 1609B07084 | Screw |
| 54 | 2610997282 | Spring retaining ring |
| 55 | 1609B07085 | Gear |
| 56 | 2610996949 | Ball Bearing |
| 57 | 2610998572 | Screw |
| 58 | 1609B06908 | Fixing plate |
| 59 | 1609B07867 | Screw |
| 6 | 1609B07072 | Shoulder Screw |
| 60 | 1609B07086 | Torsion Spring |
| 61 | 1609B06906 | Locking Lever |
| 62 | 1609B07931 | Screw |
| 63 | 1609B06900 | Spring Plate |
| 64 | 2610018230 | Screw |
| 65 | 1609B07087 | Ribbon cable |
| 66 | 1600A0275Y | Table top |
| 67 | 2610015075 | Washer |
| 68 | 1609B06907 | Holding Plate |
| 69 | 2610015078 | Screw |
| 7 | 1609B07073 | Plain Washer |
| 70 | 16072335GA | Electronic Module |
| 71 | 1609B07090 | Screw |
| 72 | 1609B06869 | Cover |
| 73 | 1609B06870 | Cable Cover |
| 74 | 1609B06885 | Battery Holder |
| 75 | 1609B06886 | Battery Holder |
| 76 | 1609B06855 | Contact retainer |
| 77 | 1609B07091 | Compression Spring |
| 78 | 1609B07860 | Tapping Screw |
| 79 | 1609B07861 | Connecting Tube |
| 80 | 1609B07862 | Ribbon cable |
| 804 | 1609B07058 | Switch Set |
| 808 | 1609B07102 | Nameplate |
| 81 | 1609B07863 | Ribbon cable |
| 820 | 1609B07068 | Safety Device |
| 823 | 1609B07067 | Upper guard |
| 826 | 1609B07069 | Riving Knife |
| 828 | 1609B07094 | Corner Bracket |
| 829 | 1609B07001 | Corner Bracket |
| 83 | 1609B06884 | Cover |
| 831 | 1609B07095 | Corner Bracket |
| 832 | 1609B07040 | Wheel Set |
| 833 | 1609B07096 | Corner Bracket |
| 838 | 1609B07070 | Support Plate |
| 84 | 1609B07864 | Screw |
| 85 | 1609B06871 | Cable Cover |
| 853 | 1609B07093 | Mitre Fence |
| 86 | 1609B07044 | Guide Rod |
| 861 | 1609B07097 | Carrying Handle |
| 87 | 1609B07045 | Guide Rod |
| 88 | 1609B07047 | Screw |
| 888 | 1609B07066 | Parallel-Guide |
| 89 | 1609B07865 | Threaded Rod |
| 9 | 2610911901 | Self-locking nut |
| 90 | 2610015042 | Bevel Gear |
| 91 | 2610015045 | Screw |
| 92 | 2610910013 | Washer |
| 93 | 2610950108 | Screw |
| 94 | 2610015043 | Bushing |
| 95 | 1609B06909 | Bracket |
| 96 | 1600A00J3E | Screw |
| 97 | 2610013162 | Washer |
| 98 | 2610015070 | Screw |
| 99 | 1609B07866 | Drive Shaft |
