Bosch GTS 1041A-09

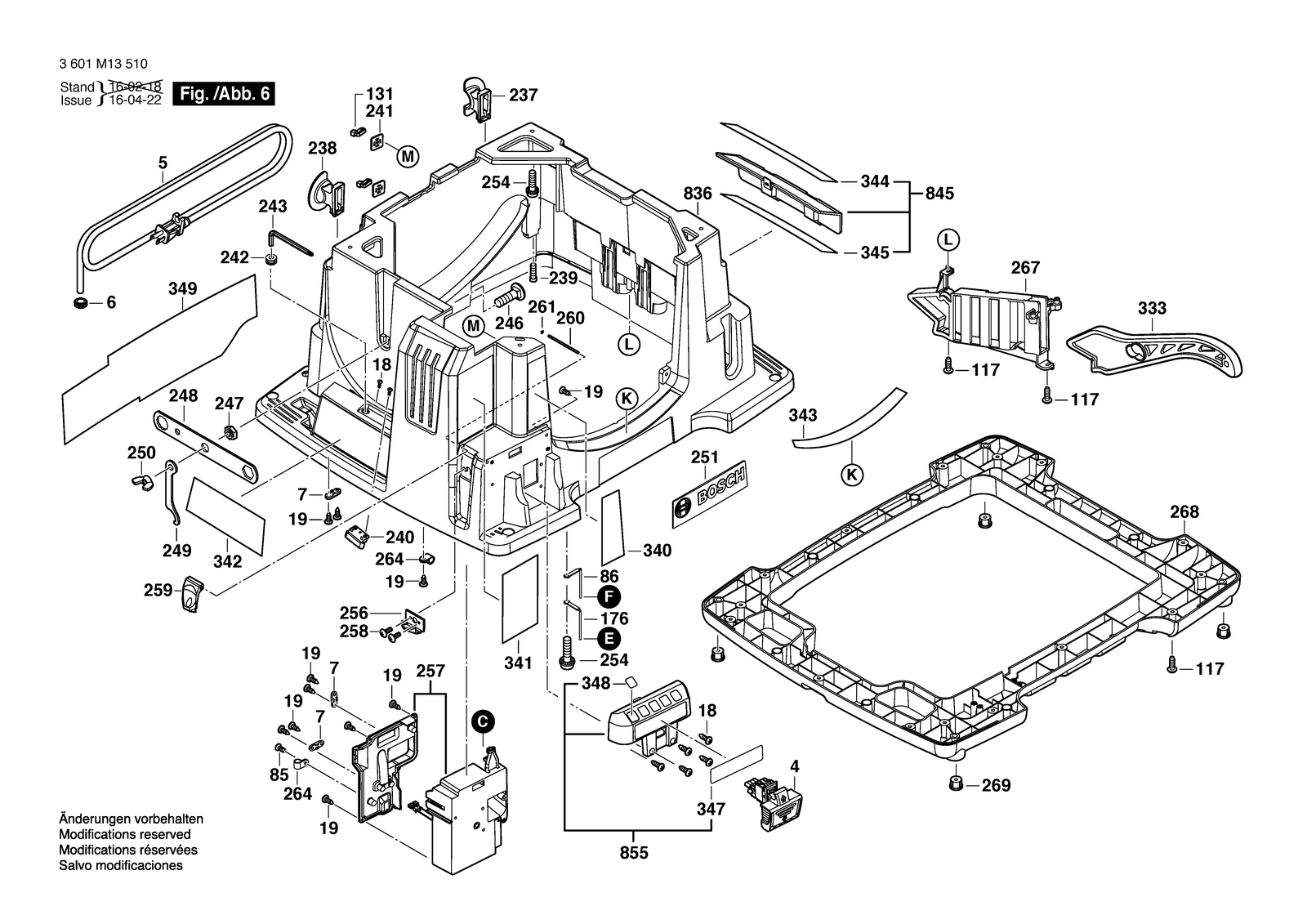

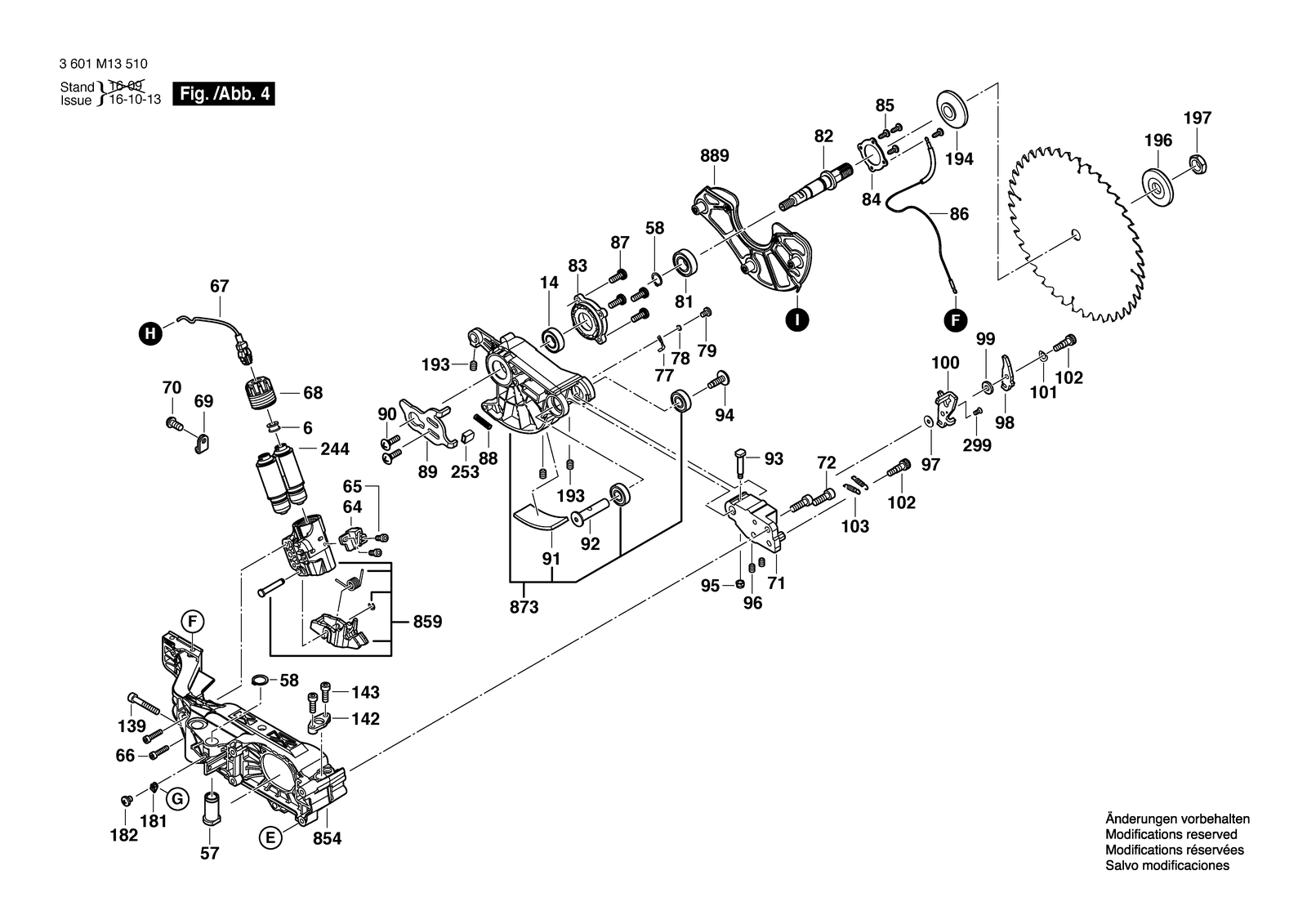

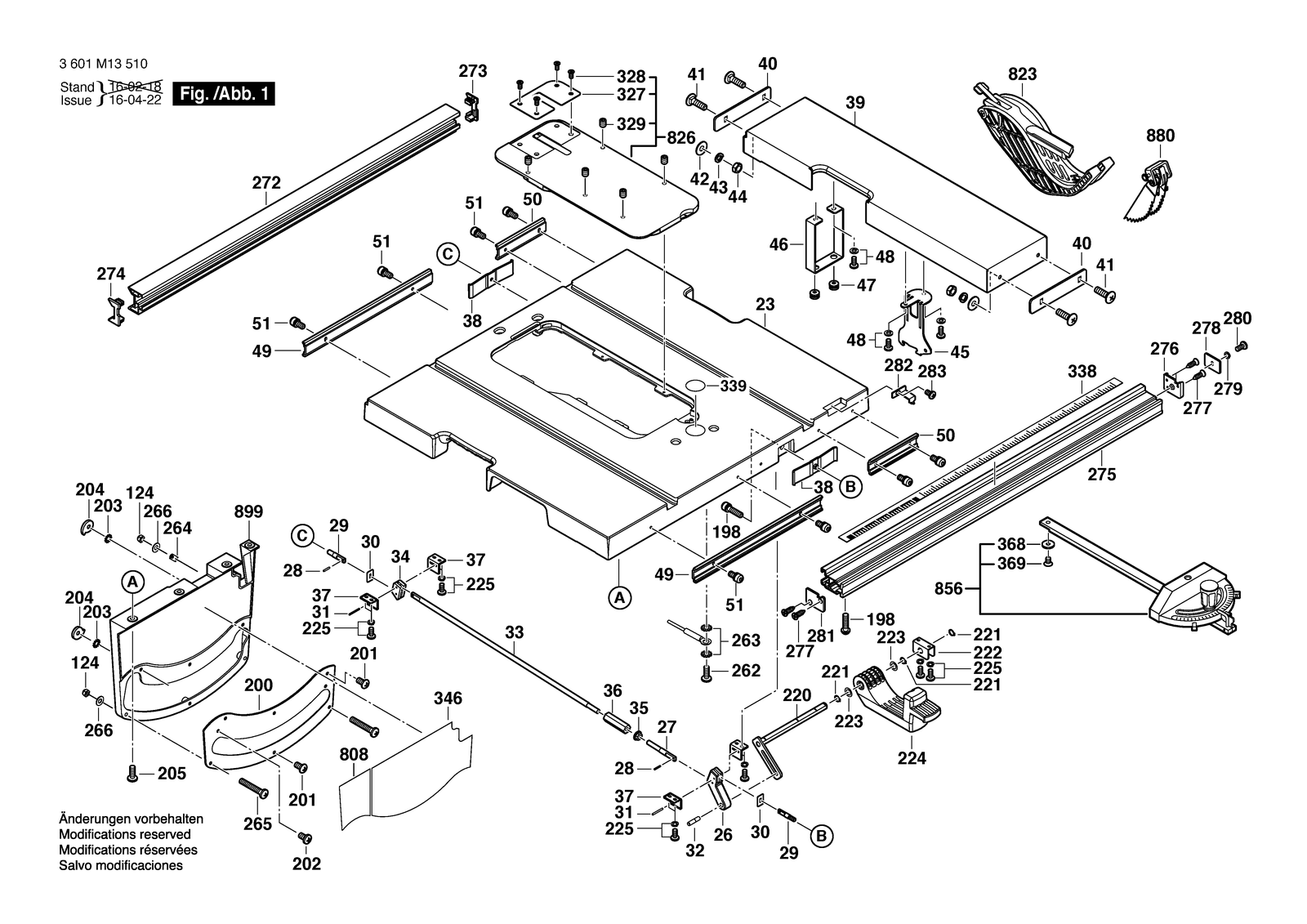

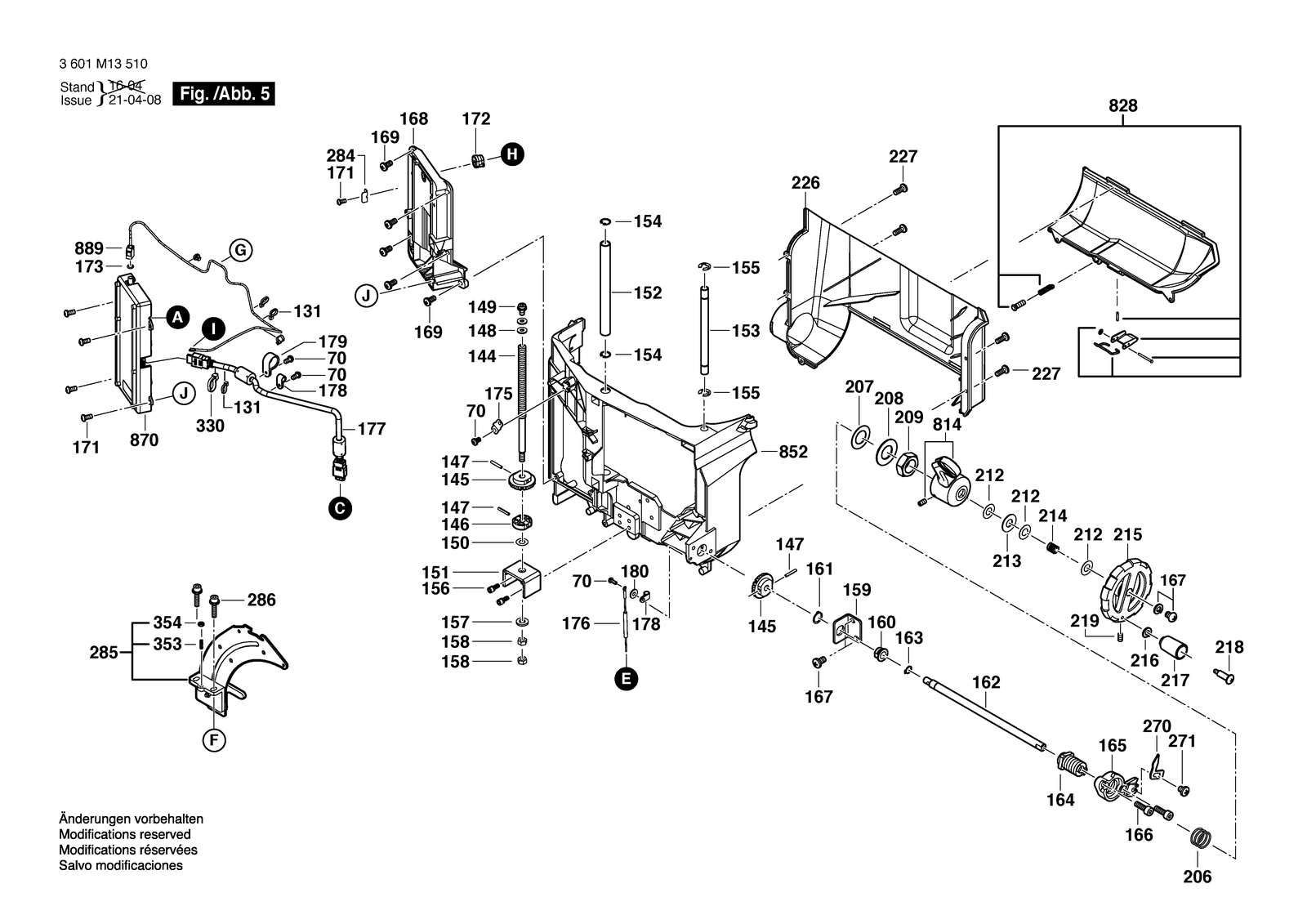

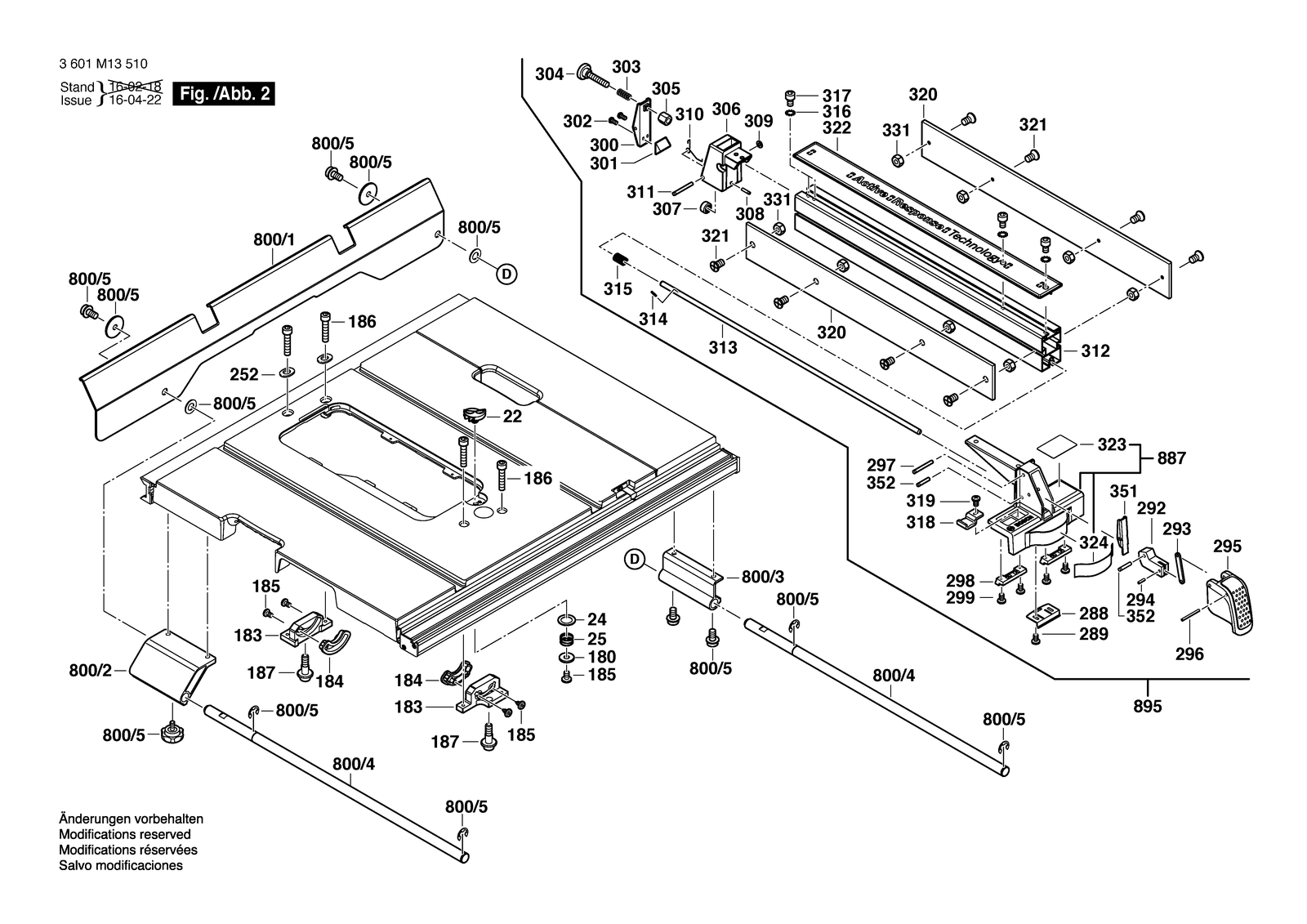

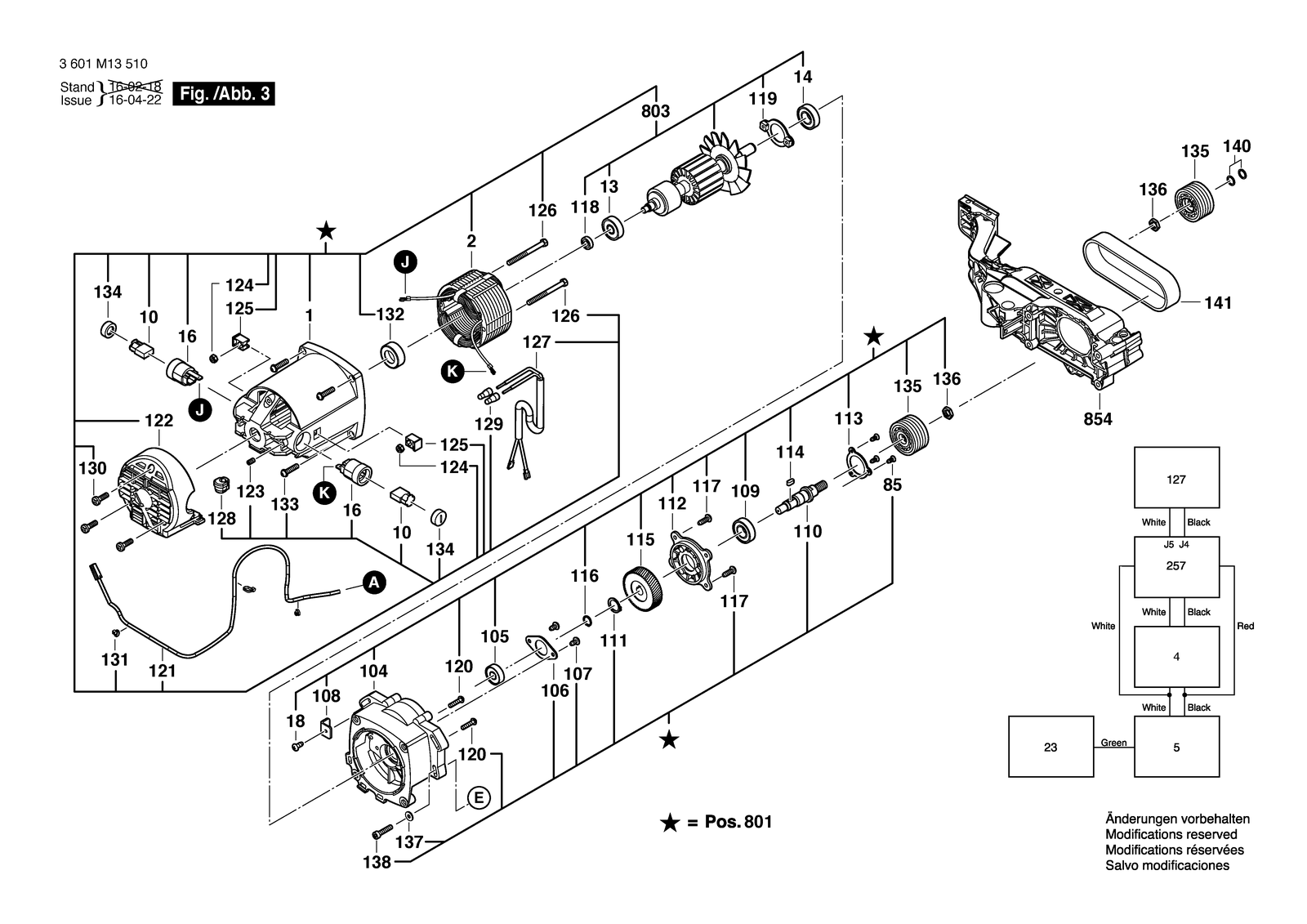

Bosch GTS 1041A-09 table saw: exploded parts diagram, 7 sheets, 328 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GTS 1041A-09: 328 positions on 7 sheets
Bosch GTS 1041A-09 parts list (7 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 16051082DX | Motor Housing |
| 10 | 2610997207 | Carbon-Brush Set |
| 100 | 2610026768 | Ratchet |
| 101 | 1600A00J2L | Spring Washer |
| 102 | 160343000R | Screw |
| 103 | 1600A00NU2 | Extension Spring |
| 104 | 2610026707 | Housing |
| 105 | 2610996949 | Ball Bearing |
| 106 | 2610026727 | Retaining Bracket |
| 107 | 160343002P | Screw |
| 108 | 2610026756 | Wear Plate |
| 109 | 2610997210 | Ball Bearing |
| 110 | 2610026729 | Gear Shaft |
| 111 | 2610997282 | Spring retaining ring |
| 112 | 2610026730 | Gear Cover |
| 113 | 2610026722 | Bearing Plate |
| 114 | 2610012984 | Woodruff Key |
| 115 | 2610997208 | Toothed Gear |
| 116 | 2610997281 | Spring retaining ring |
| 117 | 160343002R | Screw |
| 118 | 1600190045 | Magnet |
| 119 | 2610911566 | Bearing cover |
| 120 | 2610998571 | Screw Alt |
| 121 | 2610026787 | Rotational Speed Sensor |
| 122 | 2610026728 | End cap |
| 123 | 2610950120 | Set screw |
| 124 | 2610911901 | Self-locking nut |
| 125 | 2610911569 | Insert |
| 126 | 2610911929 | Screw |
| 127 | 1600A00C0U | Power Cable |
| 128 | 2610998567 | Cable Clip |
| 129 | 2610911933 | Connector |
| 13 | 2610004595 | Ball Bearing |
| 130 | 2610320330 | Screw |
| 131 | 1609902050 | Cable Strap |
| 132 | 2610996948 | Rubber Ring |
| 133 | 2610998587 | Screw |
| 134 | 2610911859 | Brush-Cover Ø 20MM |
| 135 | 1600A008AZ | V-Belt Pulley |
| 136 | 2610934688 | Nut |
| 137 | 1600A00J3A | Plain Washer |
| 138 | 1600A00J3B | Screw |
| 139 | 1600A00J3C | Screw |
| 14 | 2610911927 | Ball Bearing |
| 140 | 1600A003L5 | Spacer |
| 141 | 1600A008ED | Belt |
| 142 | 2610026724 | Guide Bushing |
| 143 | 1600A00J3D | Screw |
| 144 | 2610026737 | Threaded Rod |
| 145 | 2610996896 | Toothed Gear |
| 146 | 2610018235 | End stop |
| 147 | 2610950054 | Bolt |
| 148 | 2610950109 | Washer |
| 149 | 2610950108 | Screw |
| 150 | 2610912588 | Plain Washer |
| 151 | 2610033738 | Gear Block |
| 152 | 2610026719 | Guide Rod |
| 153 | 2610026720 | Guide Rod |
| 154 | 2610026721 | Retaining ring |
| 155 | 2610992380 | Spring retaining ring |
| 156 | 1600A00J3E | Screw |
| 157 | 2610912587 | Plain Washer |
| 158 | 2610358149 | Nut |
| 159 | 2610997212 | Mounting Bracket |
| 16 | 2610911858 | Brush Holder Alt |
| 160 | 1619PA5649 | Bushing |
| 161 | 2610997277 | Spring retaining ring |
| 162 | 2610026738 | Rod |
| 163 | 2610997276 | Spring retaining ring |
| 164 | 2610996933 | Threaded Bushing |
| 165 | 2610033739 | Lock Plate |
| 166 | 2610950110 | Profile Rail |
| 167 | 2610950055 | Screw |
| 168 | 2610026713 | Rear Panel |
| 169 | 160343002S | Screw |
| 171 | 160343002T | Screw |
| 172 | 1600A00J3R | Cable Clip |
| 173 | 1600210073 | O-Ring |
| 175 | 1600A00J19 | Cable Clip |
| 176 | 1600A00F20 | Cable |
| 177 | 2610033740 | Data cable |
| 178 | 1600A00J3S | Cable Clip |
| 179 | 1600A00J3T | Cable Clip |
| 18 | 2610015078 | Screw |
| 180 | 2610908270 | Washer |
| 181 | 1600A00J96 | Cable Clip |
| 182 | 160343002U | Screw |
| 183 | 2610026735 | Mounting Bracket |
| 184 | 2610026736 | Bushing clamp |
| 185 | 160343002E | Screw |
| 186 | 160343003U | Screw |
| 187 | 1603430026 | Screw |
| 19 | 160343002Z | Screw |
| 193 | 1600A00J9P | Set screw |
| 194 | 2610950045 | Washer |
| 196 | 2610950046 | Clamping Flange |
| 197 | 2610950047 | Arbor |
| 198 | 1603430029 | Screw |
| 2 | 160422054Z | Field |
| 200 | 2610026712 | Front Plate |
| 201 | 160343002V | Screw |
| 202 | 2610950132 | Screw |
| 203 | 2610016566 | Washer |
| 204 | 2610996929 | End stop |
| 205 | 1603430037 | Set screw |
| 206 | 2610997271 | Spring |
| 207 | 2610998550 | Plain Washer |
| 208 | 2610997299 | Plain Washer |
| 209 | 2610997298 | Nut |
| 212 | 2610950114 | Linkage |
| 213 | 2610950129 | Plain Washer |
| 214 | 2610950115 | Spring |
| 215 | 2610950057 | Handwheel |
| 216 | 2610950389 | Washer |
| 217 | 2610950059 | Handle |
| 218 | 2610950060 | Screw |
| 219 | 2610950058 | Threaded Rod |
| 22 | 2610026766 | Retention knob |
| 220 | 2610018244 | Linkage |
| 221 | 2610937293 | Retaining ring |
| 222 | 2610937291 | Mounting Bracket |
| 223 | 2610921458 | Washer |
| 224 | 2610018245 | Clamping Lever |
| 225 | 2610950071 | Screw |
| 226 | 2610026709 | Dust-Protection Cover |
| 227 | 2610016564 | Screw |
| 23 | 2610026744 | Table |
| 237 | 2610950068 | Protective Cover |
| 238 | 2610950141 | Screw |
| 239 | 2610998574 | Screw |
| 24 | 1600A00HG9 | Plain Washer |
| 240 | 1600A0072W | Spring Clip |
| 241 | 1600A00J4T | Cable guide plate |
| 242 | 2610911920 | Rubber Bushing |
| 243 | 1600A003PG | Hexagon Socket Screw Key |
| 244 | 2610026705 | Cartridge |
| 246 | 2610950067 | Holding Spring |
| 247 | 2610997246 | Nut |
| 248 | 2610996880 | Box Wrench |
| 249 | 1600A009V5 | Hook Wrench |
| 25 | 1604612010 | Compression Spring |
| 250 | 2610997247 | Wing Nut |
| 251 | 2610033775 | Company Logo |
| 252 | 1600A00M72 | Washer |
| 253 | 1600A00M9S | Cap |
| 254 | 2610997297 | Screw |
| 256 | 2610026798 | Shock Absorber |
| 257 | 2610026703 | Electronic Assembly |
| 258 | 160343002X | Screw |
| 259 | 2610026799 | Switch Button |
| 26 | 2610937294 | Cam |
| 260 | 2610026753 | Hinge Shaft |
| 261 | 160460102Y | retaining ring CVT shaft |
| 262 | 2610018319 | Screw |
| 263 | 1600A00J52 | Toothed lock washer |
| 264 | 2610911872 | Cable Clip |
| 265 | 1603430030 | Screw |
| 266 | 2610347092 | Plain Washer |
| 267 | 2610033774 | Accessory holder |
| 268 | 2610033776 | Base |
| 269 | 2610358846 | Rubber Bushing |
| 27 | 2610996918 | Set screw |
| 270 | 2610950062 | Pointer |
| 271 | 2610950061 | Pin |
| 272 | 2610026765 | Rail |
| 273 | 1600A00N5S | Cap |
| 274 | 1600A00N5T | Cap |
| 275 | 2610026764 | Profile Rail |
| 276 | 2610950082 | End stop |
| 277 | 2610950133 | Screw |
| 278 | 2610950083 | Profile Rail |
| 279 | 2610950080 | Cover |
| 28 | 2610997274 | Pin |
| 280 | 2610950119 | Profile Rail |
| 281 | 1600A003K1 | Cap |
| 282 | 2610950078 | Pointer |
| 283 | 2610950077 | Screw |
| 284 | 1600A00F8V | Cover Plate |
| 285 | 1600A00J53 | Riving Knife |
| 286 | 2610950069 | Screw |
| 288 | 2610950100 | Pad |
| 289 | 2610997249 | Shoulder Screw |
| 29 | 2610996913 | Pin |
| 292 | 2610996889 | Cam |
| 293 | 2610996890 | Lever |
| 294 | 2610997289 | Pin |
| 295 | 2610033770 | Handle |
| 296 | 1600A00J54 | Pin |
| 297 | 1600A00J55 | Pin |
| 298 | 1600A008BG | Slide |
| 299 | 2610950111 | Pusher |
| 30 | 2610996917 | Plate |
| 300 | 2610996885 | Clamping Plate |
| 301 | 2610997240 | Clamping Piece |
| 302 | 2610997293 | Screw |
| 303 | 2610998593 | Spring |
| 304 | 1603430031 | Adjusting Screw |
| 305 | 2610028342 | Cap Nut |
| 306 | 2610950107 | Edge Guide |
| 307 | 2610996886 | Roller |
| 308 | 2610997292 | Pin |
| 309 | 2610018300 | Washer |
| 31 | 1600A00N7E | Pin |
| 310 | 1600A00J57 | Contact strap |
| 311 | 2610950097 | Bolt |
| 312 | 1600A00M32 | Profile Rail |
| 313 | 1600A00M33 | Pin |
| 314 | 2610950105 | Edge Guide |
| 315 | 2610996888 | Spring |
| 316 | 2610358802 | Washer |
| 317 | 2610950125 | Profile Rail |
| 318 | 2610033771 | Lens |
| 319 | 1603430032 | Screw |
| 32 | 2610937292 | Guide Pin |
| 320 | 2610026772 | Insulating Plate |
| 321 | 1603430033 | Screw |
| 322 | 1600A007HD | Cover Plate |
| 323 | 60829428EH | Label |
| 324 | 60829428EG | Label |
| 327 | 2610026742 | Wear Plate |
| 328 | 1603430034 | Screw |
| 329 | 2610950091 | Set screw |
| 33 | 2610026762 | Rod |
| 330 | 1600A00J4V | Cable tie |
| 331 | 1600A00R0T | Lock Nut |
| 333 | 2610950112 | Knob |
| 338 | 60829428EF | Label |
| 339 | 2610997817 | Adhesive Label |
| 34 | 2610996915 | Clamping Piece |
| 340 | 2610033752 | Label |
| 341 | 2610033751 | Label |
| 342 | 2610033753 | Label |
| 343 | 2610033754 | Label |
| 344 | 2610033756 | Label |
| 345 | 2610033757 | Label |
| 346 | 2610033755 | Label |
| 347 | 2610033760 | Label |
| 348 | 2610033761 | Label |
| 349 | 60829428EJ | Label |
| 35 | 2610014698 | Nut |
| 351 | 2610950098 | Clamping Plate |
| 352 | 2610997291 | Pin |
| 353 | 2610998580 | Screw |
| 354 | 2610911896 | Nut |
| 36 | 2610996920 | Connecting Nut |
| 368 | 2610950146 | Washer |
| 369 | 2610950147 | Screw |
| 37 | 2610996921 | Holding Bracket |
| 38 | 2610996912 | Fixing Plate |
| 39 | 2610026763 | Table |
| 4 | 2610026755 | Switch Assembly |
| 40 | 2610950086 | Mounting plate |
| 41 | 2610950087 | Screw |
| 42 | 2610910013 | Washer |
| 43 | 2610355325 | Spring Washer |
| 44 | 2610304772 | Nut |
| 45 | 2610950136 | Mounting Bracket |
| 46 | 2610950137 | Rubber Bushing |
| 47 | 2610950138 | Profile Rail |
| 48 | 2610950139 | Cam |
| 49 | 2610950076 | Mounting Rail |
| 5 | 1600A008D7 | Power Cable |
| 50 | 2610950075 | Mounting Rail |
| 51 | 2610951945 | Screw |
| 57 | 160030010Z | Bushing |
| 58 | 2610998573 | Spring retaining ring |
| 6 | 2610950038 | Grommet |
| 64 | 2610033743 | Aligning plate |
| 65 | 1603430025 | Screw |
| 66 | 160343000P | Screw |
| 67 | 2610033762 | Cable assembly |
| 68 | 2610026792 | Plug |
| 69 | 1600A00J2F | Cable Clip |
| 7 | 2610358842 | Clamp |
| 70 | 1600A00J2G | Screw |
| 71 | 2610026718 | Hinge Bracket |
| 72 | 160343003J | Screw |
| 77 | 2610033749 | Wear Plate |
| 78 | 2610950453 | Washer |
| 79 | 160343002N | Screw |
| 800/1 | 1600A00MK8 | Feed Table |
| 800/2 | 1600A00MK9 | Bracket |
| 800/3 | 1600A00ML0 | Bracket |
| 800/4 | 1600A00J5A | Sliding Rod |
| 800/5 | 1600A00ML1 | Fastening parts kit |
| 800/7 | 1600A00MK5 | Fastening parts kit |
| 800/8 | 2610923996 | Supporting foot |
| 800/9 | 2610009637 | Wheel |
| 801 | 1607220068 | Motor assembly |
| 803 | 1600A00L19 | Armature assembly |
| 808 | 160111A39J | Name Plate |
| 81 | 2610327846 | Ball Bearing |
| 814 | 1609B06826 | Clamping Lever |
| 82 | 2610026732 | Bolt |
| 823 | 2610950092 | Protective Cover |
| 826 | 1600A00KZ1 | Plate |
| 828 | 1600A00KZ2 | Dust-Protection Cover |
| 83 | 2610026733 | Bearing Housing |
| 836 | 1600A00KZ3 | Base Housing |
| 84 | 2610033766 | Bearing Retaining Ring |
| 845 | 1600A00KZ4 | Door |
| 85 | 2610018345 | Screw |
| 852 | 1600A00KZ5 | Housing Frame |
| 854 | 1600A00KZ6 | Carriage |
| 855 | 1600A00L00 | Electronic Assembly |
| 856 | 2610950149 | Mitre Fence |
| 859 | 1600A00KZ7 | Housing Assembly |
| 86 | 1600A00F1Z | Cable |
| 87 | 2610018230 | Screw |
| 870 | 1600A00L01 | Electronic Assembly |
| 873 | 1600A00KZ8 | Drop-In Bracket |
| 88 | 2610033744 | Compression Spring |
| 880 | 2610950093 | Safety Device |
| 887 | 1600A00L03 | Housing Assembly |
| 889 | 1600A00L5V | Sensor Assembly |
| 89 | 2610026775 | Shaft lock |
| 895 | 1600A00L04 | Mitre Fence |
| 899 | 1600A00KZ9 | Front Plate |
| 90 | 2610998588 | Screw |
| 91 | 2610026793 | Shock Absorber |
| 92 | 2610033734 | Hinge Shaft |
| 93 | 2610033736 | Hinge Rod |
| 94 | 2610033735 | Hinge Bolt |
| 95 | 1600A00NU1 | Lock Nut |
| 96 | 2610950427 | Set screw |
| 97 | 1600A004BN | Washer |
| 98 | 2610026769 | Ratchet |
| 99 | 2610026770 | Washer |
Selected parts0
