Bosch GTS 1031
Bosch GTS 1031 table saw: exploded parts diagram, 3 sheets, 174 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

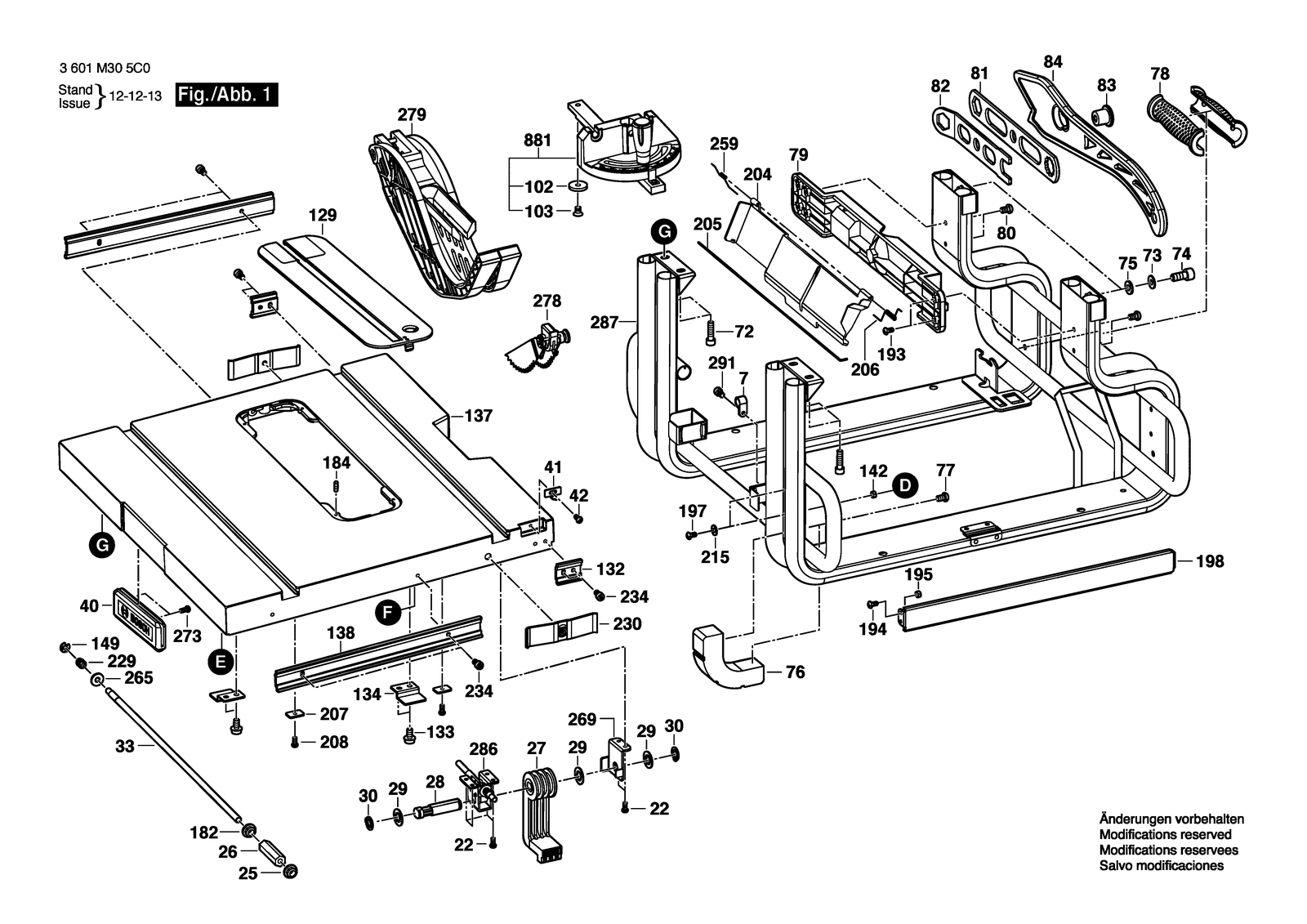

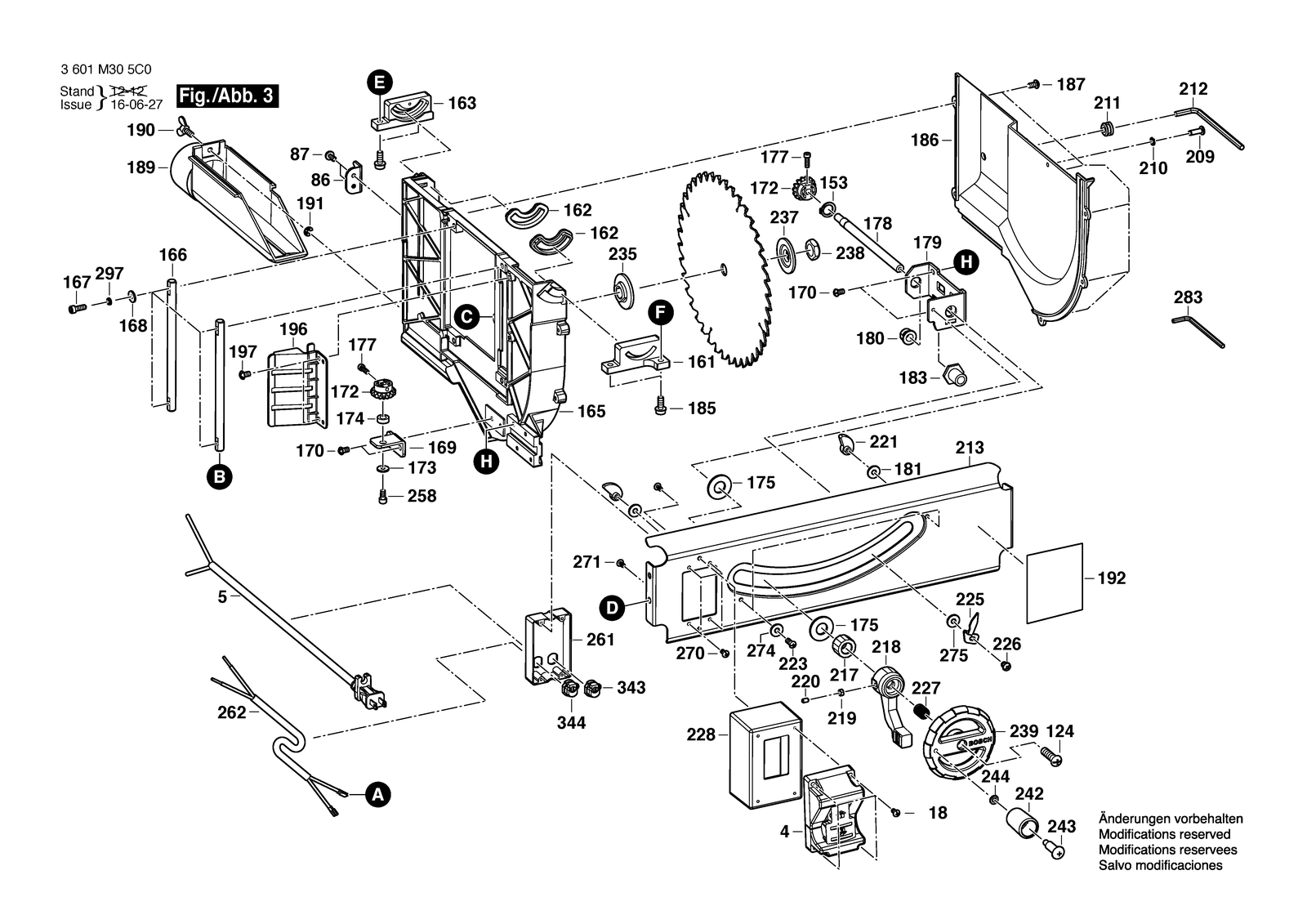

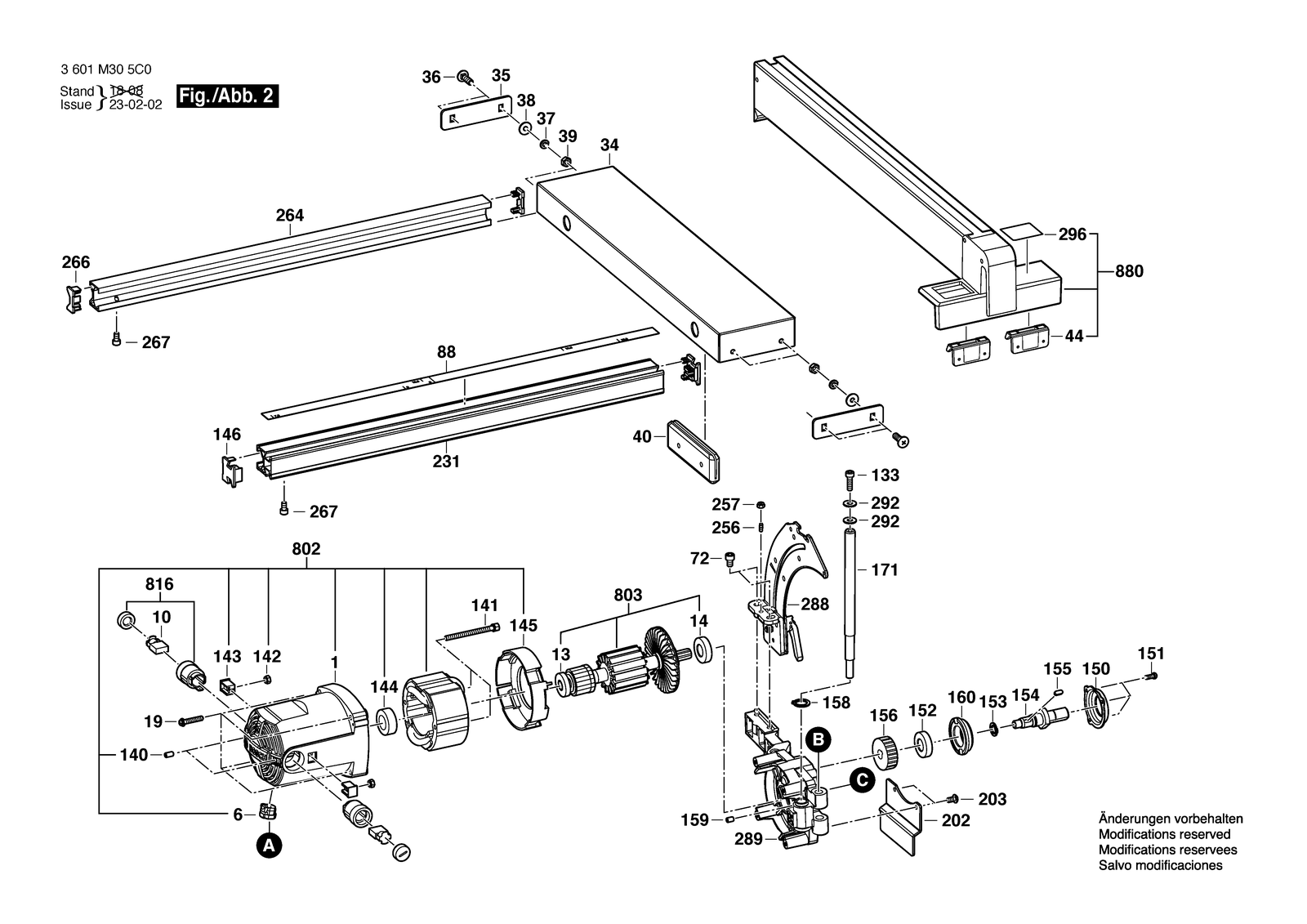

All parts of Bosch GTS 1031: 174 positions on 3 sheets
Bosch GTS 1031 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610014691 | Motor Housing |
| 10 | 2610024768 | Carbon-Brush Set |
| 102 | 2610950146 | Washer |
| 103 | 2610950147 | Screw |
| 124 | 2610998572 | Screw |
| 129 | 1600A00723 | Mounting Insert |
| 13 | 2610015747 | Ball Bearing |
| 132 | 1600A00726 | Sliding Plate |
| 133 | 2610950108 | Screw |
| 134 | 2610015027 | Support Plate |
| 137 | 2610015028 | Table |
| 138 | 1600A00724 | Mounting Rail |
| 14 | 2610017349 | Groove ball bearing |
| 140 | 2610950120 | Set screw |
| 141 | 2610911929 | Screw |
| 142 | 2610911901 | Self-locking nut |
| 143 | 2610911569 | Insert |
| 144 | 2610013160 | Bearing Housing |
| 145 | 2610015029 | Baffle |
| 146 | 2610015030 | End cap |
| 149 | 2610015031 | Spring retaining ring |
| 150 | 2610015032 | Spindle Housing |
| 151 | 2610908271 | Tapping Screw |
| 152 | 2610997210 | Ball Bearing |
| 153 | 2610997282 | Spring retaining ring |
| 154 | 2610015033 | Spindle |
| 155 | 2610012984 | Woodruff Key |
| 156 | 2610012985 | Reduction Gear |
| 158 | 2610998573 | Spring retaining ring |
| 159 | 2610950427 | Set screw |
| 160 | 2610015034 | Bearing Plate |
| 161 | 2610950126 | Mounting Bracket |
| 162 | 2610950070 | Bushing |
| 163 | 2610015035 | Support bracket |
| 165 | 2610015036 | Holding Plate |
| 166 | 2610015037 | Rod |
| 167 | 2610015038 | Bolt |
| 168 | 2610015039 | Washer |
| 169 | 2610015040 | Support Plate |
| 170 | 2610950055 | Screw |
| 171 | 2610015041 | Rod |
| 172 | 2610015042 | Bevel Gear |
| 173 | 2610013162 | Washer |
| 174 | 2610015043 | Bushing |
| 175 | 2610015044 | Washer |
| 177 | 2610015045 | Screw |
| 178 | 2610015046 | Shaft |
| 179 | 2610015047 | Support Plate |
| 18 | 2610014695 | Screw |
| 180 | 2610015048 | Bushing |
| 181 | 2610016557 | Washer |
| 182 | 2610016558 | Nut |
| 183 | 2610015049 | Bushing |
| 184 | 2610013053 | Set screw |
| 185 | 2610016559 | Screw |
| 186 | 2610015050 | Cover |
| 187 | 2610950049 | Screw |
| 189 | 2610015051 | Dust-Cover Holder |
| 19 | 2610358928 | Screw |
| 190 | 2610024770 | Screw |
| 191 | 2610015053 | Spring retaining ring |
| 192 | 2610014696 | Label |
| 193 | 2610016560 | Stud bolt |
| 194 | 2610016561 | Screw |
| 195 | 2610925187 | Nut |
| 196 | 2610015055 | Guard Plate |
| 197 | 2610950132 | Screw |
| 198 | 2610015073 | Plate |
| 202 | 2610015056 | Guard Plate |
| 203 | 2610950439 | Screw |
| 204 | 2610015054 | Guard Plate |
| 205 | 2610016562 | Rod |
| 206 | 2610016563 | Contact strap |
| 207 | 2610923830 | Plate |
| 208 | 2610010404 | Screw |
| 209 | 2610950117 | Screw |
| 210 | 2610015058 | Washer |
| 211 | 2610911920 | Rubber Bushing |
| 212 | 2610015059 | Wrench Socket |
| 213 | 2610015060 | Front Panel |
| 215 | 2610347092 | Plain Washer |
| 217 | 2610015061 | Bushing |
| 218 | 2610015062 | Handle |
| 219 | 2610908272 | Nut |
| 22 | 2610014697 | Screw |
| 220 | 2610015359 | Screw |
| 221 | 2610015063 | Cam |
| 223 | 2610016564 | Screw |
| 225 | 2610015064 | Pointer |
| 226 | 2610015065 | Screw M5X8 |
| 227 | 2610013054 | Contact strap |
| 228 | 2610015066 | Switch Housing |
| 229 | 2610015067 | Spring |
| 230 | 2610996912 | Fixing Plate |
| 231 | 2610015091 | Sliding Rail |
| 234 | 2610951945 | Screw |
| 235 | 2610015068 | Washer |
| 237 | 2610358857 | Washer |
| 238 | 2610950047 | Arbor |
| 239 | 2610015069 | Handwheel |
| 242 | 2610950059 | Handle |
| 243 | 2610950060 | Screw |
| 244 | 2610950389 | Washer |
| 25 | 2610014698 | Nut |
| 256 | 2610998580 | Screw |
| 257 | 2610911896 | Nut |
| 258 | 2610015070 | Screw |
| 259 | 2610016565 | Contact strap |
| 26 | 2610996920 | Connecting Nut |
| 261 | 2610015071 | Switch Housing |
| 262 | 2610015072 | Connecting Cable |
| 264 | 2610015074 | Rail |
| 265 | 2610015075 | Washer |
| 266 | 2610015076 | Device cap |
| 267 | 2610950134 | Bolt |
| 269 | 2610015077 | Plate |
| 27 | 2610014699 | Handle |
| 270 | 2610015078 | Screw |
| 271 | 2610017002 | Screw |
| 273 | 2610015080 | Screw |
| 274 | 2610950135 | Washer |
| 275 | 2610016566 | Washer |
| 278 | 2610950093 | Safety Device |
| 279 | 2610950092 | Protective Cover |
| 28 | 2610015000 | Cam |
| 283 | 2610016567 | Hexagon Socket Wrench |
| 286 | 2610015093 | Lock |
| 287 | 2610015089 | Base |
| 288 | 2610015087 | Riving Knife |
| 289 | 2610015090 | Gear Housing |
| 29 | 2610015001 | Washer |
| 291 | 2610015362 | Screw |
| 292 | 2610950109 | Washer |
| 296 | 2610016568 | Warning Label |
| 297 | 2610013365 | Spring Washer |
| 30 | 2610015002 | Spring retaining ring |
| 33 | 2610015004 | Rod |
| 34 | 2610015005 | Table top |
| 343 | 2610020856 | Cable Clip |
| 344 | 2610020859 | Cable Clip |
| 35 | 2610015006 | Retaining Plate |
| 36 | 2610910015 | Collar bolt |
| 37 | 2610355325 | Spring Washer |
| 38 | 2610910013 | Washer |
| 39 | 2610015008 | Nut |
| 4 | 2610015088 | On-Off Switch |
| 40 | 2610015009 | Handle |
| 41 | 2610015010 | Pointer |
| 42 | 2610950077 | Screw |
| 44 | 2610023173 | Pad |
| 5 | 1619PA5150 | Power supply cord |
| 6 | 2610998567 | Cable Clip |
| 7 | 2610014693 | Cable Clip |
| 72 | 2610950069 | Screw |
| 73 | 2610015011 | Washer |
| 74 | 2610015012 | Bolt |
| 75 | 2610925438 | Washer |
| 76 | 2610015014 | Supporting foot |
| 77 | 2610015015 | Screw |
| 78 | 2610015016 | Handle |
| 79 | 2610015017 | Holding Plate |
| 80 | 2610015018 | Screw |
| 802 | 1600A01C81 | Motor assembly |
| 803 | 2610015092 | Armature 120V |
| 81 | 2610015019 | Key |
| 816 | 1609B07133 | Brush holder assembly |
| 82 | 2610015020 | Key |
| 83 | 2610015021 | Nut |
| 84 | 2610015022 | Workpiece Pusher |
| 86 | 2610015023 | Support bracket |
| 87 | 2610950418 | Screw |
| 88 | 2610015024 | Scale |
| 880 | 2610015083 | Edge Guide |
| 881 | 2610015084 | Mitre Gauge |
