Bosch GTS 10 XC

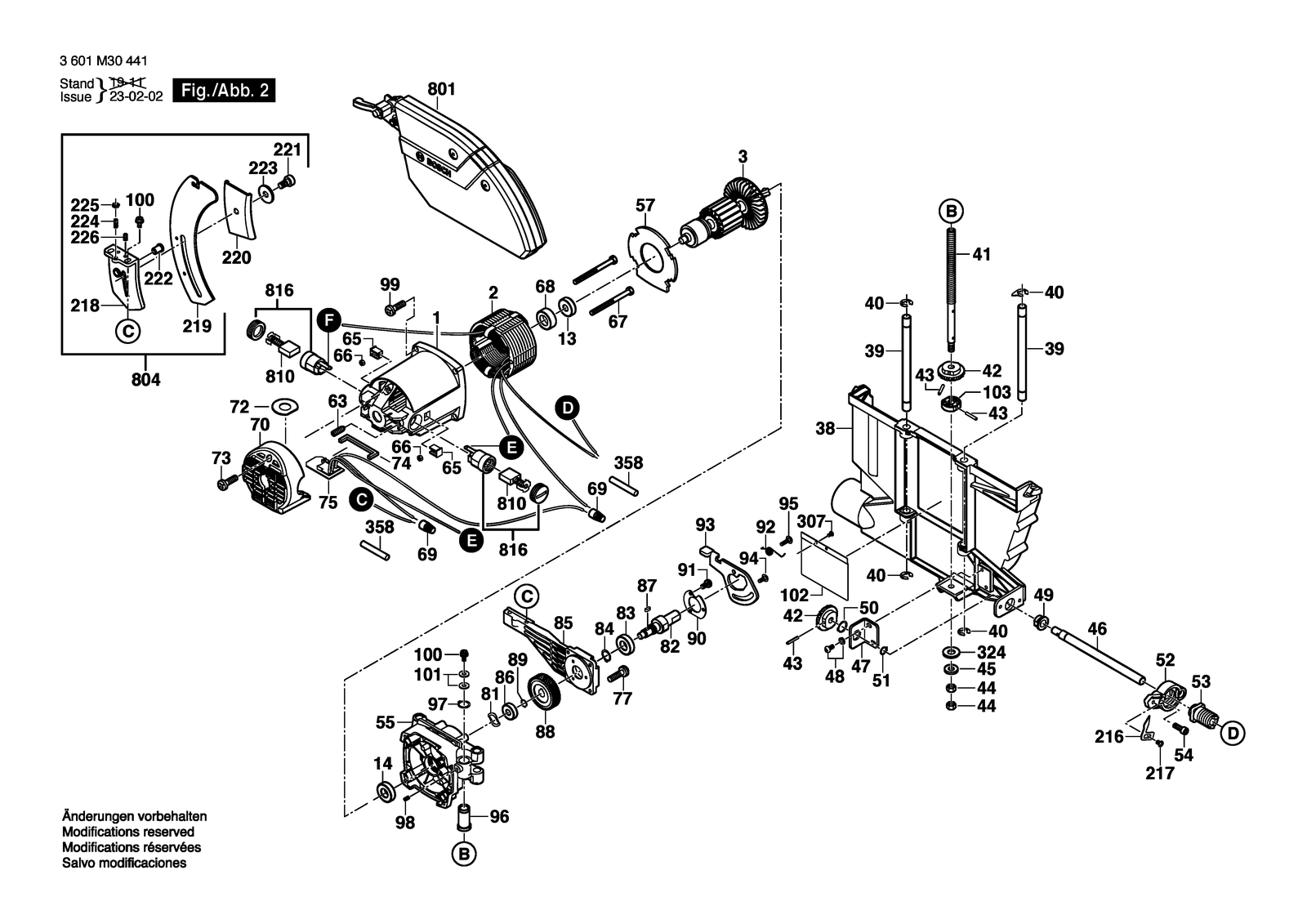

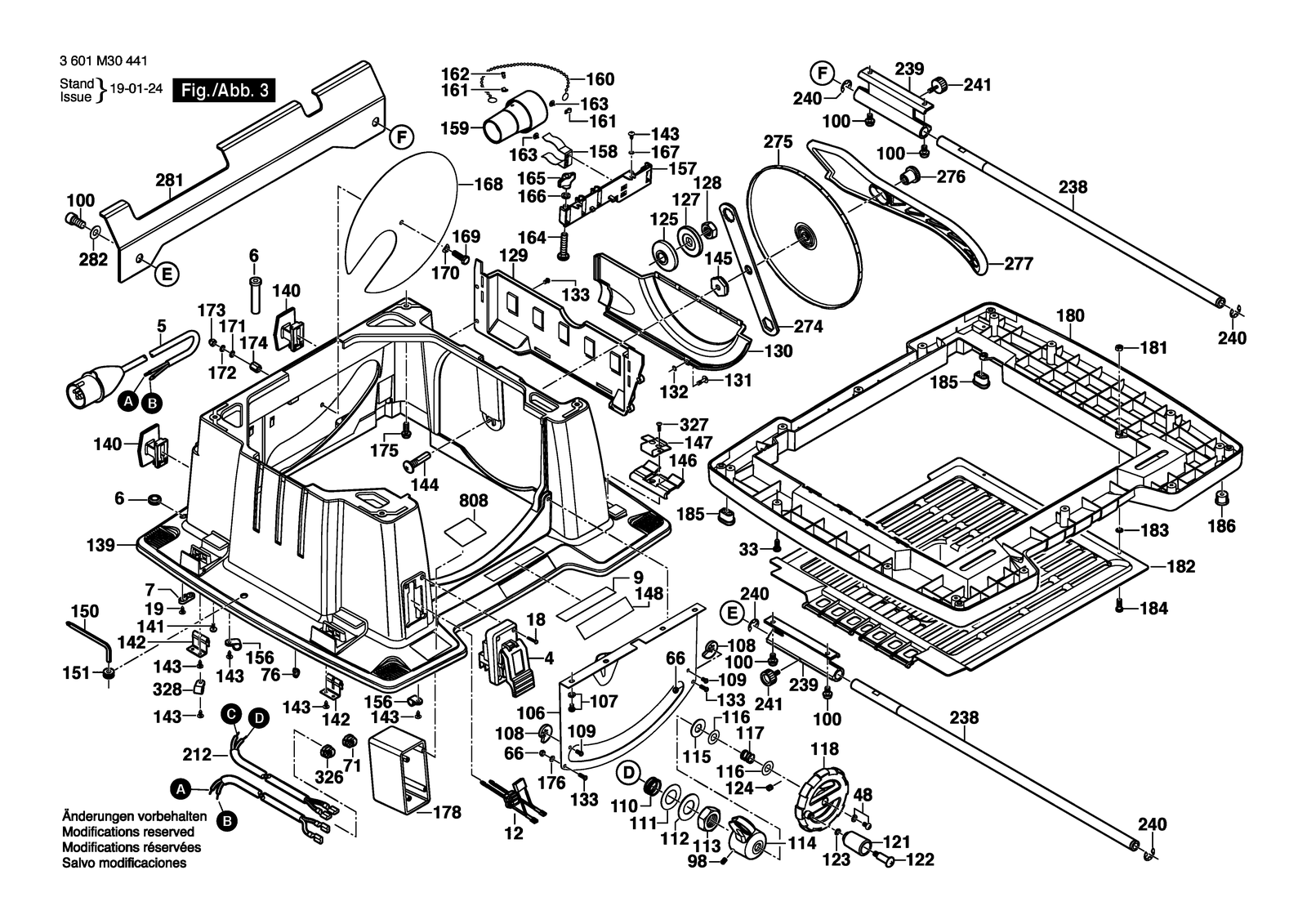

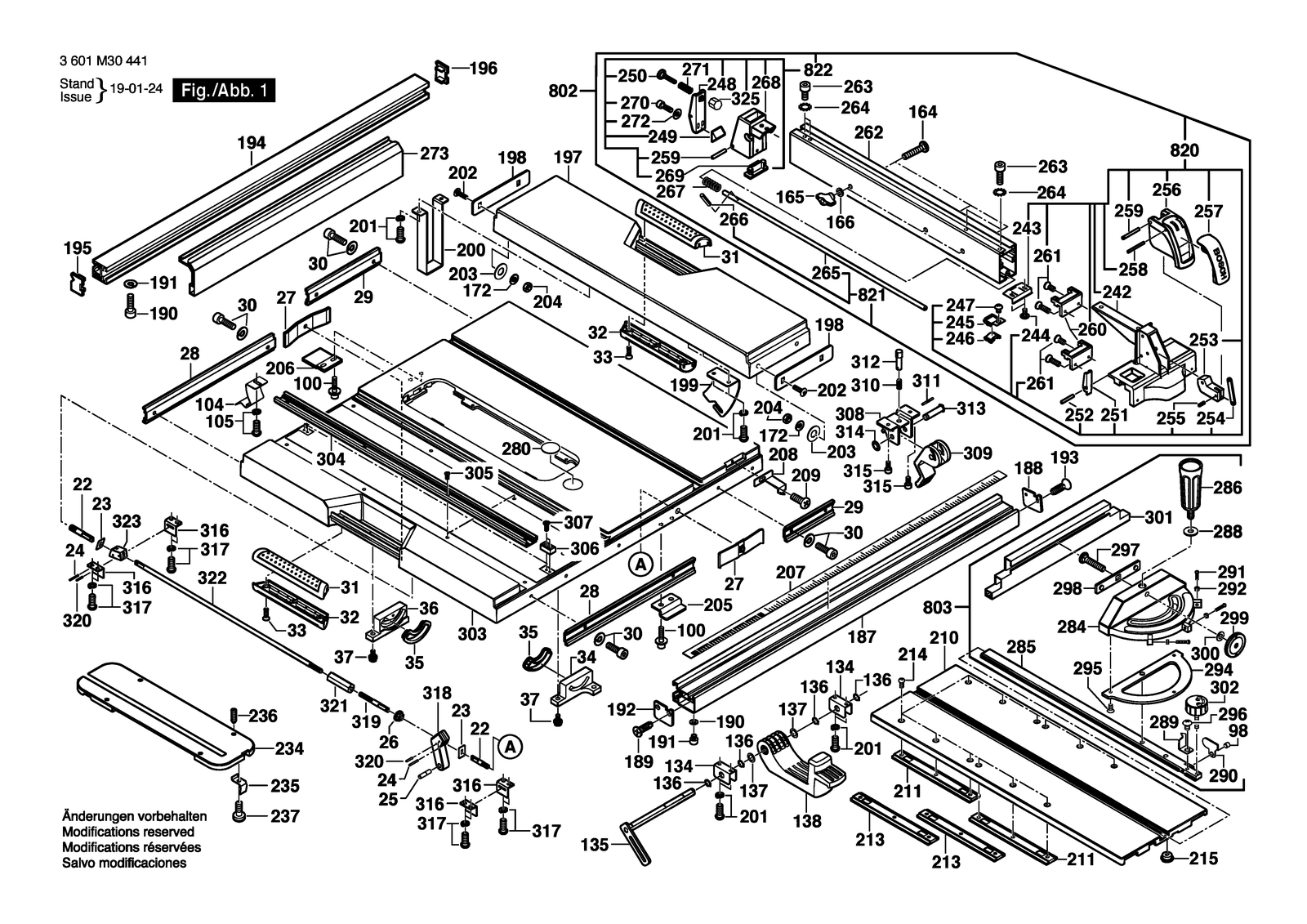

Bosch GTS 10 XC table saw: exploded parts diagram, 3 sheets, 301 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GTS 10 XC: 301 positions on 3 sheets
Bosch GTS 10 XC parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PA5589 | Motor Housing |
| 100 | 2610328617 | Screw |
| 101 | 2610303020 | Plain Washer |
| 102 | 2610018234 | Cover Plate |
| 103 | 2610018235 | End stop |
| 104 | 2610018236 | Holding Spring |
| 105 | 2610018237 | Screw |
| 106 | 2610018238 | Front Panel |
| 107 | 2610950118 | Screw |
| 108 | 2610018239 | End stop |
| 109 | 2610018599 | Screw M5X0,8PX10L |
| 110 | 2610997271 | Spring |
| 111 | 2610998550 | Plain Washer |
| 112 | 2610997299 | Plain Washer |
| 113 | 2610997298 | Nut |
| 114 | 2610950056 | Clamping Lever |
| 115 | 2610950129 | Plain Washer |
| 116 | 2610341465 | Washer |
| 117 | 2610950115 | Spring |
| 118 | 2610950057 | Handwheel |
| 12 | 2610018216 | Suppression Filter |
| 121 | 2610950059 | Handle |
| 122 | 2610997270 | Shoulder Screw |
| 123 | 2610355325 | Spring Washer |
| 124 | 1609902669 | Set screw |
| 125 | 1609203K93 | Clamping Flange |
| 127 | 2610950046 | Clamping Flange |
| 128 | 2610358858 | Nut |
| 129 | 2610018241 | Cover Plate |
| 13 | 2610004595 | Ball Bearing |
| 130 | 2610018242 | Cover Plate |
| 131 | 2610018243 | Screw |
| 132 | 2610358869 | Retaining snap ring |
| 133 | 1609902699 | Screw |
| 134 | 2610937291 | Mounting Bracket |
| 135 | 2610018244 | Linkage |
| 136 | 2610937293 | Retaining ring |
| 137 | 1619P03473 | Washer |
| 138 | 2610018245 | Clamping Lever |
| 139 | 2610018246 | Housing |
| 14 | 2610911927 | Ball Bearing |
| 140 | 2610018247 | Clamp |
| 141 | 2610998574 | Screw |
| 142 | 2610996930 | Pickup Clip |
| 143 | 2610910047 | Screw |
| 144 | 2610018248 | Screw |
| 145 | 2610018249 | Nut |
| 146 | 2610018250 | Holding Spring |
| 147 | 2610018251 | Holding Spring |
| 148 | 2610018252 | Company Logo |
| 150 | 2610018254 | Hexagon Socket Screw Key |
| 151 | 2610911920 | Rubber Bushing |
| 156 | 2610990504 | Cable Clip |
| 157 | 2610018255 | Mounting Bracket |
| 158 | 2610018256 | Holding Spring |
| 159 | 2610018257 | Suction Socket |
| 160 | 2610018258 | Chain |
| 161 | 2610018259 | Clip |
| 162 | 2610016560 | Stud bolt |
| 163 | 2610018262 | Pin |
| 164 | 1609B06851 | Screw M8X60 |
| 165 | 1609203L06 | Knob |
| 166 | 2610018263 | Plain Washer |
| 167 | 2610018264 | Washer |
| 168 | 1609203L09 | Guard Plate |
| 169 | 2610018265 | Screw |
| 170 | 1609902052 | Spring Washer |
| 171 | 1609902053 | Plain Washer |
| 172 | 1609203L10 | Plain Washer |
| 173 | 1609203L11 | Nut |
| 174 | 2610018266 | Sleeve |
| 175 | 2610997297 | Screw |
| 176 | 2610355570 | Washer |
| 178 | 2610018267 | Switch Cover |
| 18 | 2610018217 | Screw |
| 180 | 2610018268 | Housing |
| 181 | 1609902684 | Hex Nut |
| 182 | 2610018269 | Guard Plate |
| 183 | 2610018270 | Retaining ring |
| 184 | 2610018271 | Screw |
| 185 | 2610018272 | Rubber Bushing |
| 186 | 2610358846 | Rubber Bushing |
| 187 | 2610018275 | Profile Rail |
| 188 | 2610018276 | End stop |
| 189 | 2610950133 | Screw |
| 19 | 2610358844 | Screw |
| 190 | 2610950135 | Washer |
| 191 | 2610950134 | Bolt |
| 192 | 2610018277 | Stamped Part |
| 193 | 2610018278 | Screw |
| 194 | 2610018279 | Profile Rail |
| 195 | 2610997218 | Cover |
| 196 | 2610997216 | Cover |
| 197 | 2610018280 | Table top |
| 198 | 2610950086 | Mounting plate |
| 199 | 2610950136 | Mounting Bracket |
| 2 | 2610016834 | Field 230V |
| 200 | 2610018597 | Mounting Bracket |
| 201 | 2610018283 | Screw |
| 202 | 2610950087 | Screw |
| 203 | 1609902042 | Washer |
| 204 | 2610304772 | Nut |
| 205 | 2610950121 | End stop |
| 206 | 2610018284 | End stop |
| 207 | 2610018285 | Sticker |
| 208 | 2610950078 | Pointer |
| 209 | 2610320339 | Screw |
| 210 | 2610018286 | Table top |
| 211 | 2610018287 | Slide Rail |
| 212 | 2610018384 | Connecting Cable |
| 213 | 2610018288 | Slide Rail |
| 214 | 2610014697 | Screw |
| 215 | 2610018289 | Bushing |
| 216 | 2610950062 | Pointer |
| 217 | 2610355278 | Screw |
| 218 | 2610018337 | Mounting Bracket |
| 219 | 2610018338 | Riving Knife |
| 22 | 2610996913 | Pin |
| 220 | 2610018339 | Holding Plate |
| 221 | 2610018340 | Bolt |
| 222 | 2610018341 | Detent |
| 223 | 2610018342 | Washer |
| 224 | 2610998580 | Screw |
| 225 | 1609902058 | Nut |
| 226 | 2610018354 | Bolt |
| 23 | 2610996917 | Plate |
| 234 | 2610018290 | Fixing Plate |
| 235 | 2610011716 | Holding Spring |
| 236 | 2610997283 | Stud |
| 237 | 1609902055 | Screw |
| 238 | 2610018291 | Sliding Rail |
| 239 | 2610996944 | Guide Bracket |
| 24 | 2610997274 | Pin |
| 240 | 2610018292 | Spring retaining ring |
| 241 | 2610998585 | Knob |
| 242 | 2610018293 | Edge Guide |
| 243 | 2610018294 | Clamping Plate |
| 244 | 2610997249 | Shoulder Screw |
| 245 | 2610950102 | Bracket |
| 246 | 2610950143 | Lens |
| 247 | 2610951946 | Screw |
| 248 | 2610018295 | Clamping Plate |
| 249 | 2610997240 | Clamping Piece |
| 25 | 2610937292 | Guide Pin |
| 250 | 2610997245 | Adjusting Screw |
| 251 | 2610950098 | Clamping Plate |
| 252 | 2610997288 | Pin |
| 253 | 2610996889 | Cam |
| 254 | 2610996890 | Lever |
| 255 | 2610997289 | Pin |
| 256 | 2610950095 | Housing |
| 257 | 2610950094 | Handle Cover |
| 258 | 2610950096 | Bolt |
| 259 | 2610950097 | Bolt |
| 26 | 2610911896 | Nut |
| 260 | 2610018296 | Cover |
| 261 | 2610967422 | Screw |
| 262 | 2610018297 | Edge Guide |
| 263 | 2610303023 | Screw |
| 264 | 2610358802 | Washer |
| 265 | 2610018298 | Bracket |
| 266 | 2610911577 | Retaining Pin |
| 267 | 2610996888 | Spring |
| 268 | 2610950107 | Edge Guide |
| 269 | 2610018299 | Cover |
| 27 | 2610996912 | Fixing Plate |
| 270 | 2610997293 | Screw |
| 271 | 2610998593 | Spring |
| 272 | 2610018300 | Washer |
| 273 | 2610018301 | End stop |
| 274 | 2610996880 | Box Wrench |
| 275 | 2610018302 | Insert |
| 276 | 2610018303 | Nut |
| 277 | 2610015022 | Workpiece Pusher |
| 28 | 1600A00724 | Mounting Rail |
| 280 | 1609203L00 | Sticker |
| 281 | 2610018304 | Table top |
| 282 | 2610029674 | Washer |
| 284 | 1609203L38 | End stop |
| 285 | 2610018307 | Guide Bar |
| 286 | 2610018308 | Clamp Handle |
| 288 | 2610909178 | Plain Washer |
| 289 | 2610018309 | Pointer |
| 29 | 2610950075 | Mounting Rail |
| 290 | 2610997215 | End stop |
| 291 | 2610358519 | Screw |
| 292 | 2610908272 | Nut |
| 294 | 2610997213 | Base Support |
| 295 | 2610358832 | Screw |
| 296 | 2610015065 | Screw M5X8 |
| 297 | 1609203L08 | Bolt |
| 298 | 1609203L04 | Clamping Plate |
| 299 | 1609902047 | Round Nut |
| 3 | 2610016833 | Armature 230V |
| 30 | 2610303029 | Screw |
| 300 | 2610993221 | Plain Washer |
| 301 | 1609203L07 | Profile Rail |
| 302 | 2610018313 | Knob |
| 303 | 2610018315 | Table top |
| 304 | 2610018316 | Profile Rail |
| 305 | 2610018317 | Screw |
| 306 | 2610018318 | End stop |
| 307 | 2610018319 | Screw |
| 308 | 2610018320 | Mounting Bracket |
| 309 | 2610018321 | Clamping Lever |
| 31 | 2610018218 | Handle Cover |
| 310 | 2610018322 | Spring |
| 311 | 2610018323 | Pin |
| 312 | 2610018324 | Locking Pin |
| 313 | 2610018325 | Axle |
| 314 | 2610018326 | Spring retaining ring |
| 315 | 2610018327 | Screw |
| 316 | 2610996921 | Holding Bracket |
| 317 | 2610908271 | Tapping Screw |
| 318 | 2610996914 | Gusset |
| 319 | 2610996918 | Set screw |
| 32 | 2610018219 | Handle Cover |
| 320 | 2610997275 | Pin |
| 321 | 2610996920 | Connecting Nut |
| 322 | 2610018567 | Bracket |
| 323 | 2610996915 | Clamping Piece |
| 324 | 2610018350 | Plain Washer |
| 325 | 2610028342 | Cap Nut |
| 326 | 2610998567 | Cable Clip |
| 327 | 2610015078 | Screw |
| 328 | 2610018579 | Grommet |
| 33 | 2610018580 | Screw |
| 34 | 2610950126 | Mounting Bracket |
| 35 | 2610950070 | Bushing |
| 358 | 1619PA9309 | Shrinkable Tube |
| 36 | 2610950127 | Mounting Bracket |
| 37 | 2610998575 | Screw |
| 38 | 2610018220 | Holding Plate |
| 39 | 2610950052 | Guiding bolt |
| 4 | 2610018210 | On-Off Switch |
| 40 | 2610992380 | Spring retaining ring |
| 41 | 2610018221 | Threaded Rod |
| 42 | 2610996896 | Toothed Gear |
| 43 | 2610910796 | Bolt |
| 44 | 2610358149 | Nut |
| 45 | 2610018223 | Plain Washer |
| 46 | 2610018224 | Shaft |
| 47 | 2610997212 | Mounting Bracket |
| 48 | 2610297323 | Screw |
| 49 | 1619PA5649 | Bushing |
| 5 | 1619PA9119 | Power supply cord |
| 5 | 2610018373 | Power supply cord Aus |
| 50 | 2610997277 | Spring retaining ring |
| 51 | 2610997276 | Spring retaining ring |
| 52 | 2610996938 | Bushing |
| 53 | 2610996933 | Threaded Bushing |
| 54 | 2610303026 | Screw |
| 55 | 2610018225 | Gear Housing |
| 57 | 2610018226 | Baffle |
| 6 | 2610915699 | Rubber Bushing |
| 63 | 1609902054 | Set screw |
| 65 | 2610911569 | Insert |
| 66 | 2610356706 | Nut |
| 67 | 2610911929 | Screw |
| 68 | 2610996948 | Rubber Ring |
| 69 | 2610358932 | Connector |
| 7 | 2610358842 | Clamp |
| 70 | 2610018227 | Cover |
| 71 | 1609203K96 | Cable Clip |
| 72 | 2610017110 | Washer |
| 73 | 2610998571 | Screw Alt |
| 74 | 2610018228 | Support bracket |
| 75 | 2610223019 | Speed governor |
| 76 | 1609902050 | Cable Strap |
| 77 | 2610998587 | Screw |
| 801 | 2610018374 | Protective Cover |
| 802 | 2610018329 | Edge Guide |
| 803 | 2610015508 | Mitre Fence |
| 804 | 2610018330 | Protective Cover |
| 808 | 1619PB2546 | Nameplate |
| 808 | 1619PB2547 | Nameplate |
| 81 | 2610911924 | Spring Washer |
| 810 | 2610018332 | Carbon-Brush Set |
| 816 | 1609B07133 | Brush holder assembly |
| 82 | 2610018231 | Shaft |
| 820 | 2610018333 | Clamp Handle |
| 821 | 2610018334 | Rod |
| 822 | 2610018335 | Locking clamps |
| 83 | 2610997210 | Ball Bearing |
| 84 | 2610997282 | Spring retaining ring |
| 85 | 2610018232 | Gear Cover |
| 86 | 2610996949 | Ball Bearing |
| 87 | 2610993102 | Woodruff Key |
| 88 | 2610997208 | Toothed Gear |
| 89 | 2610997281 | Spring retaining ring |
| 9 | 2610018213 | Label |
| 90 | 2610996932 | Bearing Sleeve |
| 91 | 2610355923 | Screw |
| 92 | 2610996875 | Torsion Spring |
| 93 | 2610996874 | Locking Lever |
| 94 | 2610996876 | Shoulder Screw |
| 95 | 2610998588 | Screw |
| 96 | 2610018233 | Bushing |
| 97 | 2610998573 | Spring retaining ring |
| 98 | 2610950427 | Set screw |
| 99 | 2610018230 | Screw |
