Bosch GTS 10 J
Bosch GTS 10 J table saw: exploded parts diagram, 3 sheets, 456 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

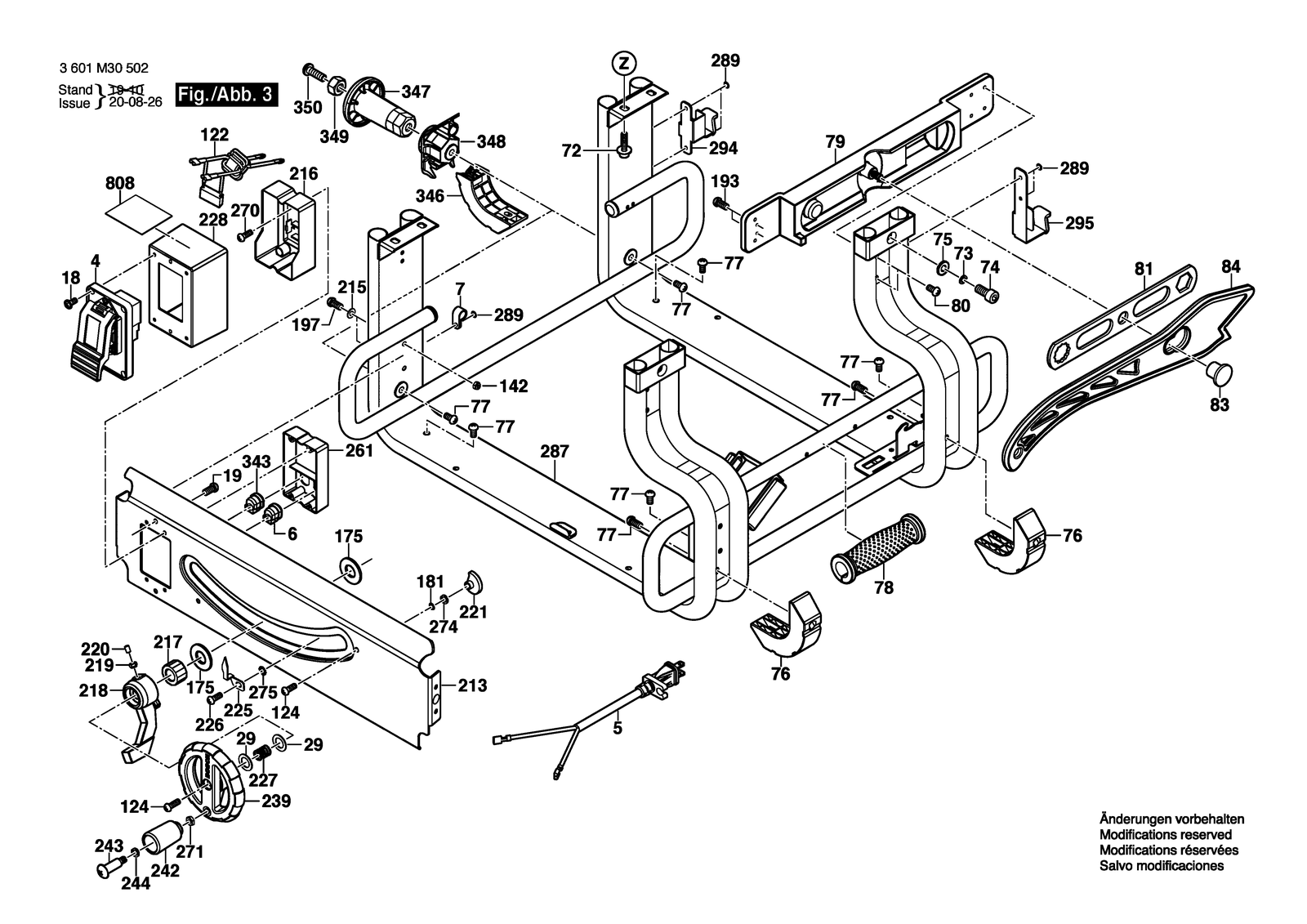

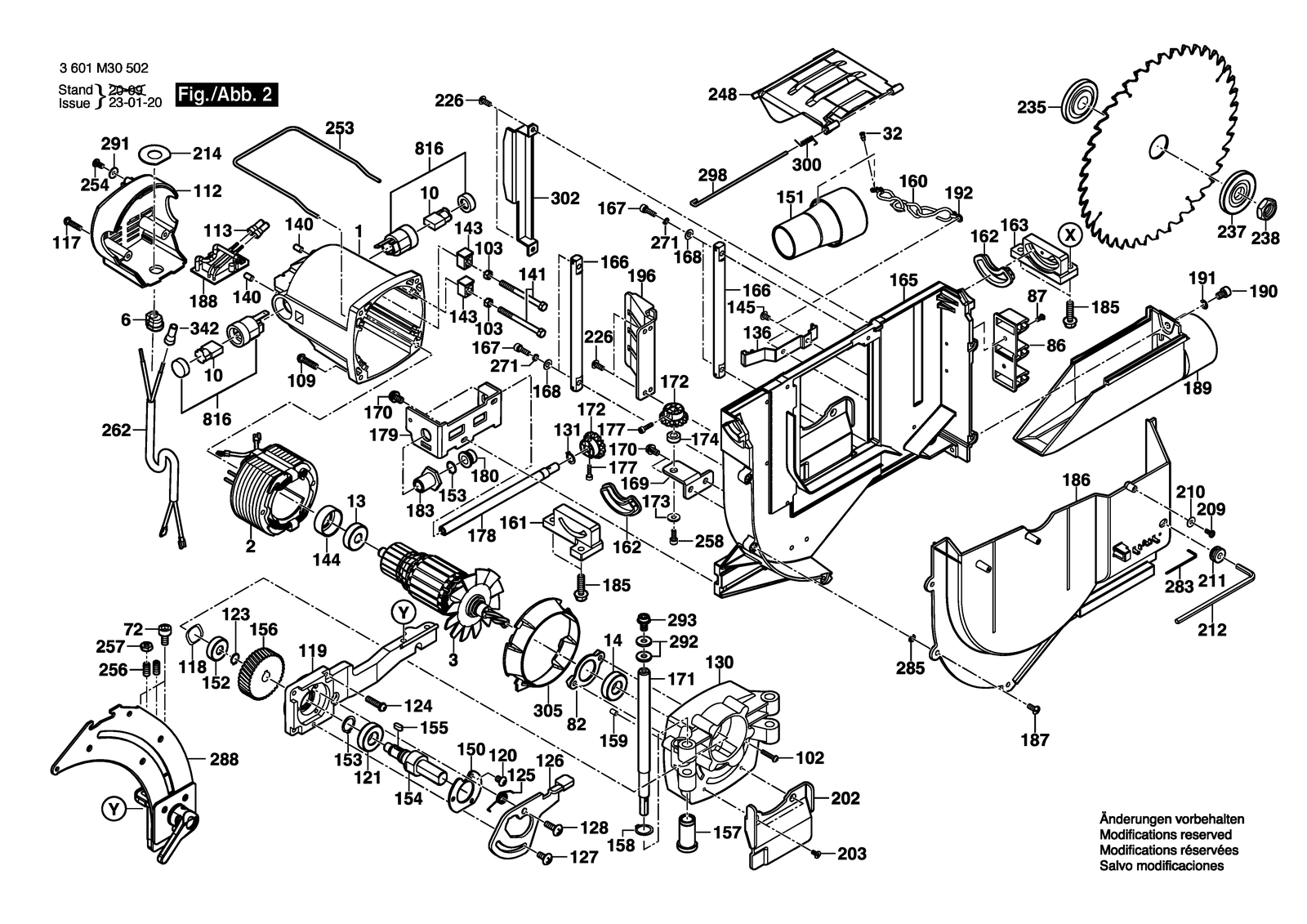

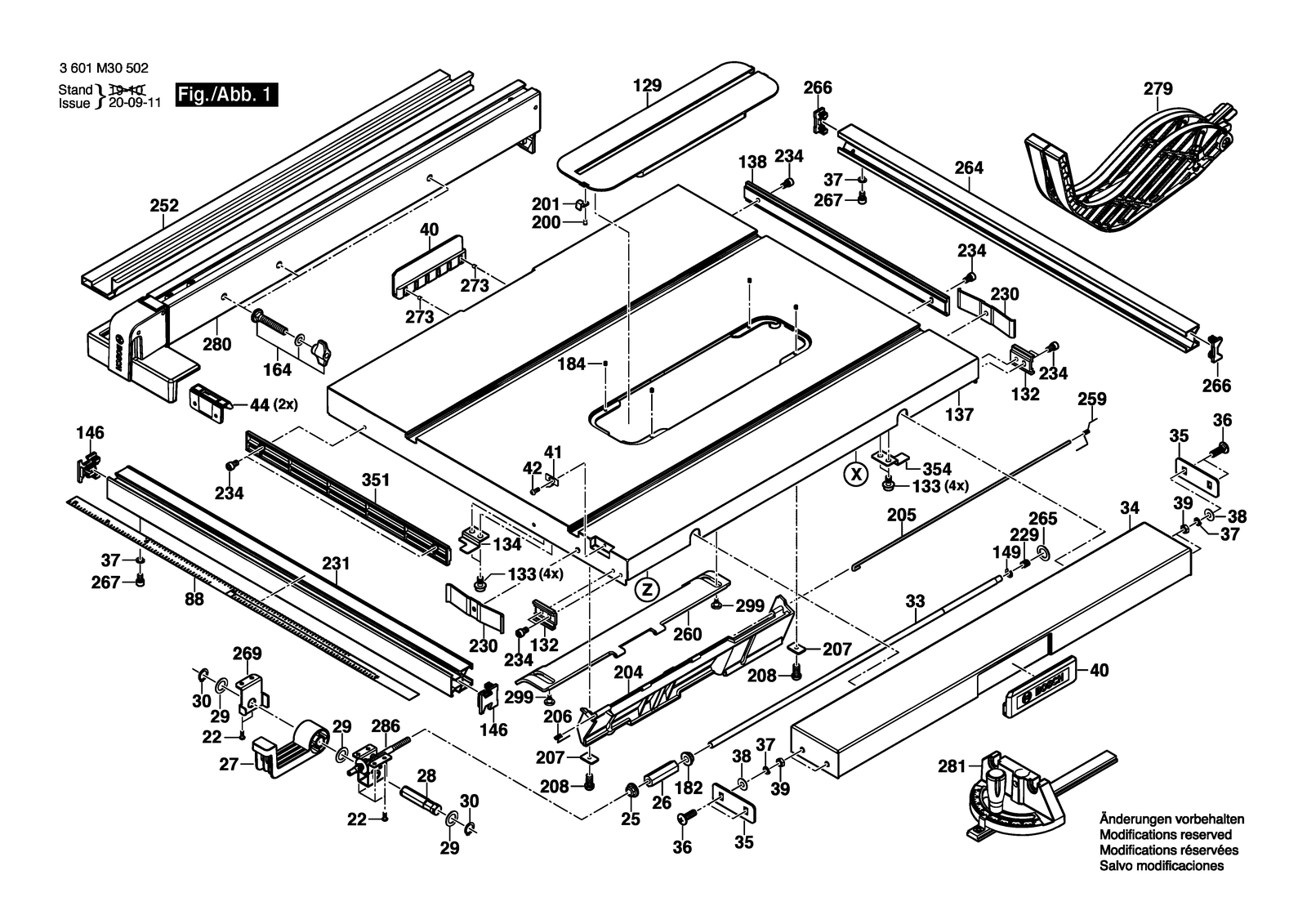

All parts of Bosch GTS 10 J: 456 positions on 3 sheets
Bosch GTS 10 J parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PB2487 | Motor Housing |
| 1 | 1619PB2487 | Motor Housing |
| 10 | 2610018332 | Carbon-Brush Set |
| 10 | 2610018379 | Carbon-Brush Set |
| 10 | 2610018332 | Carbon-Brush Set |
| 10 | 2610018379 | Carbon-Brush Set |
| 102 | 1609902670 | Screw |
| 102 | 1609902670 | Screw |
| 103 | 2610327868 | Nut |
| 103 | 2610327868 | Nut |
| 109 | 2610998587 | Screw |
| 109 | 2610998587 | Screw |
| 112 | 2610017013 | End cap |
| 112 | 2610017013 | End cap |
| 113 | 2610911933 | Connector |
| 113 | 2610911933 | Connector |
| 117 | 2610018983 | Screw Neu |
| 117 | 2610018983 | Screw Neu |
| 118 | 2610950042 | Spring Washer |
| 118 | 2610950042 | Spring Washer |
| 119 | 1600A01D91 | Cover |
| 119 | 1600A01D91 | Cover |
| 120 | 2610950044 | Screw |
| 120 | 2610950044 | Screw |
| 121 | 2610996949 | Ball Bearing |
| 121 | 2610996949 | Ball Bearing |
| 122 | 2610017015 | Filter |
| 122 | 2610017115 | Filter |
| 122 | 2610017015 | Filter |
| 122 | 2610017115 | Filter |
| 123 | 2610997281 | Spring retaining ring |
| 123 | 2610997281 | Spring retaining ring |
| 124 | 2610998572 | Screw |
| 124 | 2610998572 | Screw |
| 125 | 2610996875 | Torsion Spring |
| 125 | 2610996875 | Torsion Spring |
| 126 | 2610996874 | Locking Lever |
| 126 | 2610996874 | Locking Lever |
| 127 | 2610996876 | Shoulder Screw |
| 127 | 2610996876 | Shoulder Screw |
| 128 | 2610998588 | Screw |
| 128 | 2610998588 | Screw |
| 129 | 1600A01D8R | Insert |
| 129 | 1600A01D8R | Insert |
| 13 | 2610004595 | Ball Bearing |
| 13 | 2610004595 | Ball Bearing |
| 130 | 2610017017 | Gear Housing |
| 130 | 2610017017 | Gear Housing |
| 131 | 2610937293 | Retaining ring |
| 131 | 2610937293 | Retaining ring |
| 132 | 1600A00726 | Sliding Plate |
| 132 | 1600A00726 | Sliding Plate |
| 133 | 2610950108 | Screw |
| 133 | 2610950108 | Screw |
| 134 | 1600A01D8Y | Stop block |
| 134 | 1600A01D8Y | Stop block |
| 136 | 2610017008 | Retaining clip |
| 136 | 2610017008 | Retaining clip |
| 137 | 1600A01D8P | Table |
| 137 | 1600A01D8P | Table |
| 138 | 1600A00724 | Mounting Rail |
| 138 | 1600A00724 | Mounting Rail |
| 14 | 2610911927 | Ball Bearing |
| 14 | 2610911927 | Ball Bearing |
| 140 | 1609902054 | Set screw |
| 140 | 1609902054 | Set screw |
| 141 | 2610911929 | Screw |
| 141 | 2610911929 | Screw |
| 142 | 2610911901 | Self-locking nut |
| 142 | 2610911901 | Self-locking nut |
| 143 | 2610911569 | Insert |
| 143 | 2610911569 | Insert |
| 144 | 2610996948 | Rubber Ring |
| 144 | 2610996948 | Rubber Ring |
| 145 | 2610950071 | Screw |
| 145 | 2610950071 | Screw |
| 146 | 2610015030 | End cap |
| 146 | 2610015030 | End cap |
| 149 | 2610015031 | Spring retaining ring |
| 149 | 2610015031 | Spring retaining ring |
| 150 | 2610996932 | Bearing Sleeve |
| 150 | 2610996932 | Bearing Sleeve |
| 151 | 2610017001 | Vacuum Connection |
| 151 | 2610017001 | Vacuum Connection |
| 152 | 2610997210 | Ball Bearing |
| 152 | 2610997210 | Ball Bearing |
| 153 | 2610997282 | Spring retaining ring |
| 153 | 2610997282 | Spring retaining ring |
| 154 | 2610017021 | Spindle |
| 154 | 2610017021 | Spindle |
| 155 | 2610012984 | Woodruff Key |
| 155 | 2610012984 | Woodruff Key |
| 156 | 2610997208 | Toothed Gear |
| 156 | 2610997208 | Toothed Gear |
| 157 | 2610017018 | Bushing |
| 157 | 2610017018 | Bushing |
| 158 | 2610998573 | Spring retaining ring |
| 158 | 2610998573 | Spring retaining ring |
| 159 | 2610950427 | Set screw |
| 159 | 2610950427 | Set screw |
| 160 | 2610017022 | Chain |
| 160 | 2610017022 | Chain |
| 161 | 2610950126 | Mounting Bracket |
| 161 | 2610950126 | Mounting Bracket |
| 162 | 2610950070 | Bushing |
| 162 | 2610950070 | Bushing |
| 163 | 2610015035 | Support bracket |
| 163 | 2610015035 | Support bracket |
| 164 | 2610017023 | Fastening parts kit |
| 164 | 2610017023 | Fastening parts kit |
| 165 | 2610017024 | Holding Plate |
| 165 | 2610017024 | Holding Plate |
| 166 | 2610017025 | Rod |
| 166 | 2610017025 | Rod |
| 167 | 2610015038 | Bolt |
| 167 | 2610015038 | Bolt |
| 168 | 2610015039 | Washer |
| 168 | 2610015039 | Washer |
| 169 | 2610015040 | Support Plate |
| 169 | 2610015040 | Support Plate |
| 170 | 2610950055 | Screw |
| 170 | 2610950055 | Screw |
| 171 | 2610017026 | Rod |
| 171 | 2610017026 | Rod |
| 172 | 2610015042 | Bevel Gear |
| 172 | 2610015042 | Bevel Gear |
| 173 | 2610013162 | Washer |
| 173 | 2610013162 | Washer |
| 174 | 2610015043 | Bushing |
| 174 | 2610015043 | Bushing |
| 175 | 2610015044 | Washer |
| 175 | 2610015044 | Washer |
| 177 | 2610015045 | Screw |
| 177 | 2610015045 | Screw |
| 178 | 2610017027 | Shaft |
| 178 | 2610017027 | Shaft |
| 179 | 2610015047 | Support Plate |
| 179 | 2610015047 | Support Plate |
| 18 | 2610015078 | Screw |
| 18 | 2610015078 | Screw |
| 180 | 2610015048 | Bushing |
| 180 | 2610015048 | Bushing |
| 181 | 2610016557 | Washer |
| 181 | 2610016557 | Washer |
| 182 | 2610016558 | Nut |
| 182 | 2610016558 | Nut |
| 183 | 2610015049 | Bushing |
| 183 | 2610015049 | Bushing |
| 184 | 2610013053 | Set screw |
| 184 | 2610013053 | Set screw |
| 185 | 2610016559 | Screw |
| 185 | 2610016559 | Screw |
| 186 | 2610015050 | Cover |
| 186 | 2610015050 | Cover |
| 187 | 2610950049 | Screw |
| 187 | 2610950049 | Screw |
| 188 | 2610017037 | Electronics Module |
| 188 | 2610997306 | Speed governor 115-120V |
| 189 | 2610015051 | Dust-Cover Holder |
| 189 | 2610015051 | Dust-Cover Holder |
| 19 | 2610017002 | Screw |
| 19 | 2610017002 | Screw |
| 190 | 2610015052 | Screw |
| 190 | 2610015052 | Screw |
| 191 | 2610015053 | Spring retaining ring |
| 191 | 2610015053 | Spring retaining ring |
| 192 | 2610017028 | Retaining clip |
| 192 | 2610017028 | Retaining clip |
| 193 | 2610016560 | Stud bolt |
| 193 | 2610016560 | Stud bolt |
| 196 | 2610015055 | Guard Plate |
| 196 | 2610015055 | Guard Plate |
| 197 | 2610950132 | Screw |
| 197 | 2610950132 | Screw |
| 2 | 1609B07856 | Field 230-240 V |
| 2 | 1609B07858 | Field 120 V |
| 2 | 1609B07856 | Field 230-240 V |
| 2 | 1609B07858 | Field 120 V |
| 200 | 2610017029 | Screw |
| 200 | 2610017029 | Screw |
| 201 | 2610017030 | Spring Clip |
| 201 | 2610017030 | Spring Clip |
| 202 | 2610017033 | Safety Guard |
| 202 | 2610017033 | Safety Guard |
| 203 | 2610950439 | Screw |
| 203 | 2610950439 | Screw |
| 204 | 2610015054 | Guard Plate |
| 204 | 2610015054 | Guard Plate |
| 205 | 2610016562 | Rod |
| 205 | 2610016562 | Rod |
| 206 | 2610016563 | Contact strap |
| 206 | 2610016563 | Contact strap |
| 207 | 2610923830 | Plate |
| 207 | 2610923830 | Plate |
| 208 | 2610010404 | Screw |
| 208 | 2610010404 | Screw |
| 209 | 2610017031 | Screw |
| 209 | 2610017031 | Screw |
| 210 | 2610015058 | Washer |
| 210 | 2610015058 | Washer |
| 211 | 2610911920 | Rubber Bushing |
| 211 | 2610911920 | Rubber Bushing |
| 212 | 2610015059 | Wrench Socket |
| 212 | 2610015059 | Wrench Socket |
| 213 | 2610017032 | Holding Plate |
| 213 | 2610017032 | Holding Plate |
| 214 | 2610017110 | Washer |
| 214 | 2610017110 | Washer |
| 215 | 2610347092 | Plain Washer |
| 215 | 2610347092 | Plain Washer |
| 216 | 2610017046 | Insulator |
| 216 | 2610017046 | Insulator |
| 217 | 2610015061 | Bushing |
| 217 | 2610015061 | Bushing |
| 218 | 2610015062 | Handle |
| 218 | 2610015062 | Handle |
| 219 | 2610924961 | Nut |
| 219 | 2610924961 | Nut |
| 22 | 2610014697 | Screw |
| 22 | 2610014697 | Screw |
| 220 | 2610015359 | Screw |
| 220 | 2610015359 | Screw |
| 221 | 1600A00725 | Cam |
| 221 | 1600A00725 | Cam |
| 225 | 2610015064 | Pointer |
| 225 | 2610015064 | Pointer |
| 226 | 2610015065 | Screw M5X8 |
| 226 | 2610015065 | Screw M5X8 |
| 227 | 2610013054 | Contact strap |
| 227 | 2610013054 | Contact strap |
| 228 | 2610015066 | Switch Housing |
| 228 | 2610015066 | Switch Housing |
| 229 | 2610015067 | Spring |
| 229 | 2610015067 | Spring |
| 230 | 2610996912 | Fixing Plate |
| 230 | 2610996912 | Fixing Plate |
| 231 | 1600A01D8V | Rail |
| 231 | 1600A01D8V | Rail |
| 234 | 2610951945 | Screw |
| 234 | 2610951945 | Screw |
| 235 | 1609203K93 | Clamping Flange |
| 235 | 1609203K93 | Clamping Flange |
| 235 | 1609203L56 | Clamping Flange |
| 237 | 2610950046 | Clamping Flange |
| 237 | 2610950046 | Clamping Flange |
| 238 | 2610358858 | Nut |
| 238 | 2610358858 | Nut |
| 239 | 2610015069 | Handwheel |
| 239 | 2610015069 | Handwheel |
| 242 | 2610950059 | Handle |
| 242 | 2610950059 | Handle |
| 243 | 2610950060 | Screw |
| 243 | 2610950060 | Screw |
| 244 | 2610950389 | Washer |
| 244 | 2610950389 | Washer |
| 248 | 2610017034 | Safety Cover |
| 248 | 2610017034 | Safety Cover |
| 25 | 2610014698 | Nut |
| 25 | 2610014698 | Nut |
| 252 | 2610017035 | Mitre Fence |
| 252 | 2610017035 | Mitre Fence |
| 253 | 2610017036 | Rod |
| 253 | 2610017036 | Rod |
| 254 | 2610017052 | Screw |
| 254 | 2610017052 | Screw |
| 256 | 2610998580 | Screw |
| 256 | 2610998580 | Screw |
| 257 | 2610017038 | Nut |
| 257 | 2610017038 | Nut |
| 258 | 2610015070 | Screw |
| 258 | 2610015070 | Screw |
| 259 | 2610016565 | Contact strap |
| 259 | 2610016565 | Contact strap |
| 26 | 2610996920 | Connecting Nut |
| 26 | 2610996920 | Connecting Nut |
| 260 | 2610017039 | Safety Cover |
| 260 | 2610017039 | Safety Cover |
| 261 | 2610015071 | Switch Housing |
| 261 | 2610015071 | Switch Housing |
| 262 | 2610017040 | Connecting Cable |
| 262 | 2610017040 | Connecting Cable |
| 264 | 1600A01D8U | Rail |
| 264 | 1600A01D8U | Rail |
| 265 | 2610015075 | Washer |
| 265 | 2610015075 | Washer |
| 266 | 2610015076 | Device cap |
| 266 | 2610015076 | Device cap |
| 267 | 2610950134 | Bolt |
| 267 | 2610950134 | Bolt |
| 269 | 1600A01D8Z | Stop Block |
| 269 | 1600A01D8Z | Stop Block |
| 27 | 2610014699 | Handle |
| 27 | 2610014699 | Handle |
| 270 | 2610950117 | Screw |
| 270 | 2610950117 | Screw |
| 271 | 2610013365 | Spring Washer |
| 271 | 2610013365 | Spring Washer |
| 273 | 2610015080 | Screw |
| 273 | 2610015080 | Screw |
| 274 | 2610950135 | Washer |
| 274 | 2610950135 | Washer |
| 275 | 2610016566 | Washer |
| 275 | 2610016566 | Washer |
| 279 | 1600A01R18 | Protective Cover |
| 279 | 1600A01R18 | Protective Cover |
| 28 | 2610015000 | Cam |
| 28 | 2610015000 | Cam |
| 280 | 2610017047 | Mitre Fence |
| 280 | 2610017047 | Mitre Fence |
| 281 | 2610015507 | Mitre Gauge |
| 281 | 2610015507 | Mitre Gauge |
| 283 | 2610016567 | Hexagon Socket Wrench |
| 283 | 2610016567 | Hexagon Socket Wrench |
| 285 | 2610023174 | Serrated Lock-Washer |
| 285 | 2610023174 | Serrated Lock-Washer |
| 286 | 2610015093 | Lock |
| 286 | 2610015093 | Lock |
| 287 | 1600A01D8N | Frame |
| 287 | 1600A01D8N | Frame |
| 288 | 1600A01D8L | Riving Knife |
| 288 | 1600A01D8L | Riving Knife |
| 289 | 2610017050 | Rod |
| 289 | 2610017050 | Rod |
| 29 | 2610015001 | Washer |
| 29 | 2610015001 | Washer |
| 291 | 2610017051 | Washer |
| 291 | 2610017051 | Washer |
| 292 | 2610950109 | Washer |
| 292 | 2610950109 | Washer |
| 293 | 2610950108 | Screw |
| 293 | 2610950108 | Screw |
| 294 | 2610017053 | Holder |
| 294 | 2610017053 | Holder |
| 295 | 2610017054 | Holder |
| 295 | 2610017054 | Holder |
| 298 | 2610017056 | Rod |
| 298 | 2610017056 | Rod |
| 299 | 2610017057 | Screw |
| 299 | 2610017057 | Screw |
| 3 | 1619P03278 | Armature 230V |
| 3 | 2610996866 | Armature 110V |
| 3 | 1619P03278 | Armature 230V |
| 3 | 2610996866 | Armature 110V |
| 30 | 2610015002 | Spring retaining ring |
| 30 | 2610015002 | Spring retaining ring |
| 300 | 2610017058 | Torsion Spring |
| 300 | 2610017058 | Torsion Spring |
| 302 | 2610017060 | Safety Guard |
| 302 | 2610017060 | Safety Guard |
| 305 | 2610020858 | Baffle |
| 305 | 2610020858 | Baffle |
| 32 | 2610017003 | Pin |
| 32 | 2610017003 | Pin |
| 33 | 2610017004 | Rod |
| 33 | 2610017004 | Rod |
| 34 | 1600A01D8S | Sliding Table |
| 34 | 1600A01D8S | Sliding Table |
| 343 | 2610020856 | Cable Clip |
| 343 | 2610020856 | Cable Clip |
| 346 | 1600A01D90 | Foot |
| 346 | 1600A01D90 | Foot |
| 347 | 1600A01B74 | Holder |
| 347 | 1600A01B75 | Holder |
| 348 | 1600A01B75 | Holder |
| 348 | 1600A01B74 | Holder |
| 349 | 2915011011 | Hex Nut DIN 934-M12-M-8 |
| 349 | 2915011011 | Hex Nut DIN 934-M12-M-8 |
| 35 | 1600A01D8T | Fixing plate |
| 35 | 1600A01D8T | Fixing plate |
| 350 | 1600A01TJ5 | Cap Screw |
| 350 | 1600A01TJ5 | Cap Screw |
| 351 | 1600A01D8W | Bushing |
| 351 | 1600A01D8W | Bushing |
| 354 | 1600A01S0T | Stop block |
| 354 | 1600A01S0T | Stop block |
| 36 | 2610910015 | Collar bolt |
| 36 | 2610910015 | Collar bolt |
| 37 | 2610355325 | Spring Washer |
| 37 | 2610355325 | Spring Washer |
| 38 | 2610910013 | Washer |
| 38 | 2610910013 | Washer |
| 39 | 2610015008 | Nut |
| 39 | 2610015008 | Nut |
| 4 | 2610016997 | Switch |
| 4 | 2610017113 | Switch |
| 4 | 2610016997 | Switch |
| 4 | 2610017113 | Switch |
| 40 | 2610015009 | Handle |
| 40 | 2610015009 | Handle |
| 41 | 2610015010 | Pointer |
| 41 | 2610015010 | Pointer |
| 42 | 2610950077 | Screw |
| 42 | 2610950077 | Screw |
| 44 | 2610023173 | Pad |
| 44 | 2610023173 | Pad |
| 5 | 2610016998 | Power supply cord |
| 5 | 2610017118 | Power supply cord |
| 5 | 2610019123 | Power supply cord |
| 5 | 1619PB4849 | Power supply cord |
| 5 | 2610019122 | Power supply cord |
| 5 | 2610019129 | Power supply cord |
| 5 | 2610019135 | Power supply cord |
| 5 | 2610019137 | Power supply cord |
| 5 | 2610019141 | Power supply cord |
| 5 | 2610020847 | Power supply cord |
| 5 | 2610020848 | Power supply cord |
| 6 | 1609203K96 | Cable Clip |
| 6 | 1609203K96 | Cable Clip |
| 7 | 2610014693 | Cable Clip |
| 7 | 2610014693 | Cable Clip |
| 72 | 2610950069 | Screw |
| 72 | 2610950069 | Screw |
| 73 | 2610015011 | Washer |
| 73 | 2610015011 | Washer |
| 74 | 2610015012 | Bolt |
| 74 | 2610015012 | Bolt |
| 75 | 2610925438 | Washer |
| 75 | 2610925438 | Washer |
| 76 | 2610015014 | Supporting foot |
| 76 | 2610015014 | Supporting foot |
| 77 | 2610015015 | Screw |
| 77 | 2610015015 | Screw |
| 78 | 2610015016 | Handle |
| 78 | 2610015016 | Handle |
| 79 | 2610015017 | Holding Plate |
| 79 | 2610015017 | Holding Plate |
| 80 | 2610015018 | Screw |
| 80 | 2610015018 | Screw |
| 808 | 160111A6WG | Nameplate |
| 808 | 160111A6WK | Nameplate |
| 808 | 160111A6WL | Nameplate |
| 808 | 160111A6WF | Nameplate |
| 808 | 160111A6WJ | Nameplate |
| 808 | 160111A74E | Nameplate |
| 808 | 160111A74F | Nameplate |
| 808 | 160111A74G | Nameplate |
| 808 | 160111A74H | Nameplate |
| 808 | 160111A74J | Nameplate |
| 808 | 160111A74K | Nameplate |
| 808 | 1619PB4998 | Nameplate |
| 81 | 2610015019 | Key |
| 81 | 2610015019 | Key |
| 816 | 1609B07133 | Brush holder assembly |
| 816 | 1609B07133 | Brush holder assembly |
| 82 | 2610911566 | Bearing cover |
| 82 | 2610911566 | Bearing cover |
| 83 | 2610015021 | Nut |
| 83 | 2610015021 | Nut |
| 84 | 2610015022 | Workpiece Pusher |
| 84 | 2610015022 | Workpiece Pusher |
| 86 | 2610017007 | Support bracket |
| 86 | 2610017007 | Support bracket |
| 87 | 2610010404 | Screw |
| 87 | 2610010404 | Screw |
| 88 | 1600A01D8X | Tape Measure |
| 88 | 1600A01D8X | Tape Measure |
Selected parts0
