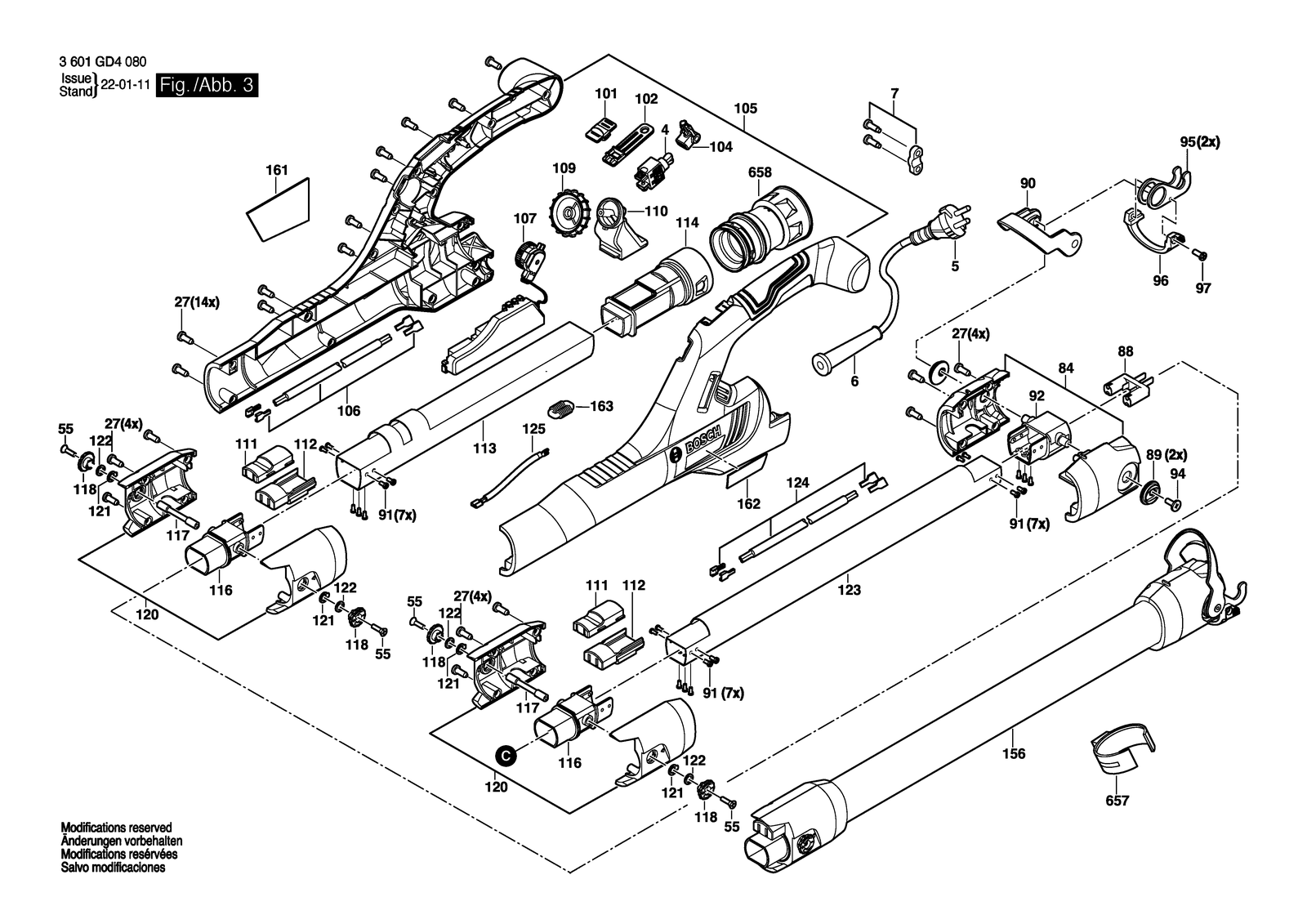

Bosch GTR 55-225 drywall sander: exploded parts diagram, 4 sheets, 167 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GTR 55-225: 167 positions on 4 sheets
Bosch GTR 55-225 parts list (4 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PB5941 | Motor Housing |
| 101 | 1619PB6019 | Switch Button |
| 102 | 1619PB6020 | Adjusting Slide |
| 104 | 1619PB6022 | Cantilever |
| 105 | 1619PB6023 | Handle |
| 106 | 1619PB6024 | Connection Cable H05RN-F, 0.75MM^2 X2 |
| 107 | 1619PB6025 | Speed governor 220-240V |
| 107 | 1619PB8536 | Speed governor 100-127V |
| 109 | 1619PB6027 | Flow Governor |
| 110 | 1619PB6028 | Intermediate housing |
| 111 | 1619PB6029 | Socket housing |
| 112 | 1619PB6030 | Plastic covering |
| 113 | 1607000EY9 | Aluminum Tubing |
| 113 | 1619PB6031 | Aluminum Tubing |
| 114 | 1619PB6032 | Hose Coupling |
| 116 | 1619PB6034 | Mounting Bracket |
| 117 | 1619PB6035 | Cam Shaft |
| 118 | 1619PB6036 | Cam |
| 120 | 1619PB6037 | Plastic covering |
| 121 | 1619PB6038 | Shim ring |
| 122 | 1619PB6039 | Felt Pad |
| 123 | 1619PB6006 | Aluminum Tubing |
| 124 | 1619PB6007 | Connection Cable H05RN-F, 0.75MM^2 X2 |
| 125 | 1607000EH5 | Connection Cable Pvc, 0.5MM^2, |
| 125 | 16070312ER | Connection Cable 20AWG |
| 13 | 1619PB5950 | Groove ball bearing 607-2RS |
| 131 | 1619PB6040 | Rubber Buffer |
| 132 | 1619PB6041 | Bushing |
| 133 | 1619PB6042 | Knob sleeve |
| 134 | 1619PB6043 | Straight Pin |
| 135 | 1619PB6086 | Spring |
| 141 | 1619PB6044 | Protective Suit |
| 142 | 1619PB6045 | Threaded Bushing |
| 143 | 1619PB6046 | Seal Ring |
| 144 | 1619PB6047 | Spring |
| 145 | 1619PB6048 | Glide Bushing |
| 146 | 1619PB6049 | Hose Coupling |
| 147 | 1619PB6050 | Corrugated Pipe |
| 148 | 1619PB6051 | Hose Coupling |
| 151 | 1619PB6052 | Backing Pad |
| 152 | 1619PB6053 | Intermediate Layer |
| 154 | 1619PB6055 | Socket head cap screw M6X14 |
| 156 | 1607000E57 | Handle Bar |
| 161 | 1607000EZ2 | Nameplate IL 230V |
| 161 | 1619PB6061 | Nameplate CN 220V |
| 161 | 1619PB6062 | Nameplate MAL 240V |
| 161 | 1619PB6063 | Nameplate IND 230V |
| 161 | 1619PB6064 | Nameplate ASI 220-230V |
| 161 | 1619PB6065 | Nameplate OEU 230V |
| 161 | 1619PB8532 | Nameplate BR 127V |
| 161 | 1619PB8534 | Nameplate BR 220V |
| 161 | 1619PB8632 | Nameplate EU 220V |
| 161 | 1619PB8633 | Nameplate RCH 230V |
| 161 | 1619PB8634 | Nameplate AUS 240V |
| 161 | 1619PB8636 | Nameplate GB 220V |
| 161 | 1619PB8637 | Nameplate ROK 220-240V |
| 162 | 1619PB6066 | Manufacturer's nameplate GTR 550 |
| 162 | 1619PB8639 | Manufacturer's nameplate GTR 55-225 |
| 19 | 1619PB5952 | Fastening Clamp |
| 2 | 1619PB5942 | Field 220-240V |
| 2 | 1619PB8528 | Field 120-127V |
| 21 | 1619PB6082 | Tapping Screw ST4X45 |
| 22 | 1619PB5953 | Bearing Flange |
| 23 | 1619PB5954 | Magnet |
| 24 | 1619PB5955 | Mounting Sleeve |
| 25 | 1619PB5956 | Air-Deflector Ring |
| 26 | 1619PB5957 | Grommet |
| 27 | 1619PB5958 | Tapping Screw ST4X16 |
| 28 | 1619PB5959 | Housing Cover |
| 29 | 1619PB5960 | Electronic Assembly 220-240V |
| 29 | 1619PB8535 | Electronic Assembly 120-127V |
| 3 | 1619PB5943 | Armature 220-240V |
| 3 | 1619PB8529 | Armature 110V |
| 31 | 1619PB5962 | Workpiece support |
| 32 | 1619PB5963 | Housing Cover |
| 33 | 1619PB5964 | Housing Cover |
| 34 | 1619PB5965 | Needle bearing HK1012 |
| 35 | 1619PB5966 | Gear Housing |
| 36 | 1619PB5967 | Groove ball bearing 606-2Z |
| 37 | 1619PB5968 | Retaining ring |
| 38 | 1619PB5969 | Crown Gear |
| 39 | 1619PB5970 | Transmission Shaft |
| 4 | 1619PB5944 | Switch |
| 40 | 1619PB5971 | Retaining ring |
| 41 | 1619PB5972 | Groove ball bearing 699 |
| 42 | 1619PB5973 | Bearing Flange |
| 43 | 1619PB5974 | Cross Recessed-Head Screw M4X16 |
| 44 | 1619PB5975 | Woodruff Key |
| 45 | 1619PB5976 | Retaining ring Ø10 |
| 46 | 1619PB5977 | Cylindrical Gear |
| 47 | 1619PB5978 | Sealing Disc |
| 48 | 1619PB5979 | Bearing Flange |
| 49 | 1619PB5980 | Sealing Plate |
| 5 | 160111AA6Y | Power supply cord |
| 5 | 160111AA6Z | Power supply cord |
| 5 | 1607000EZ0 | Power supply cord 1.0MM^2 X2, 4M, IL |
| 5 | 1619PB5945 | Power supply cord 1.0MM^2 X3, 4M, Cn |
| 5 | 1619PB6067 | Power supply cord 1.0MM^2 X3, 4M, Mal/uk |
| 5 | 1619PB6068 | Power supply cord 1.0MM^2 X3, 4M, Ind |
| 5 | 1619PB6069 | Power supply cord 1.0MM^2 X3, 4M, Oeu |
| 5 | 1619PB8530 | Power supply cord 1.0MM^2 X3, 4M, Br |
| 5 | 1619PB8623 | Power supply cord 1.0MM^2 X3, 4M, Rch |
| 5 | 1619PB8624 | Power supply cord 1.0MM^2 X3, 4M, Aus |
| 5 | 1619PB8625 | Power supply cord 1.0MM^2 X3, 4M, Rok |
| 50 | 1619PB5981 | Output Shaft |
| 51 | 1619PB5982 | Groove ball bearing NSK 6900-2RS |
| 52 | 1619PB5983 | Retaining ring |
| 53 | 1619PB5984 | Dust seal |
| 54 | 1619PB5985 | Flat Key |
| 55 | 1619PB6017 | Countersunk-Head Screw |
| 56 | 1619PB6018 | Cross Recessed-Head Screw M4X25 |
| 57 | 1607000EW8 | Inductor |
| 57 | 1619PB6084 | Inductor |
| 58 | 1607000E8V | Spring |
| 6 | 1619PB5946 | Grommet |
| 61 | 1619PB5986 | Corrugated Pipe |
| 62 | 1619PB5987 | Locking ring |
| 63 | 1619PB5988 | Control Housing |
| 64 | 1619PB5989 | Valve Insert |
| 65 | 1619PB5990 | Housing Cover |
| 651 | 1619PB6075 | Hexagon Socket Screw Key |
| 655 | 1607000E5X | Rubber Backing Pad |
| 656 | 1619PB6056 | Backing Pad |
| 657 | 1619PB6088 | Clip |
| 658 | 1607000F2K | Vacuum Adapter |
| 69 | 1619PB5994 | Corrugated Pipe |
| 691/1 | 1619PB6089 | Latch |
| 691/2 | 1619PB6090 | Handle |
| 7 | 1619PB6021 | Fastening Clamp |
| 70 | 1619PB5995 | Cross Recessed-Head Screw |
| 71 | 1619PB5996 | Spring |
| 72 | 1619PB5997 | Covering hood |
| 73 | 1619PB5998 | Pressure Plate |
| 74 | 1619PB5999 | Strip brush |
| 75 | 1619PB6000 | Strip brush |
| 77 | 1619PB6087 | Tapping Screw ST4X14 |
| 8 | 1607000EZ1 | Nameplate IL 230V |
| 8 | 1619PB5947 | Nameplate CN 220V |
| 8 | 1619PB6057 | Nameplate MAL 240V |
| 8 | 1619PB6058 | Nameplate IND 230V |
| 8 | 1619PB6059 | Nameplate ASI 220-230V |
| 8 | 1619PB6060 | Nameplate OEU 230V |
| 8 | 1619PB8531 | Nameplate BR 127V |
| 8 | 1619PB8533 | Nameplate BR 220V |
| 8 | 1619PB8626 | Nameplate EU 220V |
| 8 | 1619PB8627 | Nameplate RCH 230V |
| 8 | 1619PB8628 | Nameplate AUS 240V |
| 8 | 1619PB8630 | Nameplate GB 220V |
| 8 | 1619PB8631 | Nameplate ROK 220-240V |
| 81 | 1619PB6001 | Support Frame |
| 810 | 1607000E7H | Carbon-Brush Set Fuji GPA 418S2P |
| 817 | 1619PB6081 | Pressure Plate |
| 82 | 1619PB6002 | Connection Cable H05RN-F, 0.75MM^2 X2 |
| 83 | 1619PB6003 | Aluminum Tubing |
| 84 | 1619PB6004 | Plastic covering |
| 866 | 1619PB6085 | Operation button |
| 88 | 1619PB6008 | Plug-in connector |
| 888 | 1607000E8U | Connector GTR550 |
| 89 | 1619PB6009 | Cam |
| 9 | 1619PB5948 | Manufacturer's nameplate GTR 550 |
| 90 | 1619PB6010 | Hand lever |
| 91 | 1619PB6011 | Cross Recessed-Head Screw |
| 92 | 1619PB6012 | Mounting Bracket |
| 94 | 1619PB6083 | Screw |
| 95 | 1619PB6014 | Hook |
| 96 | 1619PB6015 | Connecting piece |
| 97 | 1619PB6016 | Countersunk-Head Screw |
