Bosch GTC 400 C

Bosch GTC 400 C thermal camera: exploded parts diagram, 1 sheet, 11 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GTC 400 C: 11 positions on 1 sheet

Bosch GTC 400 C parts list (1 sheet)

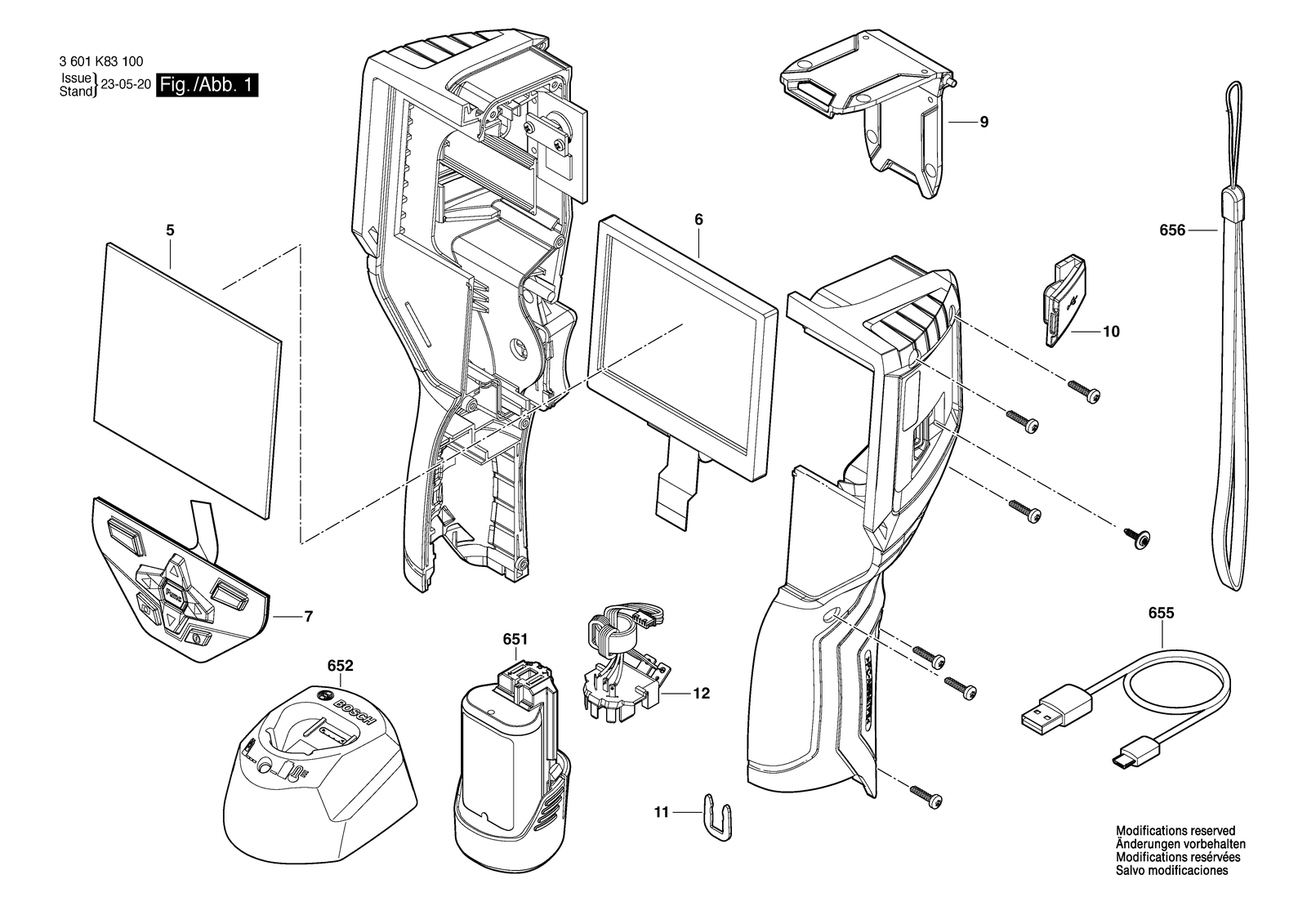

Bosch GTC 400 C parts diagram, sheet 1
No.Part numberPart name
101600A00Z77Cover
112609110838Clip
121600A015X5Cable Connector
51600A00S47Protective Glass
61600A00S48Display
6511607A350C5Battery Pack GBA 12V 2.0AH LI Scm
6522607226219Fast Charger EU GAL 12V-40
6522607226221Fast Charger GAL 12V-40 220V-240V 10,8-12V 4A
6561600A014BTCarrying Loop
71600A00S46Keyboard
916055002CRCover
