Bosch GTB 185-LI

Bosch GTB 185-LI cordless screw driver: exploded parts diagram, 1 sheet, 42 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GTB 185-LI: 42 positions on 1 sheet

Bosch GTB 185-LI parts list (1 sheet)

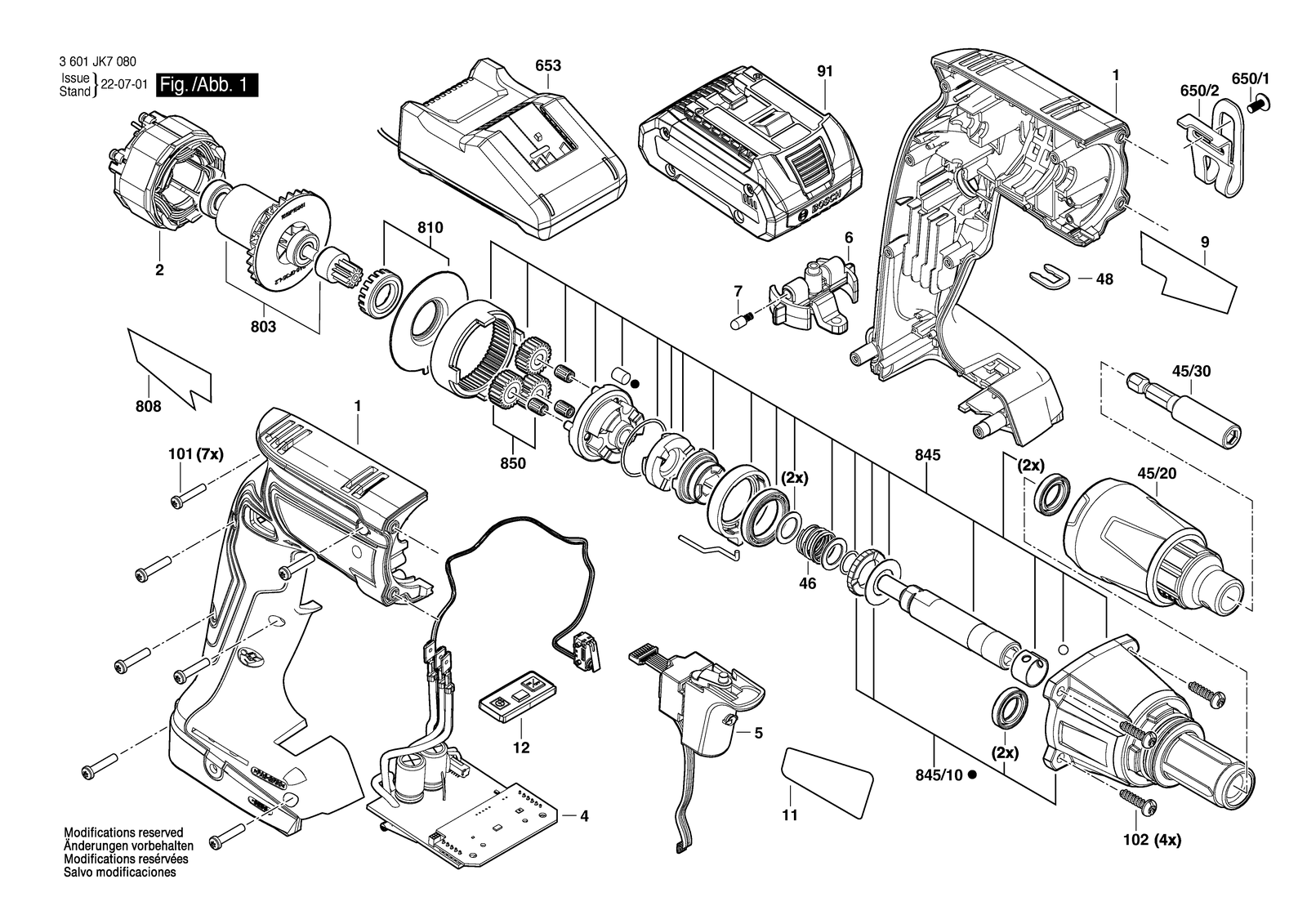

Bosch GTB 185-LI parts diagram, sheet 1
No.Part numberPart name
11600A024AZHousing
1012609110201Torx Flat-Head Screw 3X16
1022603490022Screw 4X16
11160111C41NSticker
121600A0261RSeparator
21619P16440Stator
416072335N0Speed governor
45/201600A01A4DDepth-Gauge
45/30161859713FToolholder
461609280477Compression Spring
482609110838Clip
52607202902Switch
61600A01D6XLever Switch
650/12609111584Clip
650/22609110834Screw
6532607226251Fast Charger EU GAL 18V-40, 230V/10,8V – 18V
6532607226255Fast Charger Aus GAL 18V-40
6532607226261Fast Charger Jp GAL 18V-40
6532607226281Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A
6532607226283Fast Charger UK GAL 18V-20 220-240V / 2A / 12-18V
6532607226289Fast Charger Lam GAL18V-20
6532607226295Fast Charger Br GAL18V-20, 127V - 220V
6532607226299Fast Charger Ar GAL18V-20
72600590006Ratchet Cap
8031607000E6GRotor
808160111A8DSNameplate
808160111A8M3Nameplate
808160111A8M5Nameplate
808160111A8M6Nameplate
808160111A8M8Nameplate
8101607000E6HFriction Washer
8451607000E6JGear Unit
845/101607000E6KGear Housing
8501607000E9SPlanet Gear
9160111C41UManufacturer's nameplate
9160111C4D9Manufacturer's nameplate
911607A350ANBattery Pack GBA 18V 4.0AH Procore Scm
911607A350MABattery Pack GBA 18V 2.0AH
911607A350MDBattery Pack Twn GBA 18V 2.0AH
911607A350MNBattery Pack GBA 18V 2.0AH
912607337069Battery Pack Bbs Mr, 18V, 5,0 AH 48 S
912607337081Battery Pack Bbs Mr-Xl, 18V, 5AH
