Bosch GTA50W

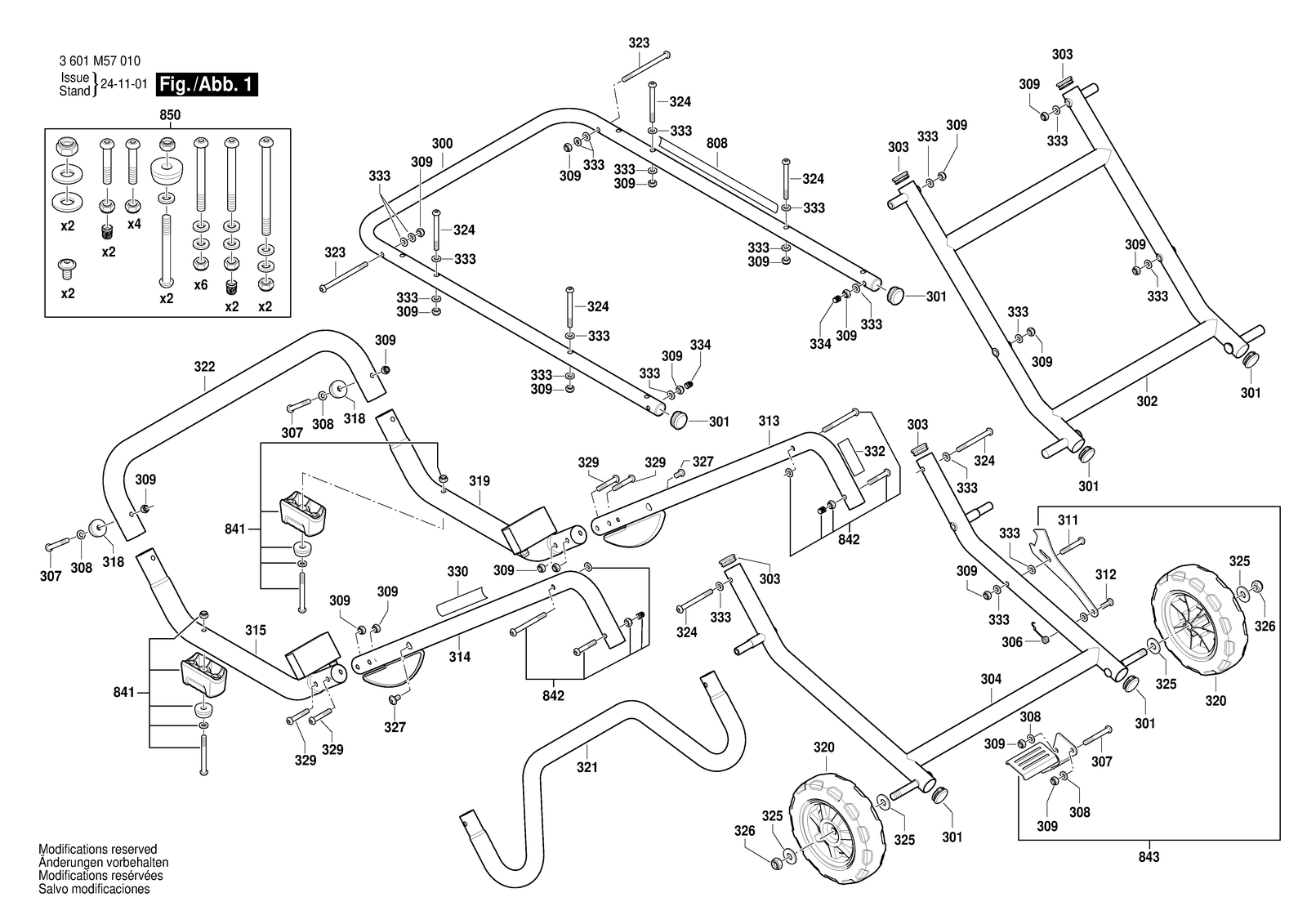

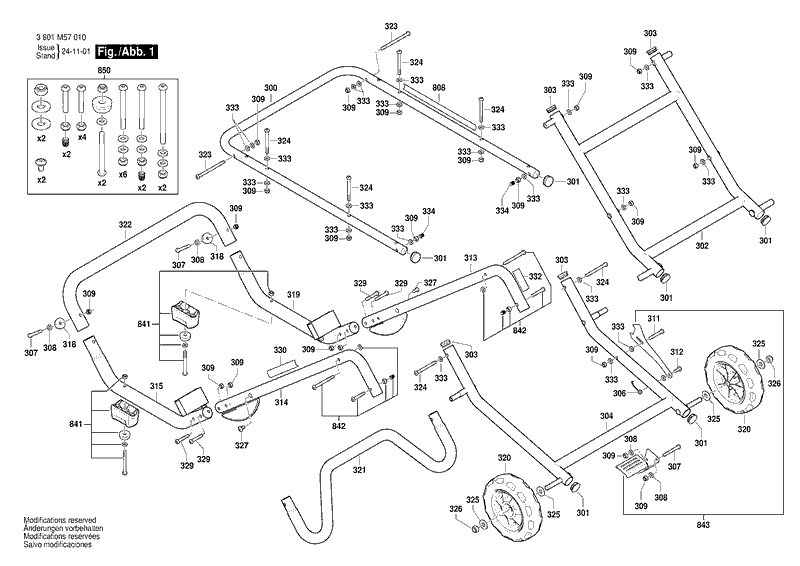

Bosch GTA50W stand: exploded parts diagram, 1 sheet, 35 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GTA50W: 35 positions on 1 sheet
Bosch GTA50W parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 300 | 1609B07953 | Support Tube |
| 301 | 1609B07954 | End cap |
| 302 | 1609B07956 | Connecting Rod |
| 303 | 1619PB2830 | End cap |
| 304 | 1609B07959 | Connecting Rod |
| 305 | 1609B07960 | Pedal |
| 306 | 1609B07961 | Torsion Spring |
| 307 | 1609B07962 | Screw |
| 308 | 1609B07963 | Plain Washer |
| 309 | 1609B07964 | Lock Nut |
| 310 | 1609B07965 | Detent plate |
| 311 | 1609B07966 | Screw |
| 312 | 1609B07969 | Screw |
| 313 | 1609B07974 | Connecting Rod |
| 314 | 1609B07975 | Connecting Rod |
| 315 | 1609B07967 | Connecting Rod |
| 318 | 1609B07982 | Pad |
| 319 | 1609B07968 | Connecting Rod |
| 320 | 1609B07973 | Wheel |
| 321 | 1609B07976 | Connecting Rod |
| 322 | 1609B07993 | Connecting Rod |
| 323 | 1609B07995 | Screw |
| 324 | 1609B07998 | Screw |
| 325 | 1609B08001 | Plain Washer |
| 326 | 1609B08002 | Self-locking nut |
| 327 | 1609B08003 | Screw |
| 329 | 1609B08008 | Screw |
| 330 | 1609B07997 | Label |
| 332 | 1609B07999 | Label |
| 333 | 1609B08278 | Plain Washer |
| 334 | 1609B08326 | Protective Cap |
| 808 | 1609B08289 | Nameplate |
| 841 | 1609B08292 | Supporting foot |
| 842 | 1609B08293 | Set of screws |
| 850 | 1609B07994 | Set of screws |
