Bosch GTA 3800

Bosch GTA 3800 work table: exploded parts diagram, 1 sheet, 13 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GTA 3800: 13 positions on 1 sheet

Bosch GTA 3800 parts list (1 sheet)

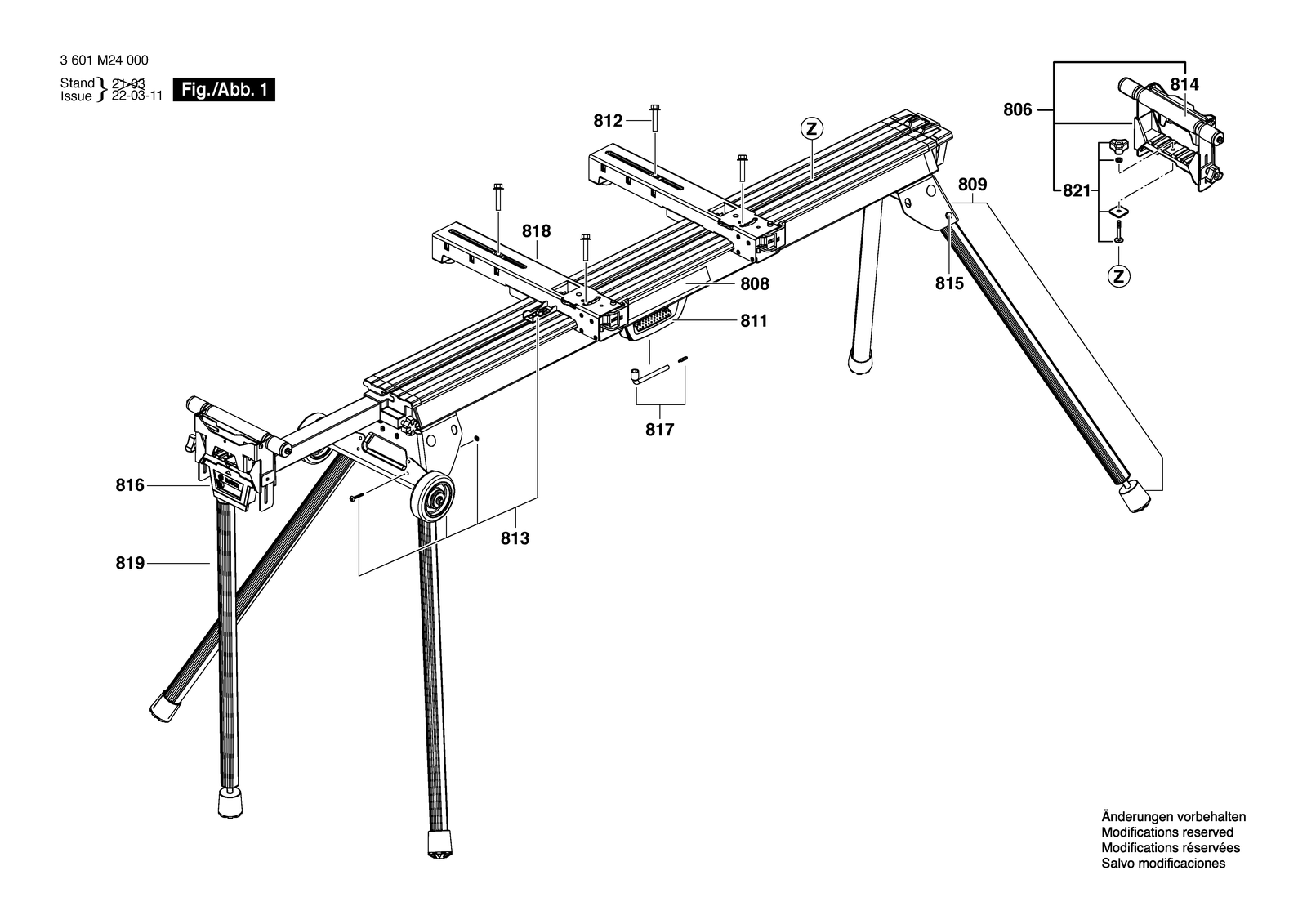

Bosch GTA 3800 parts diagram, sheet 1
No.Part numberPart name
8061609B06853Workpiece support
8081609B01860Nameplate
8091609B01852Support Pedestal
8111609B01858Set Of Handles
8121609B01859Hardware package
8131609B01854Wheel Set
8141609B01861Roller Set
8151609B01862Locking Pin
8161609B01864End cap
8171609B01857Socket Wrench
8181609B07135Mounting Device
8191609B01855Support Pedestal
8211609B06852Knob
