Bosch GTA 3700

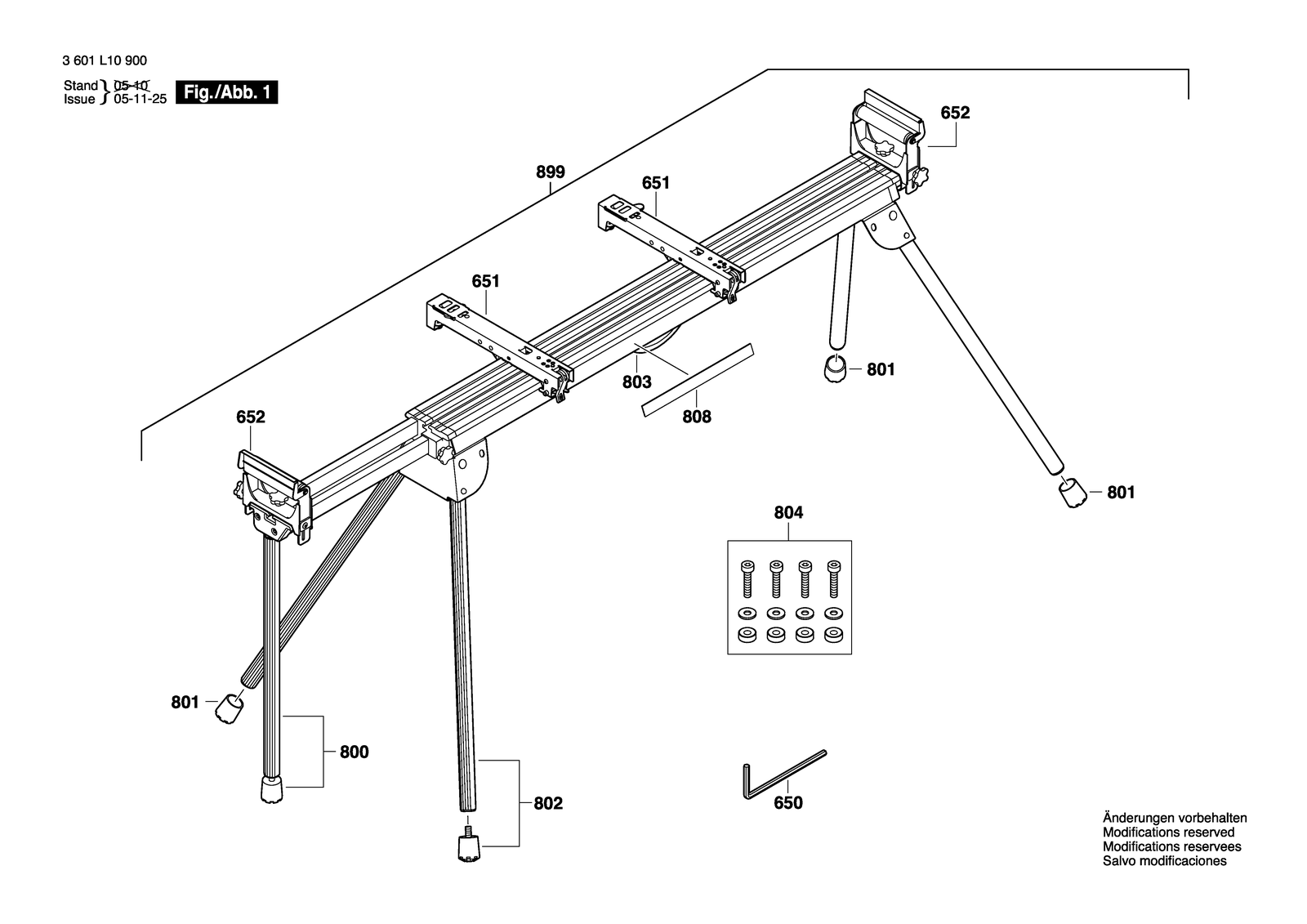

Bosch GTA 3700 work table: exploded parts diagram, 1 sheet, 9 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GTA 3700: 9 positions on 1 sheet
Bosch GTA 3700 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 650 | 1907950007 | Offset Screwdriver DIN 911;SW6 |
| 651 | 1609203R42 | Drive-Machine Holder |
| 652 | 1609203R44 | Workpiece support |
| 800 | 1609203R79 | Support Pedestal |
| 801 | 1609203R41 | Rubber Base |
| 802 | 1609203R43 | Table Leg |
| 803 | 1609203R80 | Handle |
| 804 | 1609203S35 | Fastening parts kit |
| 808 | 1601118H67 | Nameplate |
