Bosch GTA 2600

Bosch GTA 2600 work table: exploded parts diagram, 1 sheet, 34 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GTA 2600: 34 positions on 1 sheet

Bosch GTA 2600 parts list (1 sheet)

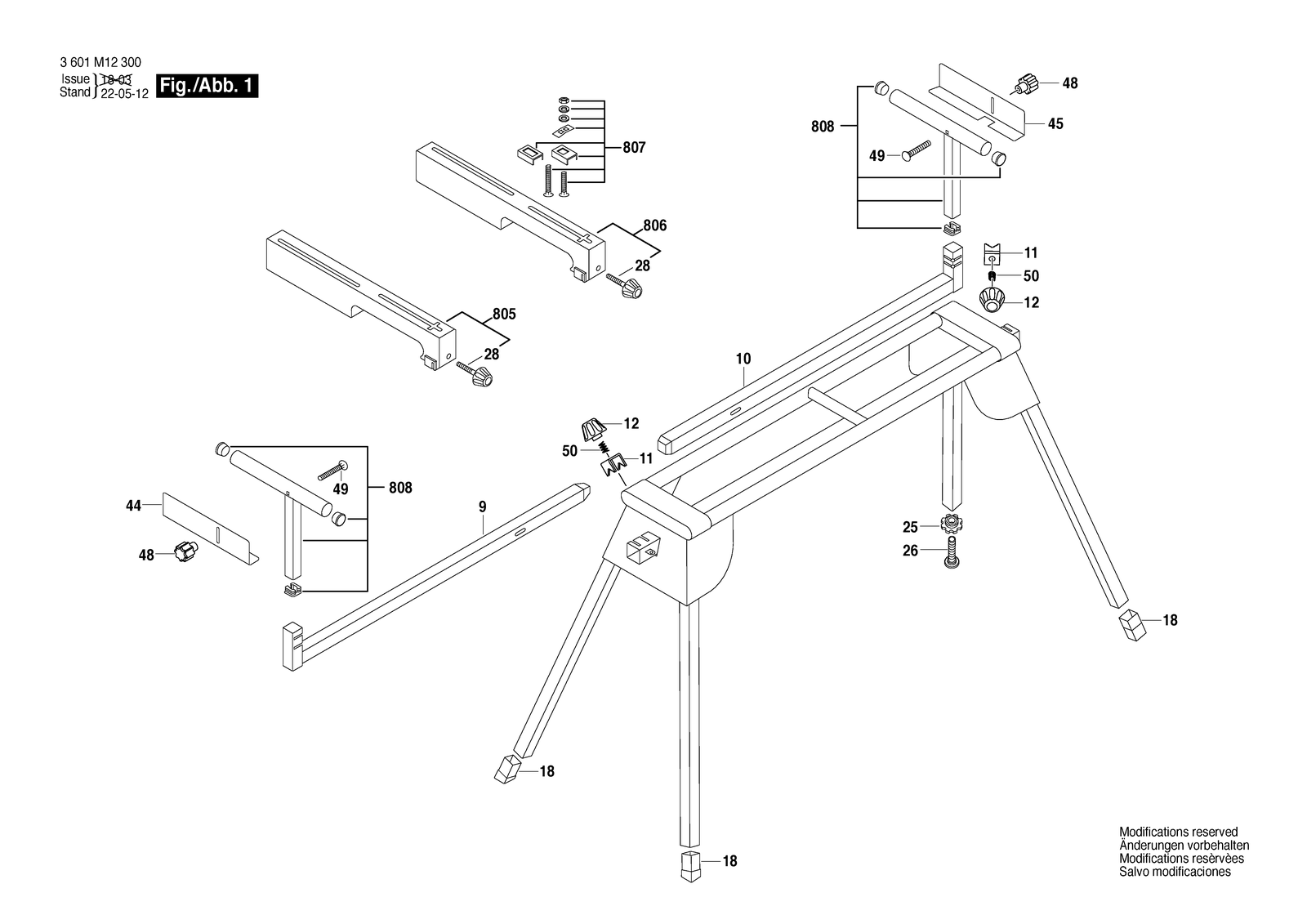

Bosch GTA 2600 parts diagram, sheet 1
No.Part numberPart name
101619P05518Extension unit
101619P05518Extension unit
112610958905Clamp
112610958905Clamp
122610958906Knob
122610958906Knob
182610958907Cap
182610958907Cap
252610958908Knob
252610958908Knob
262610958963Carrying Bolt
262610958963Carrying Bolt
282610958964Knob
282610958964Knob
442610958965Stop Bracket
442610958965Stop Bracket
452610958966Stop Bracket
452610958966Stop Bracket
482610958967Knob
482610958967Knob
492610958968Carrying Bolt
492610958968Carrying Bolt
502610958969Spring
502610958969Spring
8052610002871Carrier Unit
8052610002871Carrier Unit
8062610003226Carrier Unit
8062610003226Carrier Unit
8072610002872Fastening parts kit
8072610002872Fastening parts kit
8082610958971Support
8082610958971Support
91619P05517Extension unit
91619P05517Extension unit
