Bosch GTA 2500 work table: exploded parts diagram, 1 sheet, 12 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GTA 2500: 12 positions on 1 sheet

Bosch GTA 2500 parts list (1 sheet)

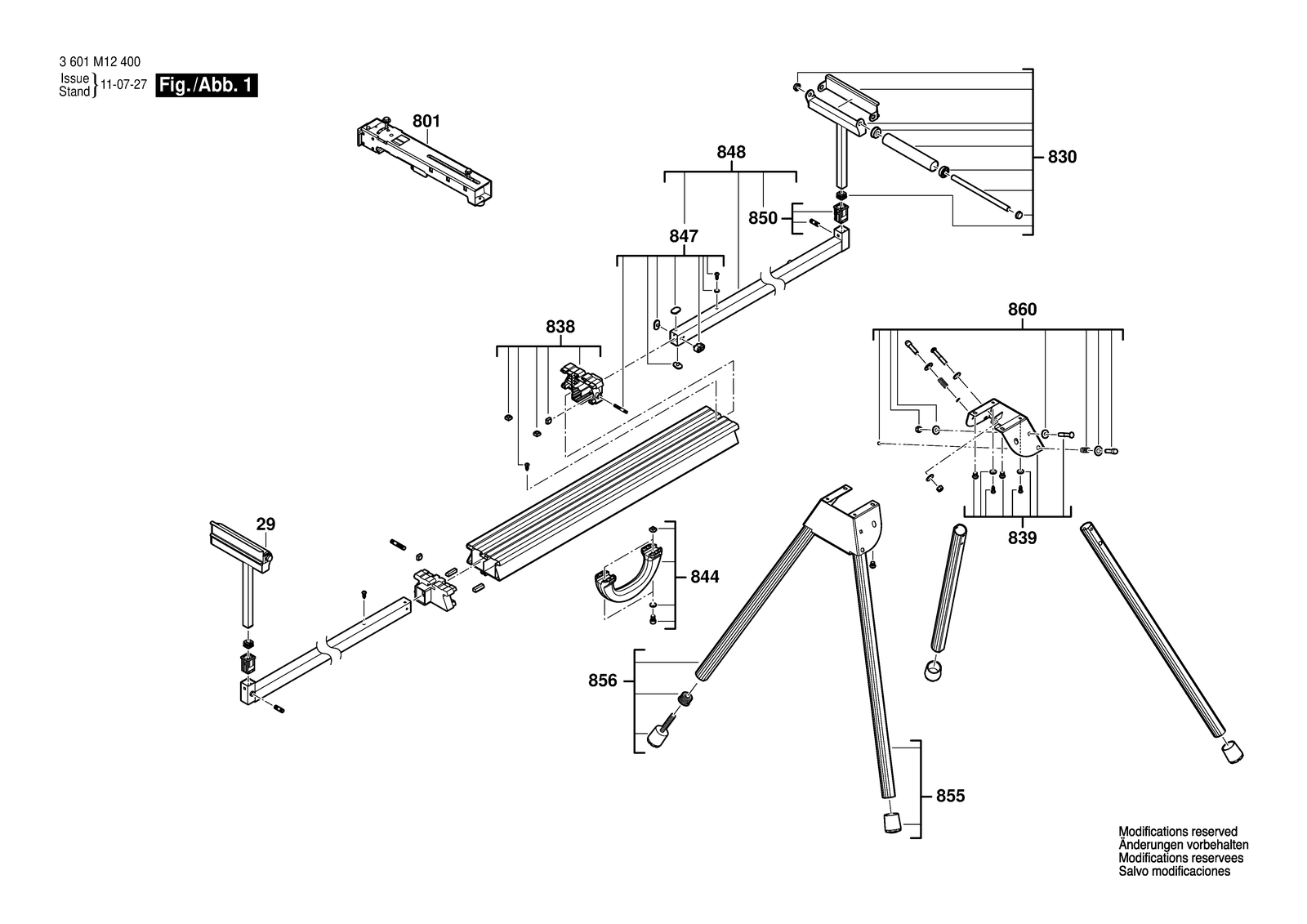

Bosch GTA 2500 parts diagram, sheet 1
No.Part numberPart name
291619PA2498Roller Assembly
8012610948662Mounting Rail
8301619PA2498Roller Assembly
8381619PA2768End cap
8391619PA2767Fastening parts kit
8441619PA2764Handle
8471619PA2769Fastening parts kit
8481619PA2771Extension Set
8501619PA2770Fastening parts kit
8551619PA2584Stand Leg
8561619PA2765Stand Leg
8601619PA2766Fastening parts kit
