Bosch GST 90 E

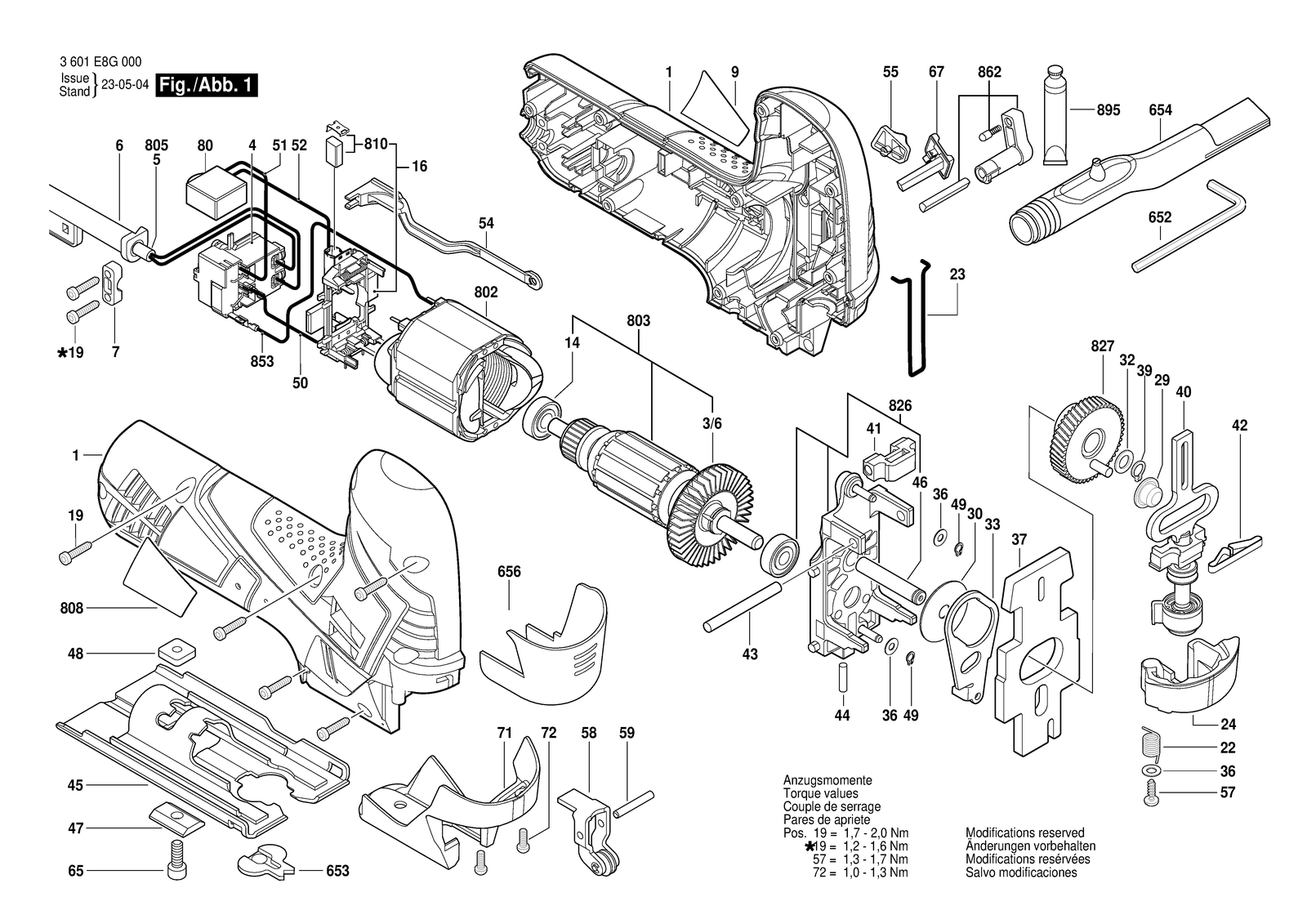

Bosch GST 90 E jig saw: exploded parts diagram, 1 sheet, 59 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GST 90 E: 59 positions on 1 sheet
Bosch GST 90 E parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619P07135 | Housing Section |
| 14 | 2600905110 | Groove ball bearing 8X22X7 |
| 16 | 2605807108 | Brush Plate |
| 19 | 2603490022 | Screw 4X16 |
| 22 | 1619P07152 | Torsion Spring |
| 23 | 1619P07128 | Protecting Cover |
| 24 | 1619P07151 | Lever Switch |
| 29 | 2600914022 | Needle bearing |
| 3/6 | 2606610123 | Fan |
| 30 | 1619P07576 | Shim |
| 32 | 2600101077 | Shim 0,5 MM |
| 33 | 1619P07137 | Fork Lever |
| 36 | 2600100588 | Shim 0,5 MM |
| 37 | 1619P07133 | Counterweight |
| 39 | 2916640905 | Spring retaining ring 8X0,8 N31A MR7 |
| 4 | 1619P08797 | On-Off Switch |
| 40 | 1619P07147 | Lifting Rod |
| 41 | 1619P08903 | Plain bearing |
| 42 | 1619P11327 | Coiled Spring |
| 43 | 1619P07139 | Needle Roller |
| 44 | 1619P07143 | Bearing bolt |
| 45 | 1619P07162 | Base Plate |
| 46 | 1619P07138 | Bearing bolt |
| 47 | 2601030019 | Profile Beading |
| 48 | 1619P07163 | Fixing plate |
| 49 | 2916640001 | Spring retaining ring DIN 471-4X0,4-FST |
| 5 | 1604460409 | Power supply cord CH 2,65M 2 X 1MM H05 Rn-F |
| 50 | 1619P09552 | Connecting Cable |
| 51 | 1619P09403 | Connecting Cable |
| 52 | 1619P09553 | Connecting Cable |
| 54 | 1619P07657 | Adjusting Slide |
| 55 | 1619P07658 | Switch Button |
| 57 | 1619P02848 | Torx Oval-Head Screw 4X12 |
| 58 | 1619P13426 | Roller Lever |
| 59 | 1619P07159 | Bearing bolt |
| 6 | 2600703028 | Grommet Ø7,6-Ø8,2X95 MM |
| 65 | 2910141197 | Hex Socket Head Cap Screw DIN 912-M6X16-8.8 |
| 652 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 653 | 2601016065 | Splintering Protector |
| 654 | 1619P07167 | Suction Nozzle |
| 656 | 1619P07166 | Covering hood |
| 67 | 1619P07158 | Switch Slide |
| 7 | 2601035001 | Cable Clip |
| 71 | 16055002CJ | Cover |
| 72 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 80 | 1619P09014 | Speed governor |
| 802 | 1619P09154 | Field 240V |
| 803 | 1619P09140 | Armature |
| 805 | 1607000385 | Power supply cord EU 2,6M 2 X 1,0 MM |
| 808 | 1619P07966 | Nameplate |
| 808 | 1619P08997 | Nameplate |
| 810 | 1607000494 | Carbon-Brush Set 10 X 2 604 321 941 |
| 810 | 2604321941 | Carbon-Brush Set |
| 826 | 1619P08888 | Bearing Bracket |
| 827 | 1619P08889 | Eccentric Cog Wheel |
| 853 | 1619P09141 | Earth Conductor |
| 862 | 1619P08890 | Change-Over Switch |
| 895 | 3605430003 | Grease Tube Albida |
| 9 | 1619P08795 | Manufacturer's nameplate GST 90 E |
