Bosch GST 85 PBAE

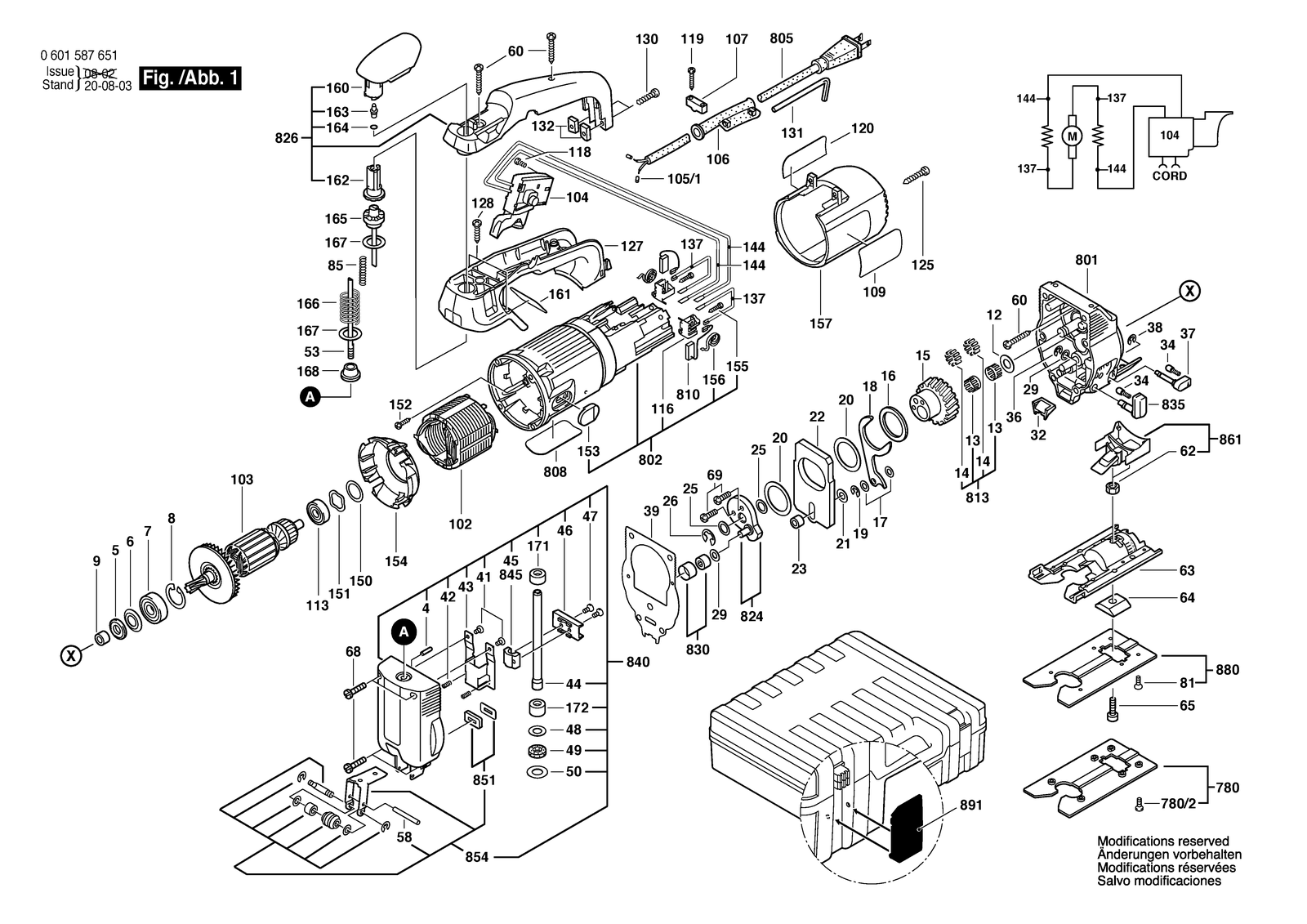

Bosch GST 85 PBAE jig saw: exploded parts diagram, 1 sheet, 339 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GST 85 PBAE: 339 positions on 1 sheet
Bosch GST 85 PBAE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 102 | 2610909245 | Field 115V |
| 102 | 2610909245 | Field 115V |
| 102 | 2610909245 | Field 115V |
| 103 | 2610909242 | Armature With Fan 115V |
| 103 | 2610909242 | Armature With Fan 115V |
| 103 | 2610909242 | Armature With Fan 115V |
| 104 | 2607200246 | Switch |
| 104 | 2607200246 | Switch |
| 104 | 2610909042 | Switch |
| 105/1 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 105/1 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 105/1 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 106 | 2600703028 | Grommet Ø7,6-Ø8,2X95 MM |
| 106 | 2600703028 | Grommet Ø7,6-Ø8,2X95 MM |
| 106 | 2600703028 | Grommet Ø7,6-Ø8,2X95 MM |
| 107 | 2601035001 | Cable Clip |
| 107 | 2601035001 | Cable Clip |
| 107 | 2601035001 | Cable Clip |
| 109 | 2610994119 | Sticker |
| 109 | 2610994119 | Sticker |
| 109 | 2610909044 | Manufacturer's nameplate |
| 113 | 1900905018 | Ball Bearing 7X22X7 |
| 113 | 1900905018 | Ball Bearing 7X22X7 |
| 113 | 1900905018 | Ball Bearing 7X22X7 |
| 116 | 1600A003G4 | Brush Holder |
| 116 | 1600A003G4 | Brush Holder |
| 116 | 1600A003G4 | Brush Holder |
| 118 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 118 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 118 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 119 | 2610315386 | Screw ST3,9X19 |
| 119 | 2610315386 | Screw ST3,9X19 |
| 119 | 2610315386 | Screw ST3,9X19 |
| 12 | 2600101616 | Shim 0,5 MM |
| 12 | 2600101616 | Shim 0,5 MM |
| 12 | 2600101616 | Shim 0,5 MM |
| 120 | 2610906855 | Warning Label |
| 120 | 2610906855 | Warning Label |
| 120 | 1619P00957 | Warning Plate |
| 125 | 2910601321 | Tapping Screw DIN 7982-ST3,9X22C-H |
| 125 | 2910601321 | Tapping Screw DIN 7982-ST3,9X22C-H |
| 125 | 2910611020 | Tapping Screw DIN 7981-ST3,9X19-C-H |
| 127 | 2602025060 | Strap-Shaped Handle |
| 127 | 2602025060 | Strap-Shaped Handle |
| 127 | 2610909047 | Handle |
| 128 | 2603410054 | Thread-forming tap. Screw M 5X16 |
| 128 | 2603410054 | Thread-forming tap. Screw M 5X16 |
| 128 | 2603410054 | Thread-forming tap. Screw M 5X16 |
| 13 | 2600913036 | Needle-Roller Cage |
| 13 | 2600913036 | Needle-Roller Cage |
| 13 | 2600913036 | Needle-Roller Cage |
| 130 | 2914501021 | Screw and washer assembly M 4X20 MM |
| 130 | 1619P07366 | Screw and washer assembly |
| 130 | 1619P07366 | Screw and washer assembly |
| 131 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 131 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 131 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 132 | 2603320001 | Square Nut M4 |
| 132 | 2603320001 | Square Nut M4 |
| 132 | 2603320001 | Square Nut M4 |
| 137 | 2604448034 | Connecting Cable White L=88 MM |
| 137 | 2604448034 | Connecting Cable White L=88 MM |
| 137 | 2604448034 | Connecting Cable White L=88 MM |
| 14 | 2603201037 | Needle Roller 1,5X5,8 MM |
| 14 | 2603201037 | Needle Roller 1,5X5,8 MM |
| 14 | 2603201037 | Needle Roller 1,5X5,8 MM |
| 144 | 1614431010 | Cable White L=233 MM |
| 144 | 1614431010 | Cable White L=233 MM |
| 144 | 1614431010 | Cable White L=233 MM |
| 15 | 1619P02581 | Eccentric Cog Wheel |
| 15 | 1619P02581 | Eccentric Cog Wheel |
| 15 | 1619P02581 | Eccentric Cog Wheel |
| 150 | 2600101023 | Shim 0,3 MM |
| 150 | 2600101027 | Shim washer 0,3 MM |
| 150 | 2600101027 | Shim washer 0,3 MM |
| 151 | 2600150004 | Shim |
| 151 | 2600150004 | Shim |
| 151 | 2600150004 | Shim |
| 152 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 152 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 152 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 153 | 2603231032 | Plug Blue |
| 153 | 2603231032 | Plug Blue |
| 153 | 2610909048 | Plug |
| 154 | 2601328045 | Cover Disc |
| 154 | 2601328045 | Cover Disc |
| 154 | 2601328045 | Cover Disc |
| 155 | 2610914920 | Tapping Screw |
| 155 | 1619P00220 | Torx Oval-Head Screw 3X10 |
| 155 | 1619P00220 | Torx Oval-Head Screw 3X10 |
| 156 | 1604652013 | Spiral Spring |
| 156 | 2604652009 | Spiral Spring |
| 156 | 2604652009 | Spiral Spring |
| 157 | 2600508038 | Housing Cover Blue |
| 157 | 2600508038 | Housing Cover Blue |
| 157 | 2610909049 | Housing Cover |
| 16 | 2600102653 | Shim 1,0 MM |
| 16 | 2600102653 | Shim 1,0 MM |
| 16 | 2600102653 | Shim 1,0 MM |
| 160 | 2608040070 | Rotary Handle |
| 160 | 2608040070 | Rotary Handle |
| 160 | 2608040101 | Rotary Handle |
| 161 | 2610907133 | Label |
| 161 | 2610907133 | Label |
| 161 | 2610907133 | Label |
| 162 | 2606491011 | Ratchet |
| 162 | 2606491011 | Ratchet |
| 162 | 2606491011 | Ratchet |
| 163 | 2600423006 | Carrier Bracket |
| 163 | 2600423006 | Carrier Bracket |
| 163 | 2600423006 | Carrier Bracket |
| 164 | 1619P06265 | O-Ring |
| 164 | 1619P06265 | O-Ring |
| 164 | 1619P06265 | O-Ring |
| 165 | 2606491014 | Coupling Half |
| 165 | 2606491014 | Coupling Half |
| 165 | 2606491014 | Coupling Half |
| 166 | 2604617004 | Compression Spring |
| 166 | 2604617004 | Compression Spring |
| 166 | 2604617004 | Compression Spring |
| 167 | 1600101603 | Plain Washer Thick 0,5 MM |
| 167 | 1619P00446 | Shim |
| 167 | 1619P00446 | Shim |
| 168 | 2600421001 | Guide Sleeve |
| 168 | 2600421001 | Guide Sleeve |
| 168 | 2600421001 | Guide Sleeve |
| 17 | 2600100515 | Shim 0,3 MM |
| 17 | 2600100516 | Shim 0,5 MM |
| 17 | 2600100515 | Shim 0,3 MM |
| 17 | 2600100516 | Shim 0,5 MM |
| 17 | 2600100515 | Shim 0,3 MM |
| 17 | 2600100516 | Shim 0,5 MM |
| 171 | 2600301046 | Sintered-Metal Bushing |
| 171 | 2600301046 | Sintered-Metal Bushing |
| 171 | 2600301046 | Sintered-Metal Bushing |
| 172 | 2600301045 | Bushing |
| 172 | 2600301045 | Bushing |
| 172 | 2600301045 | Bushing |
| 18 | 2601923004 | Fork Lever |
| 18 | 2601923004 | Fork Lever |
| 18 | 2601923004 | Fork Lever |
| 19 | 2916080907 | Locking washer 4 DIN 6799 |
| 19 | 2916080907 | Locking washer 4 DIN 6799 |
| 19 | 2916080907 | Locking washer 4 DIN 6799 |
| 20 | 2600102652 | Shim 0,5 MM |
| 20 | 2600102652 | Shim 0,5 MM |
| 20 | 2600102652 | Shim 0,5 MM |
| 21 | 2600100625 | Shim 0,1 MM |
| 21 | 2600100626 | Shim 0,2 MM |
| 21 | 2600100627 | Shim 0,3 MM |
| 21 | 2600100628 | Shim 0,5 MM |
| 21 | 2600100625 | Shim 0,1 MM |
| 21 | 2600100626 | Shim 0,2 MM |
| 21 | 2600100627 | Shim 0,3 MM |
| 21 | 2600100628 | Shim 0,5 MM |
| 21 | 2600100625 | Shim 0,1 MM |
| 21 | 2600100626 | Shim 0,2 MM |
| 21 | 2600100627 | Shim 0,3 MM |
| 21 | 2600100628 | Shim 0,5 MM |
| 22 | 2601098003 | Counterweight |
| 22 | 2601098003 | Counterweight |
| 22 | 2601098003 | Counterweight |
| 23 | 2600309009 | Spacer Sleeve |
| 23 | 2600309009 | Spacer Sleeve |
| 23 | 2600309009 | Spacer Sleeve |
| 25 | 2600100575 | Shim 0,2 MM |
| 25 | 2600100576 | Shim 0,3 MM |
| 25 | 2600100577 | Shim 0,5 MM |
| 25 | 2600100575 | Shim 0,2 MM |
| 25 | 2600100576 | Shim 0,3 MM |
| 25 | 2600100577 | Shim 0,5 MM |
| 25 | 2600100575 | Shim 0,2 MM |
| 25 | 2600100576 | Shim 0,3 MM |
| 25 | 2600100577 | Shim 0,5 MM |
| 26 | 2916080910 | Locking washer DIN 6799-7-FST |
| 26 | 1619P00443 | Locking washer |
| 26 | 1619P00443 | Locking washer |
| 29 | 2600100568 | Shim 0,5 MM |
| 29 | 2600100569 | Shim 1,0 MM |
| 29 | 2600100607 | Shim 0,3 MM |
| 29 | 2600100568 | Shim 0,5 MM |
| 29 | 2600100569 | Shim 1,0 MM |
| 29 | 2600100607 | Shim 0,3 MM |
| 29 | 2600100568 | Shim 0,5 MM |
| 29 | 2600100569 | Shim 1,0 MM |
| 29 | 2600100607 | Shim 0,3 MM |
| 32 | 2602305042 | Air Eliminator |
| 32 | 2602305042 | Air Eliminator |
| 32 | 2602305042 | Air Eliminator |
| 34 | 2600590006 | Ratchet Cap |
| 34 | 2600590006 | Ratchet Cap |
| 34 | 2600590006 | Ratchet Cap |
| 36 | 2916080008 | Locking washer DIN 6799-5-FST |
| 36 | 1619P00444 | Locking washer |
| 36 | 1619P00444 | Locking washer |
| 37 | 2602026037 | Rotary Knob Black |
| 37 | 2602026037 | Rotary Knob Black |
| 37 | 2602026037 | Rotary Knob Black |
| 38 | 2600116006 | Spring retaining ring |
| 38 | 2600116006 | Spring retaining ring |
| 38 | 2600116006 | Spring retaining ring |
| 39 | 2601015050 | Seal |
| 39 | 2601015050 | Seal |
| 39 | 2601015050 | Seal |
| 4 | 1903201042 | Needle Roller DIN 5402-A3X11,8-G2 |
| 4 | 1619P00429 | Bolt |
| 4 | 1619P00429 | Bolt |
| 41 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 41 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 41 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 42 | 2604613000 | Compression Spring |
| 42 | 2604613000 | Compression Spring |
| 42 | 2604613000 | Compression Spring |
| 43 | 1616B00224 | Guide Bracket |
| 43 | 1616B00224 | Guide Bracket |
| 43 | 1616B00224 | Guide Bracket |
| 44 | 1619P12765 | Lifting Rod |
| 44 | 1619P12765 | Lifting Rod |
| 44 | 1619P12765 | Lifting Rod |
| 45 | 2602329011 | Clamping Saddle |
| 46 | 1619P12767 | Sliding Piece |
| 46 | 1619P12767 | Sliding Piece |
| 46 | 1619P12767 | Sliding Piece |
| 47 | 2603421040 | Countersunk-Head Screw DIN 7962-M3,5X8-10.9 |
| 47 | 2603421040 | Countersunk-Head Screw DIN 7962-M3,5X8-10.9 |
| 47 | 2603421040 | Countersunk-Head Screw DIN 7962-M3,5X8-10.9 |
| 48 | 2600112031 | Supporting Disc 0,5 MM |
| 48 | 2600112031 | Supporting Disc 0,5 MM |
| 48 | 2600112031 | Supporting Disc 0,5 MM |
| 49 | 2600290017 | Seal Ring 0,5 MM |
| 49 | 2600290017 | Seal Ring 0,5 MM |
| 49 | 2600290017 | Seal Ring 0,5 MM |
| 5 | 2600108077 | Felt Washer |
| 5 | 2600108077 | Felt Washer |
| 5 | 2600108077 | Felt Washer |
| 50 | 2600101612 | Shim 0,5 MM |
| 50 | 2600101612 | Shim 0,5 MM |
| 50 | 2600101612 | Shim 0,5 MM |
| 53 | 2603490011 | Clamp Screw |
| 53 | 2603490011 | Clamp Screw |
| 53 | 2603490011 | Clamp Screw |
| 58 | 2917530101 | Straight Pin DIN 6325-4M6X24 |
| 58 | 2917530101 | Straight Pin DIN 6325-4M6X24 |
| 58 | 2917530101 | Straight Pin DIN 6325-4M6X24 |
| 6 | 2600500002 | Cupped Washer |
| 6 | 2600500002 | Cupped Washer |
| 6 | 2600500002 | Cupped Washer |
| 60 | 2610323133 | Dummy |
| 60 | 1619P00106 | Screw |
| 60 | 1619P00106 | Screw |
| 62 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 62 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 62 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 63 | 2608000073 | Base Plate |
| 63 | 2608000073 | Base Plate |
| 63 | 2608000073 | Base Plate |
| 64 | 2601030019 | Profile Beading |
| 64 | 2601030019 | Profile Beading |
| 64 | 2601030019 | Profile Beading |
| 65 | 2910141197 | Hex Socket Head Cap Screw DIN 912-M6X16-8.8 |
| 65 | 2910141197 | Hex Socket Head Cap Screw DIN 912-M6X16-8.8 |
| 65 | 2910141197 | Hex Socket Head Cap Screw DIN 912-M6X16-8.8 |
| 68 | 2603410049 | Thread-forming tap. Screw M4X12 MM |
| 68 | 1619P01380 | Screw 4X14 |
| 68 | 1619P01380 | Screw 4X14 |
| 69 | 2914551176 | Microencapsulated Screw DIN 7985-M4X12MM |
| 69 | 2914551176 | Microencapsulated Screw DIN 7985-M4X12MM |
| 69 | 2914551176 | Microencapsulated Screw DIN 7985-M4X12MM |
| 7 | 2600905021 | Groove ball bearing 9X24X7 |
| 7 | 1610905005 | Groove ball bearing 9X24X7 |
| 7 | 1610905005 | Groove ball bearing 9X24X7 |
| 780 | 2610996230 | Base |
| 780 | 2610996230 | Base |
| 780 | 2610996230 | Base |
| 780/2 | 2910001116 | Socket head cap screw DIN 84-M4X6-4.8 |
| 780/2 | 2910001116 | Socket head cap screw DIN 84-M4X6-4.8 |
| 780/2 | 2910001116 | Socket head cap screw DIN 84-M4X6-4.8 |
| 8 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 8 | 1619P00428 | Spring retaining ring |
| 8 | 1619P00428 | Spring retaining ring |
| 801 | 2605808917 | Gear Housing |
| 801 | 2605808917 | Gear Housing |
| 801 | 2605808917 | Gear Housing |
| 802 | 2605108904 | Motor Housing Blue |
| 802 | 1619P00775 | Motor Housing |
| 802 | 1619P00775 | Motor Housing |
| 805 | 3604460555 | Power supply cord Usa/cdn 2,15M 2 X 0,82MM SJ 18/2 |
| 805 | 3604460555 | Power supply cord Usa/cdn 2,15M 2 X 0,82MM SJ 18/2 |
| 805 | 3604460555 | Power supply cord Usa/cdn 2,15M 2 X 0,82MM SJ 18/2 |
| 808 | 2610994104 | Set Of Handles |
| 808 | 1619P00642 | Nameplate |
| 808 | 1619P00643 | Nameplate |
| 808 | 1619P07213 | Nameplate |
| 808 | 1619P00644 | Nameplate |
| 81 | 2910861118 | Countersunk-Head Screw |
| 81 | 2910771118 | Countersunk-Head Screw DIN 963-M4X8-5.8 |
| 81 | 2910771118 | Countersunk-Head Screw DIN 963-M4X8-5.8 |
| 810 | 2604320910 | Carbon-Brush Set |
| 810 | 2604320910 | Carbon-Brush Set |
| 810 | 2604320910 | Carbon-Brush Set |
| 813 | 2607001130 | Needle-Roller Cage |
| 813 | 2607001130 | Needle-Roller Cage |
| 813 | 2607001130 | Needle-Roller Cage |
| 824 | 2601072901 | Eccentric Disc |
| 824 | 2601072901 | Eccentric Disc |
| 824 | 2601072901 | Eccentric Disc |
| 826 | 2602025901 | Strap-Shaped Handle |
| 826 | 2602025901 | Strap-Shaped Handle |
| 826 | 2602025901 | Strap-Shaped Handle |
| 830 | 2600917900 | Needle bearing |
| 830 | 2600917900 | Needle bearing |
| 830 | 2600917900 | Needle bearing |
| 835 | 2602026036 | Rotary Knob Black |
| 835 | 2602026036 | Rotary Knob Black |
| 835 | 2602026036 | Rotary Knob Black |
| 840 | 2605808921 | Gear Cover |
| 840 | 1619P00776 | Coupling Half |
| 840 | 1619P00776 | Coupling Half |
| 845 | 2602329011 | Clamping Saddle |
| 845 | 2602329011 | Clamping Saddle |
| 85 | 2604610040 | Compression Spring |
| 85 | 2604610040 | Compression Spring |
| 85 | 2604610040 | Compression Spring |
| 851 | 2601015901 | Sealing Plate |
| 851 | 2601015901 | Sealing Plate |
| 851 | 2601015901 | Sealing Plate |
| 854 | 1619P00777 | Roller Lever |
| 854 | 1619P00777 | Roller Lever |
| 854 | 1619P00777 | Roller Lever |
| 861 | 2605500900 | Fan Cover |
| 861 | 2605500900 | Fan Cover |
| 861 | 2605500900 | Fan Cover |
| 880 | 2607001085 | Work Board Metal |
| 880 | 1619P00782 | Work Board |
| 880 | 2601098011 | Work Board |
| 891 | 1619P01393 | Latch |
| 9 | 2600400008 | Receptacle |
| 9 | 2600400008 | Receptacle |
| 9 | 2600400008 | Receptacle |
Selected parts0
