Bosch GST 80 PE

Bosch GST 80 PE jig saw: exploded parts diagram, 1 sheet, 113 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GST 80 PE: 113 positions on 1 sheet

Bosch GST 80 PE parts list (1 sheet)

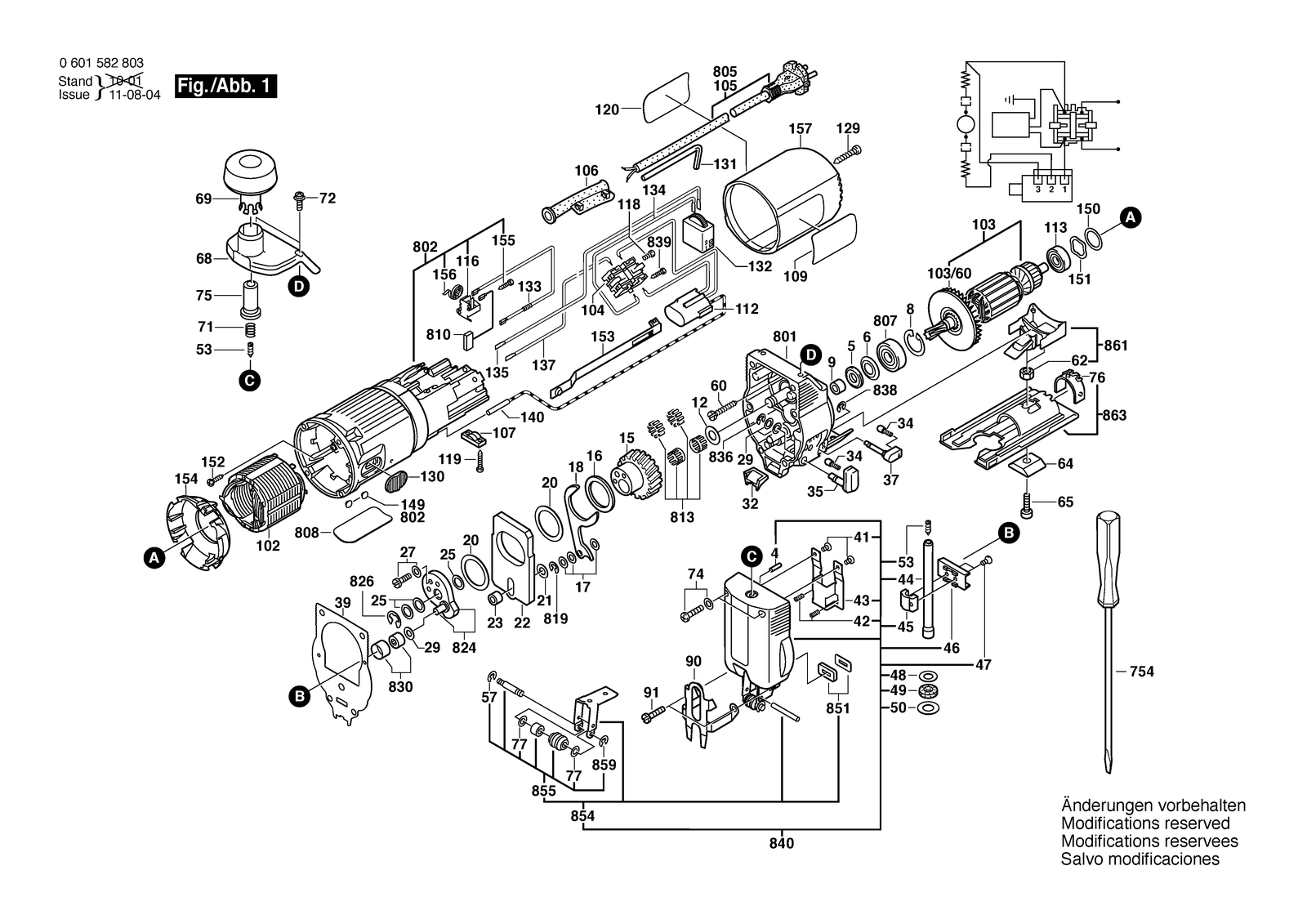

Bosch GST 80 PE parts diagram, sheet 1
No.Part numberPart name
1022604220709Field 220-240V
1032604010578Armature 230-240V
103/602606610049Fan
1042607200674Switch
1062600703026Grommet Ø8,2-Ø9,4X95 MM
1062600703027Grommet Ø6,5-Ø6,9X95 MM
1062600703028Grommet Ø7,6-Ø8,2X95 MM
1072601035001Cable Clip
1092601118991Manufacturer's nameplate Sunny Side
1122607329104Suppression Filter
1131900905018Ball Bearing 7X22X7
1161600A003G4Brush Holder
1162601323022Brush Holder
1182603410001Socket head cap screw M3X6,5-4.8
1192603490022Screw 4X16
122600101616Shim 0,5 MM
1202601118992Reference Plate Shadow Side
1292910601321Tapping Screw DIN 7982-ST3,9X22C-H
1302602026015Switch Handle Black
1312610364015Hexagon Socket Screw Key 5 MM
1322607230115Speed governor 220-240V
1332604465049Suppression Filter
1342604448044Connecting Cable White L=86MM
1352604448140Cable White L=103MM
1372604448040Connecting Cable White L=125MM
1402600409017Insulation Tubing
1492603231032Plug Blue
151619P02581Eccentric Cog Wheel
1502600101020Shim 0,5 MM
1502600101022Shim 0,2 MM
1502600101027Shim washer 0,3 MM
1512600150004Shim
1522603435086Tapping Screw
1532602319005Adjusting Slide Blue
1542601328045Cover Disc
1552603490017Torx Oval-Head Screw 3X10
1562604652009Spiral Spring
1572600508037Housing Cover Blue
162600102653Shim 1,0 MM
172600100515Shim 0,3 MM
172600100516Shim 0,5 MM
182601923004Fork Lever
202600102652Shim 0,5 MM
212600100625Shim 0,1 MM
212600100626Shim 0,2 MM
212600100627Shim 0,3 MM
212600100628Shim 0,5 MM
222601098003Counterweight
232600309009Spacer Sleeve
252600100575Shim 0,2 MM
252600100576Shim 0,3 MM
252600100577Shim 0,5 MM
272914551176Microencapsulated Screw DIN 7985-M4X12MM
292600100568Shim 0,5 MM
292600100569Shim 1,0 MM
292600100607Shim 0,3 MM
322602305042Air Eliminator
342600590006Ratchet Cap
352602026036Rotary Knob Black
372602026037Rotary Knob Black
392601015050Seal
41903201042Needle Roller DIN 5402-A3X11,8-G2
412603410048Thread-forming tap. Screw M4X8
422604613000Compression Spring
431616B00224Guide Bracket
441619P12765Lifting Rod
452602329011Clamping Saddle
461619P12767Sliding Piece
472603421040Countersunk-Head Screw DIN 7962-M3,5X8-10.9
482600112031Supporting Disc 0,5 MM
492600290017Seal Ring 0,5 MM
52600108077Felt Washer
502600101612Shim 0,5 MM
532603400000Clamp Screw
572600116011Locking washer
62600500002Cupped Washer
602603490024Torx Oval-Head Screw 4X25
622915011007Hex Nut DIN 934-M6-8-A
642601030019Profile Beading
652910141197Hex Socket Head Cap Screw DIN 912-M6X16-8.8
682605702002Flanged Fitting
692603231002Handle Black
712604616001Compression Spring
722603410054Thread-forming tap. Screw M 5X16
742603410049Thread-forming tap. Screw M4X12 MM
752600421000Ratchet Sleeve
762601328044Scale Plate
772600100032Shim 0,2 MM
82916660008Spring retaining ring DIN 472-24X1,2 MM
8012605808915Gear Housing
8022605108904Motor Housing Blue
8051607000385Power supply cord EU 2,6M 2 X 1,0 MM
8072600905039Groove ball bearing 9X24X7
808160111A3H3Nameplate
8102604320912Carbon-Brush Set
8132607001130Needle-Roller Cage
8192916080007Locking washer DIN 6799-4-FST
8242601072901Eccentric Disc
8262916080910Locking washer DIN 6799-7-FST
8302600917900Needle bearing
8362916080008Locking washer DIN 6799-5-FST
8382600116009Spring retaining ring
8392910611006Tapping Screw DIN 7981-ST2,9X13-C-H
8402605808921Gear Cover
8512601015901Sealing Plate
8541619P00777Roller Lever
8551619P01375Roller Set
8591619P01375Roller Set
8612605500900Fan Cover
8632601016903Base Plate
92600400008Receptacle
902601322021Safety Device
912910011128Socket head cap screw DIN 84-AM4X18-5.8
