Bosch GST 750

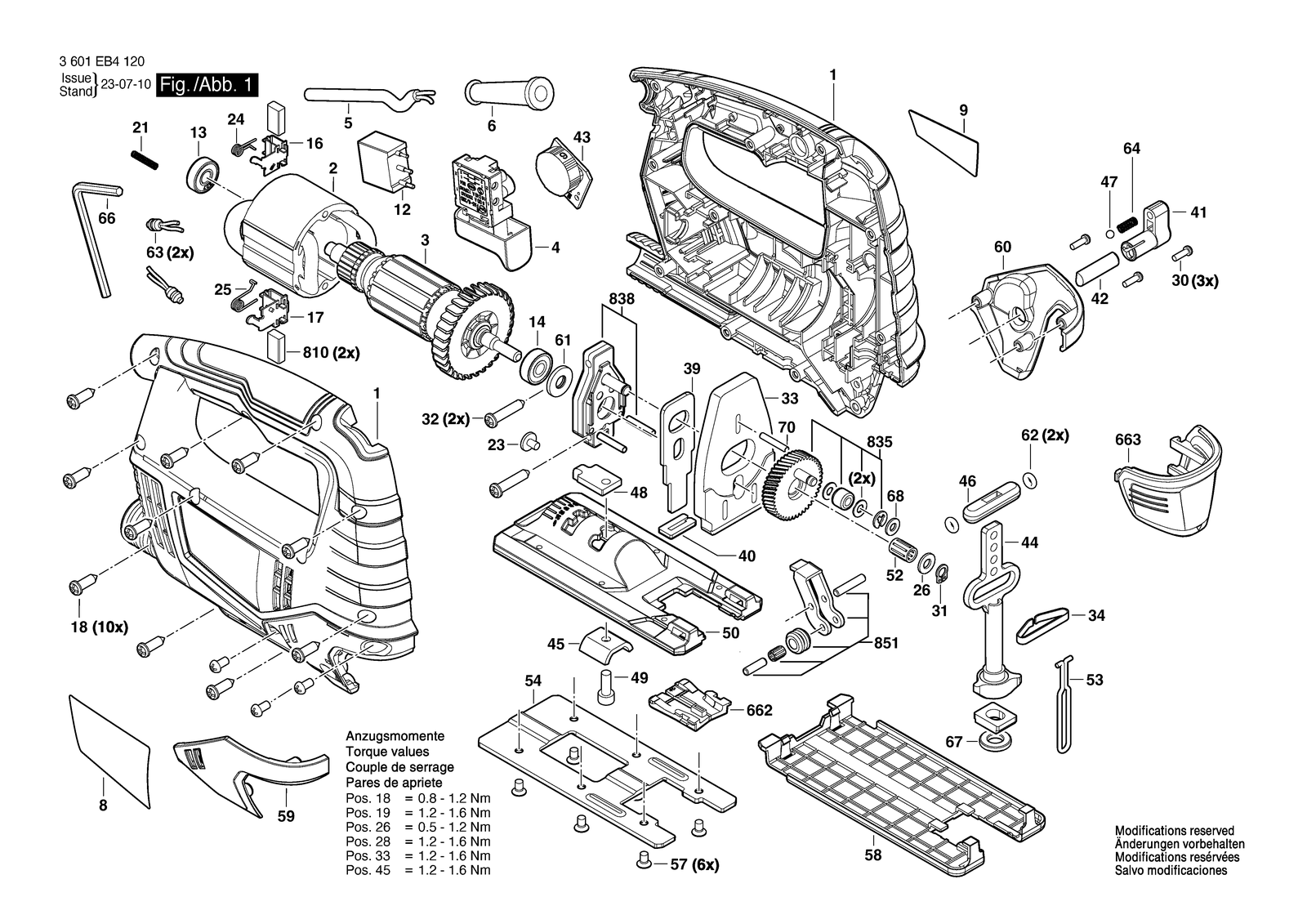

Bosch GST 750 jig saw: exploded parts diagram, 1 sheet, 70 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GST 750: 70 positions on 1 sheet
Bosch GST 750 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PC0597 | Motor Housing |
| 12 | 1619PB9321 | Capacitor 0.33ΜF |
| 13 | 1619PB9322 | Ball Bearing 608-2RS |
| 14 | 1619PB9323 | Ball Bearing 5×9×17 |
| 16 | 1619PB9324 | Brush Holder 5×9×17 |
| 17 | 1619PB9325 | Brush Holder ST4.2×16 |
| 18 | 1619PB9627 | Pan head screw ST4.2×16 |
| 2 | 1619PB9313 | Field |
| 2 | 1619PB9573 | Field |
| 21 | 1619PB9327 | Spring F4.0 |
| 23 | 1619PB9326 | Pan head screw M4×6,F10.5,8.8 |
| 24 | 1619PB9328 | Torsion Spring |
| 25 | 1619PB9616 | Torsion Spring |
| 26 | 1619PC1361 | Washer |
| 3 | 1619PB9314 | Armature |
| 3 | 1619PB9333 | Armature |
| 30 | 1619PB9613 | Socket head cap screw |
| 31 | 1619PC1360 | Backup ring |
| 32 | 1619PB9614 | Tapping Screw ST4.2×30-F,8.8 |
| 33 | 1619PB9336 | Counter Weight |
| 34 | 1619PB9337 | Sealing washer |
| 39 | 1619PB9342 | Plate |
| 4 | 1619PB9315 | Switch |
| 40 | 1619PB9343 | Sealing Ring |
| 41 | 1619PB9344 | Change-Over Switch |
| 42 | 1619PB9633 | Control Shaft |
| 43 | 1619PB9346 | Speed governor |
| 43 | 1619PB9640 | Speed governor |
| 43 | 1619PC1389 | Speed governor |
| 44 | 1619PB9575 | Lifting Rod |
| 45 | 1619PC1381 | Bracket |
| 46 | 1619PB9349 | Bushing |
| 47 | 1619PB9626 | Steel ball |
| 48 | 1619PB9349 | Bushing |
| 48 | 1619PC1376 | Bracket |
| 49 | 1619PC1377 | Socket head cap screw |
| 5 | 1619PB9316 | Power supply cord |
| 5 | 1619PB9617 | Power supply cord |
| 5 | 1619PC0579 | Power supply cord |
| 5 | 1619PC1385 | Power supply cord |
| 50 | 1619PB9353 | Bracket |
| 52 | 1619PC1359 | Needle bearing |
| 53 | 1619PB9356 | Clip |
| 54 | 1619PC1378 | Base Plate |
| 57 | 1619PB9570 | Countersunk-Head Screw |
| 58 | 1619PB9360 | Plastic covering |
| 59 | 1619PB9623 | Decorative Cover |
| 6 | 1619PB9317 | Grommet |
| 60 | 1619PB9362 | Decorative Cover |
| 61 | 1619PB9639 | Sealing Ring 8.5×18×1.8 |
| 62 | 1619PB9364 | O-Ring |
| 63 | 1619PB9365 | Inductor 0.01~0.015MH |
| 64 | 1619PB9642 | Spring |
| 66 | 1619PC1379 | Offset Screwdriver |
| 662 | 1619PB9586 | Splintering Protector |
| 663 | 1619PB9369 | Covering hood Pc |
| 67 | 1619PB9594 | Rubber |
| 68 | 1619PC0595 | Bushing |
| 70 | 1619PB9345 | Pin |
| 8 | 1619PB9319 | Nameplate |
| 8 | 1619PC0599 | Nameplate |
| 8 | 1619PC0600 | Nameplate |
| 8 | 1619PC1357 | Nameplate |
| 8 | 1619PC1388 | Nameplate |
| 810 | 1619PC0576 | Carbon Brush 220-240V |
| 810 | 1619PC0577 | Carbon Brush 100-127V |
| 835 | 1619PC1382 | Gear |
| 838 | 1619PB9593 | Center Bracket |
| 851 | 1619PB9619 | Plate |
| 9 | 1619PB9582 | Sticker |
