Bosch GST 75 BE

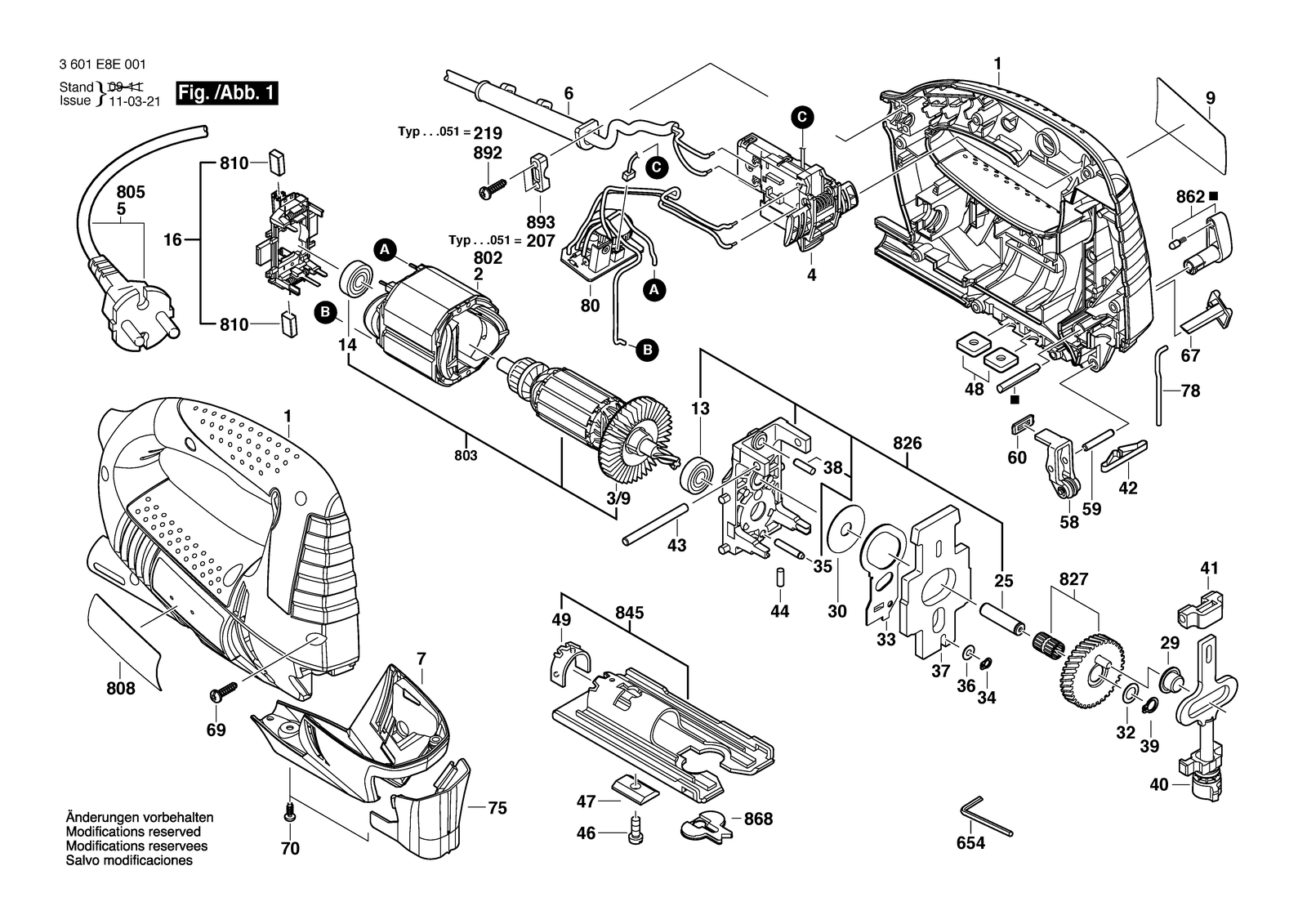

Bosch GST 75 BE jig saw: exploded parts diagram, 1 sheet, 79 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GST 75 BE: 79 positions on 1 sheet
Bosch GST 75 BE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605105112 | Housing Section Dark Blue |
| 13 | 2600905110 | Groove ball bearing 8X22X7 |
| 14 | 2600905110 | Groove ball bearing 8X22X7 |
| 16 | 2604337113 | Brush Plate |
| 16 | 2609001621 | Brush Plate |
| 2 | 2604220583 | Field 100-120V |
| 2 | 2604220656 | Field 110-115V |
| 2 | 2609120464 | Field 120V |
| 207 | 1611035005 | Cable Clip |
| 219 | 2603490022 | Screw 4X16 |
| 25 | 2603105080 | Bearing bolt |
| 29 | 2600914022 | Needle bearing |
| 3/9 | 2606610123 | Fan |
| 30 | 2600101048 | Shim 0,5 MM |
| 32 | 2600101077 | Shim 0,5 MM |
| 33 | 2601923012 | Fork Lever |
| 34 | 2916640001 | Spring retaining ring DIN 471-4X0,4-FST |
| 35 | 2603105091 | Bearing bolt |
| 36 | 2600100588 | Shim 0,5 MM |
| 37 | 2601098098 | Counterweight |
| 38 | 1903201054 | Needle Roller 4X15,8 MM |
| 39 | 2916640905 | Spring retaining ring 8X0,8 N31A MR7 |
| 4 | 2607200644 | Switch |
| 40 | 2600780154 | Lifting Rod |
| 41 | 2605801038 | Plain bearing |
| 42 | 2604613004 | Compression Spring |
| 43 | 2603201089 | Needle Roller |
| 44 | 2603105084 | Bearing bolt |
| 46 | 2910141197 | Hex Socket Head Cap Screw DIN 912-M6X16-8.8 |
| 47 | 2601030019 | Profile Beading |
| 48 | 2600040004 | Fixing plate |
| 49 | 2601328044 | Scale Plate |
| 5 | 1604460190 | Power supply cord GB 240V 2,65M 2 X 1,0MM H05RN-F |
| 5 | 1604460236 | Power supply cord AR 2,7M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460249 | Power supply cord SAM 2,7M 2 X 0,82MM SJ 18/2 |
| 5 | 2604460283 | Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460297 | Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F |
| 5 | 2604460319 | Power supply cord |
| 5 | 2604460322 | Power supply cord J 2,50M 2 X 0,75MM Pvc |
| 58 | 2601321077 | Roller Lever |
| 59 | 2609002725 | Straight Pin |
| 6 | 2600703026 | Grommet Ø8,2-Ø9,4X95 MM |
| 6 | 2600703027 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703028 | Grommet Ø7,6-Ø8,2X95 MM |
| 60 | 2601015077 | Sealing Plate |
| 654 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 67 | 2602026154 | Switch Slide |
| 69 | 2603490022 | Screw 4X16 |
| 7 | 2601098110 | Cover |
| 70 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 75 | 2605510255 | Covering hood |
| 78 | 2603105088 | Locking pin |
| 80 | 2607233071 | Speed governor |
| 80 | 2607233072 | Speed governor |
| 802 | 2604220682 | Field 230-240V |
| 803 | 2604011910 | Armature |
| 803 | 2604011911 | Armature 120V |
| 803 | 2604011912 | Armature 100V |
| 805 | 1607000385 | Power supply cord EU 2,6M 2 X 1,0 MM |
| 808 | 1618B0030E | Nameplate |
| 808 | 1618B0030F | Nameplate |
| 808 | 1618B0030G | Nameplate |
| 808 | 1618B0030H | Nameplate |
| 808 | 1618B0030J | Nameplate |
| 808 | 1618B0030K | Nameplate |
| 808 | 1618B0030L | Nameplate |
| 808 | 1618B0030M | Nameplate |
| 808 | 2601115686 | Nameplate |
| 808 | 2601115687 | Nameplate |
| 810 | 2604321925 | Carbon-Brush Set |
| 810 | 2604321944 | Carbon-Brush Set |
| 826 | 2609001930 | Bearing Bracket |
| 827 | 2609001931 | Eccentric Cog Wheel |
| 845 | 2601016903 | Base Plate |
| 862 | 2601015902 | Change-Over Switch |
| 868 | 2601016065 | Splintering Protector |
| 892 | 2603490022 | Screw 4X16 |
| 893 | 1611035005 | Cable Clip |
| 9 | 1618B0002E | Manufacturer's nameplate |
