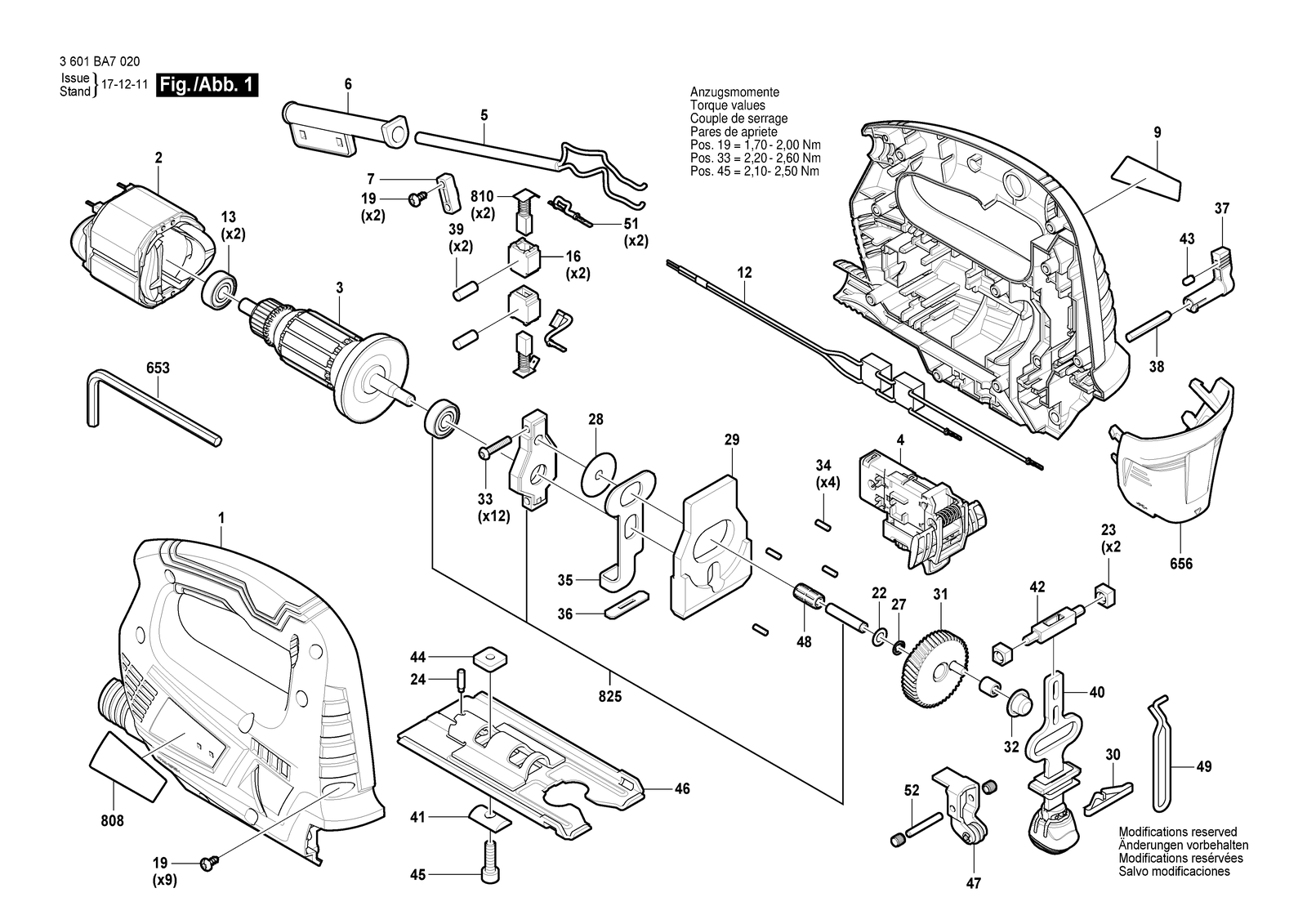

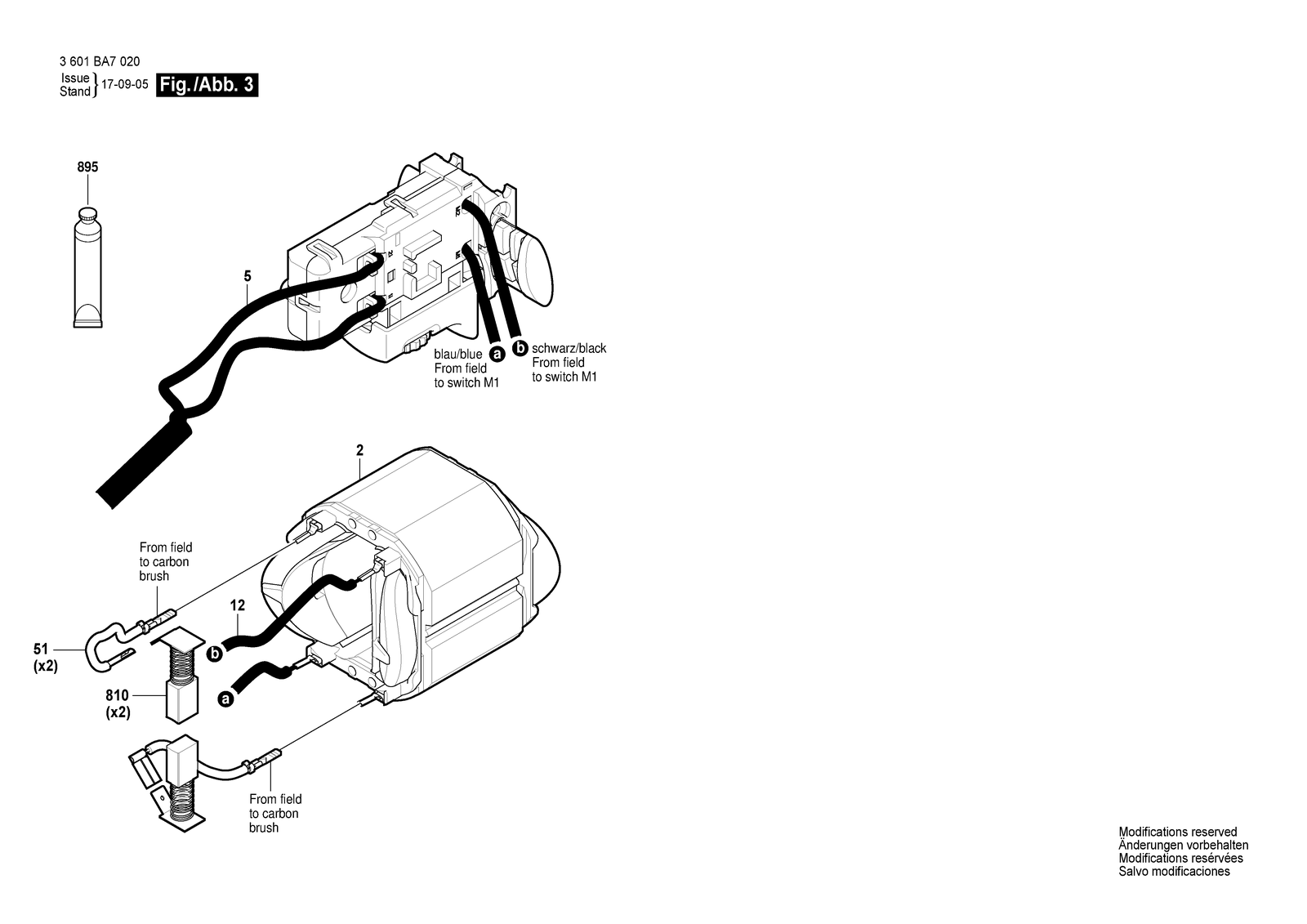

Bosch GST 700 jig saw: exploded parts diagram, 2 sheets, 50 positions. Spare parts with part numbers, availability and prices.

—

Scroll to zoom · drag to move

All parts on this sheet0 Only available

All parts of Bosch GST 700: 50 positions on 2 sheets

Bosch GST 700 parts list (2 sheets)

No.	Part number	Part name
1	1619P14032	Housing Section
12	1619P14037	Suppression Filter
13	2600905110	Groove ball bearing 8X22X7
16	1619X02735	Brush Holder
19	2603490022	Screw 4X16
2	1619P13750	Field
22	1619P14682	Shim
23	1619P14055	Insert
24	2603120019	Detent Pin
27	1619X07569	Spring retaining ring
28	1619P01396	Shim
29	1619P14042	Counterweight
3	1619P13749	Armature
30	1619P14636	Coiled Spring
31	1619P14043	Eccentric Cog Wheel
32	2600914022	Needle bearing
33	2609110610	Cyl Head tapping screw
34	2603201020	Bearing bolt
35	1619P14052	Fork Lever
36	1619X04574	Seal
37	1619P14053	Change-Over Switch
38	1619P07156	Control Shaft
39	1619X01409	Holding Pin
4	1607200357	Switch
40	1619P14045	Lifting Rod
41	1619P14056	Profile Beading
42	1619P14049	Plain bearing
43	2600590006	Ratchet Cap
44	1619P07163	Fixing plate
45	1619X04887	Hex Socket Head Cap Screw
46	1619P14050	Base Plate
47	1619P16757	Roller Lever
48	1619P14677	Needle-Roller Assembly
49	1619P14058	Protecting Cover
5	1604460225	Power supply cord CN 2,65M 2 X 1,5MM H07 Rn-F
5	1607000388	Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F
5	1619P11766	Power supply cord
51	1619P14277	Cable
52	1619P07159	Bearing bolt
6	1619P14642	Grommet Ø 7MM
653	2610364015	Hexagon Socket Screw Key 5 MM
656	1619P14054	Covering hood
7	2601035001	Cable Clip
808	1619P14035	Nameplate
808	1619P14759	Nameplate
808	1619P15909	Nameplate
810	1619P13476	Carbon-Brush Set
825	1619P14685	Bracket
895	3605430003	Grease Tube Albida
9	1619P14036	Manufacturer's nameplate
