Bosch GST 680

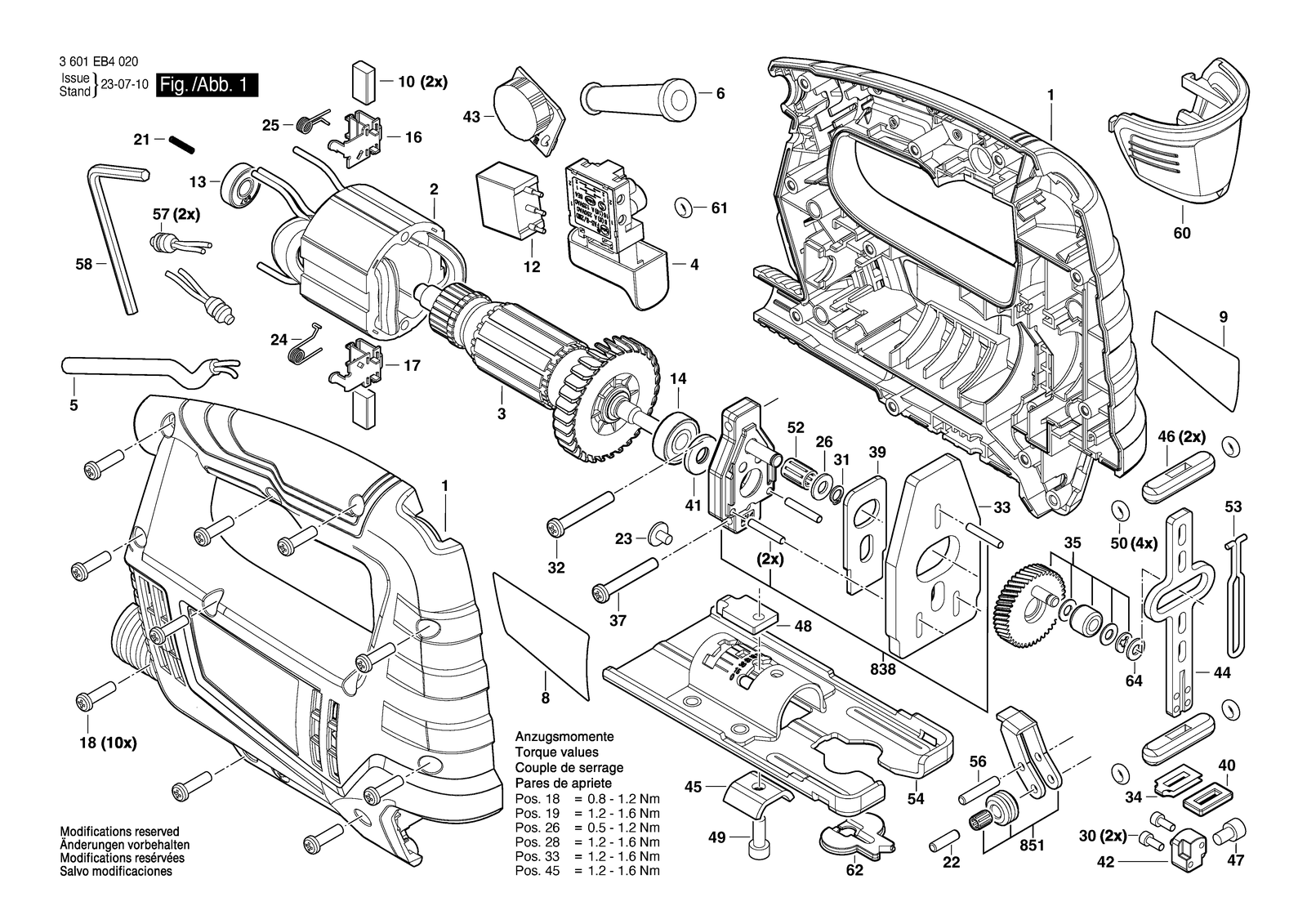

Bosch GST 680 jig saw: exploded parts diagram, 1 sheet, 74 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GST 680: 74 positions on 1 sheet
Bosch GST 680 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PB9574 | Motor Housing |
| 10 | 1619PC0576 | Carbon Brush 220-240V |
| 10 | 1619PC0577 | Carbon Brush 100-127V |
| 12 | 1619PB9321 | Capacitor 0.33ΜF |
| 13 | 1619PB9322 | Ball Bearing 608-2RS |
| 14 | 1619PB9323 | Ball Bearing 5×9×17 |
| 16 | 1619PB9324 | Brush Holder 5×9×17 |
| 17 | 1619PB9325 | Brush Holder ST4.2×16 |
| 18 | 1619PB9627 | Pan head screw ST4.2×16 |
| 2 | 1619PB9609 | Field 220-240V |
| 2 | 1619PB9643 | Field 100-127V |
| 21 | 1619PB9327 | Spring F4.0 |
| 22 | 1619PB9332 | Pin |
| 23 | 1619PB9326 | Pan head screw M4×6,F10.5,8.8 |
| 24 | 1619PB9328 | Torsion Spring |
| 25 | 1619PB9616 | Torsion Spring |
| 26 | 1619PB9329 | Washer F6.2×F12×1 |
| 3 | 1619PB9610 | Armature 220-240V |
| 3 | 1619PB9644 | Armature 100-127V |
| 30 | 1619PB9634 | Socket head cap screw M3×12,8.8 |
| 31 | 1619PB9334 | Backup ring |
| 32 | 1619PB9614 | Tapping Screw ST4.2×30-F,8.8 |
| 33 | 1619PB9615 | Counter Weight |
| 34 | 1619PB9577 | Sealing washer F3.5X12 |
| 35 | 1619PC0593 | Gear |
| 37 | 1619PB9335 | Tapping Screw ST4.2×25,8.8 |
| 39 | 1619PB9629 | Plate T=2.0MM |
| 4 | 1619PB9315 | Switch |
| 40 | 1619PB9578 | Felt F3.5×12 |
| 41 | 1619PB9639 | Sealing Ring 8.5×18×1.8 |
| 42 | 1619PB9576 | Blade Holder |
| 43 | 1619PB9567 | Speed governor 127V/60HZ |
| 43 | 1619PB9569 | Speed governor 220V/60HZ |
| 43 | 1619PB9579 | Speed governor 220-230V 50HZ |
| 43 | 1619PB9612 | Speed governor 115V/60HZ |
| 44 | 1619PB9622 | Bracket |
| 45 | 1619PB9348 | Bracket T=2.5MM |
| 46 | 1619PB9349 | Bushing |
| 47 | 1619PB9350 | Socket head cap screw M5×10,8.8 |
| 48 | 1619PB9351 | Bracket T=3.4MM |
| 49 | 1619PB9352 | Socket head cap screw M5×16,8.8 |
| 5 | 1619PB9316 | Power supply cord |
| 5 | 1619PB9617 | Power supply cord |
| 5 | 1619PC0578 | Power supply cord |
| 5 | 1619PC0579 | Power supply cord |
| 5 | 1619PC0580 | Power supply cord |
| 5 | 1619PC0581 | Power supply cord |
| 5 | 1619PC0582 | Power supply cord |
| 5 | 1619PC0583 | Power supply cord |
| 50 | 1619PB9364 | O-Ring |
| 52 | 1619PB9355 | Needle bearing HK060913 |
| 53 | 1619PB9356 | Clip |
| 54 | 1619PB9357 | Base Plate T=2.5MM |
| 56 | 1619PB9359 | Straight Pin F4×22 |
| 57 | 1619PB9365 | Inductor 0.01~0.015MH |
| 58 | 1619PB9361 | Offset Screwdriver 70×40 |
| 6 | 1619PB9317 | Grommet |
| 60 | 1619PB9369 | Covering hood Pc |
| 61 | 1619PB9594 | Rubber |
| 62 | 1619PB9571 | Splintering Protector |
| 64 | 1619PC0595 | Bushing |
| 8 | 1619PB9581 | Nameplate |
| 8 | 1619PC0584 | Nameplate |
| 8 | 1619PC0585 | Nameplate |
| 8 | 1619PC0586 | Nameplate |
| 8 | 1619PC0587 | Nameplate |
| 8 | 1619PC0588 | Nameplate |
| 8 | 1619PC0589 | Nameplate |
| 8 | 1619PC0590 | Nameplate |
| 8 | 1619PC0591 | Nameplate |
| 8 | 1619PC0592 | Nameplate |
| 838 | 1619PB9593 | Center Bracket |
| 851 | 1619PB9592 | Plate |
| 9 | 1619PB9572 | Sticker |
