Bosch GST 650

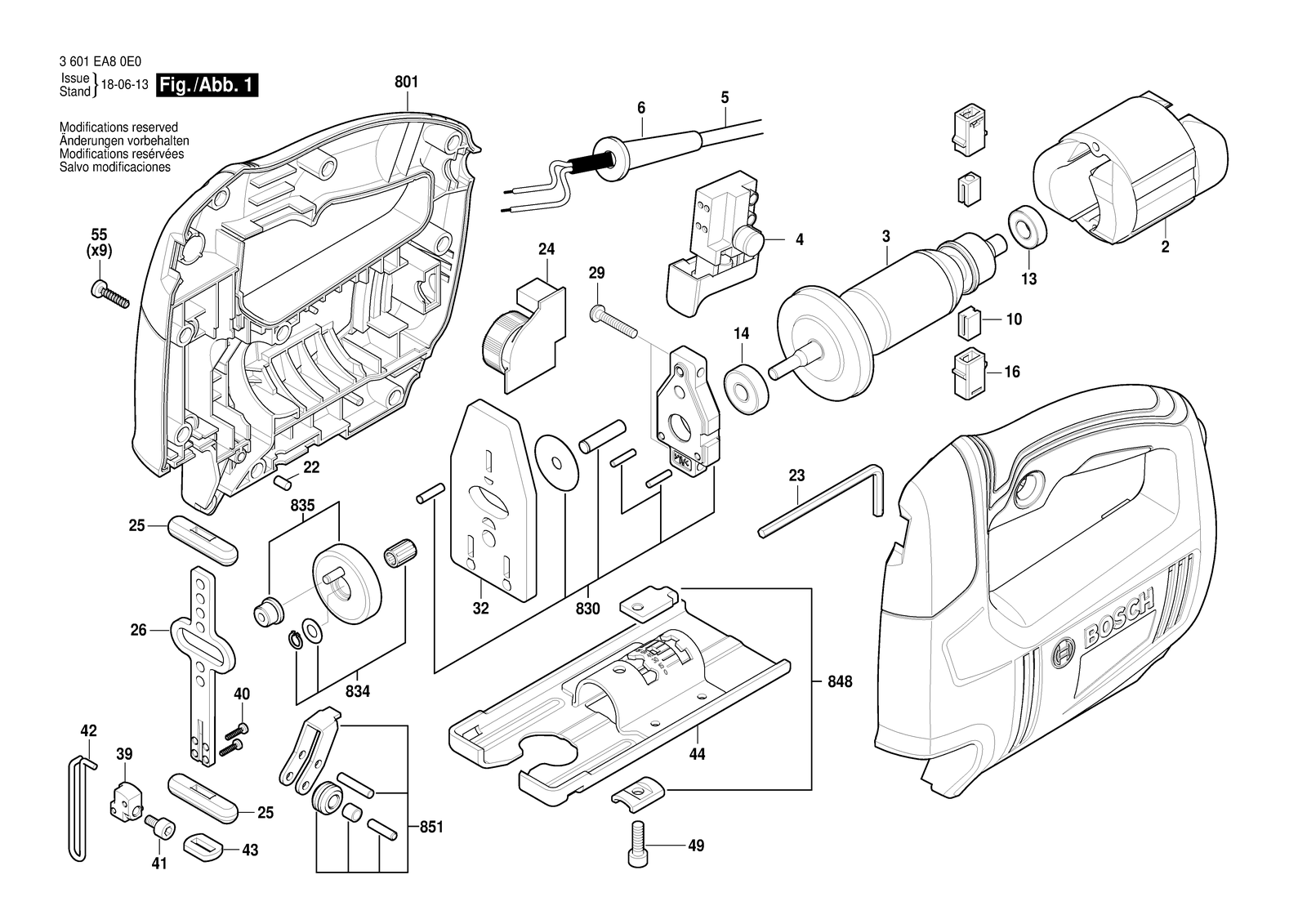

Bosch GST 650 jig saw: exploded parts diagram, 1 sheet, 35 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GST 650: 35 positions on 1 sheet
Bosch GST 650 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 160432117B | Carbon Brush |
| 13 | 1600905017 | Groove ball bearing |
| 14 | 1900905029 | Ball Bearing 8X22X7 |
| 16 | 1600A014KN | Brush Holder |
| 2 | 1604220575 | Field |
| 2 | 1604220576 | Field |
| 22 | 1600A014KL | Rubber |
| 23 | 1600A014UP | Offset Screwdriver |
| 24 | 16072335NL | Jig Saw |
| 24 | 16072335NM | Jig Saw |
| 25 | 160030011X | Bushing |
| 26 | 1600A014KM | Bracket |
| 29 | F000616114 | Tapping Screw |
| 3 | 1604010B9L | Armature |
| 3 | 1604010B9M | Armature |
| 32 | 1600A014KV | Counter Weight |
| 39 | 1600A014CC | Blade Holder |
| 4 | 160720035M | Switch |
| 40 | 2603435096 | Torx Oval-Head Screw M3X10 |
| 41 | 2914551117 | Microencapsulated Screw DIN 912-M 5X12-8.8 |
| 42 | 1600A014UR | Clip |
| 43 | 1600A014US | Seal |
| 44 | 1600A014UT | Base Plate |
| 49 | 2910141158 | Hex Socket Head Cap Screw DIN 912-M5X16-8.8 |
| 5 | F000609274 | Power supply cord BR 2,00M 2 X 1,00MM H05 Vvf |
| 5 | F000609280 | Power supply cord SAM 2,00M 2 X 1,00MM H05 Vvf |
| 5 | F000609286 | Power supply cord AR 2,00M 2 X 0;75MM H05 Vvf |
| 55 | F000616104 | Tapping Screw |
| 6 | 1600703042 | Grommet |
| 801 | 1607000CY3 | Motor Housing |
| 830 | 16070312DU | Intermediate Bearing |
| 834 | 16070312DV | Needle bearing |
| 835 | 16070312DW | Gear |
| 848 | 16070312DZ | Adapter Insert |
| 851 | 16070312DY | Roller |
