Bosch GST 60 PBE

Bosch GST 60 PBE jig saw: exploded parts diagram, 1 sheet, 134 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GST 60 PBE: 134 positions on 1 sheet

Bosch GST 60 PBE parts list (1 sheet)

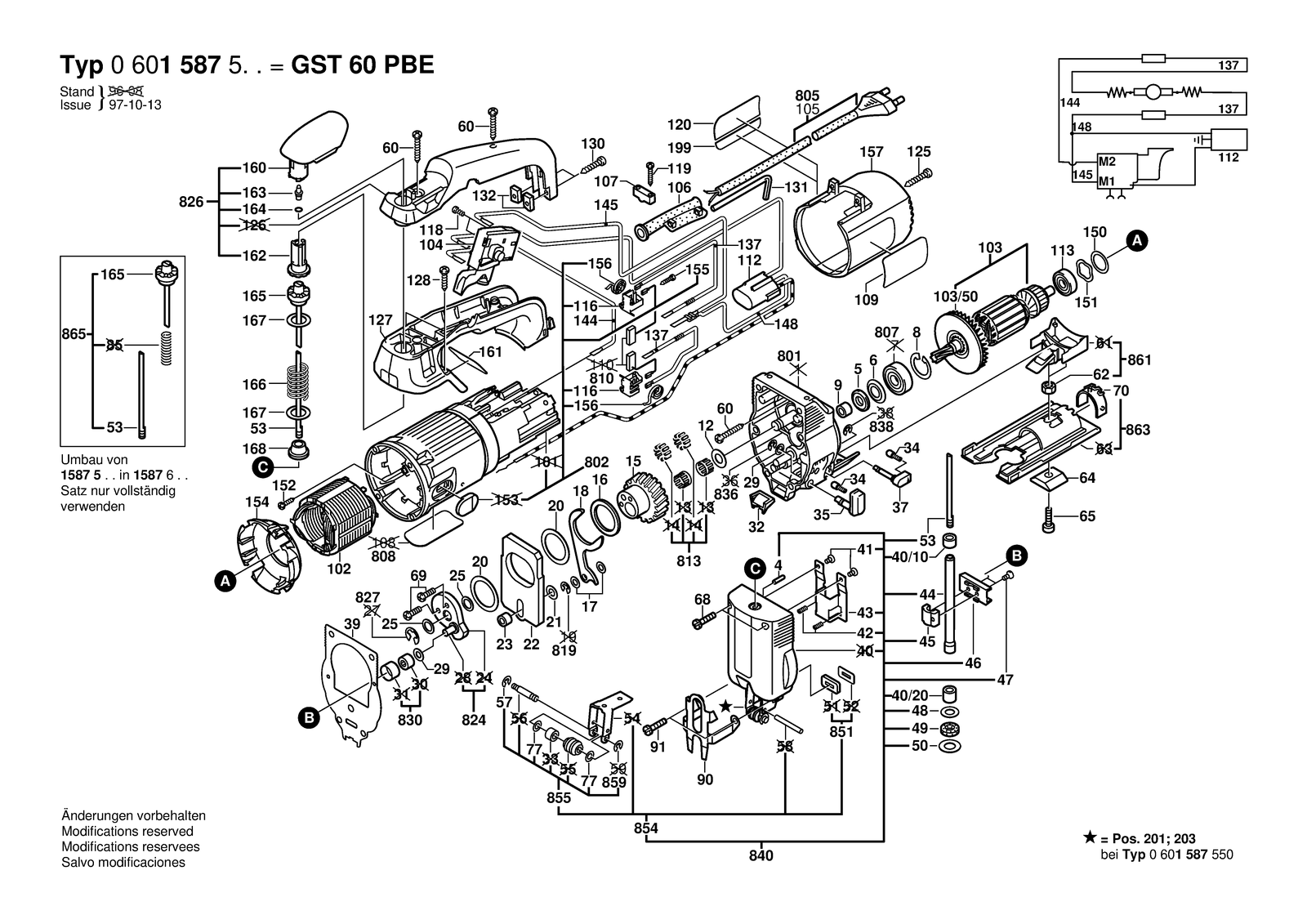

Bosch GST 60 PBE parts diagram, sheet 1
No.Part numberPart name
1022604220438Field 220-230V
1022604220709Field 220-240V
1022604220721Field 110-120V
1032604010576Armature 100V
1032604010577Armature 110-115V
1032604010578Armature 230-240V
103/502606610049Fan
1042607200245Switch
1042607200246Switch
1051604460427Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F
1051614460010Power supply cord Usa/can/sma 2,15M 2 X 0,82MM SJ 16/2
1052604460074Power supply cord AUS 2,6M 2 X 0,75MM Pvc
1052604460095Power supply cord J 2,5M 2 X 0,75MM Pvc
1052604460205Power supply cord GB 110V 2,65M 2 X 1,0MM H05 Vv-F
1052604460277Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F
1062600703027Grommet Ø6,5-Ø6,9X95 MM
1062600703028Grommet Ø7,6-Ø8,2X95 MM
1071611035005Cable Clip
1072601035001Cable Clip
1092601118035Sticker Sunny Side
1092601118188Manufacturer's nameplate Sunny Side
1122607329129Suppression Filter
1131900905018Ball Bearing 7X22X7
1161600A003G4Brush Holder
1162601323022Brush Holder
1182603410001Socket head cap screw M3X6,5-4.8
1192603490022Screw 4X16
122600101616Shim 0,5 MM
1202601118159Reference Plate Shadow Side
1202601118163Reference Plate Shadow Side
1252910601321Tapping Screw DIN 7982-ST3,9X22C-H
1272602025060Strap-Shaped Handle
1282603410054Thread-forming tap. Screw M 5X16
1302914501021Screw and washer assembly M 4X20 MM
1312610364015Hexagon Socket Screw Key 5 MM
1322603320001Square Nut M4
1372604448034Connecting Cable White L=88 MM
1372604465106Suppressor Box
1441614431012Connecting Cable White L=413 MM
1452604448160Cable White L = 238 MM
1482600409017Insulation Tubing
151619P02581Eccentric Cog Wheel
1502600101020Shim 0,5 MM
1502600101022Shim 0,2 MM
1502600101027Shim washer 0,3 MM
1512600150004Shim
1522603435086Tapping Screw
1542601328045Cover Disc
1552603490017Torx Oval-Head Screw 3X10
1562604652009Spiral Spring
1572600508038Housing Cover Blue
162600102653Shim 1,0 MM
1602608040070Rotary Handle
1612601118097Sticker
1622606491011Ratchet
1632600423006Carrier Bracket
1641600210034O-Ring 4,0X1,0 MM
1662604617004Compression Spring
1671600101603Plain Washer Thick 0,5 MM
1682600421001Guide Sleeve
172600100515Shim 0,3 MM
172600100516Shim 0,5 MM
182601923004Fork Lever
1991601110265Reference Plate
1993601119137Warning Plate Caution
202600102652Shim 0,5 MM
212600100625Shim 0,1 MM
212600100626Shim 0,2 MM
212600100627Shim 0,3 MM
212600100628Shim 0,5 MM
222601098003Counterweight
232600309009Spacer Sleeve
252600100575Shim 0,2 MM
252600100576Shim 0,3 MM
252600100577Shim 0,5 MM
292600100568Shim 0,5 MM
292600100569Shim 1,0 MM
292600100607Shim 0,3 MM
322602305042Air Eliminator
342600590006Ratchet Cap
352602026036Rotary Knob Black
372602026037Rotary Knob Black
392601015050Seal
41903201042Needle Roller DIN 5402-A3X11,8-G2
40/102600301046Sintered-Metal Bushing
40/202600301045Bushing
412603410048Thread-forming tap. Screw M4X8
422604613000Compression Spring
431616B00224Guide Bracket
441619P12765Lifting Rod
452602329011Clamping Saddle
461619P12767Sliding Piece
472603421040Countersunk-Head Screw DIN 7962-M3,5X8-10.9
482600112031Supporting Disc 0,5 MM
492600290017Seal Ring 0,5 MM
52600108077Felt Washer
502600101612Shim 0,5 MM
572600116011Locking washer
62600500002Cupped Washer
602603490024Torx Oval-Head Screw 4X25
622915011007Hex Nut DIN 934-M6-8-A
642601030019Profile Beading
652910141197Hex Socket Head Cap Screw DIN 912-M6X16-8.8
682603410049Thread-forming tap. Screw M4X12 MM
692914551176Microencapsulated Screw DIN 7985-M4X12MM
702601328044Scale Plate
772600100032Shim 0,2 MM
82916660008Spring retaining ring DIN 472-24X1,2 MM
8012605808917Gear Housing
8022605108904Motor Housing Blue
8051607000385Power supply cord EU 2,6M 2 X 1,0 MM
8072600905021Groove ball bearing 9X24X7
808160111A3H3Nameplate
8102604320910Carbon-Brush Set
8102604320912Carbon-Brush Set
8132607001130Needle-Roller Cage
8192916080007Locking washer DIN 6799-4-FST
8242601072901Eccentric Disc
8262602025901Strap-Shaped Handle
8272916080910Locking washer DIN 6799-7-FST
8302600917900Needle bearing
8362916080008Locking washer DIN 6799-5-FST
8382600116009Spring retaining ring
8402605808920Gear Cover
8512601015901Sealing Plate
8541619P00777Roller Lever
8551619P01375Roller Set
8591619P01375Roller Set
8612605500900Fan Cover
8632601016903Base Plate
8652606491917Modification Set 100-240V
92600400008Receptacle
902601322021Safety Device
912910011128Socket head cap screw DIN 84-AM4X18-5.8
