Bosch GST 60 PB

Bosch GST 60 PB jig saw: exploded parts diagram, 1 sheet, 240 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GST 60 PB: 240 positions on 1 sheet

Bosch GST 60 PB parts list (1 sheet)

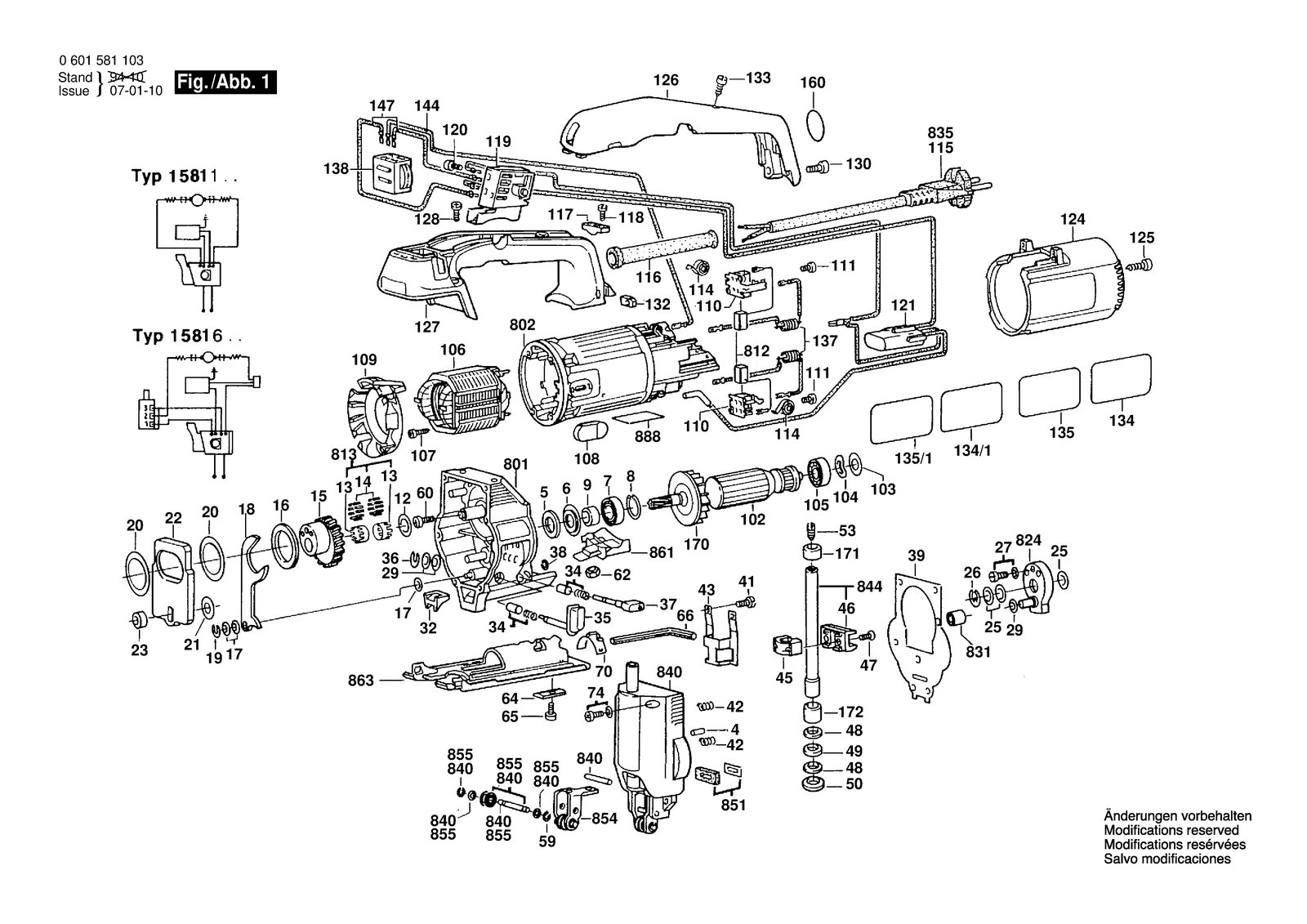

Bosch GST 60 PB parts diagram, sheet 1
No.Part numberPart name
1022604010576Armature 100V
1022604010577Armature 110-115V
1022604010578Armature 230-240V
1022604010576Armature 100V
1022604010577Armature 110-115V
1022604010578Armature 230-240V
1032600101020Shim 0,5 MM
1032600101022Shim 0,2 MM
1032600101027Shim washer 0,3 MM
1032600101020Shim 0,5 MM
1032600101022Shim 0,2 MM
1032600101027Shim washer 0,3 MM
1042600150004Shim
1042600150004Shim
1051900905018Ball Bearing 7X22X7
1051900905018Ball Bearing 7X22X7
1062604220427Field 100V
1062604220445Field 220-230V
1062604220462Field 240V
1062604220470Field 110-115V
1062604220427Field 100V
1062604220709Field 220-240V
1062604220721Field 110-120V
1072603435015Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F
1072603435015Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F
1082603231032Plug Blue
1082603231032Plug Blue
1092601328045Cover Disc
1092601328045Cover Disc
1101600A003G4Brush Holder
1102601323022Brush Holder
1101600A003G4Brush Holder
1102601323022Brush Holder
1112603490017Torx Oval-Head Screw 3X10
1112603490017Torx Oval-Head Screw 3X10
1142604652009Spiral Spring
1142604652009Spiral Spring
1151604460427Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F
1152604460074Power supply cord AUS 2,6M 2 X 0,75MM Pvc
1152604460095Power supply cord J 2,5M 2 X 0,75MM Pvc
1152604460109Parts Set
1152604460205Power supply cord GB 110V 2,65M 2 X 1,0MM H05 Vv-F
1152604460277Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F
1151604460427Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F
1152604460074Power supply cord AUS 2,6M 2 X 0,75MM Pvc
1152604460109Parts Set
1152604460205Power supply cord GB 110V 2,65M 2 X 1,0MM H05 Vv-F
1152604460277Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F
1162600703011Grommet Ø8,3-Ø9,4X95 MM
1162600703012Grommet Ø6,5-Ø6,9X95 MM
1162600703013Grommet Ø7,6-Ø8,2X95 MM
1162600703011Grommet Ø8,3-Ø9,4X95 MM
1162600703012Grommet Ø6,5-Ø6,9X95 MM
1162600703013Grommet Ø7,6-Ø8,2X95 MM
1172601035001Cable Clip
1172601035001Cable Clip
1182910611019Tapping Screw DIN 7981-ST3,9X16-C-H
1182910611019Tapping Screw DIN 7981-ST3,9X16-C-H
1192607200260Switch
1192607200260Switch
122600101616Shim 0,5 MM
122600101616Shim 0,5 MM
1202603410001Socket head cap screw M3X6,5-4.8
1202603410001Socket head cap screw M3X6,5-4.8
1212607329105Suppression Filter
1212607329105Suppression Filter
1242600508038Housing Cover Blue
1242600508038Housing Cover Blue
1252910601321Tapping Screw DIN 7982-ST3,9X22C-H
1252910601321Tapping Screw DIN 7982-ST3,9X22C-H
1262602025040Strap-Shaped Handle
1262602025040Strap-Shaped Handle
1272602025043Strap-Shaped Handle
1272602025041Strap-Shaped Handle
1282603410054Thread-forming tap. Screw M 5X16
1282603410054Thread-forming tap. Screw M 5X16
132600913036Needle-Roller Cage
132600913036Needle-Roller Cage
1302914501021Screw and washer assembly M 4X20 MM
1302914501021Screw and washer assembly M 4X20 MM
1322603320001Square Nut M4
1322603320001Square Nut M4
1332603490024Torx Oval-Head Screw 4X25
1342601110763Sticker Shadow Side
134/12601110762Reference Plate Shadow Side
1352601110729Sticker
1352601110730Sticker
135/13601119137Warning Plate Caution
135/13601119137Warning Plate Caution
1372604465106Suppressor Box
1372604465106Suppressor Box
1382604448005Cable White L=130 MM
1382607230011Switch 100-115V
1382607230115Speed governor 220-240V
142603201037Needle Roller 1,5X5,8 MM
142603201037Needle Roller 1,5X5,8 MM
1442604448012Connecting Cable Blue L = 278 MM
1442604448012Connecting Cable Blue L = 278 MM
1472604448062Connecting Cable White L = 288 MM
1472604448018Connecting Cable White L=124 MM
151619P02581Eccentric Cog Wheel
151619P02581Eccentric Cog Wheel
162600102653Shim 1,0 MM
162600102653Shim 1,0 MM
1602601110041Reference Plate Yellow
1602601110041Reference Plate Yellow
172600100515Shim 0,3 MM
172600100516Shim 0,5 MM
172600100515Shim 0,3 MM
172600100516Shim 0,5 MM
1702606610049Fan
1702606610049Fan
1712600301046Sintered-Metal Bushing
1712600301046Sintered-Metal Bushing
1722600301045Bushing
1722600301045Bushing
182601923004Fork Lever
182601923004Fork Lever
192916080007Locking washer DIN 6799-4-FST
192916080007Locking washer DIN 6799-4-FST
202600102652Shim 0,5 MM
202600102652Shim 0,5 MM
212600100625Shim 0,1 MM
212600100626Shim 0,2 MM
212600100627Shim 0,3 MM
212600100628Shim 0,5 MM
212600100625Shim 0,1 MM
212600100626Shim 0,2 MM
212600100627Shim 0,3 MM
212600100628Shim 0,5 MM
222601098003Counterweight
222601098003Counterweight
232600309009Spacer Sleeve
232600309009Spacer Sleeve
252600100575Shim 0,2 MM
252600100576Shim 0,3 MM
252600100577Shim 0,5 MM
252600100575Shim 0,2 MM
252600100576Shim 0,3 MM
252600100577Shim 0,5 MM
262916080910Locking washer DIN 6799-7-FST
262916080910Locking washer DIN 6799-7-FST
272914501028Screw and washer assembly M 4X12 MM
272914551176Microencapsulated Screw DIN 7985-M4X12MM
292600100568Shim 0,5 MM
292600100569Shim 1,0 MM
292600100607Shim 0,3 MM
292600100568Shim 0,5 MM
292600100569Shim 1,0 MM
292600100607Shim 0,3 MM
322602305042Air Eliminator
322602305042Air Eliminator
342600590006Ratchet Cap
342600590006Ratchet Cap
352602026036Rotary Knob Black
352602026036Rotary Knob Black
362916080008Locking washer DIN 6799-5-FST
362916080008Locking washer DIN 6799-5-FST
372602026037Rotary Knob Black
372602026037Rotary Knob Black
382600116006Spring retaining ring
382600116006Spring retaining ring
392601015050Seal
392601015050Seal
41903201042Needle Roller DIN 5402-A3X11,8-G2
41903201042Needle Roller DIN 5402-A3X11,8-G2
412603410048Thread-forming tap. Screw M4X8
412603410048Thread-forming tap. Screw M4X8
422604613000Compression Spring
422604613000Compression Spring
431616B00224Guide Bracket
431616B00224Guide Bracket
452602329011Clamping Saddle
452602329011Clamping Saddle
462601321022Sliding Piece 31/35 MM
462601321022Sliding Piece 31/35 MM
472603421040Countersunk-Head Screw DIN 7962-M3,5X8-10.9
472603421040Countersunk-Head Screw DIN 7962-M3,5X8-10.9
482600112031Supporting Disc 0,5 MM
482600112031Supporting Disc 0,5 MM
492600290017Seal Ring 0,5 MM
492600290017Seal Ring 0,5 MM
52600108077Felt Washer
52600108077Felt Washer
502600101612Shim 0,5 MM
502600101612Shim 0,5 MM
532603400000Clamp Screw
532603400000Clamp Screw
591619P01375Roller Set
591619P01375Roller Set
62600500002Cupped Washer
62600500002Cupped Washer
602603490024Torx Oval-Head Screw 4X25
602603490024Torx Oval-Head Screw 4X25
622915011007Hex Nut DIN 934-M6-8-A
622915011007Hex Nut DIN 934-M6-8-A
642601030019Profile Beading
642601030019Profile Beading
652910141197Hex Socket Head Cap Screw DIN 912-M6X16-8.8
652910141197Hex Socket Head Cap Screw DIN 912-M6X16-8.8
662610364015Hexagon Socket Screw Key 5 MM
662610364015Hexagon Socket Screw Key 5 MM
72600905021Groove ball bearing 9X24X7
72600905021Groove ball bearing 9X24X7
702601328044Scale Plate
702601328044Scale Plate
742603410049Thread-forming tap. Screw M4X12 MM
82916660008Spring retaining ring DIN 472-24X1,2 MM
82916660008Spring retaining ring DIN 472-24X1,2 MM
8012605808915Gear Housing
8012605808915Gear Housing
8022605108904Motor Housing Blue
8022605108904Motor Housing Blue
8122604320910Carbon-Brush Set
8122604320912Carbon-Brush Set
8132607001130Needle-Roller Cage
8242601072901Eccentric Disc
8242601072901Eccentric Disc
8312600917900Needle bearing
8312600917900Needle bearing
8351607000385Power supply cord EU 2,6M 2 X 1,0 MM
8351607000385Power supply cord EU 2,6M 2 X 1,0 MM
8402605808916Gear Cover
8402605808916Gear Cover
8442600780913Lifting Rod
8442600780913Lifting Rod
8512601015901Sealing Plate
8512601015901Sealing Plate
8541619P00777Roller Lever
8541619P00777Roller Lever
8551619P01375Roller Set
8551619P01375Roller Set
8612605500900Fan Cover
8612605500900Fan Cover
8632601016903Base Plate
8632601016903Base Plate
888160111A3H3Nameplate
888160111A3H3Nameplate
92600400008Receptacle
92600400008Receptacle
