Bosch GST 60 PAE jig saw: exploded parts diagram, 1 sheet, 140 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GST 60 PAE: 140 positions on 1 sheet

Bosch GST 60 PAE parts list (1 sheet)

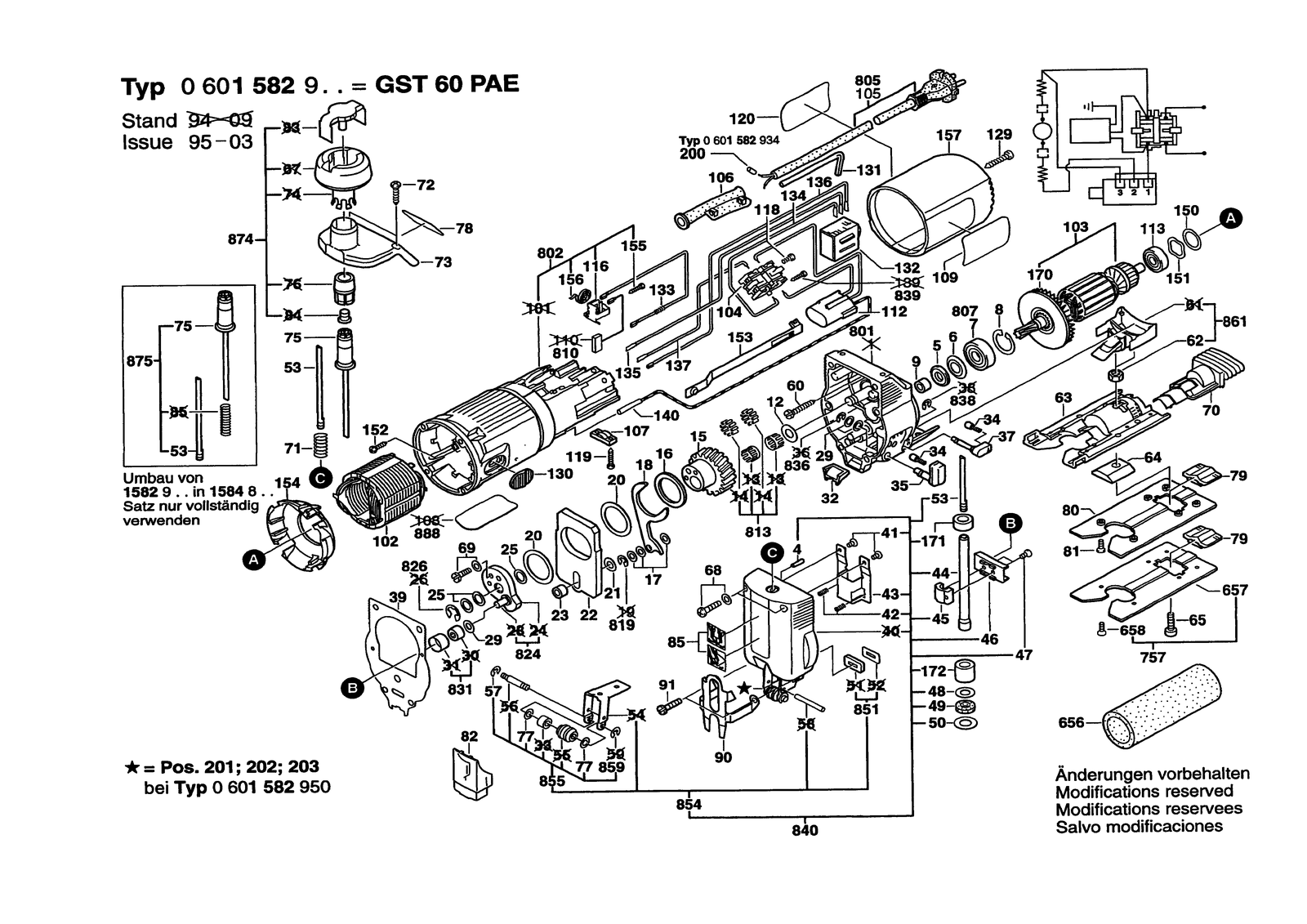

Bosch GST 60 PAE parts diagram, sheet 1
No.Part numberPart name
1022604220438Field 220-230V
1022604220709Field 220-240V
1022604220721Field 110-120V
1032604010576Armature 100V
1032604010577Armature 110-115V
1032604010578Armature 230-240V
1042607200674Switch
1051604460427Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F
1051614460010Power supply cord Usa/can/sma 2,15M 2 X 0,82MM SJ 16/2
1052604460074Power supply cord AUS 2,6M 2 X 0,75MM Pvc
1052604460095Power supply cord J 2,5M 2 X 0,75MM Pvc
1052604460205Power supply cord GB 110V 2,65M 2 X 1,0MM H05 Vv-F
1052604460277Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F
1062600703027Grommet Ø6,5-Ø6,9X95 MM
1062600703028Grommet Ø7,6-Ø8,2X95 MM
1072601035001Cable Clip
1092601110905Sticker Sunny Side
1092601110938Sticker Sunny Side
1092601118038Sticker Sunny Side
1122607329104Suppression Filter
1131900905018Ball Bearing 7X22X7
1161600A003G4Brush Holder
1162601323022Brush Holder
1182603410001Socket head cap screw M3X6,5-4.8
1192603490022Screw 4X16
122600101616Shim 0,5 MM
1202601110763Sticker Shadow Side
1202601118039Sticker Shadow Side
1202601118336Reference Plate
1292910601321Tapping Screw DIN 7982-ST3,9X22C-H
1302602026014Switch Handle
1302602026015Switch Handle Black
1312610364015Hexagon Socket Screw Key 5 MM
1322607230011Switch 100-115V
1322607230115Speed governor 220-240V
1332604448034Connecting Cable White L=88 MM
1332604465106Suppressor Box
1342604448044Connecting Cable White L=86MM
1352604448140Cable White L=103MM
1362604448046Connecting Cable Blue L=128MM
1372604448040Connecting Cable White L=125MM
1402600409017Insulation Tubing
151619P02581Eccentric Cog Wheel
1502600101020Shim 0,5 MM
1502600101022Shim 0,2 MM
1502600101027Shim washer 0,3 MM
1512600150004Shim
1522603435015Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F
1532602319005Adjusting Slide Blue
1542601328045Cover Disc
1552603490017Torx Oval-Head Screw 3X10
1562604652009Spiral Spring
1572600508037Housing Cover Blue
1572605500074Housing Cover Blue
162600102653Shim 1,0 MM
172600100515Shim 0,3 MM
172600100516Shim 0,5 MM
1702606610049Fan
1712600301046Sintered-Metal Bushing
1722600301045Bushing
182601923004Fork Lever
202600102652Shim 0,5 MM
2001900452012End Splice DIN 46 228-A1-6
212600100625Shim 0,1 MM
212600100626Shim 0,2 MM
212600100627Shim 0,3 MM
212600100628Shim 0,5 MM
222601098003Counterweight
232600309009Spacer Sleeve
252600100575Shim 0,2 MM
252600100576Shim 0,3 MM
252600100577Shim 0,5 MM
292600100568Shim 0,5 MM
292600100569Shim 1,0 MM
292600100607Shim 0,3 MM
322602305042Air Eliminator
342600590006Ratchet Cap
352602026036Rotary Knob Black
372602026037Rotary Knob Black
392601015050Seal
41903201042Needle Roller DIN 5402-A3X11,8-G2
412603410048Thread-forming tap. Screw M4X8
422604613000Compression Spring
431616B00224Guide Bracket
441619P12765Lifting Rod
452602329011Clamping Saddle
461619P12767Sliding Piece
472603421040Countersunk-Head Screw DIN 7962-M3,5X8-10.9
482600112031Supporting Disc 0,5 MM
492600290017Seal Ring 0,5 MM
52600108077Felt Washer
502600101612Shim 0,5 MM
572600116011Locking washer
62600500002Cupped Washer
602603490024Torx Oval-Head Screw 4X25
622915011007Hex Nut DIN 934-M6-8-A
632608000073Base Plate
642601030007Profile Beading
652910141197Hex Socket Head Cap Screw DIN 912-M6X16-8.8
6582910861118Countersunk-Head Screw
682603410049Thread-forming tap. Screw M4X12 MM
692914551176Microencapsulated Screw DIN 7985-M4X12MM
72600905021Groove ball bearing 9X24X7
702605730033Suction Nozzle
712604617003Compression Spring
722603410054Thread-forming tap. Screw M 5X16
732605702016Flanged Fitting
7572607001085Work Board Metal
772600100032Shim 0,2 MM
782601110930Sticker
792601099013Plate
82916660008Spring retaining ring DIN 472-24X1,2 MM
802601099029Plate Plastic
8012605808917Gear Housing
8022605108904Motor Housing Blue
8051607000386Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F
812910001116Socket head cap screw DIN 84-M4X6-4.8
8102604320910Carbon-Brush Set
8102604320912Carbon-Brush Set
8132607001130Needle-Roller Cage
8192916080007Locking washer DIN 6799-4-FST
822601320022Covering hood Blue
8242601072901Eccentric Disc
8262916080910Locking washer DIN 6799-7-FST
8312600917900Needle bearing
8362916080008Locking washer DIN 6799-5-FST
8382600116006Spring retaining ring
8392910611006Tapping Screw DIN 7981-ST2,9X13-C-H
8402605808920Gear Cover
8512601015901Sealing Plate
8541619P00777Roller Lever
8551619P01375Roller Set
8591619P01375Roller Set
8612605500900Fan Cover
8742602026900Handle
8752606491917Modification Set 100-240V
888160111A3H3Nameplate
92600400008Receptacle
902601322021Safety Device
912910011128Socket head cap screw DIN 84-AM4X18-5.8
