Bosch GST 25M

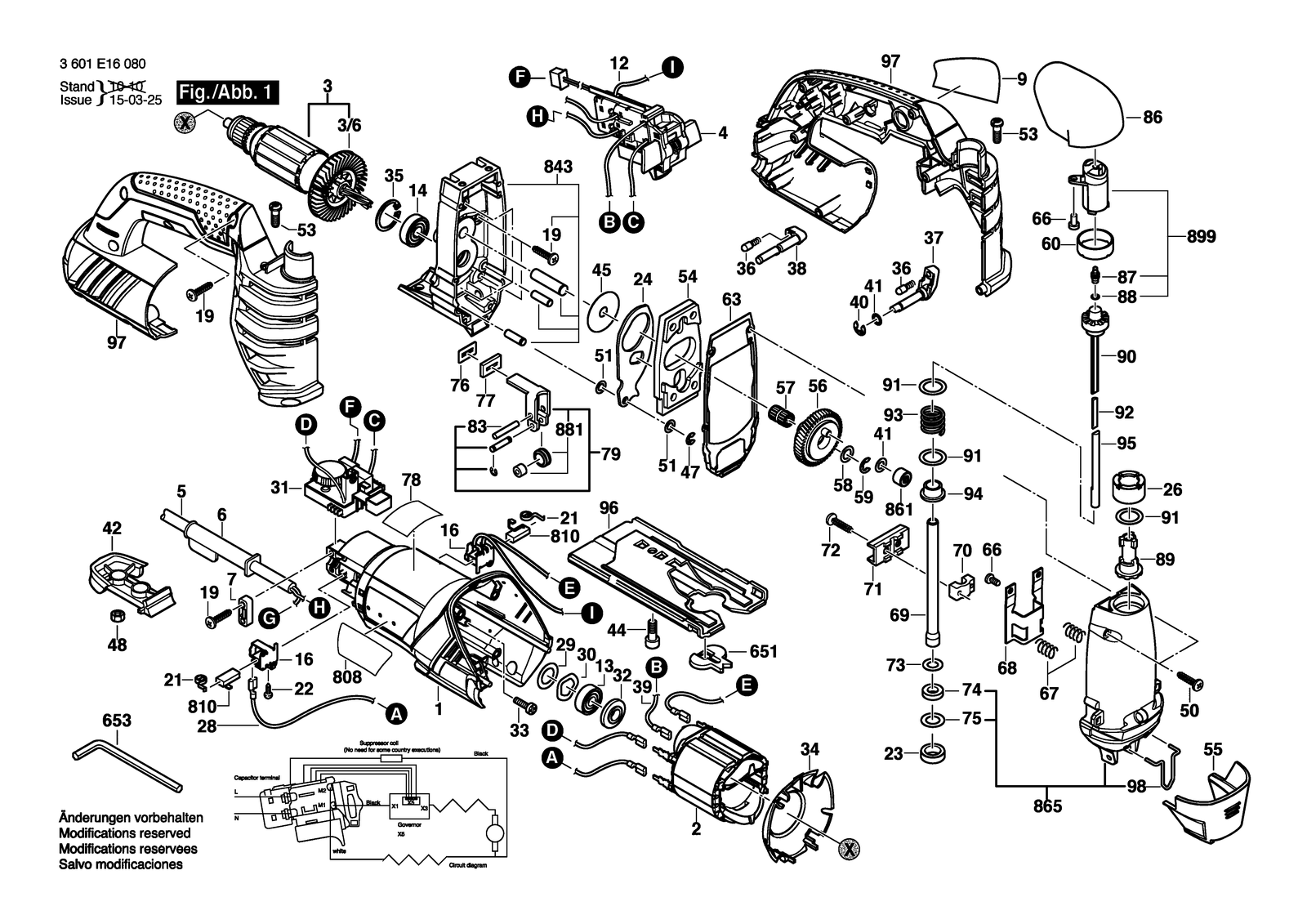

Bosch GST 25M jig saw: exploded parts diagram, 1 sheet, 198 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GST 25M: 198 positions on 1 sheet
Bosch GST 25M parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619P07202 | Motor Housing |
| 1 | 1619P07202 | Motor Housing |
| 12 | 1619P08938 | Suppression Filter |
| 12 | 1619P08938 | Suppression Filter |
| 13 | 1900905018 | Ball Bearing 7X22X7 |
| 13 | 1900905018 | Ball Bearing 7X22X7 |
| 14 | 1610905005 | Groove ball bearing 9X24X7 |
| 14 | 1610905005 | Groove ball bearing 9X24X7 |
| 16 | 1600A003G4 | Brush Holder |
| 16 | 1600A003G4 | Brush Holder |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 1619P05382 | Field 230V |
| 2 | 1619P08112 | Field 115V |
| 2 | 1619P05382 | Field 230V |
| 2 | 1619P08112 | Field 115V |
| 21 | 2604652009 | Spiral Spring |
| 21 | 2604652009 | Spiral Spring |
| 22 | 1619P00220 | Torx Oval-Head Screw 3X10 |
| 22 | 1619P00220 | Torx Oval-Head Screw 3X10 |
| 23 | 1619P07541 | Retaining snap ring |
| 23 | 1619P07541 | Retaining snap ring |
| 24 | 1619P07190 | Fork Lever |
| 24 | 1619P07190 | Fork Lever |
| 26 | 1619P07542 | Screw Cap |
| 26 | 1619P07542 | Screw Cap |
| 28 | 2604448034 | Connecting Cable White L=88 MM |
| 28 | 2604448034 | Connecting Cable White L=88 MM |
| 29 | 2600101027 | Shim washer 0,3 MM |
| 29 | 2600101027 | Shim washer 0,3 MM |
| 3 | 1619P05282 | Armature 230V |
| 3 | 1619P08012 | Armature 115V |
| 3 | 1619P05282 | Armature 230V |
| 3 | 1619P08012 | Armature 115V |
| 3/6 | 1619P05243 | Fan |
| 3/6 | 1619P05243 | Fan |
| 30 | 2600150004 | Shim |
| 30 | 2600150004 | Shim |
| 31 | 1619P07417 | Speed governor |
| 31 | 1619P07418 | Speed governor |
| 31 | 1619P07417 | Speed governor |
| 31 | 1619P07418 | Speed governor |
| 32 | 2600290060 | Magnetic Disk |
| 32 | 2600290060 | Magnetic Disk |
| 33 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 33 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 34 | 1619P07186 | Cover Disc |
| 34 | 1619P07186 | Cover Disc |
| 35 | 1619P00428 | Spring retaining ring |
| 35 | 1619P00428 | Spring retaining ring |
| 36 | 2600590006 | Ratchet Cap |
| 36 | 2600590006 | Ratchet Cap |
| 37 | 1619P07193 | Rotary Knob |
| 37 | 1619P07193 | Rotary Knob |
| 38 | 1619P07188 | Rotary Knob |
| 38 | 1619P07188 | Rotary Knob |
| 39 | 1619P08820 | Connecting Cable |
| 39 | 1619P08820 | Connecting Cable |
| 4 | 1619P07688 | Switch |
| 4 | 1619P07688 | Switch |
| 40 | 1619P00444 | Locking washer |
| 40 | 1619P00444 | Locking washer |
| 41 | 2600100568 | Shim 0,5 MM |
| 41 | 2600100568 | Shim 0,5 MM |
| 42 | 1619P07205 | Fan Cover |
| 42 | 1619P07205 | Fan Cover |
| 44 | 2910141197 | Hex Socket Head Cap Screw DIN 912-M6X16-8.8 |
| 44 | 2910141197 | Hex Socket Head Cap Screw DIN 912-M6X16-8.8 |
| 45 | 1619P07596 | Shim |
| 45 | 1619P07596 | Shim |
| 47 | 2916080907 | Locking washer 4 DIN 6799 |
| 47 | 2916080907 | Locking washer 4 DIN 6799 |
| 48 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 48 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 5 | 1604460399 | Power supply cord EU 2,65M 2X1 H05 Rn-F |
| 5 | 1604460475 | Power supply cord CH 2,65M 2X1 H05 Rn-F |
| 5 | 1604460700 | Power supply cord GB 230V 2,65M 2X1 H05 Rn-F |
| 5 | 1604460704 | Power supply cord GB 110V 2,65M 2X1 H05 Rn-F |
| 5 | 1619P09377 | Power supply cord I 2,65M 2X1 H05 Rn-F |
| 5 | 1604460397 | Power supply cord CN 2,65M 2X1MM H05 Vv-F |
| 5 | 1604460399 | Power supply cord EU 2,65M 2X1 H05 Rn-F |
| 5 | 1604460701 | Power supply cord J 2,65M 2X1,25MM Pvc |
| 50 | 1619P07546 | Thread-forming tap. Screw |
| 50 | 1619P07546 | Thread-forming tap. Screw |
| 51 | 2600100515 | Shim 0,3 MM |
| 51 | 2600100515 | Shim 0,3 MM |
| 53 | 1619P07650 | Thread-forming tap. Screw |
| 53 | 1619P07650 | Thread-forming tap. Screw |
| 54 | 1619P07191 | Counterweight |
| 54 | 1619P07191 | Counterweight |
| 55 | 1619P08936 | Covering hood |
| 55 | 1619P08936 | Covering hood |
| 56 | 1619P07192 | Eccentric Cog Wheel |
| 56 | 1619P07192 | Eccentric Cog Wheel |
| 57 | 2600913040 | Needle-Roller Assembly |
| 57 | 2600913040 | Needle-Roller Assembly |
| 58 | 2600101047 | Shim 0,3 MM |
| 58 | 2600101047 | Shim 0,3 MM |
| 59 | 2916640905 | Spring retaining ring 8X0,8 N31A MR7 |
| 59 | 2916640905 | Spring retaining ring 8X0,8 N31A MR7 |
| 6 | 1619P14642 | Grommet Ø 7MM |
| 6 | 2600703027 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703028 | Grommet Ø7,6-Ø8,2X95 MM |
| 6 | 1619P14642 | Grommet Ø 7MM |
| 6 | 2600703026 | Grommet Ø8,2-Ø9,4X95 MM |
| 60 | 1619P08926 | Ring |
| 60 | 1619P08926 | Ring |
| 63 | 1619P07194 | Seal |
| 63 | 1619P07194 | Seal |
| 651 | 2601016065 | Splintering Protector |
| 651 | 2601016065 | Splintering Protector |
| 653 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 653 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 66 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 66 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 67 | 2604613000 | Compression Spring |
| 67 | 2604613000 | Compression Spring |
| 68 | 1616B00224 | Guide Bracket |
| 68 | 1616B00224 | Guide Bracket |
| 69 | 1619P12765 | Lifting Rod |
| 69 | 1619P12765 | Lifting Rod |
| 7 | 2601035001 | Cable Clip |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 70 | 1619P06451 | Clamping Saddle |
| 70 | 1619P06451 | Clamping Saddle |
| 71 | 1619P12767 | Sliding Piece |
| 71 | 1619P12767 | Sliding Piece |
| 72 | 2603421040 | Countersunk-Head Screw DIN 7962-M3,5X8-10.9 |
| 72 | 2603421040 | Countersunk-Head Screw DIN 7962-M3,5X8-10.9 |
| 73 | 2600112031 | Supporting Disc 0,5 MM |
| 73 | 2600112031 | Supporting Disc 0,5 MM |
| 74 | 2600290017 | Seal Ring 0,5 MM |
| 74 | 2600290017 | Seal Ring 0,5 MM |
| 75 | 2600101612 | Shim 0,5 MM |
| 75 | 2600101612 | Shim 0,5 MM |
| 76 | 1619P07544 | Fixing plate |
| 76 | 1619P07544 | Fixing plate |
| 77 | 1619P07545 | Sealing Plate |
| 77 | 1619P07545 | Sealing Plate |
| 78 | 1619P07597 | Sticker |
| 78 | 1619P07597 | Sticker |
| 79 | 1619P07318 | Roller Lever |
| 79 | 1619P07318 | Roller Lever |
| 808 | 1619P08863 | Nameplate |
| 808 | 1619P08865 | Nameplate |
| 808 | 1619P08867 | Nameplate |
| 808 | 1619P08869 | Nameplate |
| 808 | 1619P08871 | Nameplate |
| 808 | 1619P08853 | Nameplate |
| 808 | 1619P08861 | Nameplate |
| 808 | 1619P31074 | Manufacturer's nameplate |
| 810 | 1607000486 | Carbon-Brush Set 10 X 2 604 320 912 |
| 810 | 1607000498 | Carbon-Brush Set 10 X 2 604 320 910 |
| 810 | 2604320910 | Carbon-Brush Set |
| 810 | 2604320912 | Carbon-Brush Set |
| 810 | 2604320910 | Carbon-Brush Set |
| 810 | 2604320912 | Carbon-Brush Set |
| 83 | 2917530101 | Straight Pin DIN 6325-4M6X24 |
| 83 | 2917530101 | Straight Pin DIN 6325-4M6X24 |
| 843 | 1619P09136 | Gear Housing |
| 843 | 1619P09136 | Gear Housing |
| 86 | 1619P07543 | Rotary Handle |
| 86 | 1619P09244 | Rotary Handle |
| 861 | 2600917900 | Needle bearing |
| 861 | 2600917900 | Needle bearing |
| 865 | 1619P09137 | Gear Cover |
| 865 | 1619P09137 | Gear Cover |
| 87 | 2600423006 | Carrier Bracket |
| 87 | 2600423006 | Carrier Bracket |
| 88 | 1619P06265 | O-Ring |
| 88 | 1619P06265 | O-Ring |
| 881 | 1619P09138 | Guide Roller Set |
| 881 | 1619P09138 | Guide Roller Set |
| 89 | 2606491011 | Ratchet |
| 89 | 2606491011 | Ratchet |
| 899 | 1619P09139 | Ratchet |
| 899 | 1619P09139 | Ratchet |
| 9 | 1619P31108 | Manufacturer's nameplate |
| 9 | 1619P31105 | Manufacturer's nameplate |
| 90 | 2606491014 | Coupling Half |
| 90 | 2606491014 | Coupling Half |
| 91 | 1619P00446 | Shim |
| 91 | 1619P00446 | Shim |
| 92 | 2604610040 | Compression Spring |
| 92 | 2604610040 | Compression Spring |
| 93 | 2604617004 | Compression Spring |
| 93 | 2604617004 | Compression Spring |
| 94 | 2600421001 | Guide Sleeve |
| 94 | 2600421001 | Guide Sleeve |
| 95 | 2603490011 | Clamp Screw |
| 95 | 2603490011 | Clamp Screw |
| 96 | 1619P07199 | Base Plate |
| 96 | 1619P07199 | Base Plate |
| 97 | 1619P07200 | Set Of Handles |
| 97 | 1619P07200 | Set Of Handles |
| 98 | 1619P07196 | Protective Cover |
| 98 | 1619P07196 | Protective Cover |
