Bosch GST 18V-155 SC

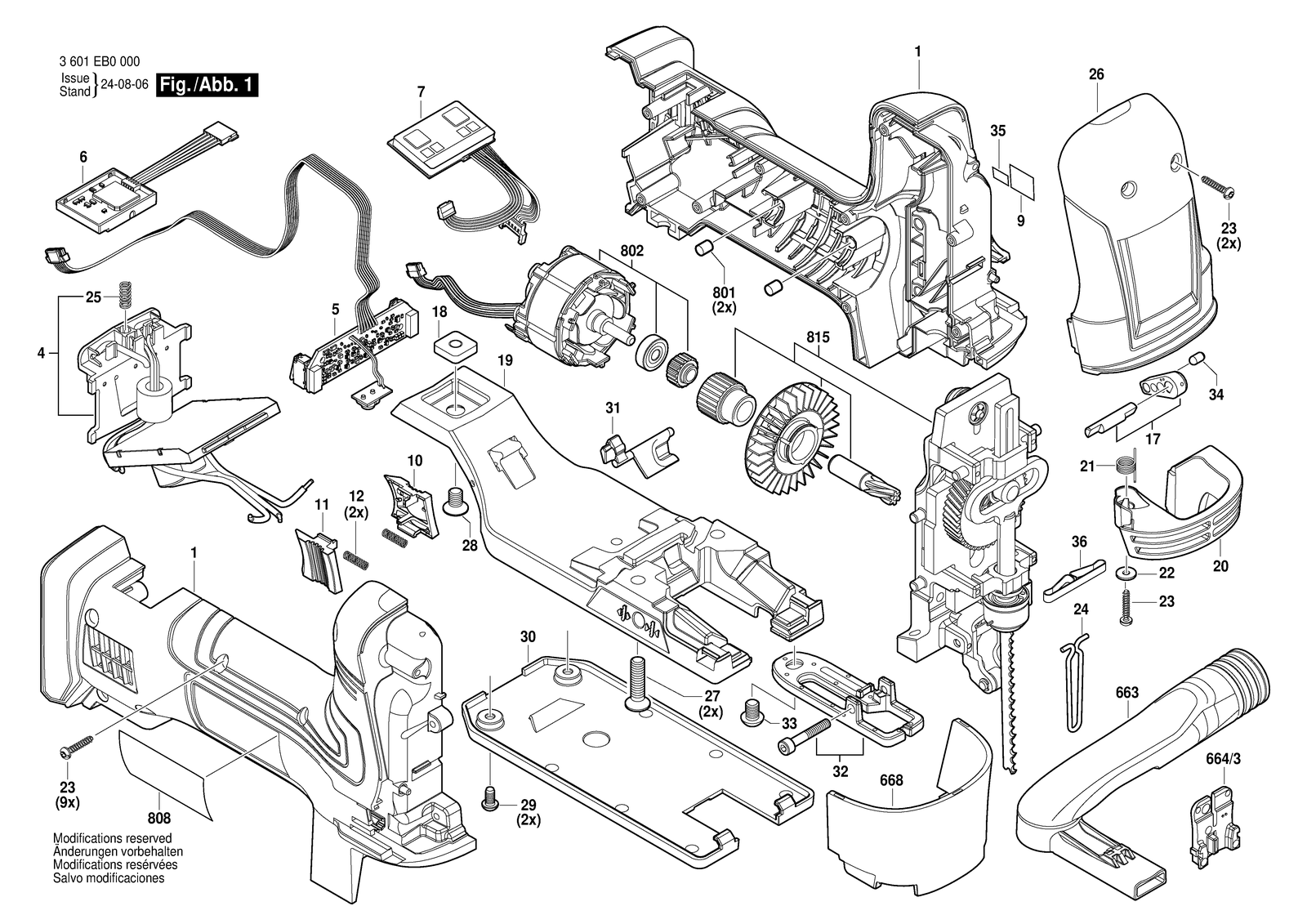

Bosch GST 18V-155 SC cordless jigsaw: exploded parts diagram, 2 sheets, 41 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GST 18V-155 SC: 41 positions on 2 sheets
Bosch GST 18V-155 SC parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 160580664T | Housing Section |
| 10 | 1600A020WA | Switch Slide |
| 11 | 1600A020WB | Switch Slide |
| 12 | 1604612040 | Compression Spring |
| 17 | 1600A020YW | Control Lever |
| 18 | 2600040004 | Fixing plate |
| 19 | 1600A02F68 | Base Plate |
| 20 | 1600A020MG | Ejection Lever |
| 21 | 160465101K | Torsion Spring |
| 22 | 2600100123 | Shim |
| 23 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 24 | 1600A028FZ | Protecting Cover |
| 25 | 1609280477 | Compression Spring |
| 26 | 16055002H7 | Housing Cover |
| 27 | 1603430063 | Screw M6X25 Tuflok DIN267-28 |
| 28 | 160343007C | Screw |
| 29 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 30 | 1600A01BX9 | Work Board |
| 31 | 1600A020YY | Air Deflection |
| 32 | 1600A02JL3 | Guide |
| 33 | 160343008J | Screw |
| 34 | 1600A01BV3 | Ratchet Cap |
| 35 | 160111C53D | Sticker |
| 36 | 2604613004 | Compression Spring |
| 4 | 16072335MX | Electronics Module |
| 5 | 16072335N6 | Electrical Adapter |
| 6 | 1619P17197 | Electronics Module |
| 653 | 2607226251 | Fast Charger EU GAL 18V-40, 230V/10,8V – 18V |
| 663 | 1600A01C3Z | Suction Nozzle |
| 664/3 | 1600A0208K | Splintering Protector |
| 668 | 1600A01T4N | Covering hood |
| 7 | 16072335N2 | Electronics Module |
| 801 | 2603100056 | Damping rubber |
| 802 | 1607000EW9 | EC motor |
| 808 | 160111A9TD | Nameplate |
| 808 | 160111A9TE | Nameplate |
| 808 | 160111A9TF | Nameplate |
| 808 | 160111A9TG | Nameplate |
| 815 | 1607000EX0 | Gear Unit |
| 9 | 160111C4UE | Manufacturer's nameplate GST 18V-155 Sc |
| 91 | 1607A350AN | Battery Pack GBA 18V 4.0AH Procore Scm |
