Bosch GST 185-LI
Bosch GST 185-LI cordless jigsaw: exploded parts diagram, 2 sheets, 73 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

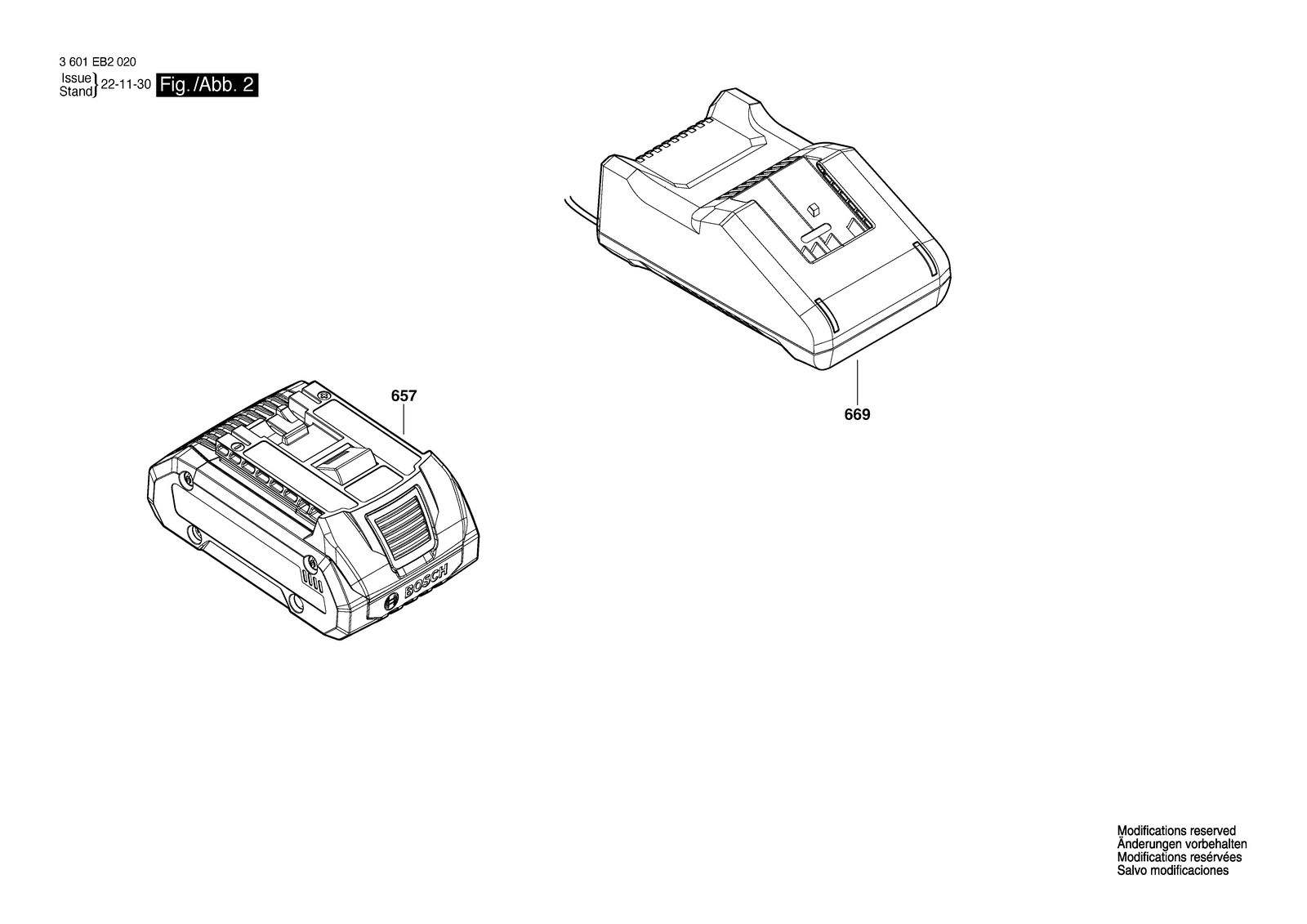

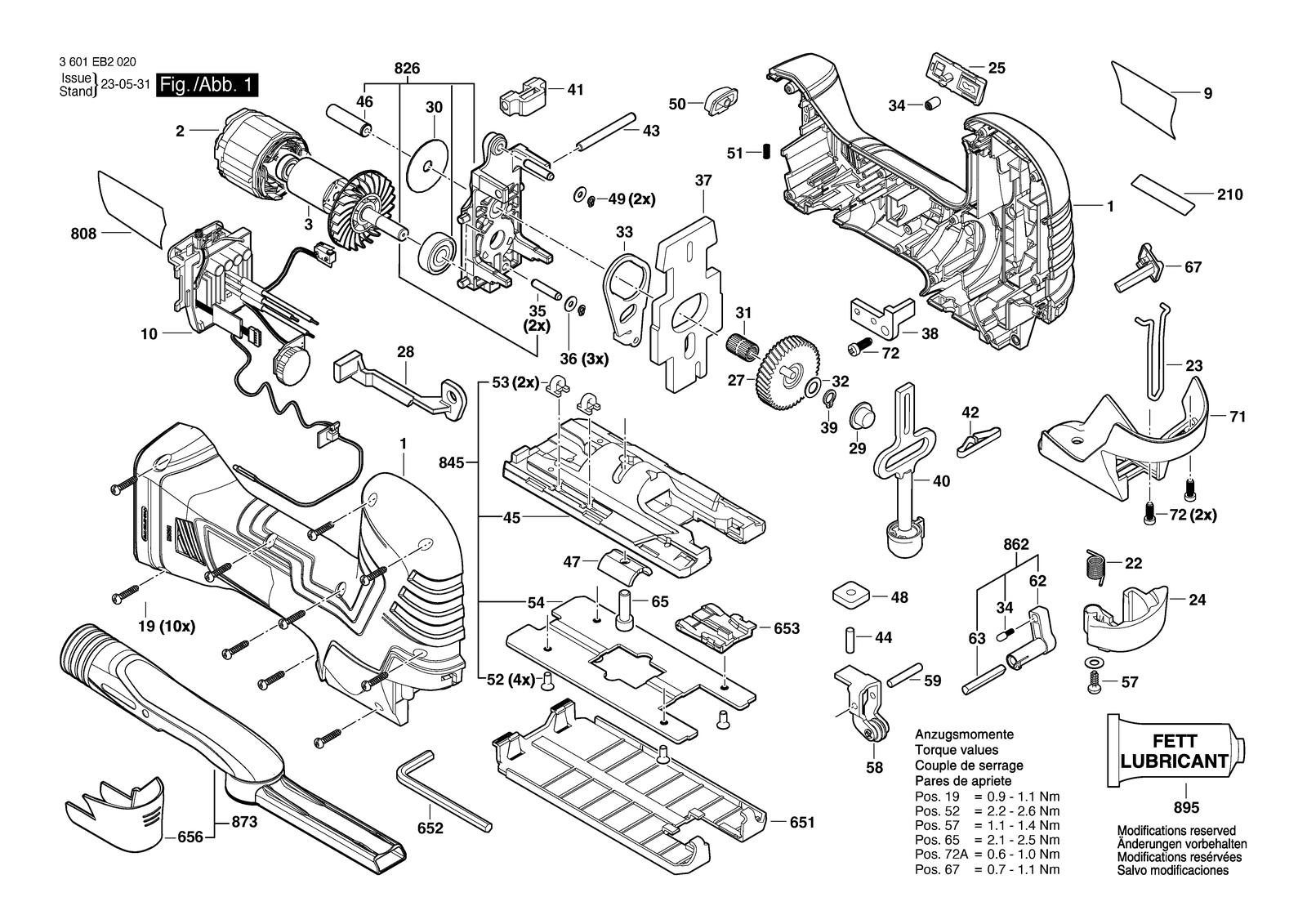

All parts of Bosch GST 185-LI: 73 positions on 2 sheets
Bosch GST 185-LI parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619P16209 | Housing Section |
| 10 | 1619P16534 | Electronics Module |
| 19 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 2 | 1619P16473 | Stator |
| 210 | 1619P17547 | Sticker |
| 22 | 1619P07152 | Torsion Spring |
| 23 | 1619P07128 | Protecting Cover |
| 24 | 1619P07151 | Lever Switch |
| 25 | 1619P16220 | Switch Button |
| 27 | 1619P16223 | Eccentric Cog Wheel |
| 28 | 1619P16221 | Adjusting Slide |
| 29 | 2600914022 | Needle bearing |
| 3 | 1619P16471 | Rotor |
| 30 | 1619P07576 | Shim |
| 31 | 2600913040 | Needle-Roller Assembly |
| 32 | 2600101077 | Shim 0,5 MM |
| 33 | 1619P07137 | Fork Lever |
| 34 | 2600590006 | Ratchet Cap |
| 35 | 1619P07140 | Bearing bolt |
| 36 | 2600100588 | Shim 0,5 MM |
| 37 | 1619P07133 | Counterweight |
| 38 | 1619P16714 | Cap |
| 39 | 2916640905 | Spring retaining ring 8X0,8 N31A MR7 |
| 40 | 1619P07147 | Lifting Rod |
| 41 | 1619P08903 | Plain bearing |
| 42 | 1619X08384 | Coiled Spring |
| 43 | 1619P07139 | Needle Roller |
| 44 | 1619P07143 | Bearing bolt |
| 45 | 1619P16715 | Base Plate |
| 46 | 1619P07138 | Bearing bolt |
| 47 | 2601030022 | Profile Beading |
| 48 | 1619P07163 | Fixing plate |
| 49 | 2916640001 | Spring retaining ring DIN 471-4X0,4-FST |
| 50 | 1619P16476 | Headlamp Switch |
| 51 | 1609280477 | Compression Spring |
| 52 | 1613435023 | Thread-forming tap. Screw |
| 53 | 1619P10589 | Key Holder |
| 54 | 1619P16713 | Work Board |
| 57 | 1619P02848 | Torx Oval-Head Screw 4X12 |
| 58 | 1619P07129 | Roller Lever |
| 58 | 1619P13426 | Roller Lever |
| 59 | 1619P07159 | Bearing bolt |
| 62 | 1619P07157 | Change-Over Switch |
| 63 | 1619P07156 | Control Shaft |
| 65 | 1619X04887 | Hex Socket Head Cap Screw |
| 651 | 1619P16710 | Pad |
| 652 | 1619P14506 | Offset Screwdriver |
| 653 | 2601016093 | Splintering Protector |
| 656 | 1619P07166 | Covering hood |
| 657 | 1607A350M0 | Battery Pack GBA 18V 4.0AH |
| 657 | 2607337069 | Battery Pack Bbs Mr, 18V, 5,0 AH 48 S |
| 657 | 2607337081 | Battery Pack Bbs Mr-Xl, 18V, 5AH |
| 657 | 2607337085 | Battery Pack Bbs Mr-Xl, 18V, 5AH Korea |
| 669 | 2607226251 | Fast Charger EU GAL 18V-40, 230V/10,8V – 18V |
| 669 | 2607226255 | Fast Charger Aus GAL 18V-40 |
| 669 | 2607226261 | Fast Charger Jp GAL 18V-40 |
| 669 | 2607226263 | Fast Charger Rok GAL 18V-40 |
| 669 | 2607226281 | Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A |
| 67 | 1619P07158 | Switch Slide |
| 71 | 1619P16199 | Cover |
| 72 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 808 | 1619P16213 | Nameplate |
| 808 | 1619P16216 | Nameplate |
| 808 | 1619P17548 | Nameplate |
| 808 | 1619P17562 | Nameplate |
| 808 | 1619P17654 | Nameplate |
| 826 | 1619P08888 | Bearing Bracket |
| 845 | 1619P16712 | Base Plate |
| 862 | 1619P08890 | Change-Over Switch |
| 873 | 1619P17472 | Suction Socket |
| 895 | 3605430003 | Grease Tube Albida |
| 9 | 1619P16224 | Manufacturer's nameplate GST 185-LI |
| 9 | 1619P17551 | Manufacturer's nameplate GST 18V-125 S |
