Bosch GST 183-LI
Bosch GST 183-LI cordless jigsaw: exploded parts diagram, 2 sheets, 61 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

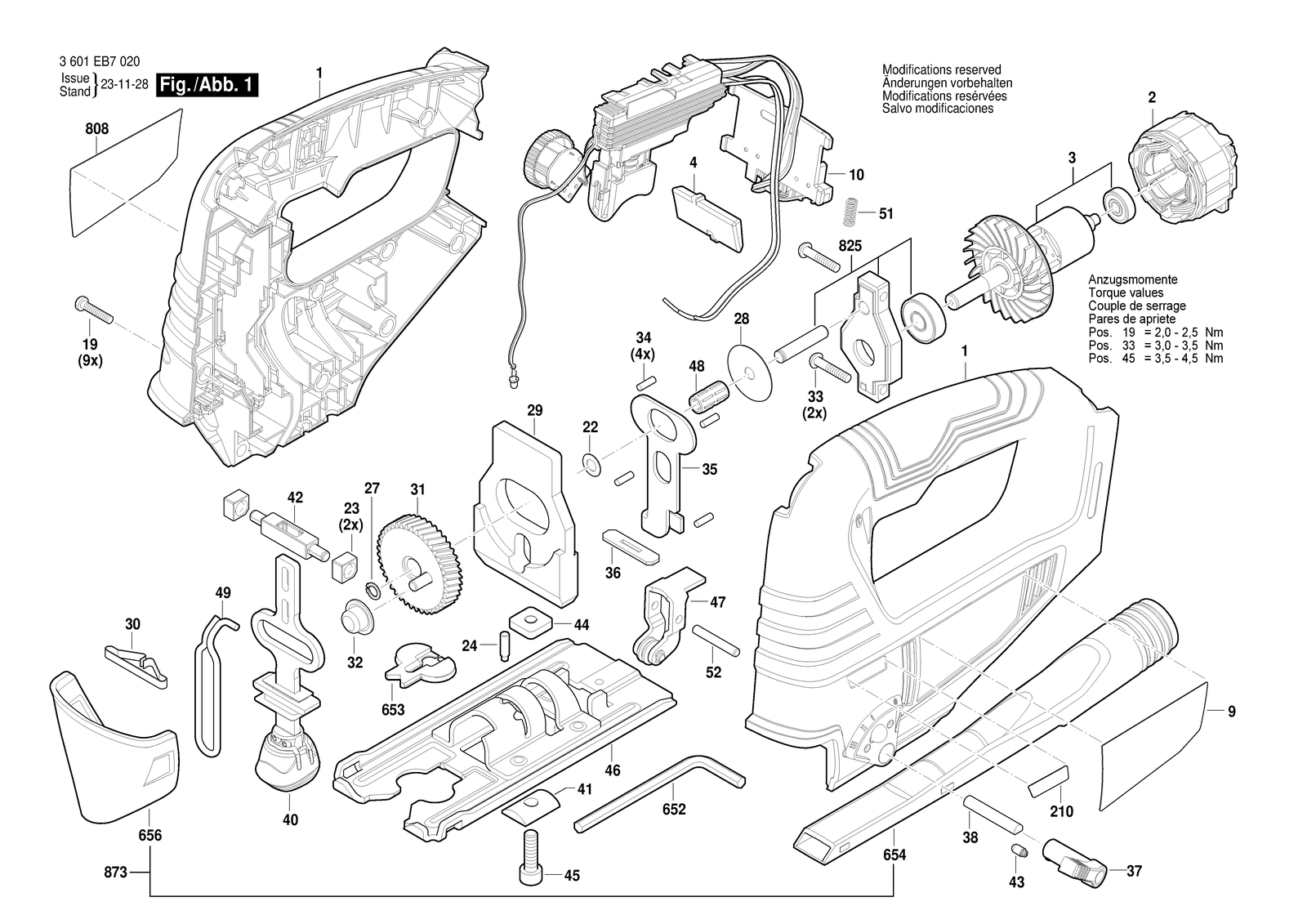

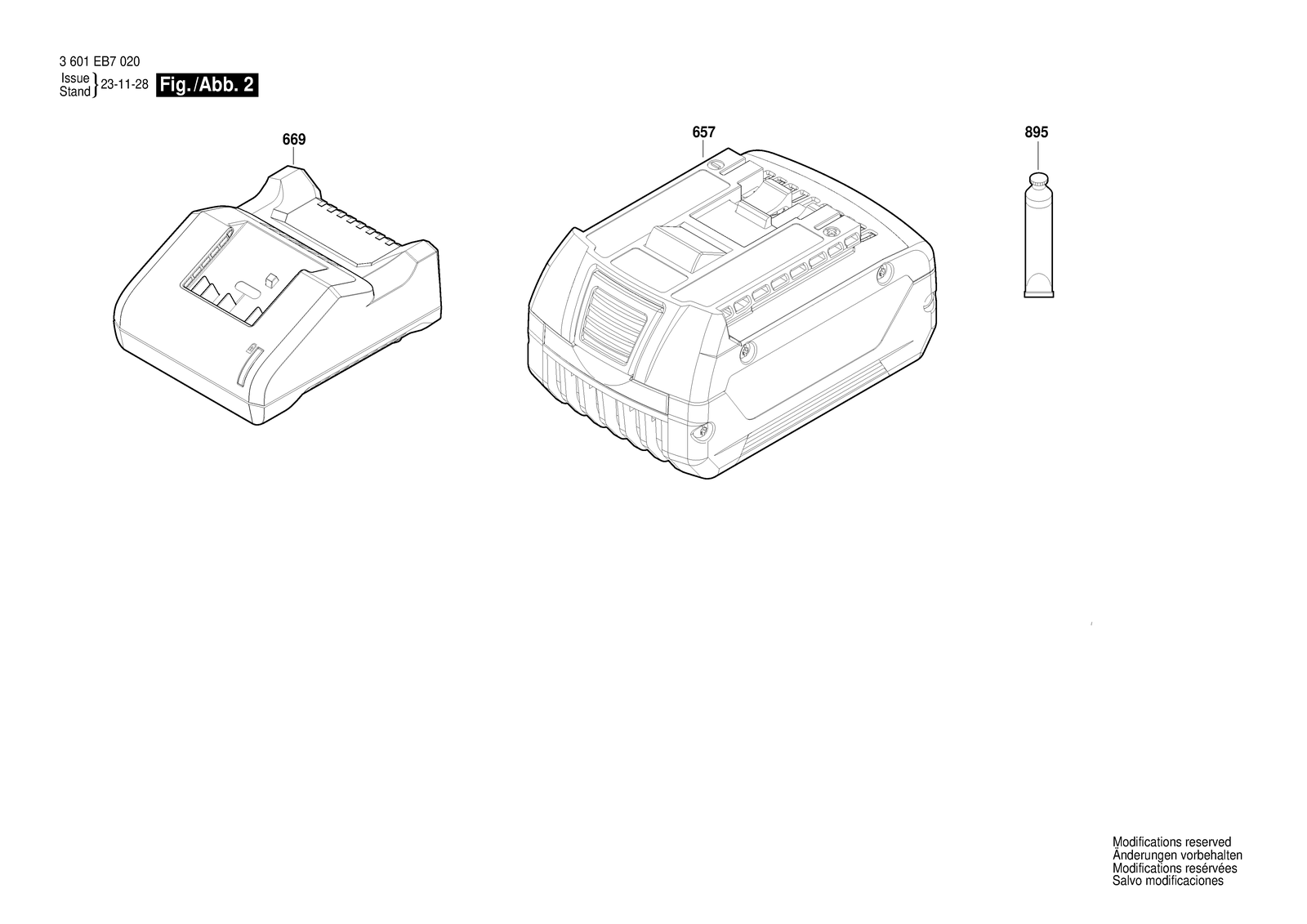

All parts of Bosch GST 183-LI: 61 positions on 2 sheets
Bosch GST 183-LI parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619P17936 | Housing Section |
| 10 | 2607202599 | Electronics Module |
| 19 | 2610315386 | Screw ST3,9X19 |
| 2 | 1619P17937 | Stator |
| 210 | 1619P17943 | Sticker |
| 22 | 1619P14682 | Shim |
| 23 | 1619P14055 | Insert |
| 24 | 2603120019 | Detent Pin |
| 27 | 1619X07569 | Spring retaining ring |
| 28 | 1619P01396 | Shim |
| 29 | 1619P14042 | Counterweight |
| 3 | 1619P17938 | Rotor |
| 30 | 1619P14636 | Coiled Spring |
| 31 | 1619P17939 | Eccentric Cog Wheel |
| 32 | 2600914022 | Needle bearing |
| 33 | 2609110610 | Cyl Head tapping screw |
| 34 | 2603201020 | Bearing bolt |
| 35 | 1619P14052 | Fork Lever |
| 36 | 1619X04574 | Seal |
| 37 | 1619P14053 | Change-Over Switch |
| 38 | 1619P07156 | Control Shaft |
| 4 | 1619P18159 | Adjusting Slide |
| 40 | 1619P14045 | Lifting Rod |
| 41 | 1619P18424 | Profile Beading |
| 42 | 1619P14049 | Plain bearing |
| 43 | 1619X08636 | Ratchet Cap |
| 44 | 1619P07163 | Fixing plate |
| 45 | 1619X04887 | Hex Socket Head Cap Screw |
| 46 | 1619P17942 | Base Plate |
| 47 | 1619P16757 | Roller Lever |
| 48 | 1619P14677 | Needle-Roller Assembly |
| 49 | 1619P14058 | Protecting Cover |
| 51 | 1609280477 | Compression Spring |
| 52 | 1619P07159 | Bearing bolt |
| 652 | 1619P16361 | Offset Screwdriver |
| 653 | 2601016065 | Splintering Protector |
| 654 | 2605730055 | Suction Nozzle |
| 656 | 1619P17944 | Covering hood |
| 657 | 1607A350M0 | Battery Pack GBA 18V 4.0AH |
| 669 | 2607226251 | Fast Charger EU GAL 18V-40, 230V/10,8V – 18V |
| 669 | 2607226253 | Fast Charger Gb GAL 18V-40 |
| 669 | 2607226267 | Fast Charger Cn GAL 18V-40 |
| 669 | 2607226281 | Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A |
| 669 | 2607226283 | Fast Charger UK GAL 18V-20 220-240V / 2A / 12-18V |
| 669 | 2607226289 | Fast Charger Lam GAL18V-20 |
| 669 | 2607226295 | Fast Charger Br GAL18V-20, 127V - 220V |
| 669 | 2607226297 | Fast Charger Cn GAL 18V-20 220V 12V-18V 2A |
| 669 | 2607226299 | Fast Charger Ar GAL18V-20 |
| 669 | 2607226537 | Fast Charger Ind GAL 18V-40 220-240V / 4A |
| 808 | 1619P17940 | Nameplate |
| 808 | 1619P18739 | Nameplate |
| 808 | 1619P18744 | Nameplate |
| 808 | 1619PS1461 | Nameplate |
| 808 | 1619PS1462 | Nameplate |
| 808 | 1619PS1463 | Nameplate |
| 808 | 1619PS1464 | Nameplate |
| 825 | 1619P14685 | Bracket |
| 873 | 1619P18654 | Suction Socket |
| 895 | 3605430003 | Grease Tube Albida |
| 9 | 1619P17941 | Manufacturer's nameplate GST 183-LI |
| 9 | 1619PS1460 | Manufacturer's nameplate |
