Bosch GST 18 V-LI cordless jigsaw: exploded parts diagram, 1 sheet, 49 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GST 18 V-LI: 49 positions on 1 sheet

Bosch GST 18 V-LI parts list (1 sheet)

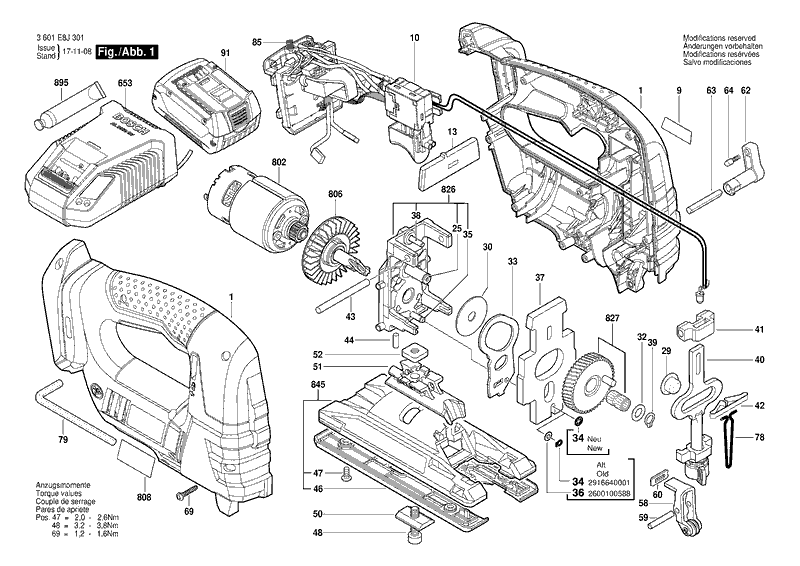

Bosch GST 18 V-LI parts diagram, sheet 1
No.Part numberPart name
12605105177Housing Section
101607233518Electronics Module
132607200686Adjusting Slide
252603105080Bearing bolt
291617S0210PNeedle bearing
302600101048Shim 0,5 MM
322600101077Shim 0,5 MM
332601923012Fork Lever
341600A008C6Retaining Washer
352603105091Bearing bolt
372601098098Counterweight
382603201055Needle Roller
392916640905Spring retaining ring 8X0,8 N31A MR7
402600780173Lifting Rod
411619P08903Plain bearing
422604613004Compression Spring
432603201089Needle Roller
442603105143Bearing bolt
462601099225Work Board
472603410048Thread-forming tap. Screw M4X8
482910141203Hex Socket Head Cap Screw DIN 912-M6X25-8.8
502601030019Profile Beading
512605500207Location Piece
522600040004Fixing plate
582601321077Roller Lever
592609002725Straight Pin
602601015077Sealing Plate
622601015113Change-Over Switch
632603124155Control Shaft
642600590006Ratchet Cap
6532607225321Charger EU 230/14,4-18V, 30 40 S
6532607225439Fast Charger CN 220/10,8-18V, 1H
6532607225923Charger GB 230/10,8-18V, 30 42 S
6532607225933Charger Rok GAL 1880 CV 220V/14,4-18V
692609110201Torx Flat-Head Screw 3X16
782603105136Protecting Cover
792610364015Hexagon Socket Screw Key 5 MM
8022607022831DC motor 18V
8062606445016Coupling Half
808160111A1P5Nameplate
808160111C2UNNameplate
8262605807946Bearing Bracket
8272609001931Eccentric Cog Wheel
8452601016906Base Plate
852604690055Compression Spring
8953605430003Grease Tube Albida
92601111560Manufacturer's nameplate GST 18V-LI
911607A350B2Battery Pack 18V 3.0AH LI Scm
911607A350M0Battery Pack GBA 18V 4.0AH
