Bosch GSS 230 AVE

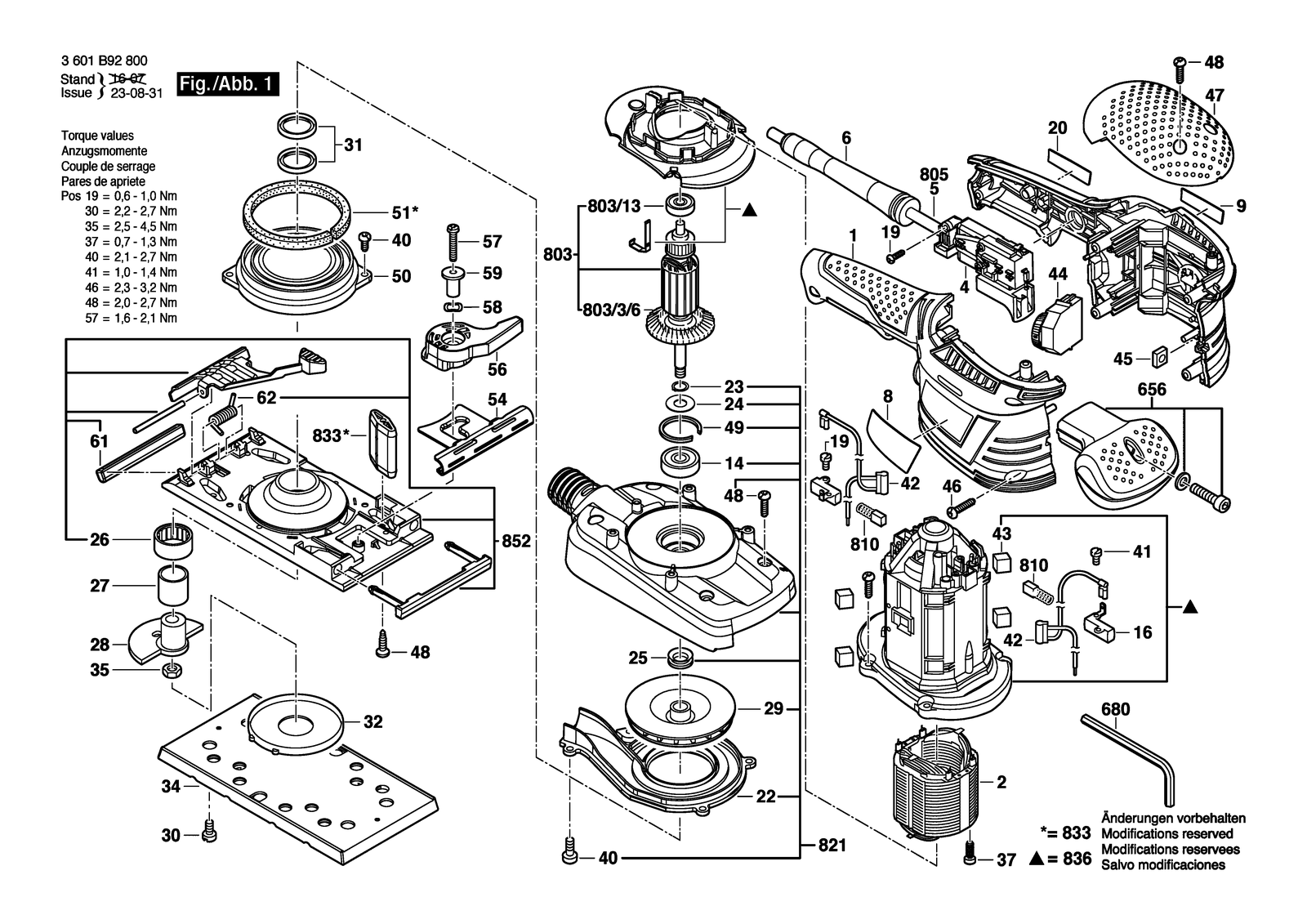

Bosch GSS 230 AVE orbital sander: exploded parts diagram, 2 sheets, 64 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSS 230 AVE: 64 positions on 2 sheets
Bosch GSS 230 AVE parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605105964 | Housing Section Blue |
| 14 | 1619P00290 | Groove ball bearing |
| 16 | 2604337003 | Brush Holder |
| 19 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 2 | 2604220747 | Field 230-240V |
| 2 | 2604220751 | Field 110V |
| 20 | 2601111477 | Reference Plate |
| 22 | 2601328094 | Suction Piece |
| 23 | 2916640006 | Spring retaining ring DIN 471 9X1MM |
| 24 | 2600590013 | Sealing disk |
| 25 | 2600290030 | V-Ring |
| 26 | 2600910012 | Needle bearing |
| 27 | 2600400035 | Inner Ring |
| 28 | 2602210045 | Eccentric |
| 29 | 2606610085 | Fan |
| 30 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 31 | 2600290031 | Shaft Seal |
| 32 | 2600500019 | Sealing Cover |
| 34 | 2600009019 | Sander Plate |
| 35 | 2915051107 | Hex Nut DIN 439-BM8-04 |
| 37 | 2603435086 | Tapping Screw |
| 4 | 2607200688 | Switch |
| 40 | 2603435042 | Thread-forming tap. Screw |
| 41 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 42 | 2604465115 | Suppressor Box |
| 43 | 2603203041 | Damping Element |
| 44 | 1607233556 | Speed governor 230-240V |
| 44 | 1607233557 | Speed governor 110-127V |
| 45 | 2915121006 | Square Nut DIN 562-M6-04 |
| 46 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 47 | 2605500208 | Housing Cover |
| 48 | 2603490022 | Screw 4X16 |
| 49 | 2601035002 | Pusher |
| 5 | 1604460401 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460204 | Power supply cord GB 110V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460244 | Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 50 | 2601328054 | Suction Socket |
| 51 | 2601005017 | Felt Strip |
| 54 | 2609200378 | Tensioning Bracket |
| 56 | 2601901020 | Lever |
| 57 | 2603410051 | Thread-forming tap. Screw |
| 58 | 2600100713 | Spring Washer |
| 59 | 2600499078 | Guide Bushing |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 61 | 2601014020 | Pressure Bar |
| 62 | 2604651029 | Coiled Spring |
| 655 | 2605411228 | Dust Chamber |
| 656 | 2602026175 | Auxiliary Handle Black |
| 680 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 8 | 2601112235 | Nameplate |
| 8 | 2601112262 | Nameplate |
| 8 | 2601112263 | Nameplate |
| 8 | 2601112397 | Nameplate |
| 803 | 2604011951 | Armature 230-240V |
| 803 | 2604011953 | Armature 110V |
| 803/13 | 2600905051 | Groove ball bearing 7X19X6 |
| 803/3/6 | 2606610076 | Fan |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 810 | 1607014117 | Carbon Brush |
| 821 | 2605510903 | Suction Hood |
| 833 | 2608005902 | Spring 4 Piece |
| 836 | 2605105966 | Motor Housing Blue |
| 852 | 2601099901 | Swing-Plate |
| 9 | 2601112337 | Manufacturer's nameplate GSS 230 Ave |
