Bosch GSS 230 AE

Bosch GSS 230 AE orbital sander: exploded parts diagram, 2 sheets, 52 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSS 230 AE: 52 positions on 2 sheets

Bosch GSS 230 AE parts list (2 sheets)

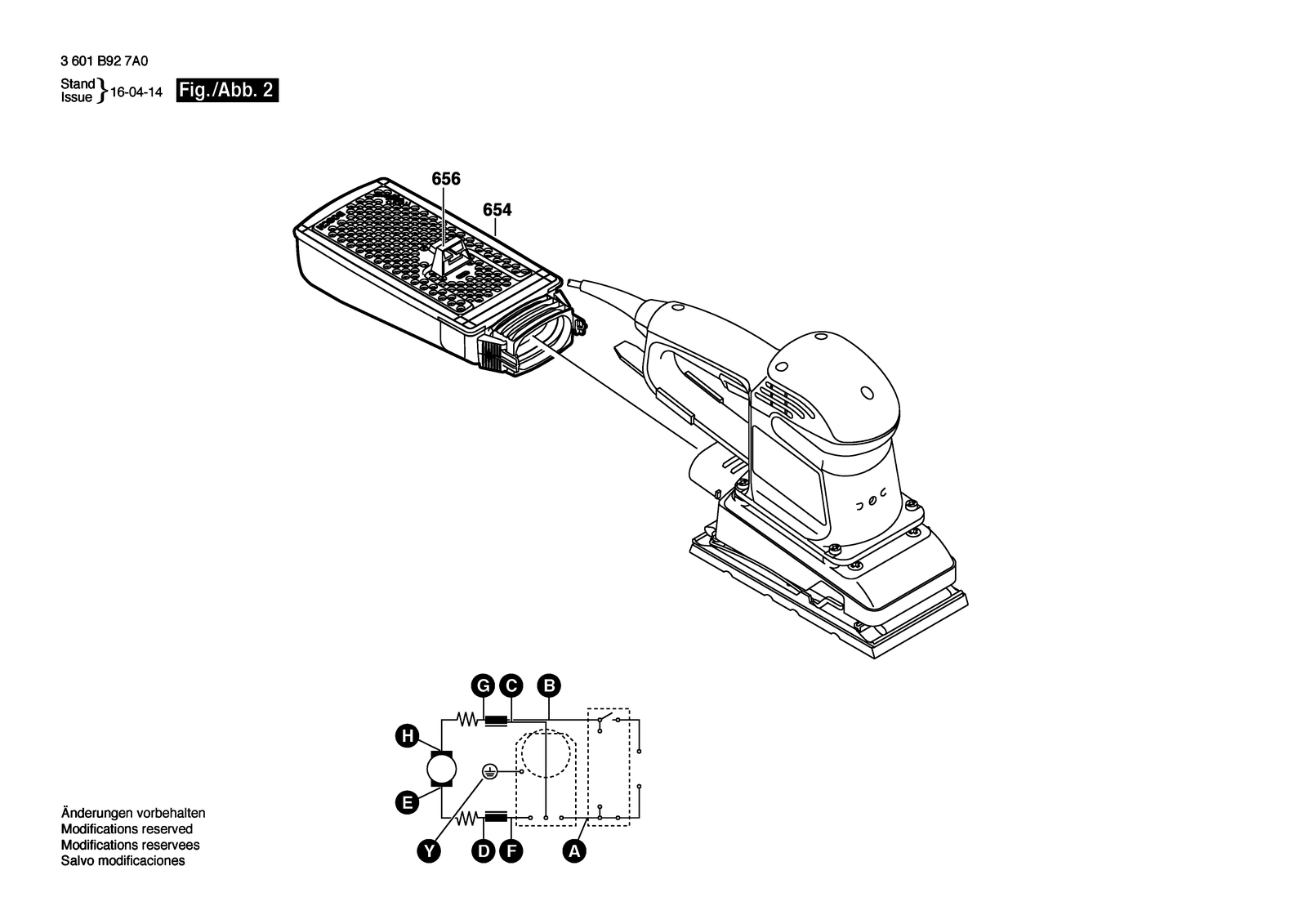

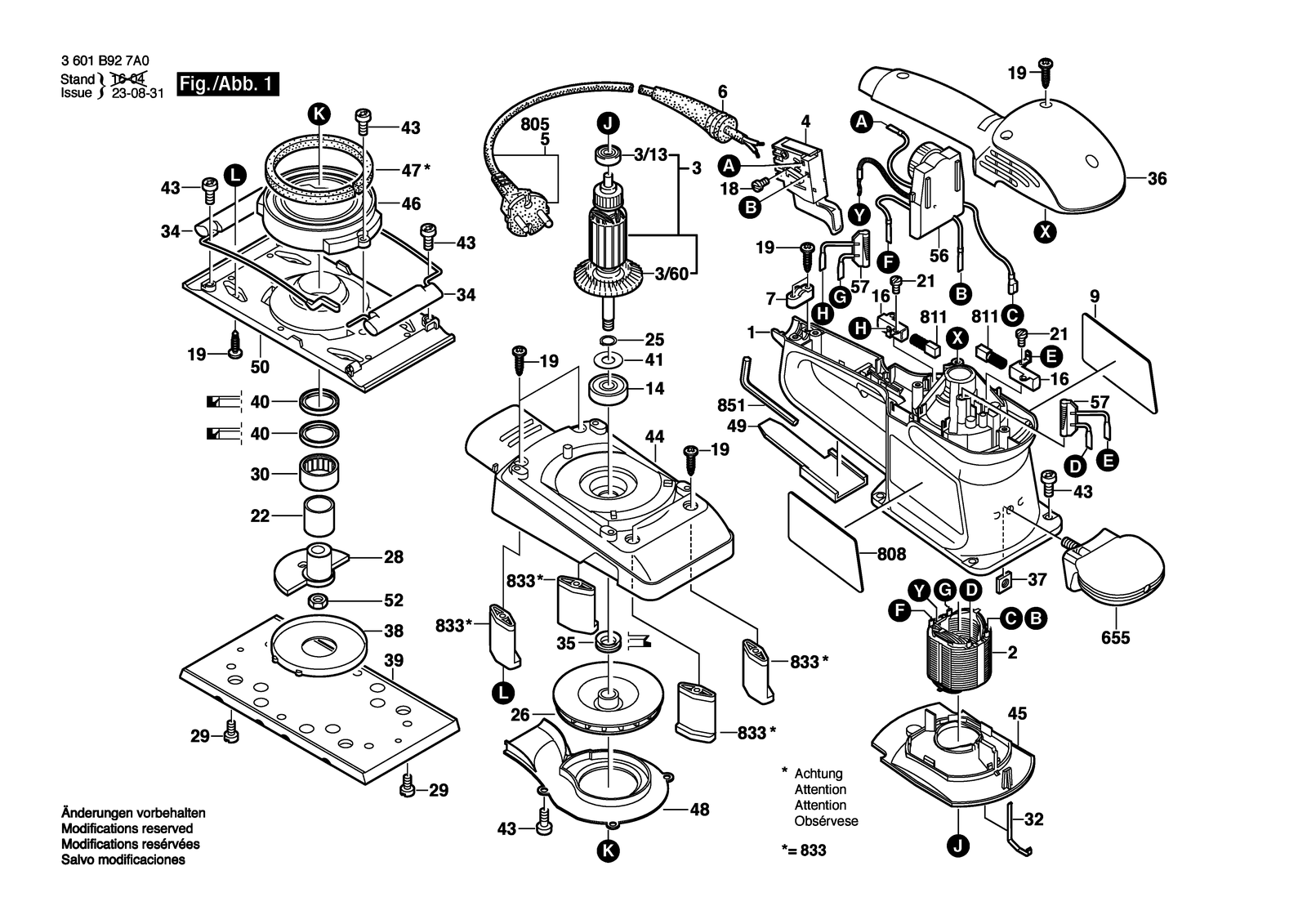

Bosch GSS 230 AE parts diagram, sheet 1Bosch GSS 230 AE parts diagram, sheet 2
No.Part numberPart name
12605104538Motor Housing Blue
141619P00290Groove ball bearing
162604337016Brush Holder
182603410001Socket head cap screw M3X6,5-4.8
192603490022Screw 4X16
22604220529Field 230-240V
212603490017Torx Oval-Head Screw 3X10
222600400035Inner Ring
252916640006Spring retaining ring DIN 471 9X1MM
262606610085Fan
282600499041Eccentric
292603410048Thread-forming tap. Screw M4X8
32604011110Armature 230-240V
3/132600905051Groove ball bearing 7X19X6
3/602606610076Fan
302600910012Needle bearing
322601329053Contact Strap
342608045022Tensioning Lever
352600290030V-Ring
362605500124Housing Cover Blue
372915121006Square Nut DIN 562-M6-04
382600500019Sealing Cover
392608000165Sander Plate
42607200260Switch
402600290031Shaft Seal
412600590013Sealing disk
432603435042Thread-forming tap. Screw
442600282017Suction Hood
452601328055Air Guide Plate
462601328053Suction Socket
472601005017Felt Strip
482600034006Air-Deflector Ring
492601035002Pusher
51604460403Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F
52604460222Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F
502608000166Swing-Plate
522915051107Hex Nut DIN 439-BM8-04
562607230047Speed governor 230-240V
572604465090Suppression Filter
62600703017Grommet Ø6,4-Ø7,2X76 MM
6542605411193Dust Chamber
6552602026069Auxiliary Handle Black
6562605702039Adapter
72601035001Cable Clip
8051607000386Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F
808160111A33SNameplate
808160111A33TNameplate
808160111A33UNameplate
8111607014117Carbon Brush
8332608005902Spring 4 Piece
8512610364015Hexagon Socket Screw Key 5 MM
92601116493Manufacturer's nameplate
