Bosch GSS 23 AE

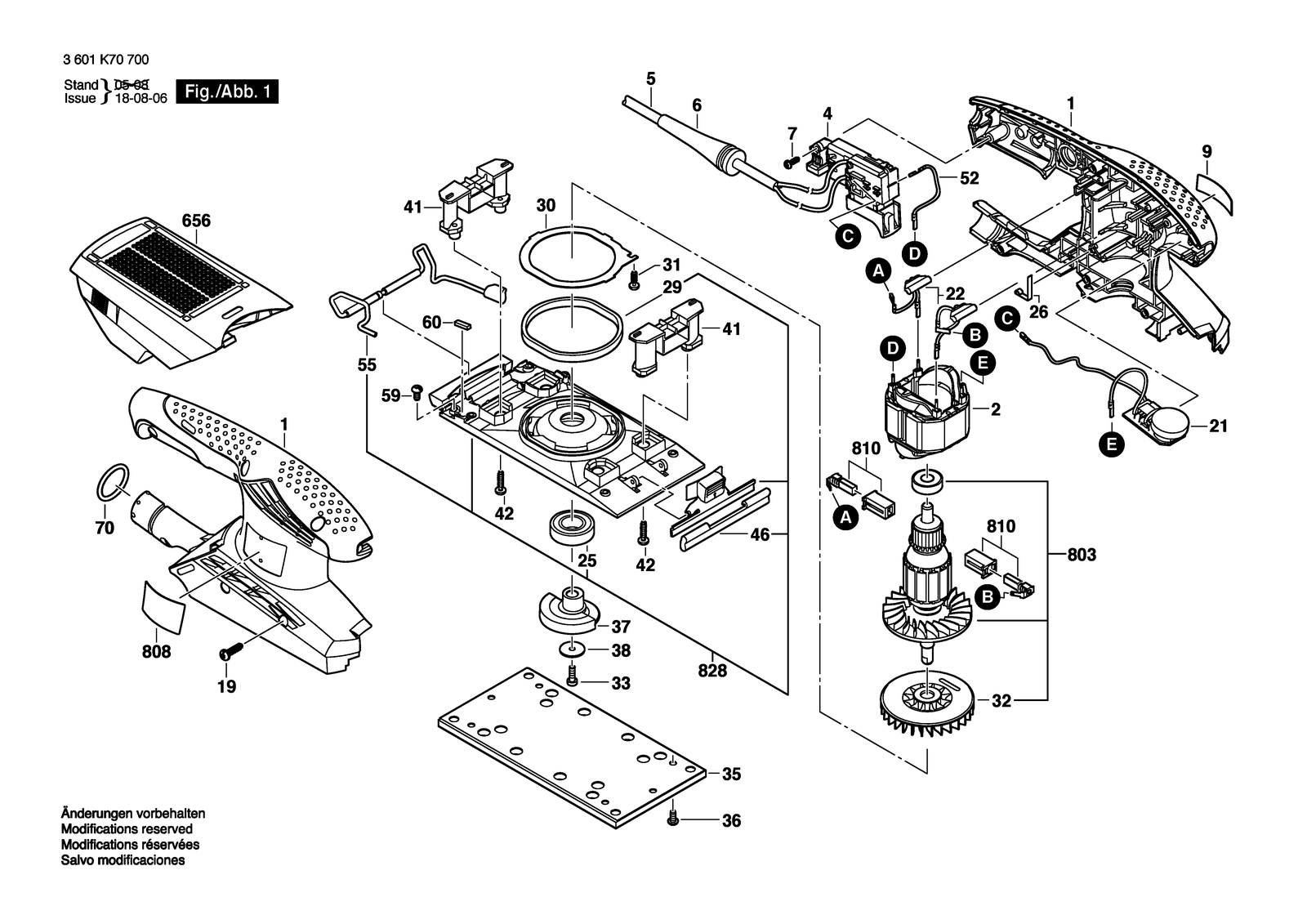

Bosch GSS 23 AE orbital sander: exploded parts diagram, 1 sheet, 64 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSS 23 AE: 64 positions on 1 sheet
Bosch GSS 23 AE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609100395 | Housing |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 1604220408 | Field 230-240V |
| 2 | 1604220409 | Field 100V |
| 2 | 1604220410 | Field 120V |
| 21 | 1607233194 | Speed governor 100V |
| 21 | 1607233195 | Speed governor 120V |
| 21 | 1607233196 | Speed governor 230-240V |
| 21 | 2609120363 | Speed governor 230V |
| 22 | 2609120182 | Suppression Filter |
| 25 | 2600905068 | Groove ball bearing 15X32X9 |
| 26 | 2601329057 | Contact Spring |
| 29 | 2609170044 | Felt Strip |
| 30 | 2609110407 | Sheet metal cover |
| 31 | 2609110190 | Torx Oval-Head Screw |
| 32 | 2609100544 | Fan |
| 33 | 2912731122 | Socket head cap screw M 4X12 |
| 35 | 2609100405 | Foam Panel |
| 35 | 2609100543 | Foam Panel |
| 36 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 37 | 2609110405 | Counterweight |
| 38 | 2609110409 | Plain Washer |
| 4 | 2607200632 | Switch |
| 41 | 2609100398 | Vibration Foot |
| 42 | 2603490022 | Screw 4X16 |
| 46 | 2609170042 | Rubber Bar |
| 5 | 1604460235 | Power supply cord ARG 2,7M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460262 | Power supply cord CN 220V 2,65M 2 X 0,75MM H05 Vv-F |
| 5 | 1604460315 | Power supply cord J 2,50M 2 X 0,75MM Vct F |
| 5 | 1604460401 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460204 | Power supply cord GB 110V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460244 | Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460249 | Power supply cord SAM 2,7M 2 X 0,82MM SJ 18/2 |
| 5 | 2604460283 | Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460297 | Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F |
| 52 | 2609120183 | Connecting Cable |
| 55 | 2609110415 | Clamping Saddle |
| 59 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 60 | 2609170045 | Rubber Buffer |
| 656 | 2609199059 | Dust Chamber |
| 7 | 2609110190 | Torx Oval-Head Screw |
| 70 | 1610210045 | O-Ring 23,0X3,0 MM |
| 803 | 2609199085 | Armature With Fan 230-240V |
| 803 | 2609199086 | Armature With Fan 100V |
| 803 | 2609199087 | Armature With Fan 120V |
| 808 | 1600A00Y7L | Nameplate |
| 808 | 1600A00Y7M | Nameplate |
| 808 | 1600A00Y9N | Nameplate |
| 808 | 1600A00Y9T | Nameplate |
| 808 | 1600A00Z1A | Nameplate |
| 808 | 1600A00Z1B | Nameplate |
| 808 | 1600A00Z1D | Nameplate |
| 808 | 160111A5EG | Nameplate |
| 808 | 2609131607 | Nameplate |
| 808 | 2609131608 | Nameplate |
| 808 | 2609131609 | Label |
| 808 | 2609131610 | Label |
| 810 | 2609120199 | Carbon-Brush Set |
| 828 | 2609199067 | Swing-Plate |
| 9 | 2609130839 | Manufacturer's nameplate GSS 23AE |
| 9 | 2609130928 | Manufacturer's nameplate GSS 23AE |
