Bosch GSS 23 AE
Bosch GSS 23 AE orbital sander: exploded parts diagram, 1 sheet, 78 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

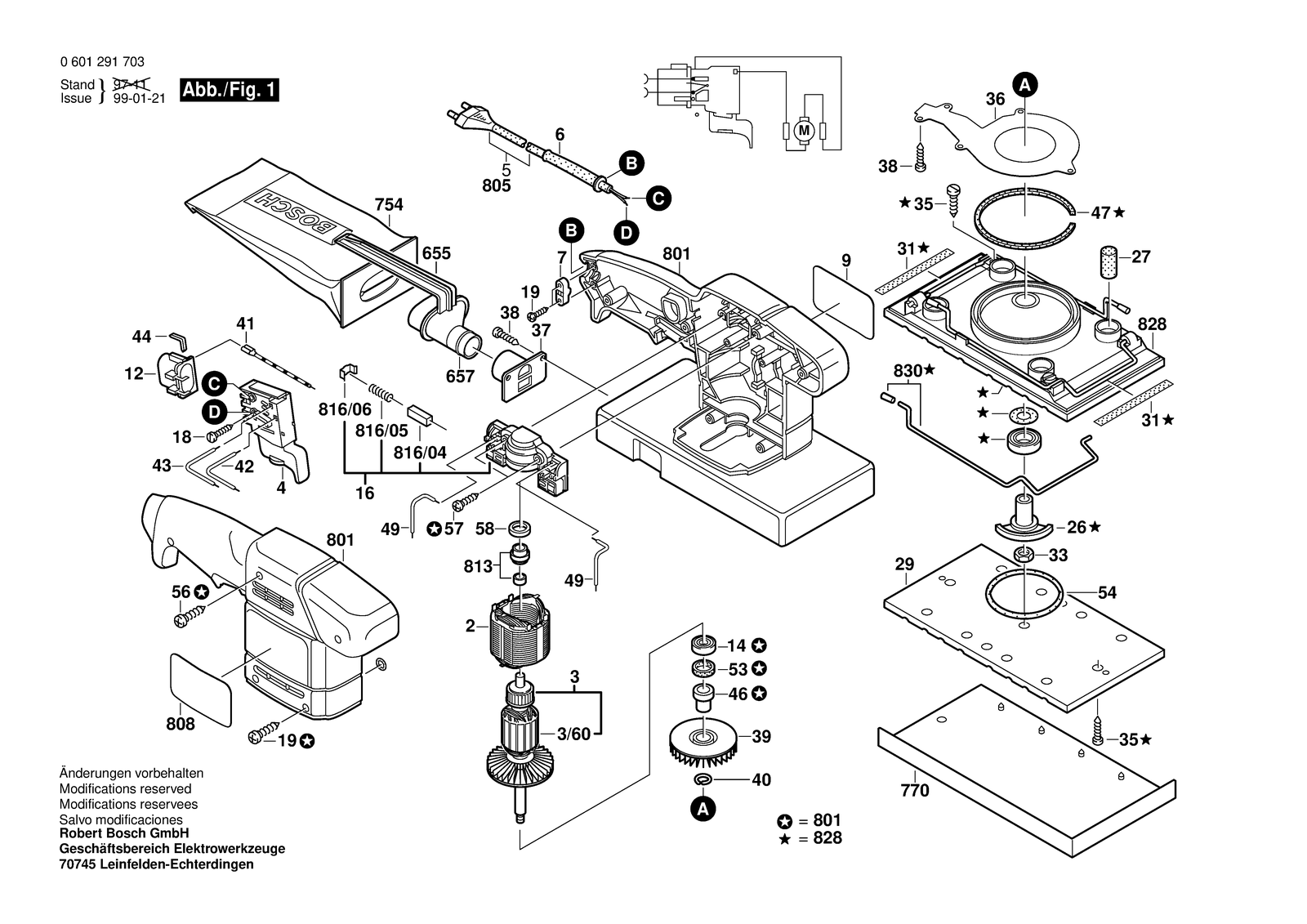

All parts of Bosch GSS 23 AE: 78 positions on 1 sheet
Bosch GSS 23 AE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 12 | 2607329114 | Suppression Filter |
| 14 | 1900905041 | Groove ball bearing 8X22X7 |
| 16 | 2604337118 | Brush Plate |
| 16 | 2605807122 | Brush Plate |
| 16 | 2609992604 | Brush Plate |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220450 | Field 100V |
| 2 | 2604220451 | Field 110-115V |
| 2 | 2604220452 | Field 230V |
| 2 | 2604220453 | Field 240V |
| 26 | 2600499040 | Eccentric Disc |
| 27 | 1603101018 | Round Rubber Ø 11,3X23,5 MM |
| 29 | 2608000085 | Sander Plate |
| 3 | 2604011060 | Armature 100V |
| 3 | 2604011061 | Armature 110-120V |
| 3 | 2604011062 | Armature 240V |
| 3/60 | 2606610055 | Fan |
| 31 | 2601007019 | Clamping Strip |
| 33 | 2603300013 | Hex Nut DIN 985-M6-8 |
| 35 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 36 | 2600034002 | Sheet metal cover |
| 37 | 2605702008 | Fitting |
| 38 | 2603490020 | Torx Oval-Head Screw 4X8 |
| 39 | 2606610026 | Fan |
| 4 | 2607200222 | Switch |
| 4 | 2607200256 | On-Off Switch |
| 41 | 2604448097 | Earth Conductor |
| 42 | 2604448045 | Cable Black L=98 MM |
| 43 | 2604448118 | Connecting Cable Blue L=213 MM |
| 44 | 2601022000 | Damping Plate |
| 46 | 2600322002 | Spacer Sleeve |
| 47 | 2601005012 | Felt Strip |
| 49 | 2604448109 | Connecting Cable White L=115 MM |
| 5 | 2604460125 | Power supply cord CH 2,65M 2 X 1,0MM H05VV-F |
| 5 | 2604460126 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 2604460127 | Power supply cord J 2,50M 2 X 0,75MM Pvc |
| 5 | 2604460129 | Power supply cord Usa/cdn 2,15M 2 X 082MM SJ 18/2 |
| 5 | 2604460147 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460207 | Power supply cord GB 110V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460280 | Power supply cord I / BR 2,65M 2 X 1,0MM H05VV-F |
| 53 | 2600290029 | Seal Ring |
| 54 | 2600210041 | O-Ring 56,0X1,78 MM |
| 56 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 57 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 58 | 2600005009 | Felt Washer |
| 6 | 2600703006 | Grommet Ø9,5 MM |
| 6 | 2600703007 | Grommet Ø7 MM |
| 6 | 2600703008 | Grommet Ø8,2 MM |
| 655 | 2605702031 | Fitting |
| 657 | 1610210075 | O-Ring 20,0X1,5 MM |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 754 | 2605411067 | Dust Bag 3 Piece |
| 754 | 2605411068 | Dust Bag 10 Piece |
| 770 | 2608190016 | Punching Tool |
| 801 | 2605104848 | Housing Section Blue |
| 805 | 1607000385 | Power supply cord EU 2,6M 2 X 1,0 MM |
| 808 | 2601119161 | Marking Plate |
| 808 | 2601119162 | Marking Plate |
| 808 | 2601119163 | Marking Plate |
| 808 | 2601119164 | Marking Plate |
| 808 | 2601119165 | Marking Plate |
| 808 | 2601119166 | Marking Plate |
| 808 | 2601119167 | Marking Plate |
| 808 | 2601119168 | Marking Plate |
| 813 | 2600301050 | Bushing |
| 816/04 | 2604321905 | Carbon-Brush Set |
| 816/04 | 2607014001 | Carbon-Brush Set |
| 816/05 | 2604610026 | Compression Spring |
| 816/06 | 2601322013 | Ratchet Cap |
| 828 | 2608000170 | Swing-Plate |
| 830 | 2600591005 | Cap-Handle |
| 830 | 2608045901 | Clamping Saddle |
| 9 | 2601118599 | Manufacturer's nameplate Sunny Side |
| 9 | 2601118600 | Reference Plate Shadow Side |
| 9 | 2601118601 | Manufacturer's nameplate Sunny Side |
| 9 | 2601118602 | Reference Plate Shadow Side |
