Bosch GSS 23 A

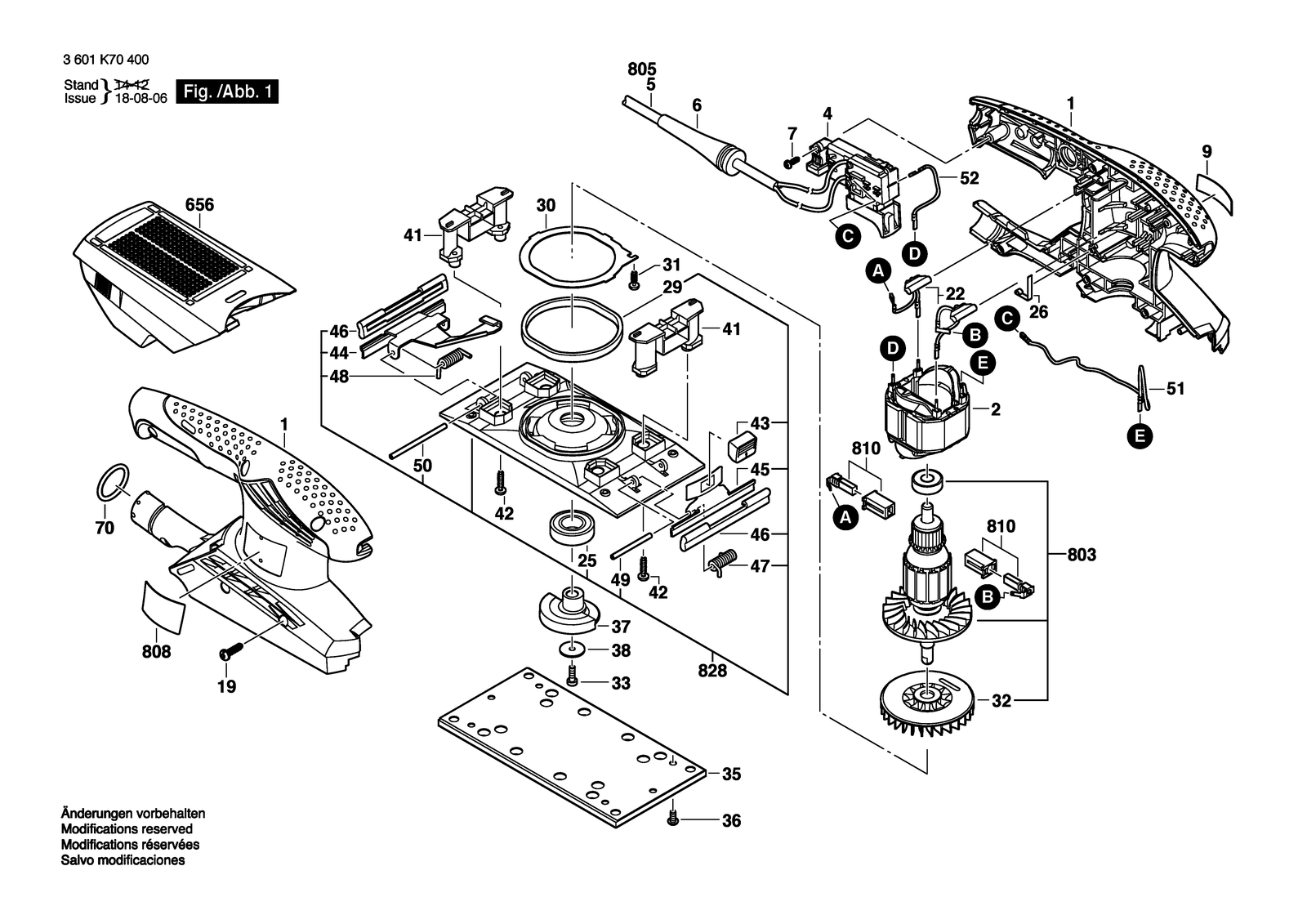

Bosch GSS 23 A orbital sander: exploded parts diagram, 1 sheet, 38 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSS 23 A: 38 positions on 1 sheet
Bosch GSS 23 A parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609100590 | Housing Blue |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 1604220408 | Field 230-240V |
| 22 | 2609120182 | Suppression Filter |
| 25 | 2600905068 | Groove ball bearing 15X32X9 |
| 26 | 2601329057 | Contact Spring |
| 29 | 2609170044 | Felt Strip |
| 30 | 2609110407 | Sheet metal cover |
| 31 | 2609110190 | Torx Oval-Head Screw |
| 32 | 2609100544 | Fan |
| 33 | 2912731122 | Socket head cap screw M 4X12 |
| 35 | 2609100403 | Foam Panel |
| 36 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 37 | 2609110405 | Counterweight |
| 38 | 2609110409 | Plain Washer |
| 4 | 2607200632 | Switch |
| 41 | 2609100398 | Vibration Foot |
| 42 | 2603490022 | Screw 4X16 |
| 43 | 2610920651 | Push Button |
| 44 | 2609110410 | Clamping Saddle |
| 45 | 2609110411 | Clamping Saddle |
| 46 | 2609170042 | Rubber Bar |
| 47 | 2610920646 | Coiled Spring Pin |
| 48 | 2609110412 | Compression Spring |
| 49 | 2610923311 | Roller Pin |
| 50 | 2603201085 | Straight Pin |
| 51 | 2604448113 | Connecting Cable Blue L=180MM |
| 52 | 2609120183 | Connecting Cable |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 656 | 2609199059 | Dust Chamber |
| 7 | 2609110190 | Torx Oval-Head Screw |
| 70 | 1610210045 | O-Ring 23,0X3,0 MM |
| 803 | 2609199085 | Armature With Fan 230-240V |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 808 | 2609135691 | Nameplate |
| 810 | 2609120199 | Carbon-Brush Set |
| 828 | 2609199066 | Swing-Plate |
| 9 | 2609131572 | Manufacturer's nameplate GSS 230 Professional |
