Bosch GSS 18V-13

Bosch GSS 18V-13 cordless orbital sander: exploded parts diagram, 2 sheets, 37 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSS 18V-13: 37 positions on 2 sheets

Bosch GSS 18V-13 parts list (2 sheets)

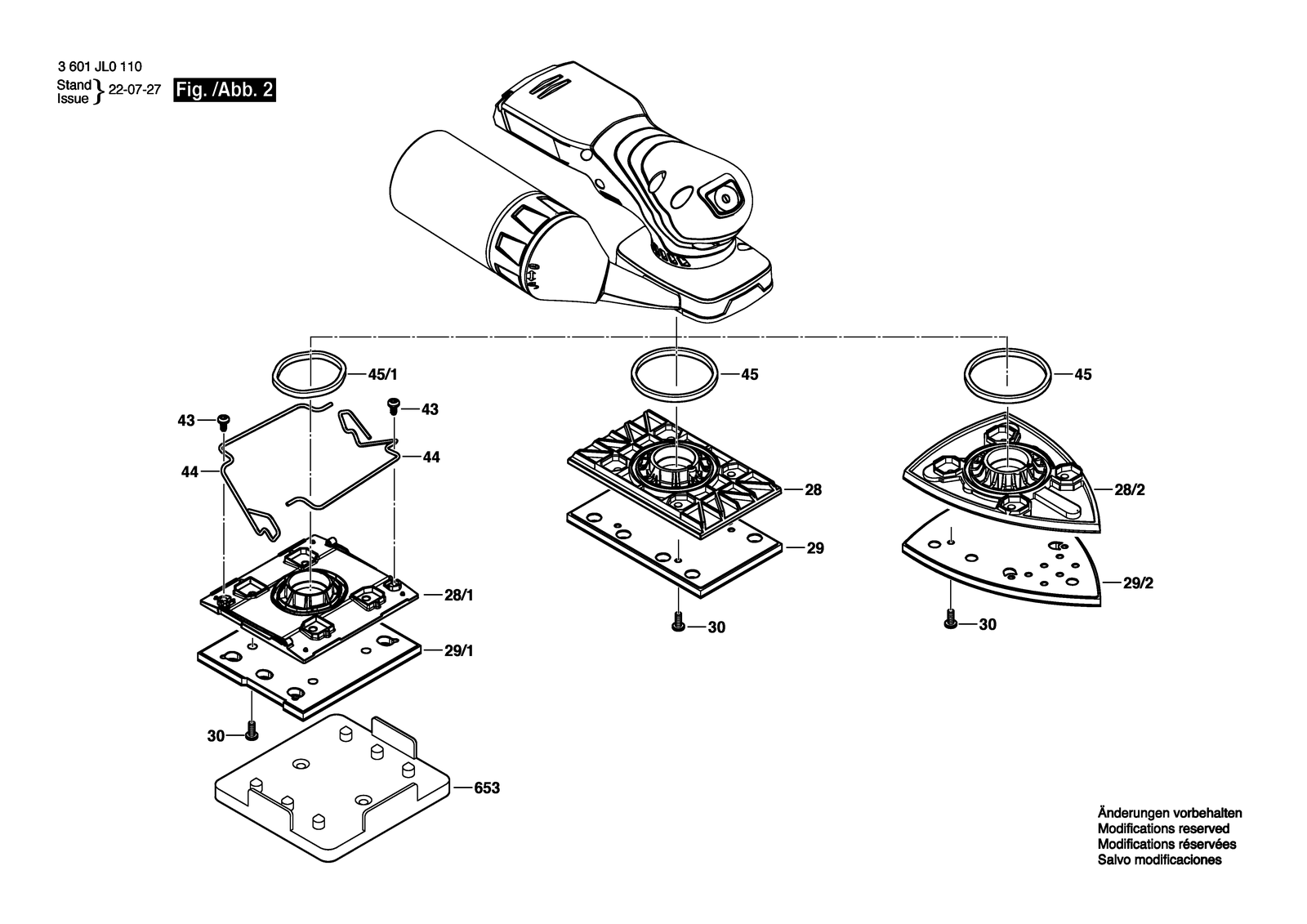

Bosch GSS 18V-13 parts diagram, sheet 1Bosch GSS 18V-13 parts diagram, sheet 2
No.Part numberPart name
11619PB9787Housing
21619PB7620Stator
206082Y00DG6Warning Label
216082Y00DG7Warning Label
231619PB7621Fan
241619PB7622Groove ball bearing
261619PB5551Torx Oval-Head Screw
271619PB7623Vibration Foot
282609101304Plate 78X128
28/11600A029FPSwing-Plate
28/22609101303Plate Delta
291600A00P44Foam Panel
29/11600A00N2YFoam Panel 101X113
29/21600A00P45Foam Panel
31619PB5546Armature
301619PB5555Torx Oval-Head Screw
311619PB5556Compression Spring
321619PB5557Compression Spring
331619PB5558Switch Button
341619PB5559Torx Oval-Head Screw
351619PB5560Sticker
371619PB7624Housing
42607202753Switch
401619PB5601Speed governor
411619PB5616Contact retainer
421619PB5575Torx Oval-Head Screw
432603410048Thread-forming tap. Screw M4X8
441600A029KKClamp Handle
452609170216Felt 173MM
45/12609170223Felt 143MM
491619PB7632Washer
501619PB7630Connector Bushing
511619PB7631Clip
6511619PB5598Dust container
6531619PB7067Punching Tool
8081619PB7638Nameplate
96082Y00E4ZLabel
