Bosch GSS 18V-10

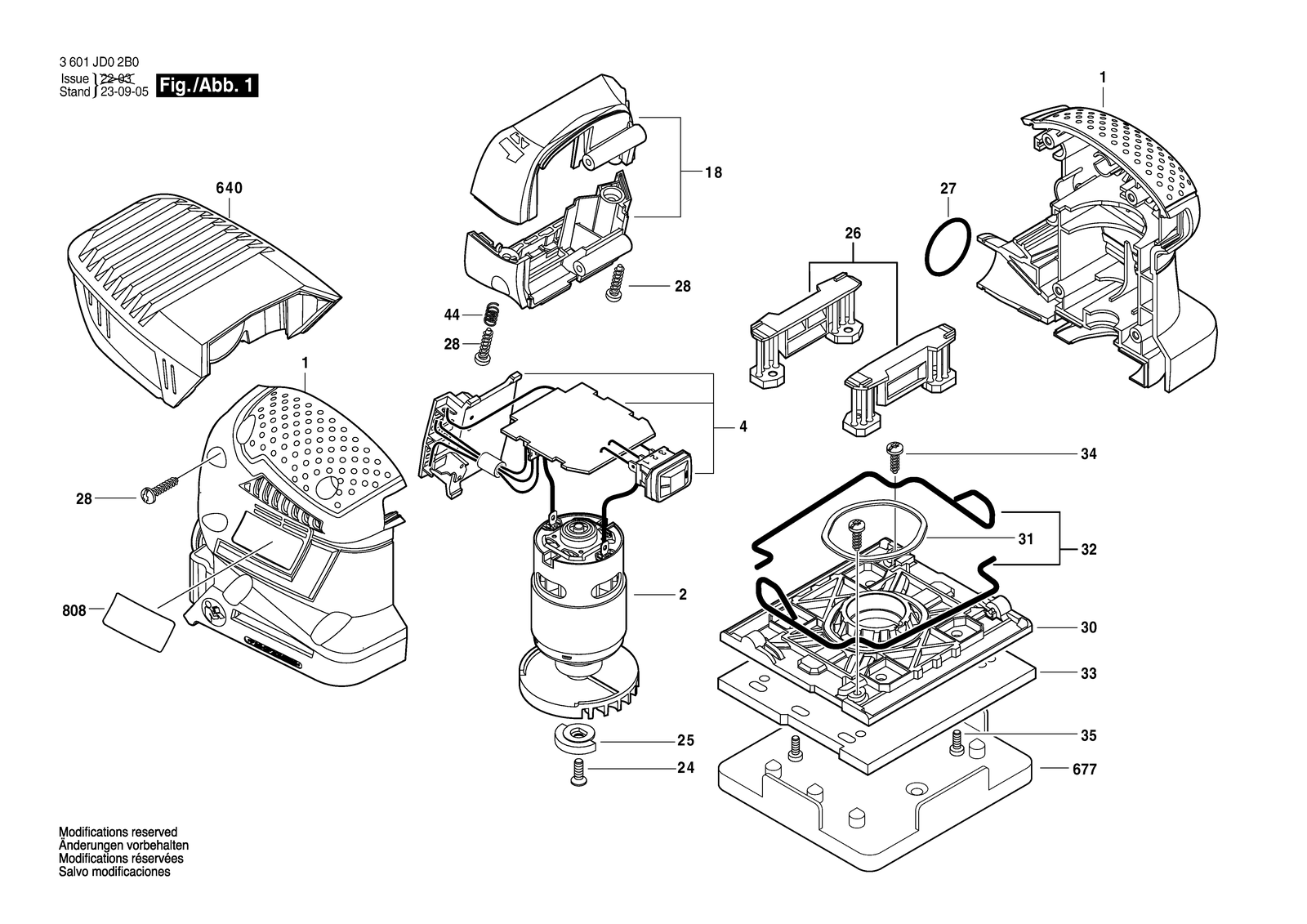

Bosch GSS 18V-10 orbital sander: exploded parts diagram, 1 sheet, 41 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSS 18V-10: 41 positions on 1 sheet
Bosch GSS 18V-10 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609101283 | Housing |
| 1 | 2609101283 | Housing |
| 18 | 2609101284 | Housing |
| 18 | 2609101284 | Housing |
| 2 | 2609199711 | DC motor 18V |
| 2 | 2609199711 | DC motor 18V |
| 24 | 2610991395 | Screw |
| 24 | 2610991395 | Screw |
| 25 | 2610920634 | Counterweight |
| 25 | 2610920634 | Counterweight |
| 26 | 2609101298 | Vibration Foot |
| 26 | 2609101298 | Vibration Foot |
| 27 | 1610210013 | O-Ring 24,0X1,5 MM |
| 27 | 1610210013 | O-Ring 24,0X1,5 MM |
| 28 | 2603490022 | Screw 4X16 |
| 28 | 2603490022 | Screw 4X16 |
| 30 | 2609101073 | Plate |
| 30 | 2609112106 | Swing-Plate 100X110 |
| 31 | 2609170223 | Felt 143MM |
| 31 | 2609170223 | Felt 143MM |
| 32 | 2609111892 | Spring Wire |
| 32 | 2609111796 | Clamp Handle |
| 33 | 2609170230 | Felt |
| 33 | 1600A00N2Y | Foam Panel 101X113 |
| 34 | 2603490020 | Torx Oval-Head Screw 4X8 |
| 34 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 35 | 2610915161 | Screw |
| 35 | 2610915161 | Screw |
| 4 | 2609199601 | Electronics Module 18V |
| 4 | 2609199701 | Electronics Module 18V |
| 4 | 2609199701 | Electronics Module 18V |
| 44 | 1609280477 | Compression Spring |
| 44 | 1609280477 | Compression Spring |
| 640 | 2609199651 | Dust container |
| 640 | 2609101692 | Dust container |
| 677 | 2610920650 | Punching Tool |
| 677 | 2610920650 | Punching Tool |
| 808 | 1600A00Z04 | Nameplate |
| 808 | 1600A00Z0Z | Nameplate |
| 808 | 160111A4WW | Nameplate |
| 808 | 160111A4WX | Nameplate |
