Bosch GSS 18V-10

Bosch GSS 18V-10 orbital sander: exploded parts diagram, 2 sheets, 21 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSS 18V-10: 21 positions on 2 sheets

Bosch GSS 18V-10 parts list (2 sheets)

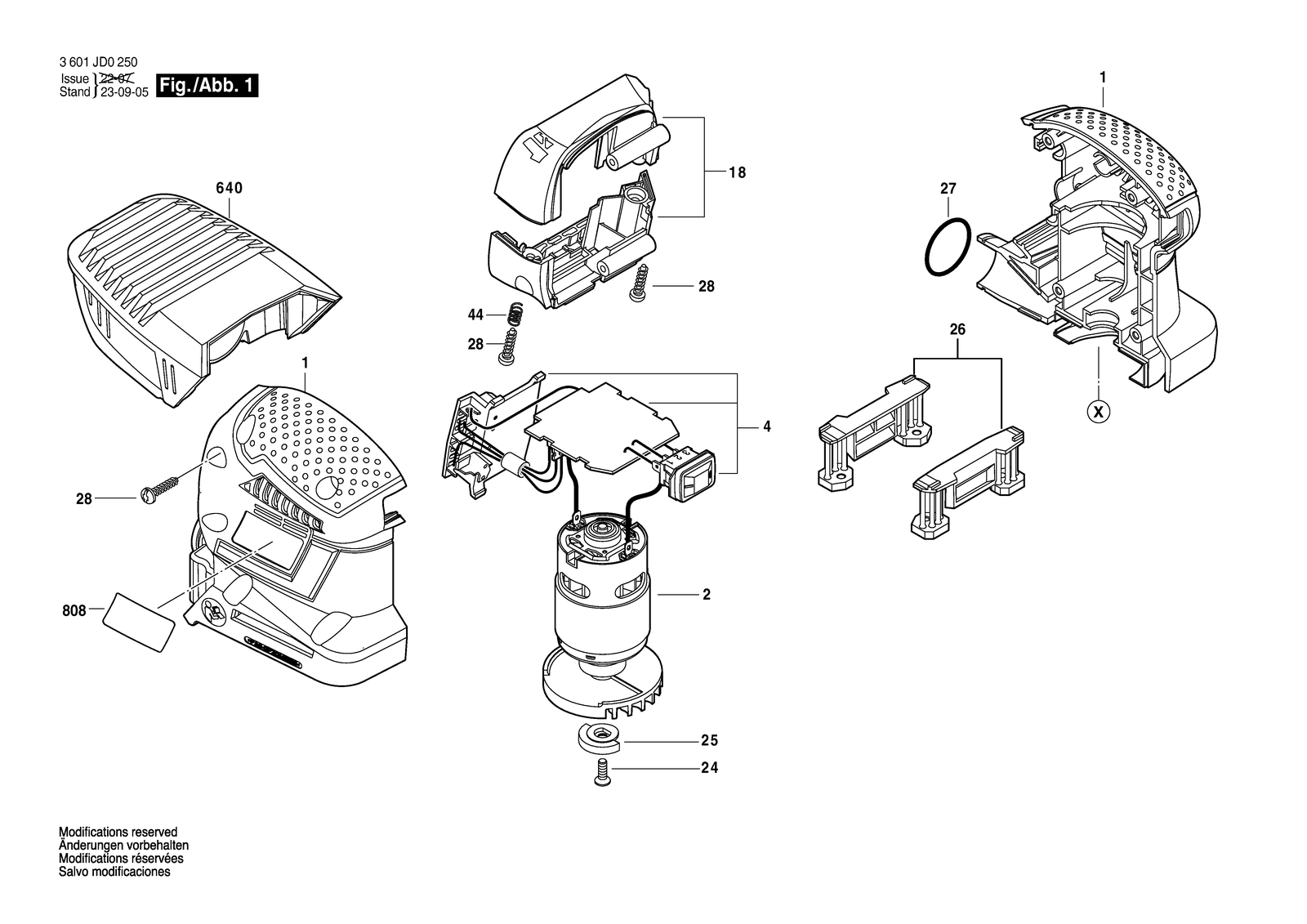

Bosch GSS 18V-10 parts diagram, sheet 1Bosch GSS 18V-10 parts diagram, sheet 2
No.Part numberPart name
12609101283Housing
182609101284Housing
22609199711DC motor 18V
242610991395Screw
252610920634Counterweight
262609101298Vibration Foot
271610210013O-Ring 24,0X1,5 MM
282603490022Screw 4X16
302609101073Plate
30/11600A029FPSwing-Plate
312609170223Felt 143MM
322609111892Spring Wire
32/11600A029KKClamp Handle
332609170230Felt
33/11600A00N2YFoam Panel 101X113
342603490020Torx Oval-Head Screw 4X8
352610915161Screw
35/12610915161Screw
42609199601Electronics Module 18V
441609280477Compression Spring
8081600A00Z02Nameplate
