Bosch GSS 160-1 A

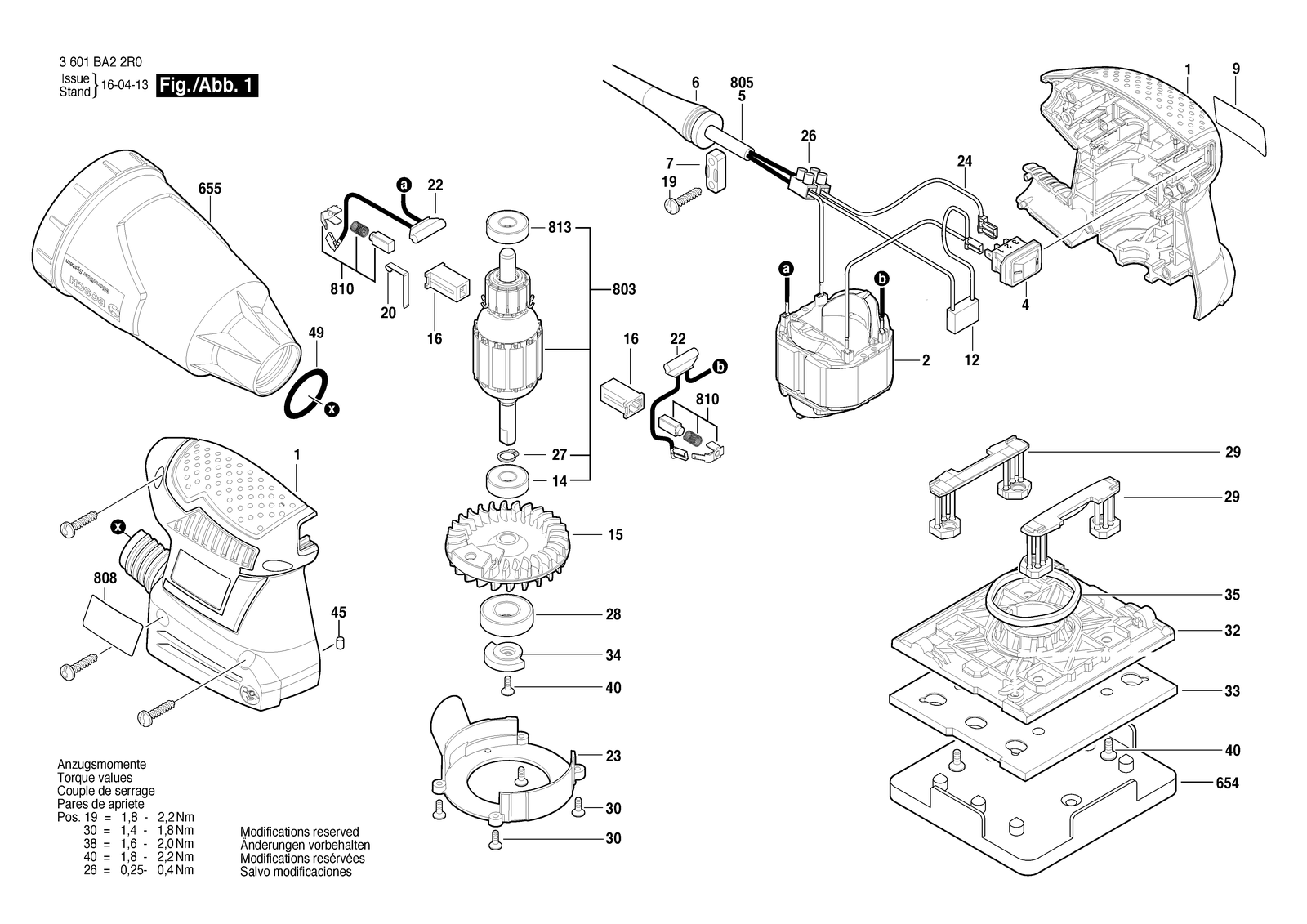

Bosch GSS 160-1 A orbital sander: exploded parts diagram, 1 sheet, 36 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSS 160-1 A: 36 positions on 1 sheet
Bosch GSS 160-1 A parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609101361 | Housing |
| 12 | 2609120543 | Suppression Filter |
| 14 | 2609110153 | Ball Bearing 8X22X7 |
| 15 | 2610920618 | Fan |
| 16 | 2610320548 | Brush Holder |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 1604220408 | Field 230-240V |
| 20 | 2601329057 | Contact Spring |
| 22 | 2610920619 | Suppression Filter |
| 23 | 2609101301 | Fan Cover |
| 24 | 2609120579 | Cable |
| 26 | 2610910009 | Connection Block |
| 27 | 2916540005 | Retaining ring DIN 7993-A8 |
| 28 | 2609110748 | Ball Bearing |
| 29 | 2609101302 | Vibration Foot |
| 30 | 2609111844 | Screw |
| 32 | 2609101304 | Plate 78X128 |
| 32 | 2609112106 | Swing-Plate 100X110 |
| 33 | 2609199744 | Sander Plate 101X113 |
| 33 | 2609199811 | Sander Plate 78X128 |
| 34 | 2609111657 | Counterweight |
| 35 | 2609170216 | Felt 173MM |
| 4 | 1607200190 | Switch |
| 40 | 2607225969 | Charger Aus AL 1830 CV 230/14,4-18V 1H |
| 45 | 2610350103 | Pin |
| 49 | 1610210045 | O-Ring 23,0X3,0 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 654 | 2610920650 | Punching Tool |
| 655 | 2609199905 | Dust container |
| 7 | 2601035001 | Cable Clip |
| 803 | 2609199883 | Armature 230V |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 808 | 2609138411 | Nameplate |
| 810 | 2609120199 | Carbon-Brush Set |
| 813 | 2610917489 | Ball Bearing |
| 9 | 2609136027 | Manufacturer's nameplate GSS 160-1 A |
