Bosch GSS 1400 A orbital sander: exploded parts diagram, 1 sheet, 46 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSS 1400 A: 46 positions on 1 sheet

Bosch GSS 1400 A parts list (1 sheet)

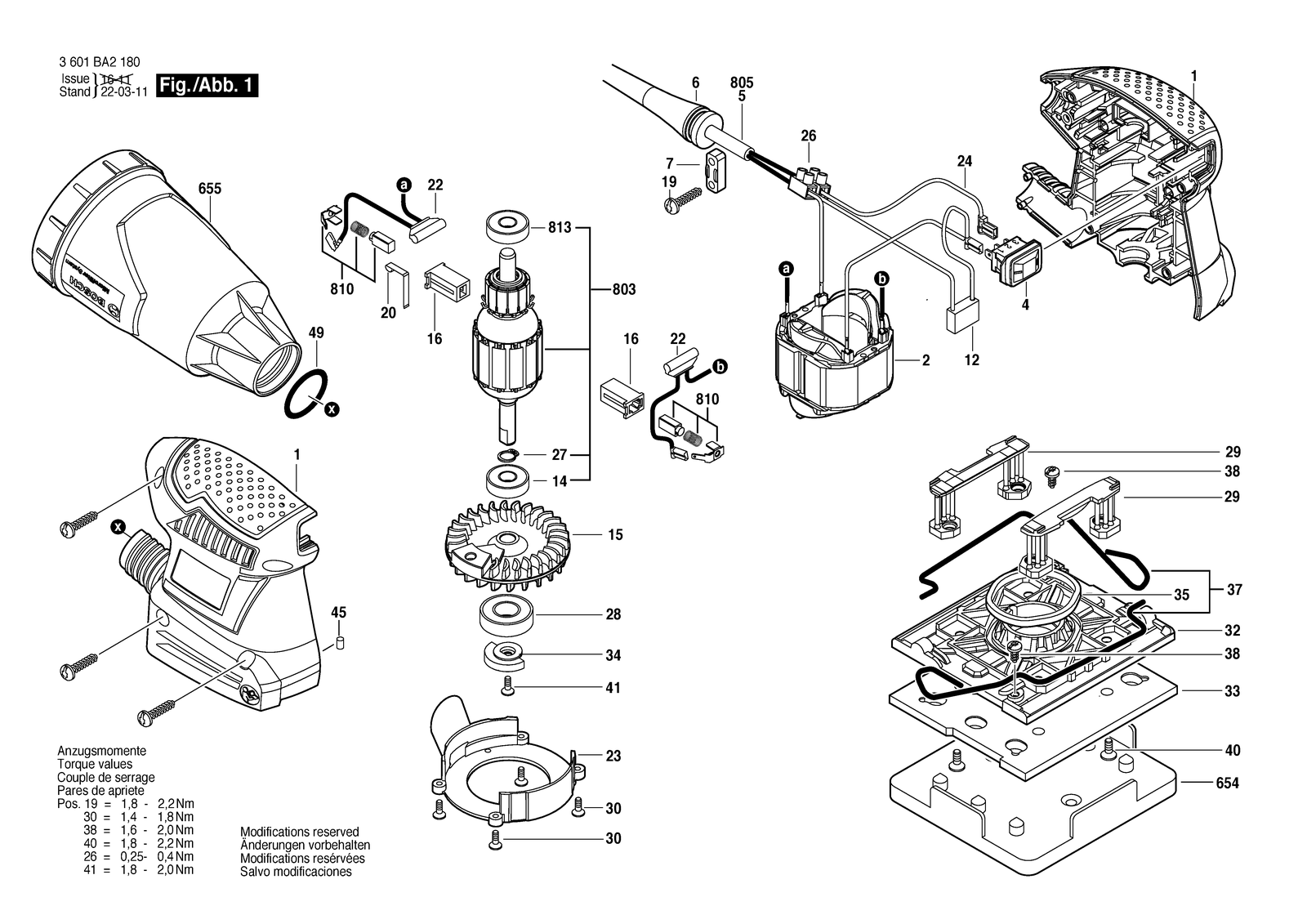

Bosch GSS 1400 A parts diagram, sheet 1
No.Part numberPart name
12609101361Housing
122609120543Suppression Filter
142609110153Ball Bearing 8X22X7
152610920618Fan
162610320548Brush Holder
192603490022Screw 4X16
21604220408Field 230-240V
21604220412Field 100V
21604220413Field 120V
202601329057Contact Spring
222610920619Suppression Filter
232609101301Fan Cover
242609120579Cable
262610910009Connection Block
272916540005Retaining ring DIN 7993-A8
282609110748Ball Bearing
292609101302Vibration Foot
302609111844Screw
322609101073Plate
322609112106Swing-Plate 100X110
332609170217Sander Plate
342609111657Counterweight
352609170223Felt 143MM
372609111796Clamp Handle
382603410048Thread-forming tap. Screw M4X8
382603490020Torx Oval-Head Screw 4X8
41607200190Switch
402610915161Screw
412609111845Torx Oval-Head Screw
452610350103Pin
491610210045O-Ring 23,0X3,0 MM
51604460262Power supply cord CN 220V 2,65M 2 X 0,75MM H05 Vv-F
51604460317Power supply cord J 2,5M 2 X 0,75MM Vct F
52604460227Power supply cord SAM 2,65M 2 X 082MM SJ 18/2
52604460297Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F
52609120103Power supply cord CN 2,65M 2 X 0,75MM H05VV-F
62600703017Grommet Ø6,4-Ø7,2X76 MM
62600703018Grommet Ø7,3-Ø8,6X76 MM
6542610920650Punching Tool
6552609101374Dust container
72601035001Cable Clip
8032609199883Armature 230V
8032609199890Armature
8032609199891Armature 120V
8102609120199Carbon-Brush Set
8132610917489Ball Bearing
