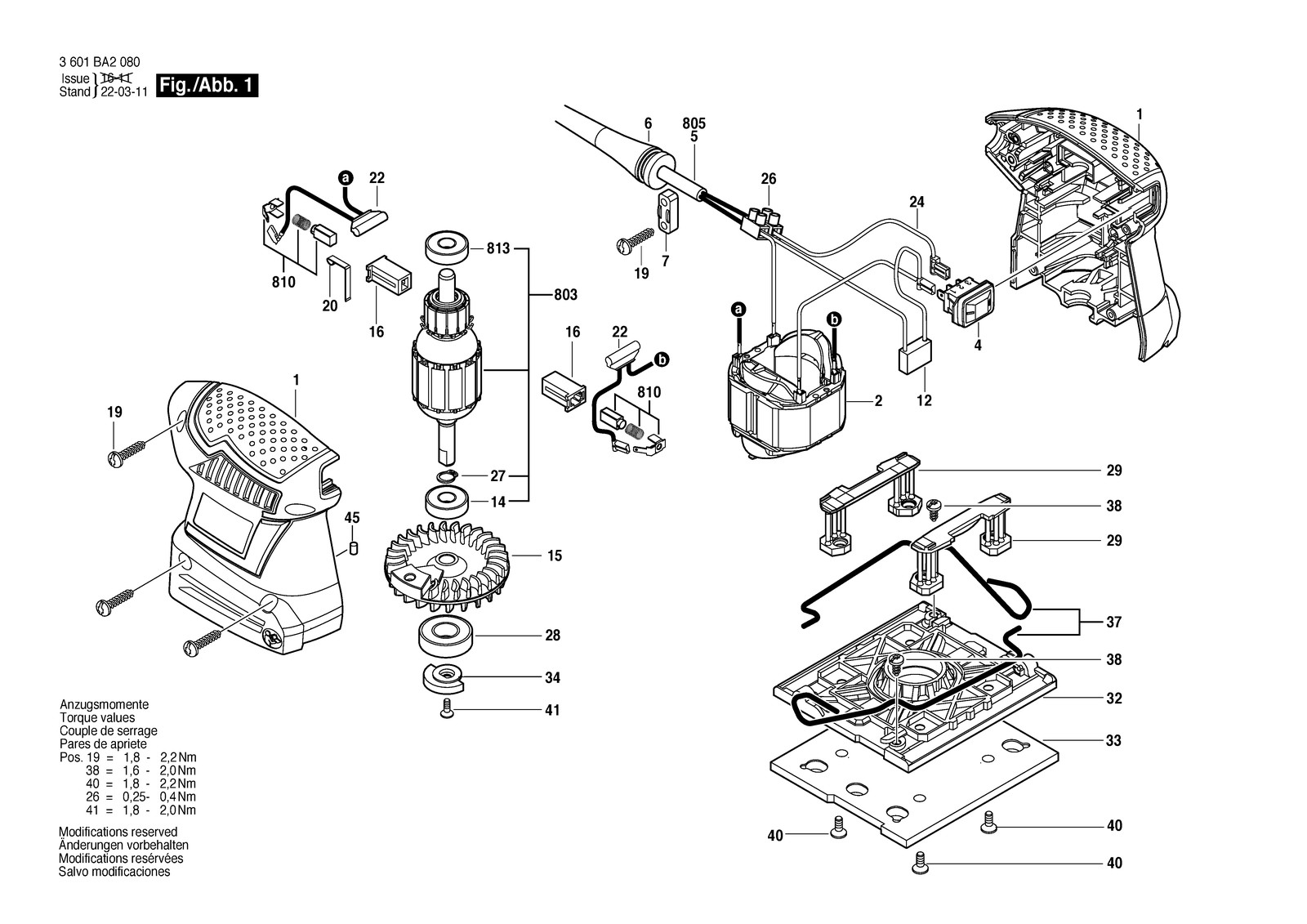

Bosch GSS 1400 orbital sander: exploded parts diagram, 1 sheet, 35 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSS 1400: 35 positions on 1 sheet
Bosch GSS 1400 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609101365 | Housing |
| 12 | 2609120543 | Suppression Filter |
| 14 | 2609110153 | Ball Bearing 8X22X7 |
| 15 | 2610920618 | Fan |
| 16 | 2610320548 | Brush Holder |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 1604220408 | Field 230-240V |
| 2 | 1604220413 | Field 120V |
| 20 | 2601329057 | Contact Spring |
| 22 | 2610920619 | Suppression Filter |
| 24 | 2609120579 | Cable |
| 26 | 2610910009 | Connection Block |
| 27 | 2916540005 | Retaining ring DIN 7993-A8 |
| 28 | 2609110748 | Ball Bearing |
| 29 | 2609101302 | Vibration Foot |
| 32 | 2609101073 | Plate |
| 33 | 2609170217 | Sander Plate |
| 34 | 2609111657 | Counterweight |
| 37 | 2609111796 | Clamp Handle |
| 38 | 2603490020 | Torx Oval-Head Screw 4X8 |
| 4 | 1607200190 | Switch |
| 40 | 2610915161 | Screw |
| 41 | 2609111845 | Torx Oval-Head Screw |
| 45 | 2610350103 | Pin |
| 5 | 1604460182 | Power supply cord GB 240V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460227 | Power supply cord SAM 2,65M 2 X 082MM SJ 18/2 |
| 5 | 2609120103 | Power supply cord CN 2,65M 2 X 0,75MM H05VV-F |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 7 | 2601035001 | Cable Clip |
| 803 | 2609199883 | Armature 230V |
| 803 | 2609199891 | Armature 120V |
| 805 | 1607000387 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 810 | 2609120199 | Carbon-Brush Set |
| 813 | 2610917489 | Ball Bearing |
